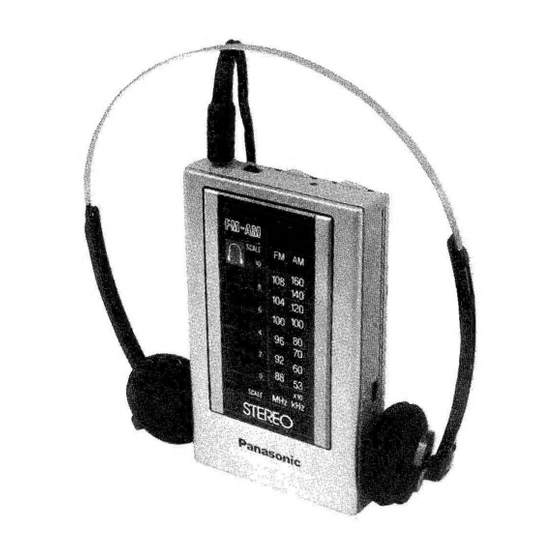

Panasonic RF-433 Service Manual

ORDER NO. TD84110161C1
A-1
ervice Manual
Radio
SPECIFICATIONS
Frequency Range:
FM88 ~ 108MHz
Dimensions: 70(Wide) X 118(High) X26(Deep)mm
AM525 ~ 1610kHz
(2-%%" X4-%" X 1-H")
Intermediate Frequency: FM10.7MHz Weight: 120g (4.2 oz) Without Batteries
AM455kHz Impedance: Headphone Jack ***-+*+32 Q (63.5)
Sensitivity: FM1.8 wv
(—3dB, Limit. Sens.) ® Featherweight Stereo Headphones
AM56.34V/m for 1mW Output Input: 10mW (Max. 50mW)
Power Outpv 60mW (30mW X2) Maximum Impedance: 242
Batteries:
3V(Two "AAA" Size Penlight Batteries)
Connection Cord: 90cm (35-%"")
(Panasonic UM-4 or equivalent) Weight: 52% (1.8 0z.) with cord
Weights and dimensions shown are approximate.
(Les poide et dimensions mentionnes sont approximatifs).
Specifications are subject. to change without notice.
Matsushita Engineering and Panasonic Hawaii Inc. Panasonic Sales Company,
Service Company 91-238 Kauhi St. Ewa Beach Division of Matsushita Electric
= 50 Meadowland Parkway, P.O. Box 774 ) of Puerto Rico, Inc.
Secaucus. New Jersey 07094 Honolulu, Hawaii 96808-0774 Ave, 65 De Infanteria, KM 9.7
Victoria Industrial Park
® Matsushita Electric Carolina, Puerto Rico 00630
of Canada Limited
5770 Ambler Drive, Mississauga,
Ontario, L4W 2T3
