Panasonic RF-2400D - FM-AM 2-Band Receiver Manual
- Operating instructions (2 pages) ,
- Owner's manual (8 pages)
Advertisement
Power Supply

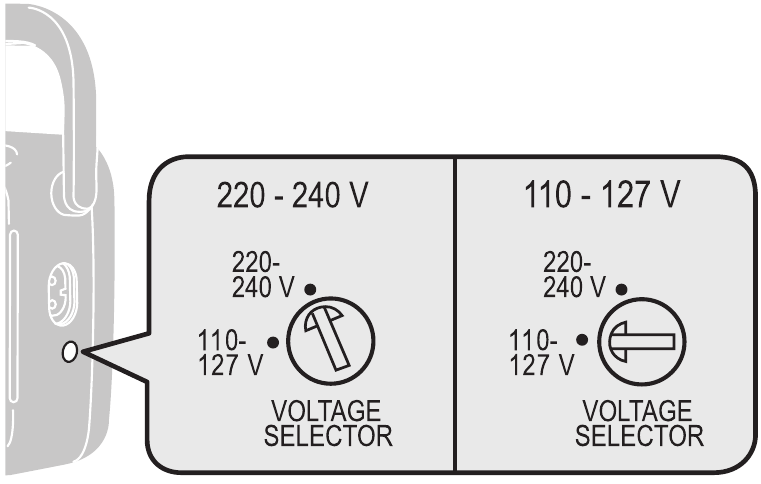

Voltage selector
(For Asia)
Use a screwdriver to set the voltage for your area.

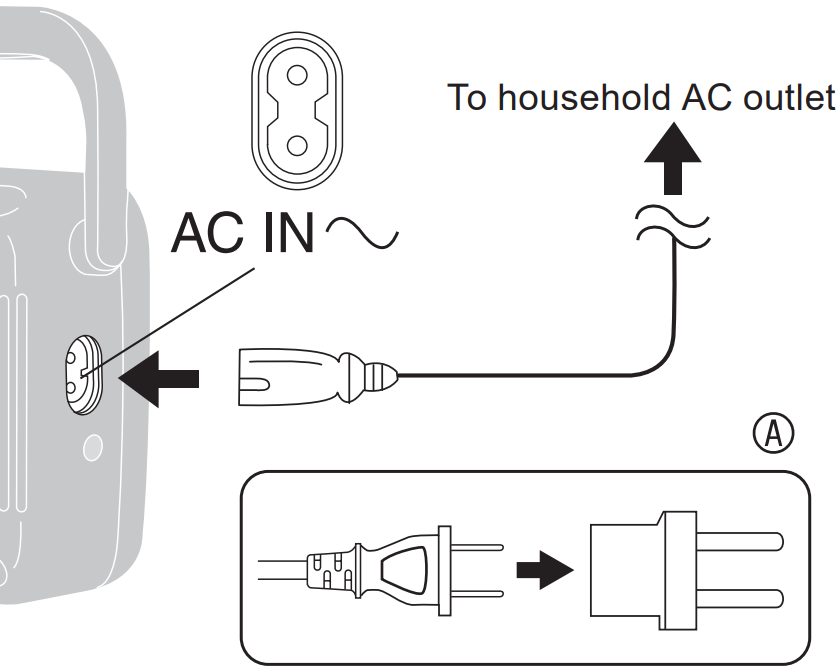

Connecting AC mains lead
The included AC mains lead is for use with this unit only. Do not use it with other equipment. A If the power plug will not fit your socket, use the power plug adaptor (included) For Asia.
Using dry cell batteries
(not included)
Unplug the AC mains lead from the household mains socket and the AC IN socket on the unit.
- Open the battery lid.
![Power supply - Using dry cell batteries]( "Panasonic - RF-2400D - Power supply - Using dry cell batteries")
- Insert batteries in the designated order.
- Four R6/LR6, AA, UM-3 batteries (not included). Press in towards the (‒) end.

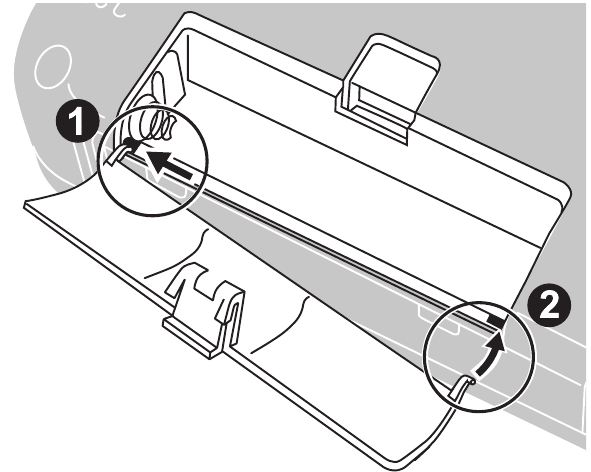

If the battery lid comes loose
Insert the protrusions on the lid into the cutouts on both sides of the compartment.
Listening to the Radio
- Set [OFF/BAND] to FM or AM.
FM indicators turns orange.
AM indicators turns orange.
![Listening to the Radio]( "Panasonic - RF-2400D - Listening to the Radio")
- Tune to a station.
[TUNING] lamp lights when tuned. - Adjust the volume.
Luminous bar
: Collects light from lighting equipment and the sun, and glows when the environment becomes dark.
To turn the radio off
Set [OFF/BAND] to OFF.
OFF indicator turns orange.
To adjust the antennas
FM: Pull out the telescopic antenna and adjust its length and angle for optimum reception.

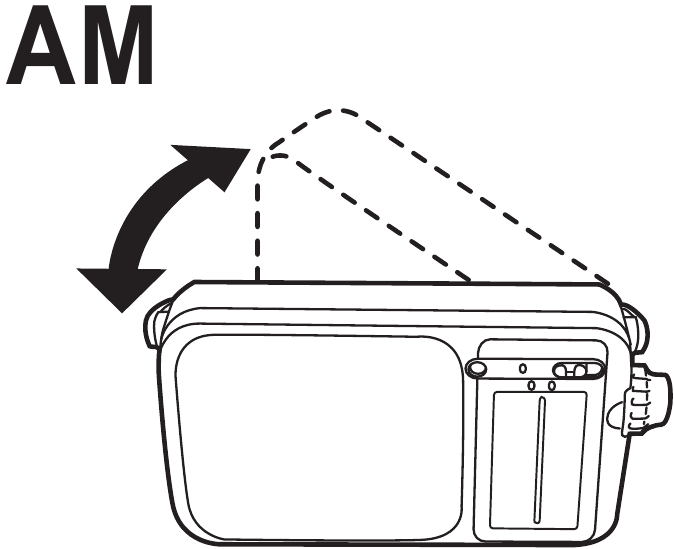

AM: The unit has a built-in ferrite antenna, so try various directions for optimum reception.

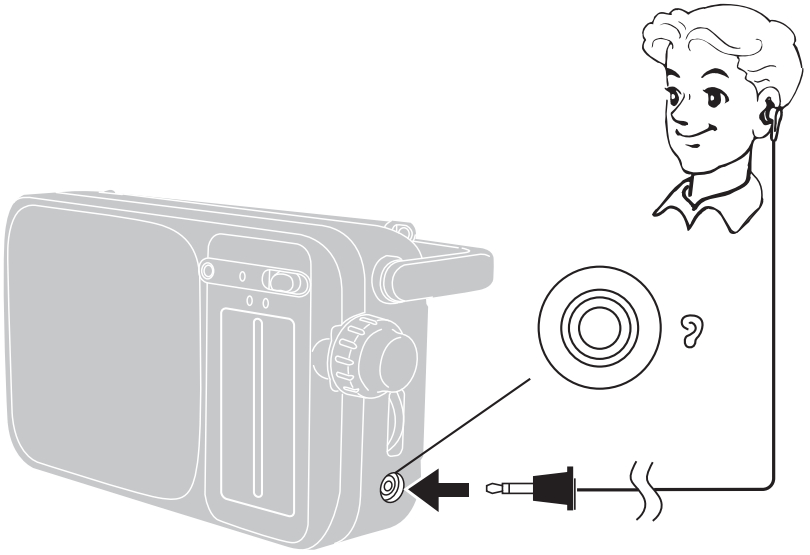

Using an earphone
(not included)
Sound is not heard from the speaker.
Plug type: 3.5 mm, monaural
- Excessive sound pressure from earphones and headphones can cause hearing loss.
- If a gritty noise is heard, wipe away the dirt on the plug.
Maintenance
To clean this unit, use a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in a soap-and-water solution or a weak detergent solution.
- Never use alcohol, paint thinner or benzine to clean this unit.
- Before using chemically treated cloth, read the instructions that came with the cloth carefully.
Specifications
| Frequency range | ||
| FM; | For Asia | 88.00 – 108.00 MHz |
| For Australia and N.Z | 87 – 108 MHz | |
| AM; | For Asia | 530 – 1605 kHz |
| For Australia and N.Z. | 520 – 1730 kHz | |
| Output jack | EARPHONE, Ø 3.5 mm, 8 Ω | |
| Speaker | 10 cm, 4 Ω (Full range) | |
| Power output | 770 mW (RMS... max) | |
| Power requirement | ||
| AC | For Asia | 110 – 127/220 – 240 V, 50/60 Hz |
| For Australia and N.Z. | 230 – 240 V, 50 Hz | |
| Battery | 6 V (Four R6/LR6, AA, UM-3 batteries) | |
| Power consumption | 3 W | |
| Dimensions (WxHxD) | 234 x 122 x 82 mm | |
| Mass | 690 g (without batteries) | |
| Battery life | ||
| Alkaline (LR6) | Manganese (R6) | |
| FM | Approx. 52 H | Approx. 21 H |
| AM | Approx. 55 H | Approx. 20 H |
Note:
Specifications are subject to change without notice. Mass and dimensions are approximate.
Panasonic Entertainment & Communication Co., Ltd.
Web Site: https://www.panasonic.com
