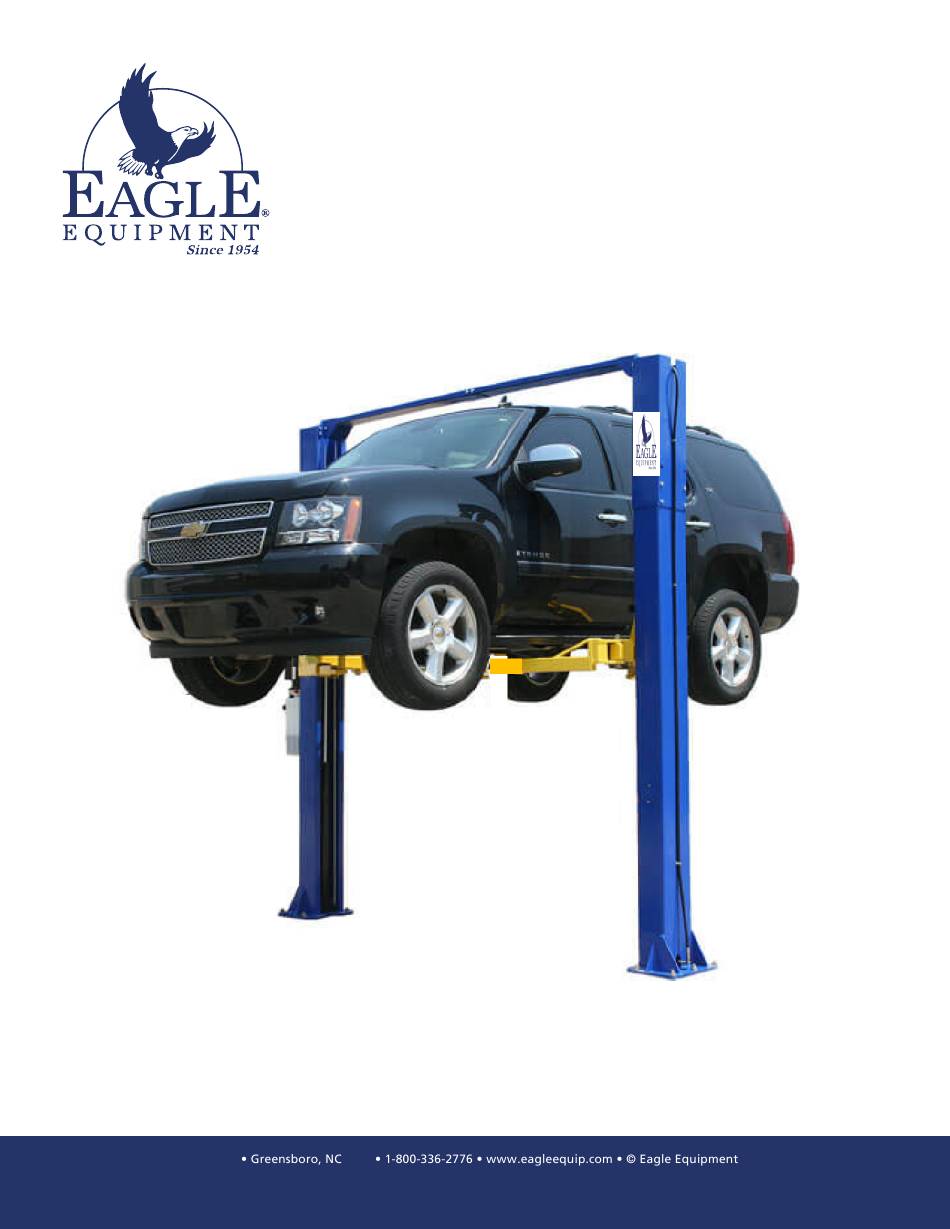

- Page 1 EAG9COH Installation & Operation Manual 9COH 9,000 Lbs. Capacity Two-Post Lift EAG- READ THIS MANUAL BEFORE INSTALLING OR OPERATING THE LIFT. INSPECT THE LIFT UPON DELIVERY. NOTE ANY DAMAGE ON DELIVERY RECEIPT. 2023 205 S Westgate Dr 27407...
-
Page 2: Table Of Contents
Vehicle in Raised Position ........................23 Lowering the Lift ........................... 23 Maintenance ............................24-26 Troubleshooting ............................27 Explosive View ............................28-29 Parts List ..............................30-33 Eagle Equipment Lift Warranty ........................ 34 About Us ..............................35 2023 205 S Westgate Dr 27407... -
Page 3: Product Description
Any other proposed application of this equipment should be documented and submitted in writing to Eagle Equipment for review. The user assumes full responsibility for any equipment damage, personal injury, or alteration of the equipment described in this manual or any subsequent damages. -
Page 4: Terms And Conditions
Eagle Equipment “Customer”) with and accepted by (referred to herein as “EAGLE”). Eagle Equipment™ brand and the . The terms of service are rules that our customer and EAGLE agree to abide by prior to doing business together. Payment Methods EAGLE accepts Visa, MasterCard, American Express and Discover. - Page 5 shipping what will be needed to unload your shipment and the approximate weight of the shipment. Tracking: While EAGLE will provide customers with an estimated time of delivery and tracking information, we can’t provide a specific time, or schedule a time for that service. The customer can contact the freight carrier directly to schedule a delivery or check on freight delivery status.
-
Page 6: Installation
Warranties, Returns and Replacements All products that appear on our websites or in our catalogs are warranted by Eagle Equipment™ or the manufacturer against defects in material and workmanship to the extent of the manufacturer’s warranty. Please note that we provide a warranty on parts only and this doesn’t extend to labor, loss of product use, or loss of business revenue and profits. -
Page 7: Product Availability / Pricing
Concealed damage must be reported to the freight company within three (3) days of delivery. It is the customer’s responsibility to file for damage claims against the freight company. Eagle Equipment is not responsible for loss or damages caused by shipping. -
Page 8: Introduction
INTRODUCTION Thank you for your purchase. Your lift is the result of decades of research, testing, and development; and represents the most advanced technology on the market. The care with which you maintain and operate your lift will directly affect its overall performance and longevity. -
Page 9: Unpacking
External damage must be noted on the Bill of Lading. Concealed damages must be reported to the freight company within three days of delivery. Shortages must be reported to Eagle Equipment within three days of delivery: 1-800-336-2776. 205 S Westgate Dr• Greensboro, NC 27450 • 1-800-336-2776 • www.eagleequip.com • page 9... -
Page 10: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ THESE SAFETY INSTRUCTIONS THOROUGHLY 1. Read and understand all operation and safety warning procedures before operating the lift. 2. Keep hands and feet clear. Remove hands and feet from any moving parts. Keep feet clear of lift when lowering. -
Page 11: Intended Use
Model Capacity Load Distribution Front:Rear MINIMUM MAXIMUM EAG9COH 9,000 lbs. In principle, the lift is designed for entry from both directions. However, we recommend using the short support arms for engaging the engine side of the vehicle. SAFETY INSTRUCTIONS FOR COMMISSIONING The lift may be installed and commissioned by authorized service personnel only. -
Page 12: Important Concrete And Anchoring Information
IMPORTANT CONCRETE AND ANCHORING INFORMATION 1. Concrete should have compression strength of at least 3,000 PSI (207bar) and a minimum thickness of 4" (101mm) in order to achieve a minimum anchor embedment of 3.2" (82mm). When using the standard supplied nineteen (19) 5.5" (140mm) long anchors, if the top of the anchor exceeds 57 above the floor grade, you DO NOT have enough embedment. -
Page 13: Operation
INSTALLATION INSTRUCTIONS STEP 4: Once the power unit column location is decided, ensure that the proper lift placement is observed from walls and obstacles. Also check the ceiling height for clearance in this location. Note the power unit column can be located on either side. It is helpful to try and locate the power side with the passenger side of the vehicle when loaded on the lift to save steps during operation. -
Page 14: Specifications
Latches will automatically reset once the lift ascends approximately 17” (432mm) from base. If latches click out of sync, tighten the cable on the one that clicks first. SPECIFICATIONS EAG9COH Style Asymmetric Lifting capacity 9,000 lbs. - Page 15 INSTALLATION INSTRUCTION: FIGURE 1 205 S Westgate Dr• Greensboro, NC 27450 • 1-800-336-2776 • www.eagleequip.com • page 15...
- Page 16 INSTALLATION INSTRUCTION: FIGURE 2 205 S Westgate Dr• Greensboro, NC 27450 • 1-800-336-2776 • www.eagleequip.com • page 16...
- Page 17 INSTALLATION INSTRUCTION: FIGURE 3 205 S Westgate Dr• Greensboro, NC 27450 • 1-800-336-2776 • www.eagleequip.com • page 17...
- Page 18 INSTALLATION INSTRUCTION: FIGURE 4 Note: Always try to keep two cables at the same tension. 205 S Westgate Dr• Greensboro, NC 27450 • 1-800-336-2776 • www.eagleequip.com page 18...
- Page 19 INSTALLATION INSTRUCTION: FIGURE 5 205 S Westgate Dr• Greensboro, NC 27450 • 1-800-336-2776 • www.eagleequip.com • page 19...
- Page 20 WIRING THE OVERHEAD SHUT OFF BAR LIMIT SWITCH FIRST YOU SHOULD CONNECT THE LIFT TO A 220 VOLT/1 PHASE POWER SUPPLY FOLLOWING STEPS 1-4. STEP 1. Remove the “faceplate” or “cover” (the part with the push button) from the power unit. STEP 2.
- Page 21 Remove the “eyelet” connectors from the end of the brown and blue wires coming from the limit switch. Connect one wire STEP 6. from the limit switch (brown or blue) to the part of the wire that you just cut that is coming from the push button. Then connect the other wire from the limit switch (brown or blue) to the other side of the wire that you just cut that is coming from the starter.
-
Page 22: Operation
OPERATION - Lift operation by authorized personnel over 18 years old only. - Apply the parking brake after positioning the vehicle on the lift. - Do not allow anyone to stay in lift area during raising and lowering cycles. - Closely watch the vehicle and the lift during raising and lowering cycles. - Observe the rated load capacity and load distribution. -
Page 23: Arm Restraint
ARM RESTRAINT Once the pad disc adapters contact the lift points, check arm restraints for engagement. If necessary, slightly move the arms until the gear segments mesh. Never unlatch the arm restraints when the lift is under load. Each support arm is provided with an automatic arm restraint which unlatches automatically when the lift is in bottom position. -
Page 24: Raising The Lift
RAISING THE LIFT During raising and lowering cycles: closely watch the vehicle and the lift, do not allow anyone to stay in the lift area. Make sure the vehicle doors are closed. Once the pad disc adapters contact the lift points, check the arm restraints for engagement. After raising the vehicle briefly, stop and check the adapters for secure contact. -
Page 25: Maintenance
MAINTENANCE ALWAYS LOCK THE LIFT BEFORE GOING UNDER THE VEHICLE. NEVER ALLOW ANYONE TO GO UNDER THE LIFT WHEN RAISING OR LOWERING. The maintenance intervals indicated below apply to average workshop use. The lift should be inspected more frequently for severe use applications. SAFETY INSTRUCTIONS FOR SERVICING - Maintenance or repair work by authorized service personnel only. -
Page 26: Greasing Points
WEEKLY MAINTENANCE CHECKS (40 HOURS) • Check anchor bolts torque to 203 watts per second (N-m/s) for the .75" (19mm) anchor bolts • Do not use impact wrench • Check floor for stress cracks near anchor bolts • Check hydraulic oil level •... - Page 27 2. Repair damage to the paint immediately to prevent corrosion. The RAL number is available through the manufacturer, or could be ordered directly from Eagle Equipment. 205 S Westgate Dr• Greensboro, NC 27450 • 1-800-336-2776 • www.eagleequip.com • page 2...
-
Page 28: Troubleshooting
TROUBLESHOOTING TROUBLE DIAGNOSIS SOLUTION Main switch is off Turn on main switch Lift does not respond. Main fuse defective Replace main fuse Lowering screw open Close lowering screw Lowering valve permanently Contact service open Motor starts up, pressure build- Hydraulic system leakage Remove leakage up insufficient to raise load. -
Page 29: Exploded View
EXPLO VIEW 205 S Westgate Dr• Greensboro, NC 27450 • 1-800-336-2776 • www.eagleequip.com • page 2... - Page 30 EXPLO VIEW 205 S Westgate Dr• Greensboro, NC 27450 • 1-800-336-2776 • www.eagleequip.com • page...
- Page 31 EAG9COH PARTS LIST ITEM DRAWING DESCRIPTION OH-3000 COLUMN EXTENSION GB70-85-M6*16 HEX HEAD BOLT M6 x 16mm GB93-87-φ6 LOCK WASHER M6 GB97.1-85-φ6 FLAT WASHER M6 OH-3100 HOSE GUIDE LSOH-1000B OFF SIDE COLUMN GB818-85-M6*8 PAN HEAD SCREW M6 X 8mm LSOH-1001 ACCESS COVER PZ-3/4"*5.5"...
- Page 32 EAG9COH PARTS LIST ITEM DRAWING DESCRIPTION HPRO-5004G PIVOT PIN HPRO-5001 SHUT OFF BAR MOUNT BRACKET GB97.1-85-φ8 FLAT WASHER M8 GB6170-86-M8 HEX NUT , M8 GB5781-M6*30 HEX HEAD BOLT , M6 X 30mm HB8029-M6 NYLOCK NUT M6 52042C HALF MOON GEAR...
- Page 33 EAG9COH PARTS LIST ITEM DRAWING DESCRIPTION 30400-9012-01 CHAIN ROLLER SHAFT GB894-1-86-φ25 RETAINING RING , 25mm N01-9100 CYLINDER GB894.1-86-φ35 RETAINING RING , 35mm GB97.1-85-φ36 FLAT WASHER , 36mm 30400-5028 SAFETY LATCH 30400-5027 LINK ROD 30400-5032 SPRING 30400-5029G CHAIN SLACK LINK HB8029-M8 NYLOCK NUT M8 GB93-87-φ8...
- Page 34 EAG9COH PARTS LIST 3/4"-16UNF HEX NUT PV-6003 RUBBER INSERT, ROUND GB70-85-M6*20 SOCKET HEAD CAP SCREW , M6 X 20mm 52200-3 RUBBER PAD , OCTAGON GB70.3-M6*16 SOCKET HEAD CAP SCREW , M6 X 16mm OH-1002 CABLE SHEAVE LSOH-1003 BEARING 30400-1005C WASHER...
-
Page 35: Eagle Equipment Lift Warranty
To the fullest extent allowed by law, Eagle Equipment shall not be liable for loss of use, inconvenience, lost time, commercial loss, or any other incidental or consequential damages. - Page 36 Eagle Equipment, a division of Standard Tools and Equipment Co., is a leading distributor of automotive repair and garage service equipment. Established in 1954, Eagle has provided quality equipment at competitive prices for 60 years. We carry a full line of automotive lifts: two-post lifts,...
- Page 37 205 S Westgate Dr• Greensboro, NC 27450 • 1-800-336-2776 • www.eagleequip.com • Eagle Equipment 2023...
