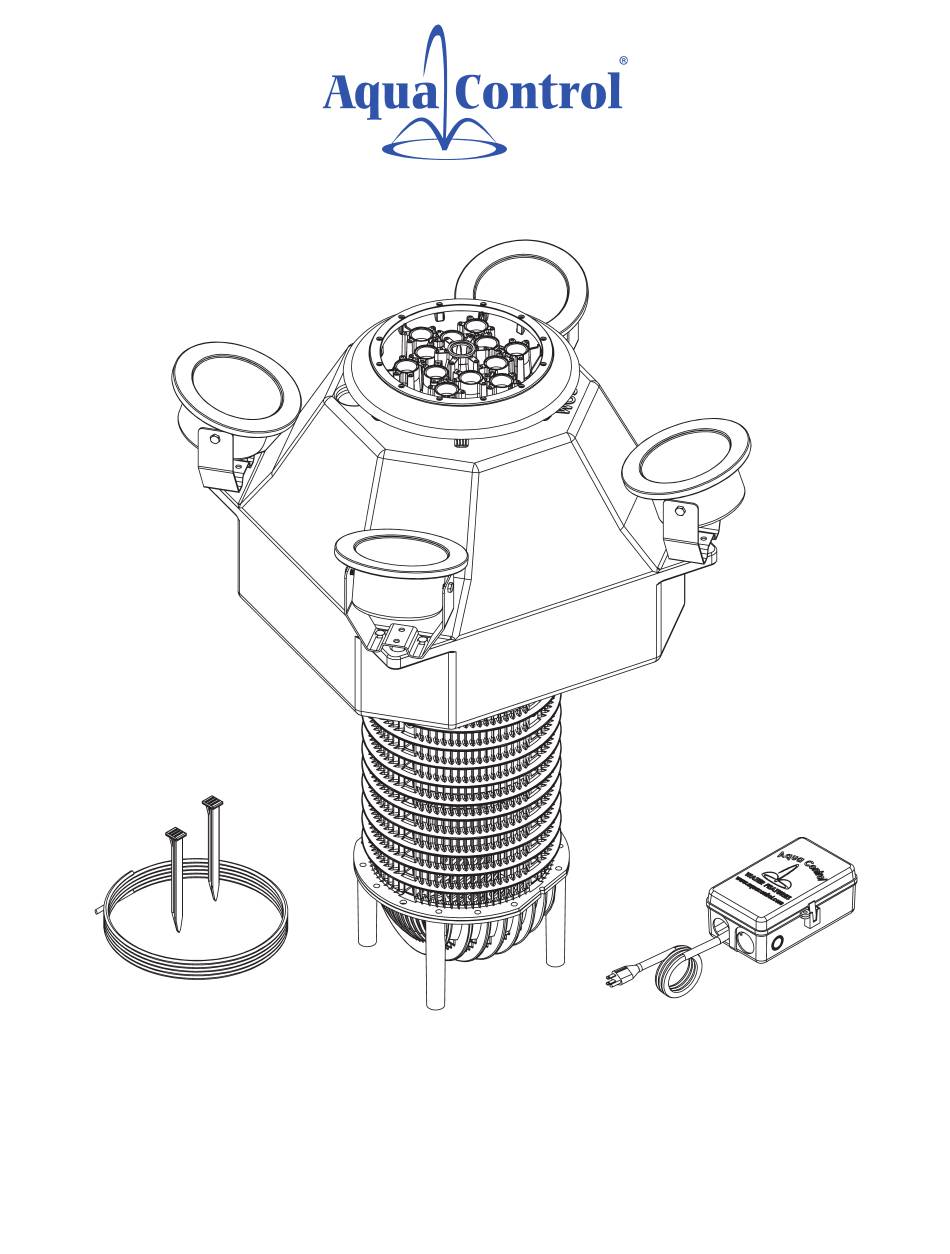

60 Hz FUSION SERIES Owner's Manual
Aqua Control
, Inc.
®
6A Wolfer Industrial Drive • Spring Valley, IL 61362 USA
Phone: 800-377-0019 • Fax: 815-664-4901 • aquacontrol.com
UNIT IDENTIFICATION
Unit Serial Number: ______________________ Distributor: ________________________
Light Set Serial Number: ___________________ Install Date: ________________________
Aqua Control®, Inc. 60Hz Fusion Series Owner's Manual
