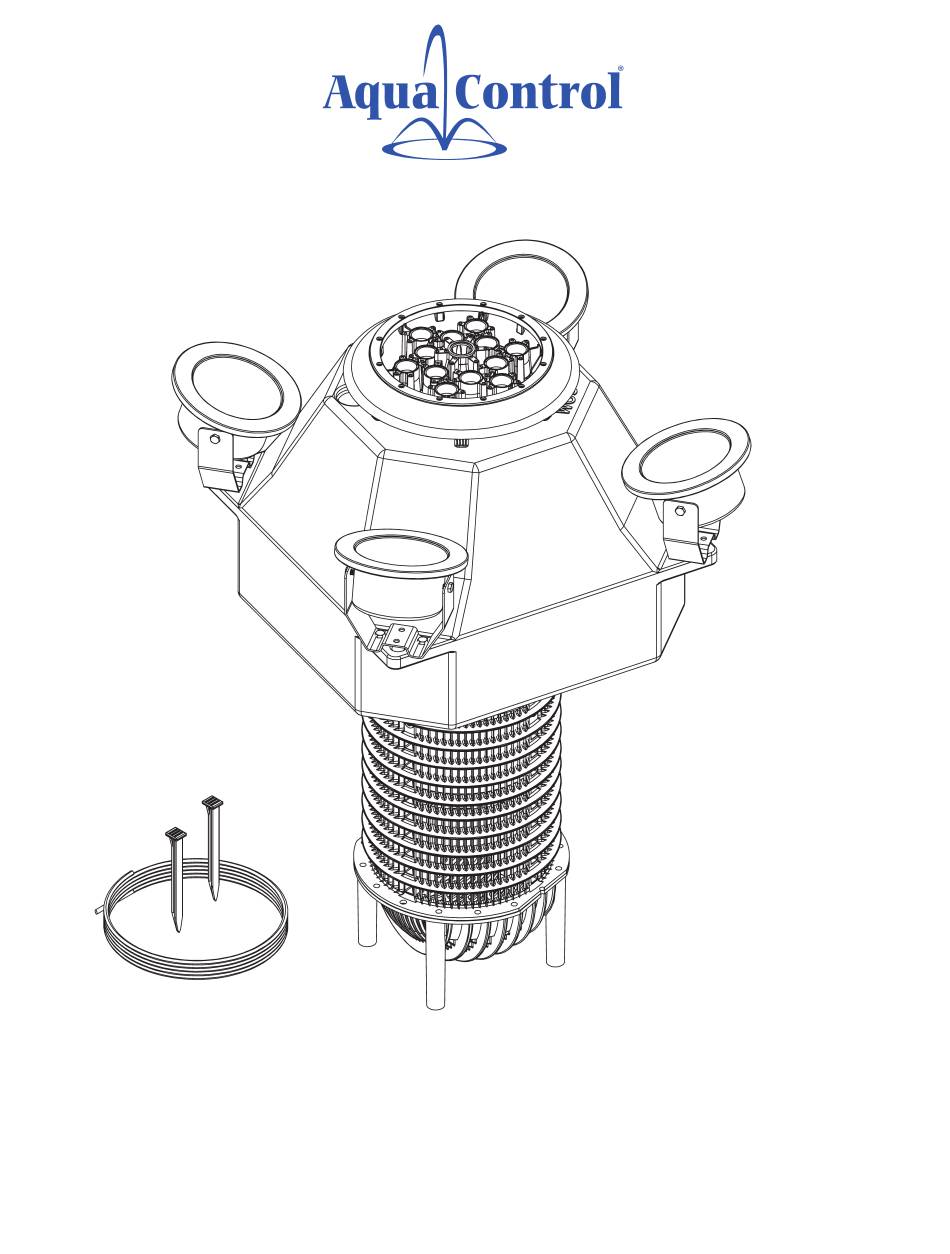

50 Hz FUSION Series Owners Manual
Aqua Control
, Inc.
®
6A Wolfer Industrial Drive • Spring Valley, IL 61362 USA
Phone: 800-377-0019 • Fax: 815-664-4901 • aquacontrol.com
UNIT IDENTIFICATION
Unit Serial Number: ______________________ Distributor: ________________________
Light Set Serial Number: ___________________ Install Date: ________________________
Aqua Control®, Inc. 50HZ Fusion Series Owner's Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aqua Control FUSION Series
Summary of Contents for Aqua Control FUSION Series
- Page 1 6A Wolfer Industrial Drive • Spring Valley, IL 61362 USA Phone: 800-377-0019 • Fax: 815-664-4901 • aquacontrol.com UNIT IDENTIFICATION Unit Serial Number: ______________________ Distributor: ________________________ Light Set Serial Number: ___________________ Install Date: ________________________ Aqua Control®, Inc. 50HZ Fusion Series Owner’s Manual...
-
Page 2: Safety Instructions
9. Always verify that the control panel and all electrical equipment are grounded properly. 10. Whenever high voltage electricity is used under water, a potential safety hazard exists. Aqua Control, Inc. builds and provides control panels that are equipped with an Earth Leakage Circuit Breaker for both motors and lights that detect and interrupt earth (ground) faults, in order to protect people, animals, equipment and property from dangerous line-to-ground and shock hazard currents. -
Page 3: Table Of Contents
............Aqua Control®, Inc. 50HZ Fusion Series Owner’s Manual... -
Page 4: Steps To Prep Fusion For Water
This also means that your Fusion cannot be sunk for the winter months without first removing the Module for off-season storage in a clean, dry, temperature-controlled environment. Please do not hesitate to contact Aqua Control® Technical Support or your local distributor if you have any additional questions or concerns. - Page 5 Place bracket in the corner using the provided hardware in the two outer holes as shown. Bracket will contour over the mooring rope. Light Bracket Mounting bolts Cord Away from Float Aqua Control®, Inc. 50Hz Fusion Series Owner’s Manual...
- Page 6 For the 0.5hp and 1hp unit, plug the light set cord into the outlet labeled “Lights” in the control box. For the 1.5hp and 2hp unit, place the individual wires of the light cable in the corresponding light set terminal block. Aqua Control®, Inc. 50Hz Fusion Series Owner’s Manual...
- Page 7 The lights must be 2” below the surface of the water when the unit is running. The unit is ready to be floated after the cable connection(s) have been made. Aqua Control®, Inc. 50HZ Fusion Series Owner’s Manual...
-
Page 8: Mooring & Light Installation Fusion Pump Parts List
80WL-0.31 5/16” LOCK WASHER 76 41-SRR SHAFT RETAINING RING 41-RSK 0.188”x0.250”x0.75” LONG RECTANGULAR KEY 1 5FMA-0.521-L2 0.5HP 50Hz 1PH 230V MOTOR ASSEMBLY 5FMA-1.021-L2 1.0HP 50Hz 1PH 230V MOTOR ASSEMBLY EV-H-ZIPTIE ZIP TIE Aqua Control®, Inc. 50Hz Fusion Series Owner’s Manual... -
Page 9: 2-Stage Fusion Pump Parts List
80WL-0.31 5/16” LOCK WASHER 76 41-SRR SHAFT RETAINING RING 41-RSK 0.188”x0.250”x0.75” LONG RECTANGULAR KEY 1 5FMA-1.521-L2 1.5HP 50Hz 1PH 230V MOTOR ASSEMBLY 5FMA-2.021-L2 2.0HP 50Hz 1PH 230V MOTOR ASSEMBLY EV-H-ZIPTIE ZIP TIE Aqua Control®, Inc. 50Hz Fusion Series Owner’s Manual... -
Page 10: Fusion Vertical Parts List
1.0, 230, 1 2W MTR ASSY 1.5HP 52MA2-1.511-L2 1.5, 230, 1 2W MTR ASSY 2.0HP 52MA2-2.011-L2 2.0, 230, 1 MTR ASSY 40-SCR MOLDED SUCTION SCREEN 40-SCR-EC MOLDED SUCTION SCREEN END CAP 1 Aqua Control®, Inc. 50HZ Fusion Series Owner’s Manual... -
Page 11: Fusion Horizontal Parts List
41-OF OUTFLOW 41-BASE MULTI NOZZLE BASE 41-FLARE FUSION FLARE SEE PAGE 6 PUMP ASSEMBLY SEE PAGE 7 MOTOR ASSEMBLY 40-SCR MOLDED SUCTION SCREEN 40-SCR-EC MOLDED SUCTION SCREEN ENDCAP 1 40-SCR-HC HOSE CLAMP Aqua Control®, Inc. 50HZ Fusion Series Owner’s Manual... -
Page 12: Troubleshooting Guide
Nozzle clogged check for obstruction & remove debris. Aqua Control Technical Support ® Available Monday thru Friday, 7:30AM – 5:00PM CST 1-800-377-0019 or 1-815-664-4900 info@aquacontrol.com -OR- Contact Your Local Aqua Control® Distributor Aqua Control®, Inc. 50HZ Fusion Series Owner’s Manual... -
Page 13: Notes
Notes 6A Wolfer Industrial Drive • Spring Valley, IL 61362 USA 800-377-0019 • Fax: 815-664-4901 • aquacontrol.com Aqua Control®, Inc. 50Hz Fusion Series Owner’s Manual... -
Page 14: Standard Nozzle Package
Twister Module ....... . A30 6A Wolfer Industrial Drive Spring Valley, IL 61362 USA 800-377-0019 • Fax: 815-664-4901 aquacontrol.com Aqua Control®, Inc. 50HZ Fusion Series Owner’s Manual...
