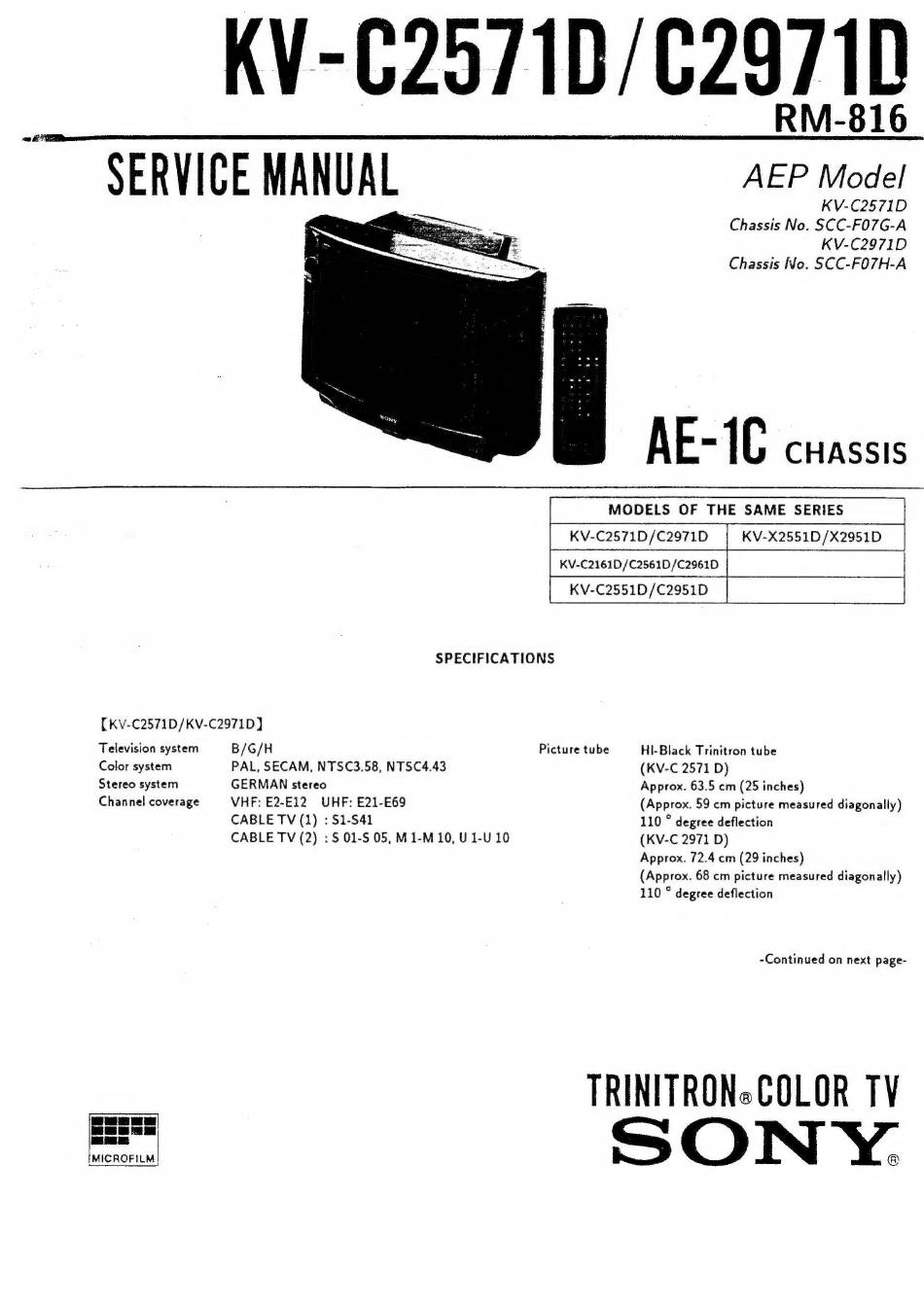

Sony TRINITRON KV-C2571D Service Manual

KV-€2571D/€29710
RM-816
AEP Model
KV-C2571D
Chassis No. SCC-F07G-A
KV-C2971D
Chassis No. SCC-FO7H-A
AE-1C CHASSIS
MODELS OF THE SAME SERIES
KV-C2571D/C2971D | KV-X2551D/X2951D
KV-C2551D/C2951D
SPECIFICATIONS
{Kv-C2571D/KV-C2971D }
Television system
Color system
Stereo system
Channel coverage
ae
MICROFILM
B/G/H
PAL, SECAM, NTSC3.58, NTSC4.43
GERMAN stereo
VHF: E2-E12 UHF: E21-E69
CABLE TV (1) : $1-S41
CABLE TV (2) :$ 01-S 05, Mi-M 10, U 1-U 10
Picture tube HI-Black Trinitron tube
(KV-C 2571 D)
Approx. 63.5 cm (25 inches)
(Approx. 59 cm picture measured diagonally)
110 ° degree deflection
(KV-C 2971 D)
Approx. 72.4 cm (29 inches)
(Approx. 68 cm picture measured diagonally)
110 ° degree deflection
-Continued on next page-
TRINITRON-COLOR TV
SONY.
