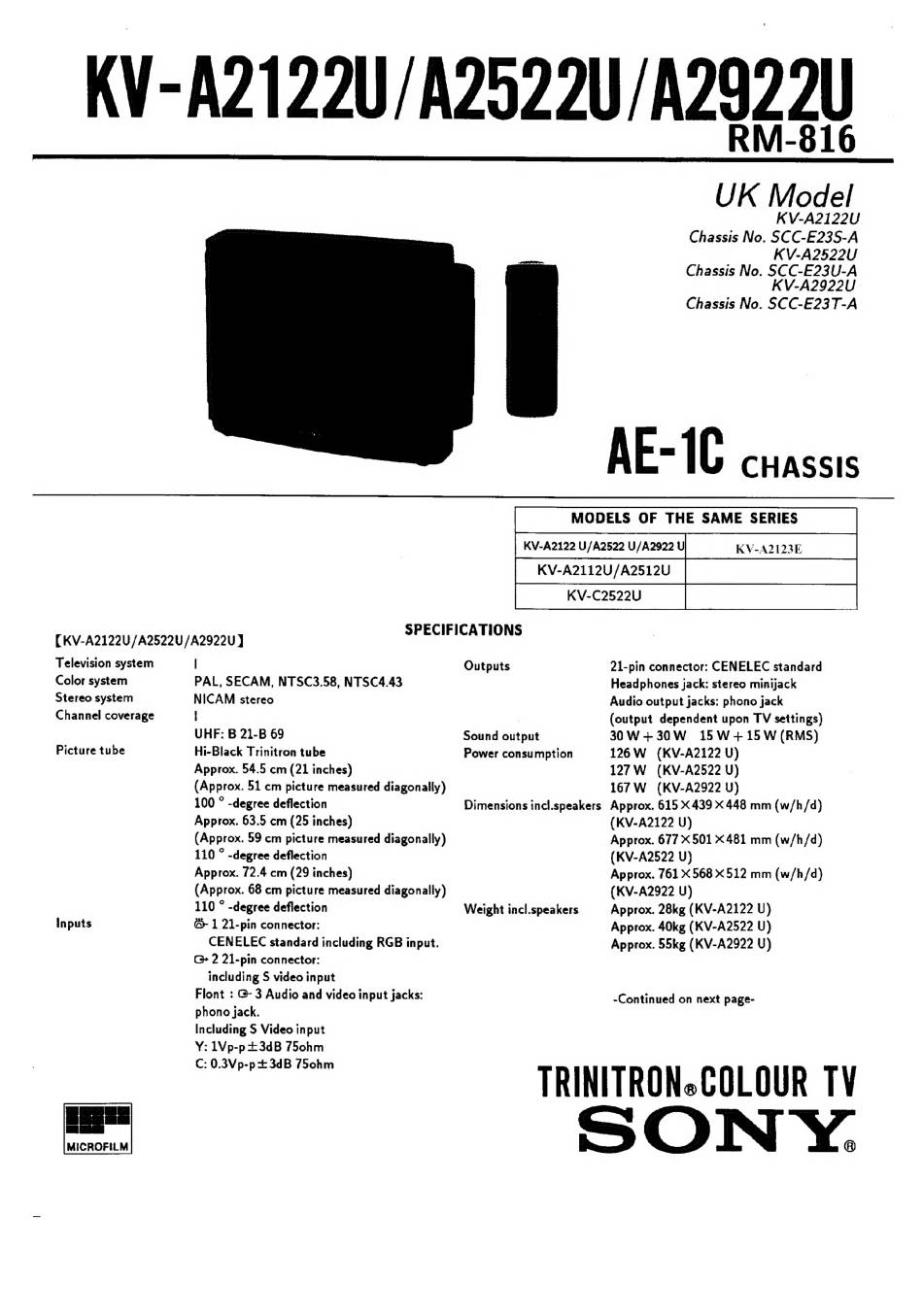

Sony TRINITRON AV-A2122U Quick Start Manual

AV-A2Z122U/A2922U/A2922U ©
RM-816
UK Model
KV-A2122U
Chassis No. SCC-E235-A
MODELS OF THE SAME SERIES
KV-A2112U/A2512U
SPECIFICATIONS
[KV-A2122U /A2522U /A2922U ]
Television system
|
Outputs
21-pin connector: CENELEC standard
Color system
PAL, SECAM, NTSC3.58, NTSC4.43
Headphones jack: stereo minijack
Stereo system NICAM stereo
Audio output jacks: phono jack
Channel coverage
| (output dependent upon TV settings)
Approx. /2.4 cm (29 inches) Approx. 761 X 568 X 512 mm (w/h/d)
110 ° -degree deflection Weight incl.speakers Approx. 28kg (KV-A2122 U)
Inputs
1 21-pin connector:
Approx. 40kg (KV-A2522 U)
phono jack.
Including S Video input
Y: 1Vp-p+3dB 75ohm
