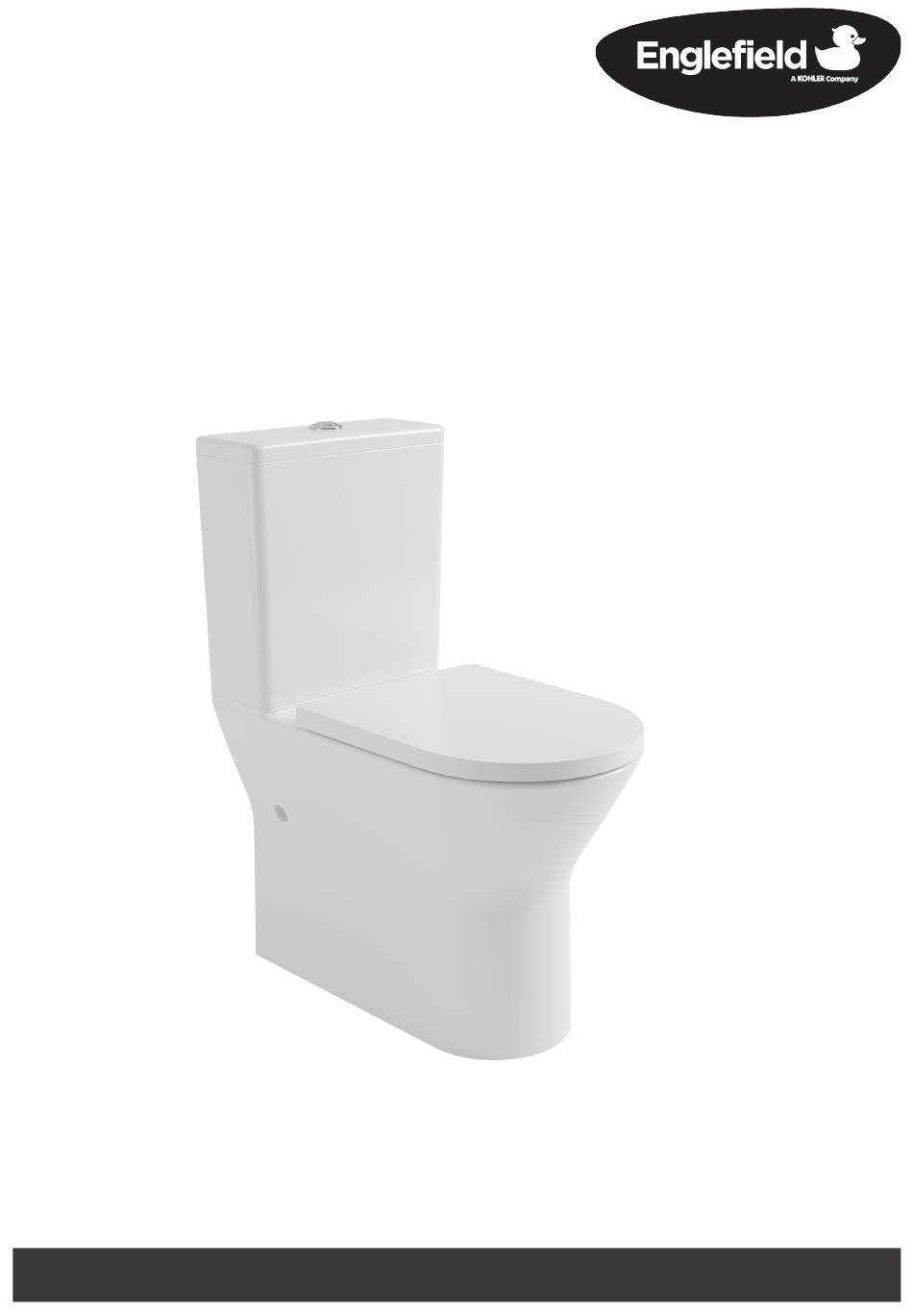

- Page 1 INSTALLATION INSTRUCTIONS ® TOILET | TIVOLI RIMLESS BACK-TO-WALL 31635A-0 1571716-A2-A July 2023 Page 1 englefield.co.nz...
-
Page 2: Before You Begin
® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS ROUGH IN: 120 190 BEFORE YOU BEGIN: Before proceeding with installation, please read these instructions to familiarise yourself with the required tools, materials and installation sequences. Please leave these instructions for the consumer after installation. Prior to installation, inspect the toilet to ensure that no damage has occurred in tran- sit. -
Page 3: Tools Required
® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS TOOLS REQUIRED: Adjustable Level Pipe Wrench Tape Measure Spanner PLUS: • Adjustable pliers Tube Cutter Safety Glasses Drill & Bits • Metal file • 1/2” socket • Hacksaw • Silicone sealant • Pencil Sponge Screw Driver Caulking Gun... -
Page 4: Preparing To Install
® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS PREPARING TO INSTALL: Remove the existing toilet: Turn off the water supply and flush the toilet, then sponge out all remaining water from the cistern. Disconnect the supply hose from the shut-off valve and remove the old pan and cistern. CAUTION: Risk of hazardous gases. - Page 5 ® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS A). CISTERN INSTALLATION - BOTTOM ENTRY: Remove & discard the Side Inlet valve and 250mm hose. 2. Install the Bottom Inlet valve to the cistern. Place the washers over the fixing screws and locate in cistern fixing holes. Bottom Inlet Valve...
- Page 6 ® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS B). CISTERN INSTALLATION - TOP REAR ENTRY: Securely install the bung into the bottom inlet of the cistern. Place the washers over the fixing screws and locate in cistern fixing holes. Fixing Screw Bung Washer Seal...
- Page 7 ® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS PAN INSTALLATION: The pan can be installed as P-Trap or S-Trap. For S-Trap installations please use the supplied Vario Pan Connector, and follow the included instructions. For P-Trap installations the straight pan connector is not supplied. S-Trap Finished Wall...
- Page 8 ® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS Drill fixing holes at the marked locations on the floor and insert the anchors where required. Hexagon Lag Screw Bracket Hole Anchor Washer Anchor Sleeve Screw Place a washer onto each of the hexagon screws and fix the brackets to the floor.
-
Page 9: Push Button Installation
® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS PUSH BUTTON INSTALLATION: Disassemble the push rods. 2. Using the push rod, measure the distance between the flush valve and the top of the cistern lid. Mark this length and cut the push rod to length. Reassemble the push rods. - Page 10 ® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS FLUSH VALVE REMOVAL AND INSTALLATION: Remove flush valve by turning anti-clockwise and pulling straight up on the canister. Assemble flush valve by pushing straight down into the canister and turning clockwise. 1571716-A2-A July 2023 Page 10 englefield.co.nz...
- Page 11 ® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS FINALISING INSTALLATION: Install the seat as per the supplied seat instructions. 2. Make final connection of water supply hose to shut-off valve. Test the system for leaks. 3. Apply a suitable sealant between the pan and adjacent surface. Your toilet is now installed.
-
Page 12: Contact And Warranty Information
® TIVOLI Rimless Back-to-Wall Toilet INSTALLATION INSTRUCTIONS CONTACT AND WARRANTY INFORMATION: NEW ZEALAND AUSTRALIA KOHLER NEW ZEALAND LTD 0800 100 382 info@englefield.co.nz englefield.co.nz englefield.com For warranty information, please visit our website. 1571716-A2-A July 2023 Page 12 englefield.co.nz...
