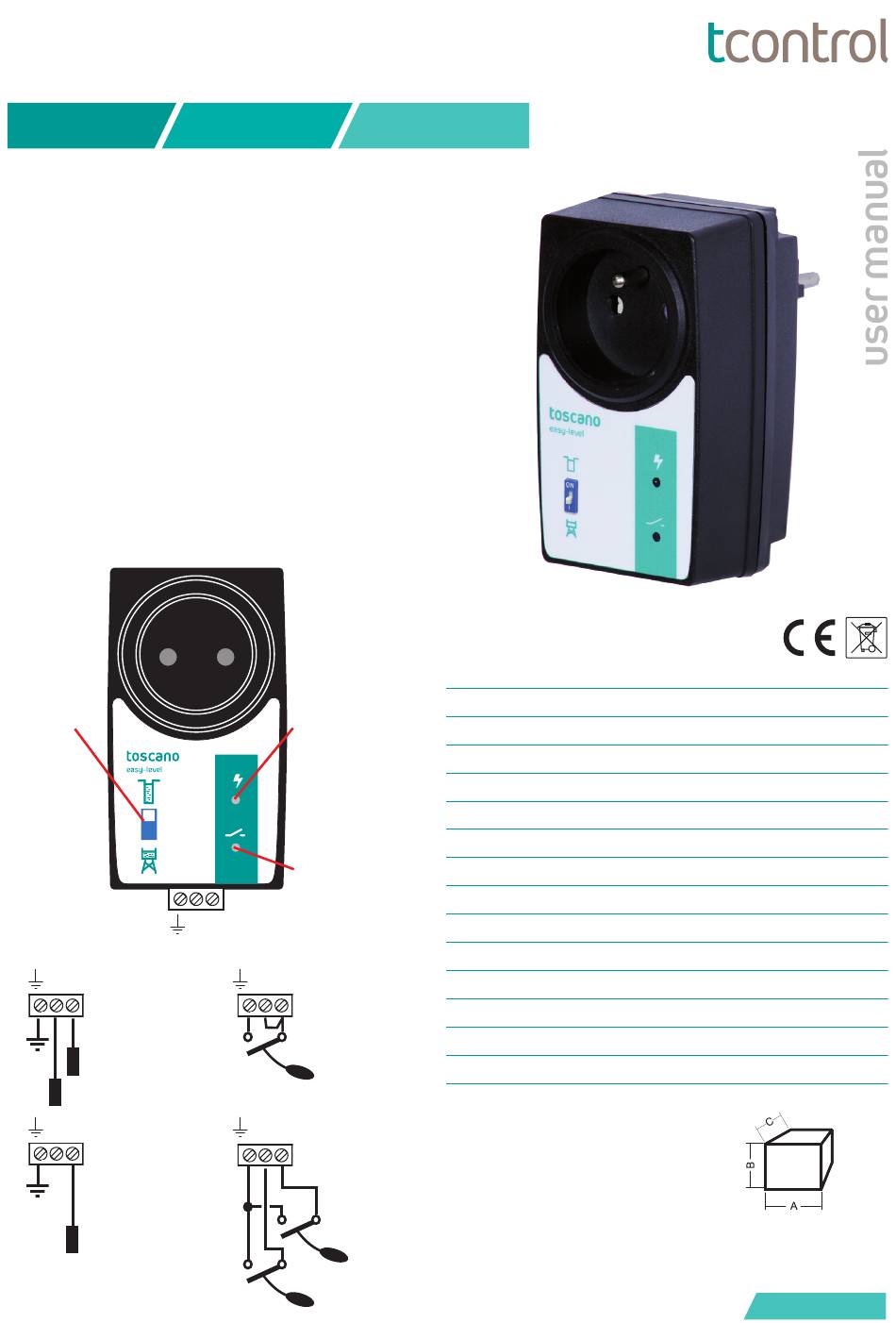

EASY LEVEL
Pluggable level controller
Well or Tank
Description
Level control relay by conductive probe(s) or
float(s) switch(es). Well (emptying) or Tank
(filling) control. Operation with 2 probes, 1 timed
probe, 1 float switch or 2 float switches.
Pluggable module in a standard socket.
Front side
Well
(emptying)
or Tank
(filling) mode
selector
1 2
2 probes
1 2
1 timed probe
Probes or Floats
Voltage ON LED
Pump ON LED
1 2
1 2
1 float switch
1 2
2 float switches
Direct connection
Specifications
LED status indication
Operating voltage
Load contact (relay)
Power consumption
Permissible voltage variations
Re-start time
Response sensitivity
Voltage in probes / floats
Current in probes / floats
Max. terminal cross-section
Operating temperature
Protection degree
Dimensions (AxBxC)
Net weight
Voltage & Pump relay
230 V AC - 50/60 Hz
12 A - 250 V AC
1.8 VA
+10...-20%
15 minutes
60...100 Kohm
12 V AC / 50 Hz
1.2 mA max. short-circuited
3x2.5 mm
2
-10...+60 ºC
IP40
62x123x73 mm
240 g (470 g 3 probes SN incl.)
Ed.2
