Pump controller and protection for one pump
Multicontrol

INSTALLATION AND OPERATION

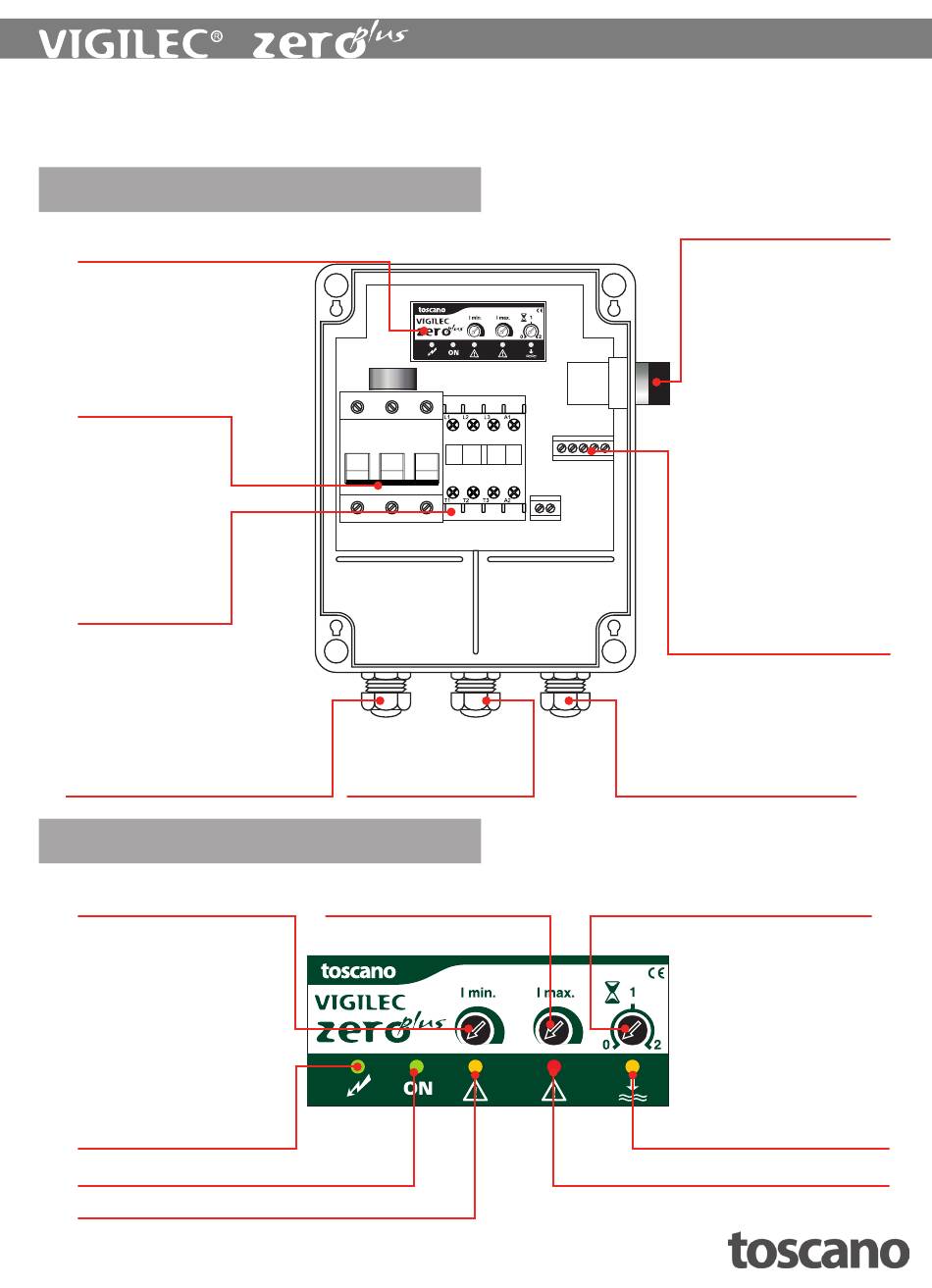

Internal configuration

Control module

Circuit Breaker
Contactor
Main Supply cable gland

Module status layout

UNDERLOAD adjustment
SUPPLY VOLTAGE LED
PUMP RUNNING LED
UNDERLOAD alarm LED
ITM-10001-ED4
Reserve
space
capacitor
(maximum
80μF)
Motor cable gland
OVERLOAD adjustment
MAN-0-AUT selector
for
Control terminal blocks
Control cable gland
Re-Start Time adjustment
(0-2 Hours)
WATER LEVEL alarm LED
OVERLOAD alarm LED
ING
MAN
. It makes the di-
rect running of the pump.
The control module is not
needed in this mode. In
this case, we will have no
pump protection
.
0
. Stops the pump. The
start of the pump is not
allowed in this mode. It
also performs a reset of
the device level, overload
or underload alarm.
AUT
. The unit will work
automatically
according
with the controls and pro-
tections provided.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIGILEC Zero Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for toscano VIGILEC Zero Plus

  • Page 1 Pump controller and protection for one pump Multicontrol INSTALLATION AND OPERATION Internal configuration MAN-0-AUT selector Control module • . It makes the di- rect running of the pump. The control module is not needed in this mode. In this case, we will have no pump protection •...
  • Page 2 Common applications WELLS LIFTING STATIONS 0-120’ 0-120’ BOOSTER SETS WELLS & TANKS CONTROL Level probes Wires must be isolated. The maximum length for probes wiring is 200 m and the minimum section is 0,5 mm². A CORRECT GROUND CONNECTION is essential for the effective operation of the level control. It is recom- mended to connect the ground wire to any point of the pipe.
  • Page 3 Wiring and adjustment Main supply Motor External On/Off Check that the supply voltage corresponds to that shown in the control box (230 or 400 VAC depending on model) Radio remote control Pressure switch 3 4 5 6 Float switch Irrigation con- troller Time switch Switch...
  • Page 4 EC DECLARATION OF COMPLIANCE WITH THE “LOW VOLTAGE” & “ELECTROMAGNETIC COMPATIBILITY” DIRECTIVES. TOSCANO LINEA ELECTRONICA, S.L. declares that the equipment described in this manual complies with the provisions of the modified “LOW VOLTAGE” directive (Directive DC 2004/108/CE) and with the modified “ELECTROMAGNETIC COMPATIBILITY”...
