Silent Alert IL3A-2212-EU Quick Start Manual

Quick start guide IL3A-2212-EU

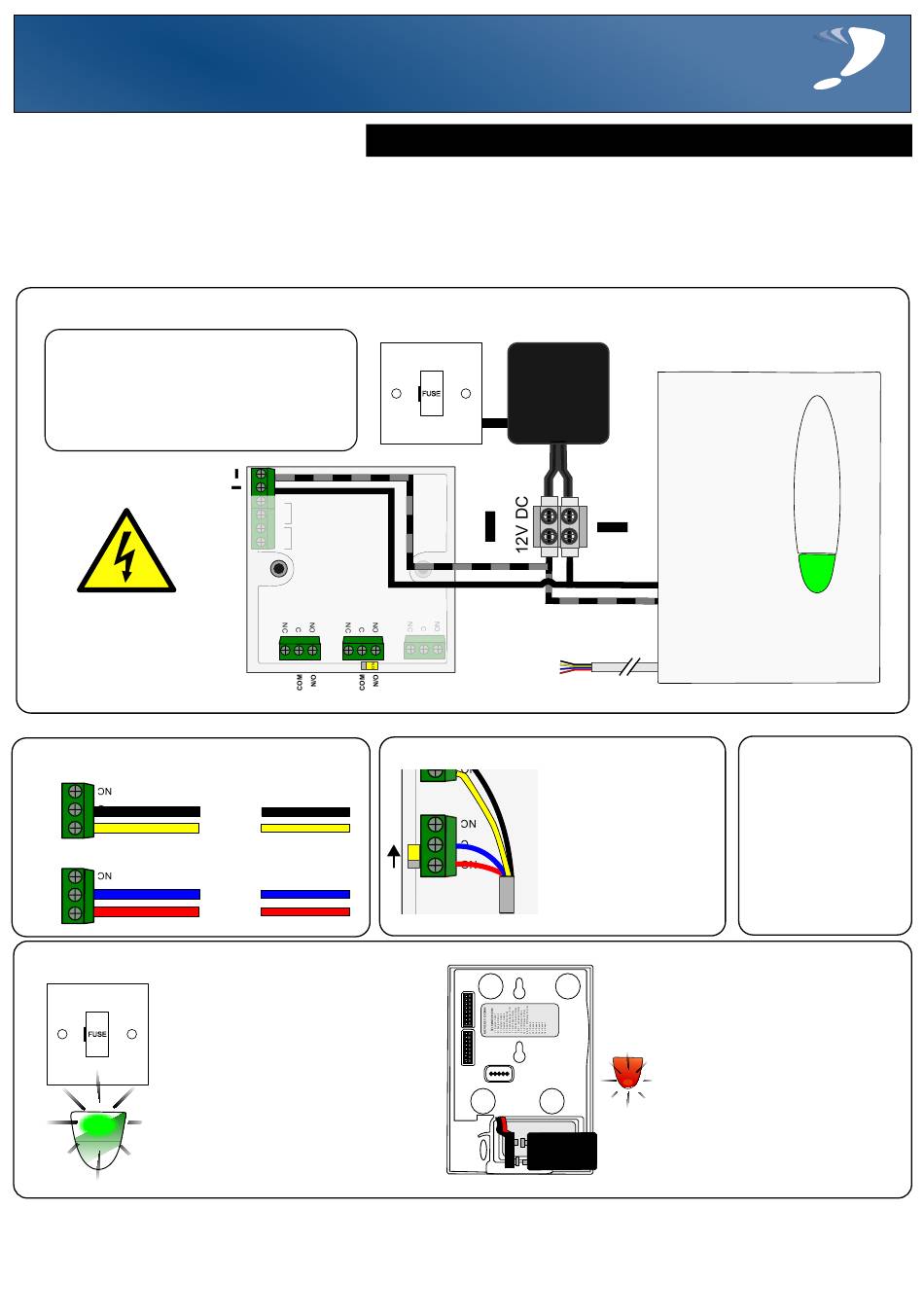

InterLink Monitor Wiring
The IL3A-2212-EU has been designed to connect to the Aico Ei413 RadioLINK panel module.
When the RadioLInk system activates the InterLink monitor will send a radio signal to all Silent Alert receivers.
The InterLink monitor differs from the UM3A-2212-PSU as it can monitor a Smoke and a CO relay at the same
time sending the relevant signal to the Silent Alert receivers.
1.
Power Connection
CCM3A-2216-EU-PIR-MKX
MOVEMENT MONITOR 11/12/13
USE MAINS POWER SUPPLY
PS3A-2207-UK ONLY
SILENT ALERT SA3000 SYSTEM
WWW.SILENT-ALERT.CO.UK CLOFIELD LTD. UK
TEL 01246 260045
WARNING
This product should only be installed by
a suitably qualified person.
Clofield Ltd take no responsibility for damage
caused by incorrect fitting.
12 V in
LOW VOLTAGE
Do not connect either
device to mains voltage
12V DC MAX
2.
EI413 Relay Output Connection
CO
COM
N/O
FIRE
COM
N/O
5.
Power the system
1
2
3 4 5
Connect the power supply to
a 13 Amp fused spur.
Connect a PP3 battery to the IL3A
then power the unit by switching
the mains on.
The test button will light green/
red, this is normal.
The test button will briefly flash
once every 30 seconds to indicate
the unit is powered.
THIS PRODUCT DOES NOT COMPLY WITH BS5839-1 2002. HOWEVER, THE FIRE SAFE INTERFACE PANEL, ALSO
AVAILABLE FROM CLOFIELD LTD (PART NUMBER FSTX-2225-EU) DOES.
WARNING. DO NOT APPLY MAINS VOLTAGE TO THE UNIT AS THIS WILL CAUSE IRREVOCABLE DAMAGE,
-
Vin
-
-
+
ALARM
IN
SW
SW
EI413
CO FIRE
Black
Yellow
Blue
Red
CAUSE INJURY AND CREATE A FIRE HAZARD.
Any questions? Call us on 01246 450789
*DO NOT* power the spur until step 5
Fused spur
12V 1A
PSU
-
- - - -
FAULT
3. Activate the relay
Set the power jumper
to "ON" by moving it
in the direction
ON
indicated on the PCB.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
UM3A-2212-EU-PSU
USE MAINS POWER SUPPLY
PS3A-2207-UK ONLY
Alkaline
SILENT ALERT SA3000 SYSTEM
WWW.SILENT-ALERT.CO.UK CLOFIELD LTD. UK
TEL 01246 260045
PLEASE NOTE
.
4 Core
relay cable
3
4.
2 ON /OFF
1
Ensure that black
and blue are
connected to
common or the unit
5
will false trigger .
4
NOTE: if this is done in
reverse order a low battery
signal will be sent out and
the test/send button will
shine red instead of green
for up to 9 hours.
Switch the mains off,
remove the battery and
reset the unit using the
procedure in step 7.
