Summary of Contents for AirCycler Connect g3 AC-G3

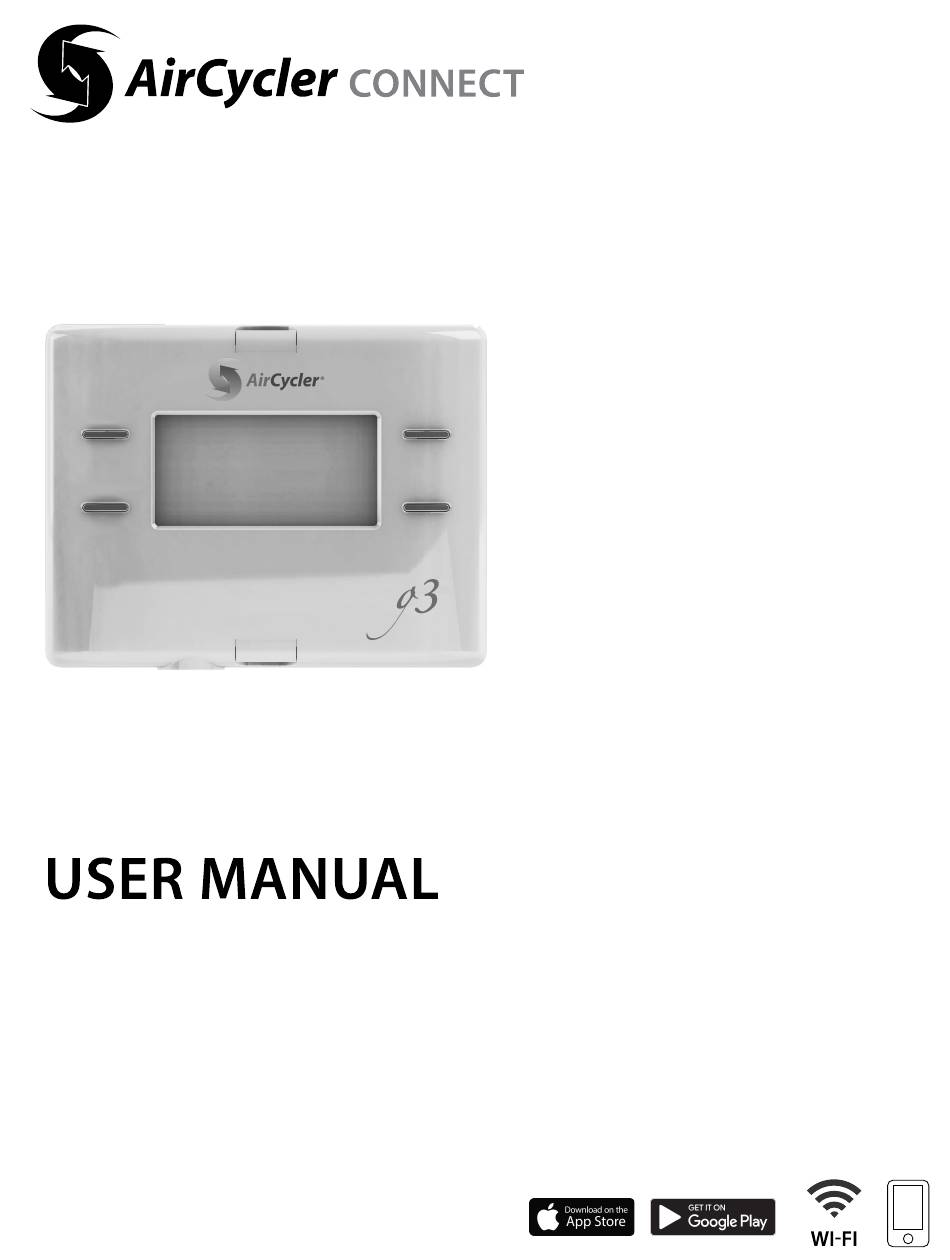

- Page 1 AirCycler® g3 System Central fan-integrated ventilation system with wireless connectivity and air quality detecting capabilities PART # AC-G3 PART # AC-G3K PART # AC-G3SK PART # AC-G3SK-F PART # AC-G3SK-FL...
-
Page 2: Safety Considerations
The wires (R, C & W) from the air handler to the thermostat can run parallel with the wiring from the AirCycler® g3 to the air handler. The fan wire (G) must be interrupted by the AirCycler® g3. Some thermostats do not require a common (C) connection. The AirCycler® g3 requires this for power, which must be wired to the furnace. -
Page 3: Damper Installation
AIRCYCLER G3 USER MANUAL SELECTING YOUR COMPONENT EQUIPMENT AIR HANDLER The 2012 IECC requires the central fan blower used with the AirCycler® g3 to use an electrically commutated motor. EXHAUST FAN The AirCycler® g3 can be con gured to control an exhaust fan both for manual control and as supplemental ventilation as needed. - Page 4 AIRCYCLER G3 USER MANUAL CHOOSE A FRESH AIR LOCATION ASHRAE recommends that the fresh air intake be located at least 10 ft. from any source of pollutants, such as auto exhaust, dryer exhaust, exhaust from any fuel-burning appliances, etc. Avoid installation near odor sources such as garbage bins or barbecue grills. A minimum of 3 ft.
- Page 5 Drill a 1/2” hole in the fresh air intake duct for installing the probe. Pre-drill and use supplied screws to secure FlowProbe™ to duct. Plug probe into port on bottom of AirCycler® g3. FLOWPROBE INSTALLATION CHECKLIST Locate straight run in fresh...
- Page 6 AIRCYCLER G3 USER MANUAL AIRCYCLER® G3 + DAMPER MODEL #FAD AIRCYCLER® G3 + DAMPER MODEL #MVCD...
- Page 7 Next, simply pull the front cover o the existing base and leave the base secured to the wall. Place the new AirCycler® g3 on the existing base. The new g3 is pin-compatible with the existing base and requires no re-wiring for installation.
- Page 8 AirCyclerG3XXXXXX unless it is renamed. If you are working with multiple AirCycler® g3 systems in the app, be sure to select the correct system that you wish to program. The default device name can be located on the g3 controller under the Connect with App setting 12.
- Page 9 VentConnect™. Pairing the two devices is required for proper system operation 15. Pairing the AirCycler® g3 and VentConnect™ switch: a. Pull the power pin on the lower right of the VentConnect™ to disconnect power to the switch b.
- Page 10 AIRCYCLER G3 USER MANUAL PROGRAMMING THE AIRCYCLER® G3 19. Enter desired con guration or code required settings and select SAVE: AVAILABLE SETTINGS: CALCULATED FLOW SETTINGS Flow measured during heat call Hours of operation (Y/N) Flow measured during cooling call Hour start...
- Page 11 Air Quality Index (AQI) - indicates incoming outdoor air ow rate* (*CFM data available with FlowProbe™ only) Note AirCycler’s recommended default settings. Use of the app, system and content is at your sole risk. AirCycler Mobile App Terms & Conditions www.aircycler.com/pages/aircycler-mobile-app-terms-conditions 28.
- Page 12 Setup Update system operation: SYSTEM SETUP Add Device Pairing the AirCycler® g3 and VentConnect™ switch: Connect with App Connect to Wi-fi a. Pull the power pin on the lower right of the VentConnect™ rocker to disconnect power to the switch...
- Page 13 WE ALWAYS RECOMMEND RECORDING YOUR SETTINGS 7. If using FlowProbe™, on the g3 controller menu: a. Return to Setup menu d. Select FlowProbe b. Select Hardware e. Enter Vent Diameter Select Next c. Select current AirCycler® g3 Instructions continue on next page)
- Page 14 Back Select UPDATING YOUR AIRCYCLER® G3 SOFTWARE Updating the AirCycler® g3 controller software is optional and requires an internet connection. Once connected to the internet (see steps in section above): 1. From the AirCycler® g3 controller home screen, select Update Status 2.
- Page 15 Create Account and complete account setup 2. Be sure your AirCycler® g3 is added to Systems on your dashboard. If it isn’t already, refer to PROGRAMMING THE AIRCYCLER G3 > SYSTEM SETUP > SETUP OPTION A instructions in this manual for connecting the app and g3 3.
- Page 16 If you have already created an AirCycler web dashboard account you can use the same credentials 2. Be sure your AirCycler® g3 is added to Systems in the app. If it isn’t already, refer to the PROGRAMMING THE AIRCYCLER G3 > SYSTEM SETUP > SETUP OPTION A instructions in this manual for connecting the app and g3 3.
- Page 17 AIRCYCLER G3 USER MANUAL AIRCYCLER® INDOOR AIR QUALITY SENSOR AIRCYCLER® INDOOR AIR QUALITY SENSOR PARAMETERS LED INDICATORS Device start up Quick ash blue Not Paired Blink white per 10 seconds Lost g3 Connection Blink cyan per 10 seconds Stable Green CO2 value >...
-
Page 18: Product Support
PRODUCT SUPPORT Please visit https://www.aircycler.com/pages/frequently-asked-questions for the most up-to-date list of FAQs and Troubleshooting questions RELATED AIRCYCLER® PRODUCTS Please visit aircycler.com for additional information and manuals for products compatible with the AiCycler® g3 controller: AC-AQS AirCycler® Indoor Air Quality Sensor AC-VC VentConnect™...
