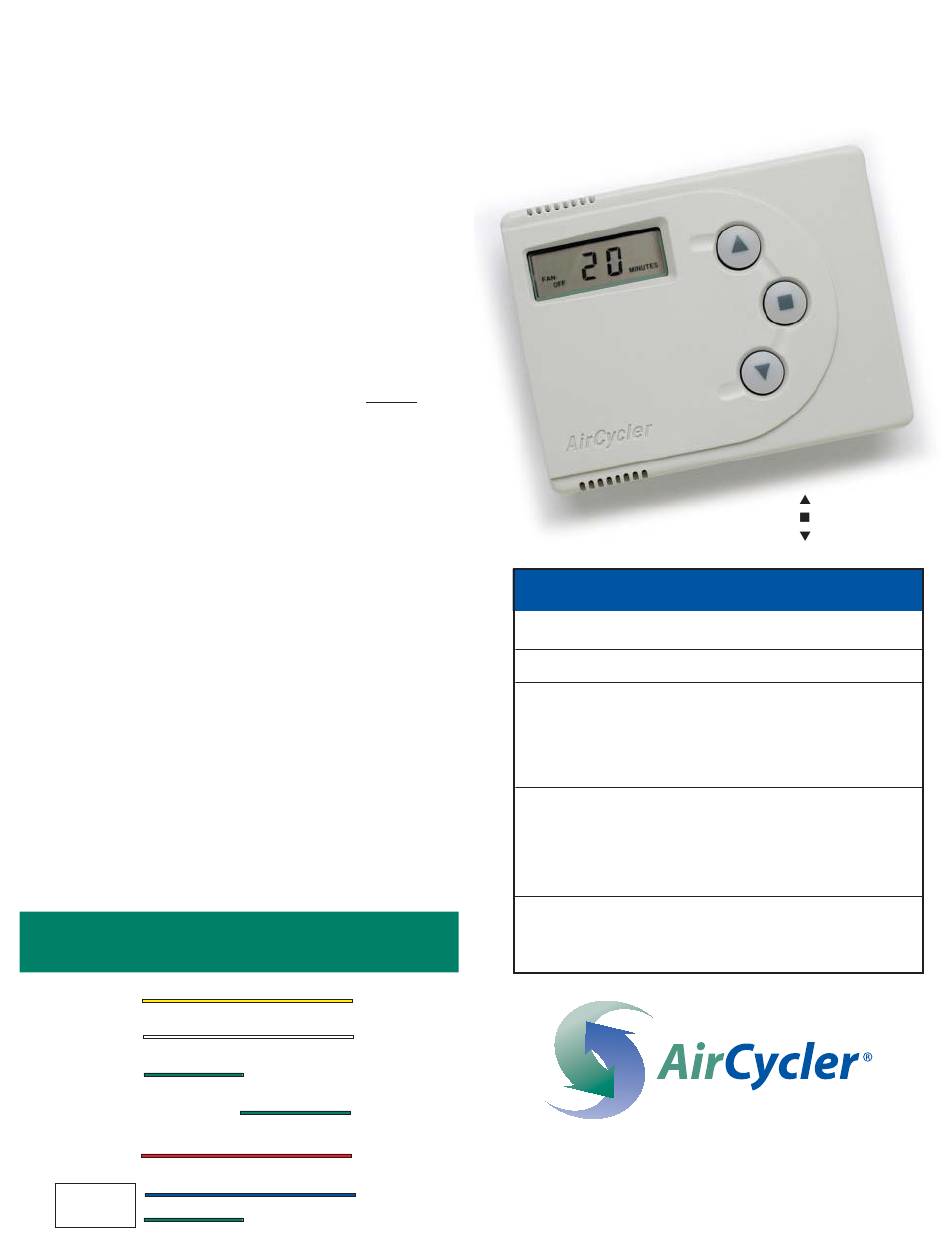

AirCycler FRV User Manual

Build it Tight, Ventilate it Right...
AirCycler Air Cycler
For More Control Over Ventilation!
By periodically operating the central heating
and cooling system fan, the AirCycler® markedly
improves the temperature control, humidity and
fi ltration system in a house. It allows "averaging"
of air temperature throughout the house and
eliminates stagnant and uncomfortable air that
a thermostat can't detect. AirCycler® is "smart"
because it knows when the central system fan
operates and activates the fan only after a selected
period of time during which the fan has not
operated.
Add a 24VAC motorized damper and effectively
regulate fresh air ventilation. Particularly effective
in extreme climates when extended heat or cooling
operation occurs frequently.
• Meet ASHREA 62.2 ventilation requirements
• Enhance whole house fi lteration systems
• Interlock HRV/ERV Systems for use with
Existing Ductwork
• Control Exhaust Fan(s) for Balanced
Ventilation
• Enhanced Temperature Control
• Enhanced Humidity Control
AirCycler FRV Wiring Diagram
Thermostat AirCycler
•
Y (cool)
•
W (heat)
•
G (fan)
•
R (24 VAC)
motorize
damper
Air Handler Unit
•
Y
• •
Wt
W
•
Gt
• •
Gf G
• •
R
R
• •
C
C
(common)
•
V (vent)
FRV
®
Operating Voltage:
Current draw:
Fan ON and OFF delay settings:
Vent ON and OFF delay settings:
1 to 199 minutes in 1 minute increments, plus an
Unlimited setting for both ON and OFF.
Notes:
The AirCycler® ON/OFF function enables or disables
the fan recycling function, but all thermostat control
signals operate regardless of the switch position.
All outputs protected by a 3A self-resetting fuse,
impossible to damage with wiring errors.
The Leader in Energy Effi cient Ventilation Control
For more information, or a Dealer in your area, call

SPECIFICATIONS

24 VAC (up to 30 VAC max.)
0.07 Amps
1-877-FAN-CONTROLrol
www.AirCycler.com

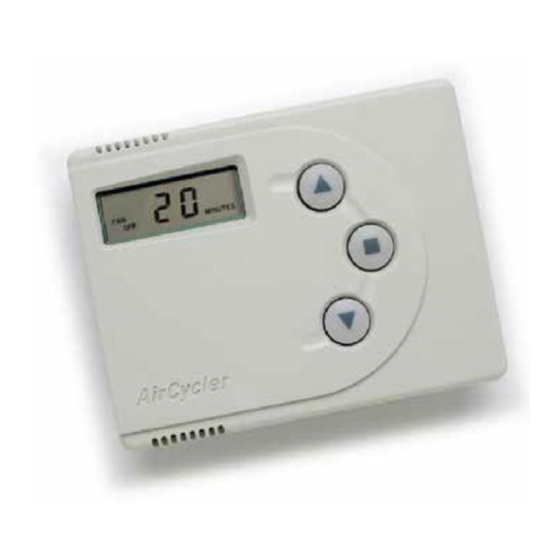

Increase Key
Mode Key
Decrease Key
