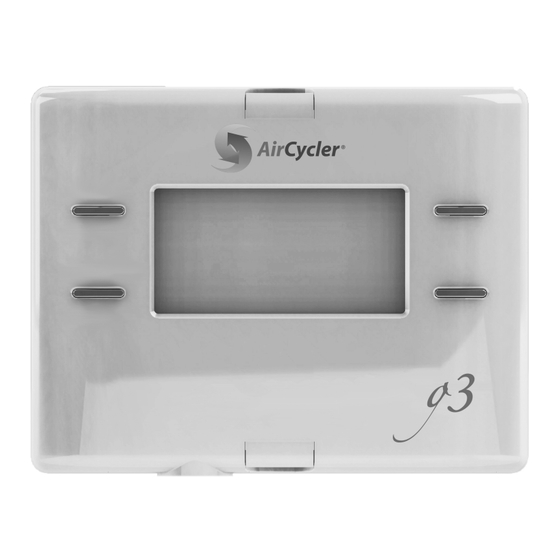

- Page 1 CONNECT AirCycler® g3 Wi-fi whole house ventilation controller with humidity and temperature sensing capabilities USER MANUAL PART # AC-G3...
-
Page 2: Safety Considerations
The wires (R, C, & W ) from the air handler to the thermostat can run parallel with the wiring from the AirCycler® g3 to the air handler. The fan wire (G) must be interrupted by the AirCycler® g3. Some thermostats do not require a common (C) connection. The AirCycler® g3 requires this for power, which must be wired to the furnace. -
Page 3: Air Handler
EXHAUST F AN The AirCycler g3 can be con gured to control an exhaust fan both for manual control and as supplemental ventilation as needed. For this con guration, an AirCycler VentConnect switch must be installed to operate the exhaust fan. The AirCycler g3 and VentConnect switches communicate wirelessly to integrate the exhaust fan into the home’s overall ventilation strategy. - Page 4 The FlowProbe is an optional in-duct air ow probe with temperature and humidity sensing and air ow measuring and detection. The FlowProbe can be plugged directly into the AirCycler g3 or FreshConnect. Smooth air˜o w is required for accurate air˜o w measurement. To avoid air turbulence in the duct, place the FlowProbe in a straight run of the fresh air intake duct, at a down stream distance about 6 times the diameter of the duct.
- Page 5 10“ 60” Drill a 1/2” hole in the fresh air intake duct for installing the probe. Pre-drill and use supplied screws to secure FlowProbe to duct. Plug probe into port on AirCycler g3. FLOWPROBE INSTALLATION CHECKLIST Locate straight run in fresh...
-
Page 6: System Wiring
AIRCYCLER G3 USER MANUAL SYSTEM WIRING Follow wiring as instructed for proper system functionality. Please determine damper model number and follow designated wiring instructions. AIRCYCLER® G3 + D AMPER MODEL # F A D Air Handler AirCycler® g3 Thermostat Damper MODEL # AIRCYCLER®... - Page 7 Next, simply pull the front cover o the existing base and leave the base secured to the wall. Place the new AirCycler® g3 on the existing base. The new g3 is pin-compatible with the existing base and requires no re-wiring for installation.
- Page 8 Note: The AirCycler g3 system you have connected to will display with the default device name AirCyclerG3 XXXXXX unless it is renamed. If you are working with multiple AirCycler g3 systems in the app, be sure to select the correct system that you wish to program. The default...
- Page 9 AIRCYCLER G3 USER MANUAL PROGRAMMING THE AIRCYCLER® G3 14. Pairing the AirCycler g3 and VentConnect switch: a. Pull the power pin on the lower right of the VentConnect to disconnect power to the switch b. Select Setup on the g3 controller and select Add Device c.
- Page 10 AIRCYCLER G3 USER MANUAL PROGRAMMING THE AIRCYCLER® G3 19. Enter desired or code required settings and SAVE: CALCULATED FLOW SETTINGS Hours of operation (Y/N) Flow measured during heat call Flow measured during cooling call Hour start Flow measured during fan-only call...
- Page 11 Setup proper system operation SYSTEM SETUP Add Device Connect with App Pairing the AirCycler g3 and VentConnect switch: Connect to Wi-fi Back Select a. Pull the power pin on the lower right of the VentConnect rocker to disconnect power to the switch...
- Page 12 AIRCYCLER G3 USER MANUAL PROGRAMMING THE AIRCYCLER® G3 6. Enter desired or code required settings: CALCULATED FLOW SETTINGS Additional mix time CFM measured during fan call CFM measured during heat call Hours of operation (Y/N) Hour start CFM measured during cool call...
- Page 13 If you do not already have an account, select Create Account and complete account setup. 2. Be sure your AirCycler g3 is added to Systems on your dashboard. If it isn't already, refer to the AirCycler g3 manual for instructions on connecting the app and g3.
- Page 14 If you have already created an AirCycler dashboard account you can use the same credentials. 2. Be sure your AirCycler g3 is added to Systems in the app. If it isn't already, refer to the AirCycler g3 manual for instructions on connecting the app and g3.
- Page 15 CO2 value > 2000 OR PM2.5 value > 55 OR TVOC value > 3000 Purple CO2 value > 4500 OR PM2.5 value > 150 OR TVOC value > 250000 Please contact us at support@aircycler.com with any questions. Additional product information can be found at www.aircycler.com/connect. AirCycler Mobile App Terms & Conditions www.aircycler.com/pages/aircycler-mobile-app-terms-conditions...
