Summary of Contents for Akaso EK7000

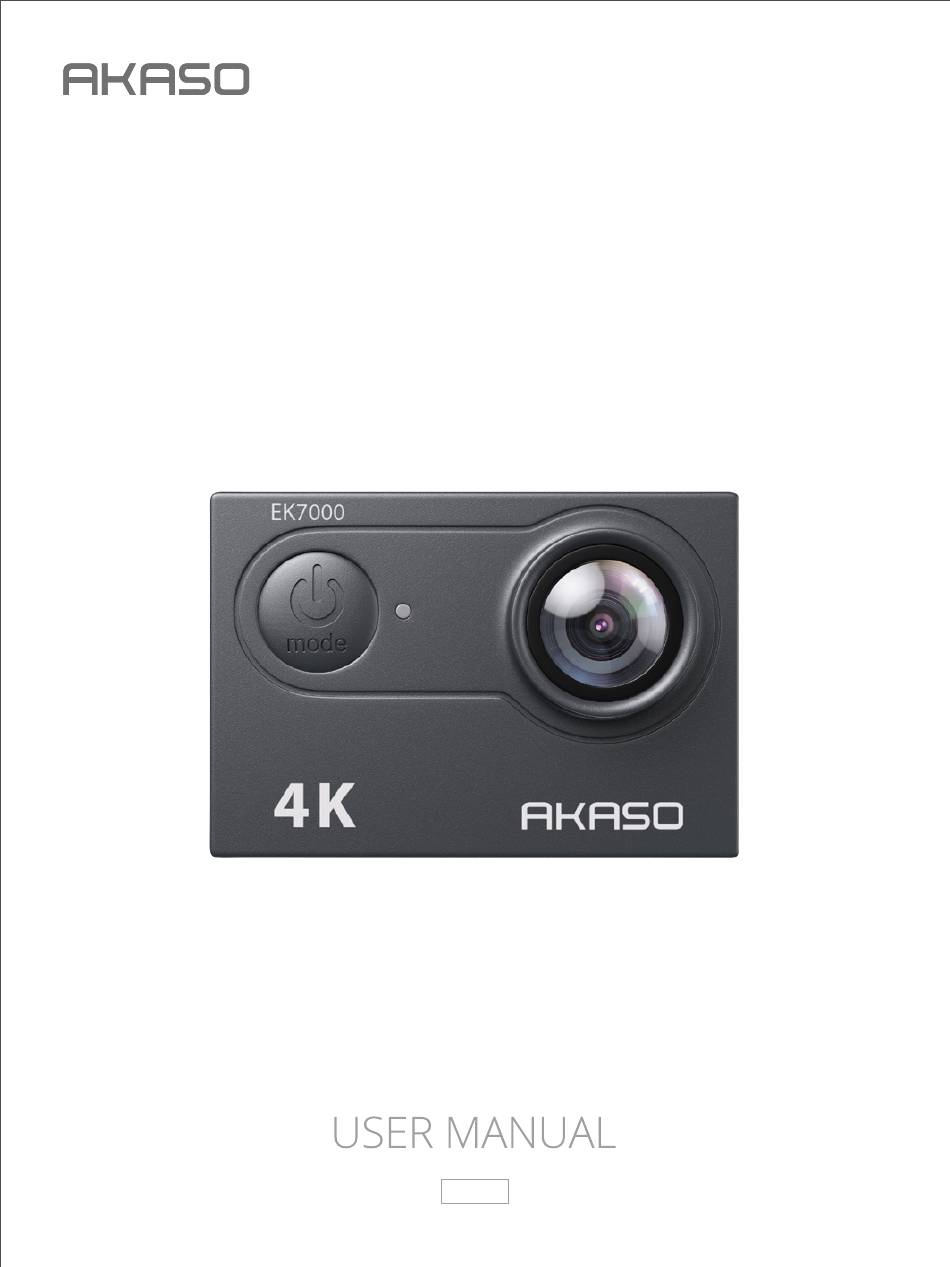

- Page 1 EK7 000 A C T I O N C A M E R A V316...
-
Page 2: Table Of Contents
Your EK7000 ------------------------------------------------------------------------------------ 04 Getting Started--------------------------------------------------------------------------------- 07 Overview of Modes--------------------------------------------------------------------------- 09 Customizing Your EK7000------------------------------------------------------------------ 11 Connecting to the AKASO GO App ------------------------------------------------------ 15 Playing Back Your Content----------------------------------------------------------------- 17 Transferring Your Content----------------------------------------------------------------- 18 Reformatting Your Memory Card ------------------------------------------------------- 19 Maintaining You Camera ------------------------------------------------------------------- 19... -
Page 3: What's In The Box
What’s in the Box AKASO EK7000 Waterproof Battery Charger Battery USB Cable Housing Remote Control Remote Control Protective Clip Clip 2 Strap Backdoor Buckle Mount J-Hook Mount E Mount C Mount D Mount F Mount A Mount H Mount Helmet Mounts... - Page 4 How to use all sorts of accessories of the action camera? For more details about using the included accessories in different scenarios, scan the provided QR code or enter the attached website to get an instruction video. https://youtu.be/OPGMboYrLb0 • Unboxing 0:00-0:15 •...
-
Page 5: Your Ek7000

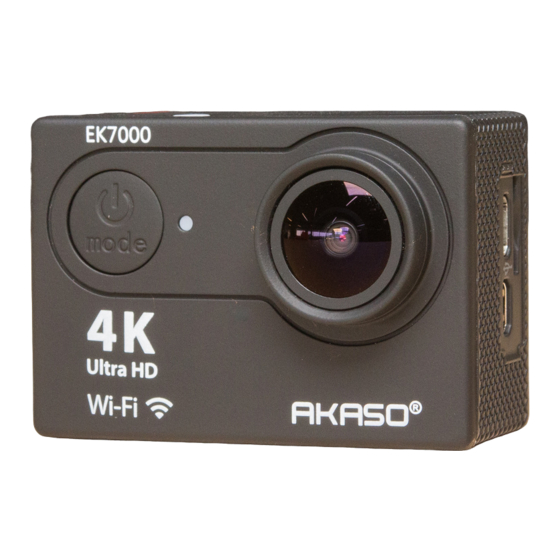

Your EK7000 Shutter / Select / OK Button Working / Wifi Indicator Power / Mode / Exit Button Charging Indicator Microphone Memory Card Slot USB / External Mic Port Micro HDMI Port Lens... - Page 6 Display Screen Up / Playback Button Speaker Down / Wifi Button Battery Cover 1/4-Inch Nut Hole...
- Page 7 Shutter / Select Button Up / Playback Button Down / Wifi Button Bolt Power / Mode / Exit Button Note: The camera does not record sound when it is in the waterproof case.
-
Page 8: Getting Started
Getting Started Welcome to your new EK7000. To capture video and photos, you will need a memory card (sold separately). Memory Cards Use brand name memory cards that meet these requirements: • Class 10 or UHS-I rating • Capacity up to 256GB (FAT32) Note: 1. - Page 9 Zooming in or out On the preview screen, press and hold the Up or Down button to zoom in or out. Each press will incrementally zoom in or out by 0.5x. The EK7000 action camera supports up to 4x zoom.
-
Page 10: Overview Of Modes
Entering the Settings Screen On the preview screen, press the Mode button several times to enter the camera's settings screen. From there, you can configure the video, photo, and system settings. Entering the Playback Screen On the preview screen, press the Up button to enter the playback screen. From there, you can choose either video or photo files for playback. - Page 11 Burst Photo Mode 0004 | 30297 On the preview screen, press the 12MP WIDE Mode button twice to switch to Burst Photo Mode. In this mode, press the Shutter button to continuously take 3 photos per second. X1.0 Time Lapse Photo Mode 0004 | 30297 On the preview screen, enter the 12MP...
-
Page 12: Customizing Your Ek7000
Shutter button to Time Laspe Video confirm your selected option. Customizing Your EK7000 Video & Photo Settings 1. Video Resolution 4K30fps / 2.7K30fps / 1080P60fps / 1080P30fps / 720P120fps / 720P60fps (Default setting: 4K30fps) Configure the resolution settings before recording videos. - Page 13 4. Time Lapse Video Off / 1s / 3s / 5s / 10s / 20s / 30s / 60s (Default setting: Off) Set the interval at which the camera captures a frame of video. Time Lapse Video creates video from frames captured at specific intervals. Note: Time lapse videos are captured without audio.
-
Page 14: System Settings
System Settings 1. Microphone Built-in / External (Default setting: Built-in) Select either a built-in microphone or an external one. To use an external microphone (sold separately) for better sound quality, be sure to select the “External” option first, then connect a compatible external microphone to the camera’s USB port. - Page 15 LCD display again, press any buttons on the camera. 7. Auto Power Off Off / 1 Min / 3 Min/ 5 Min (Default setting: 3 Min) Powers off your EK7000 after a period of inactivity to save battery life. 8. Date Stamp Off / On (Default setting: On) With Date Stamp enabled, the camera will add a watermark to your videos or photos.
-
Page 16: Connecting To The Akaso Go App
App Store or Google Play to your smartphone first. When your camera is connected to the AKASO GO app, you can control it to capture, or change its settings using your phone. You can also live preview, playback, download, edit, and share videos via this app. - Page 17 2. Enter your phone’ s Wifi settings page, find the Wifi named “EK7000” in the list and tap on it, then enter the password 1234567890 for connection. iCam-AKASO_ **** iCam-AKASO_ **** 3. Open the AKASO GO app on your smartphone, then tap “Device” →“ Add...
-
Page 18: Playing Back Your Content
4. Tick "The above operation has been confirmed", and tap "Live Preview". Your camera will be connected to the AKASO GO app in seconds. Playing Back Your Content You can play back your content on the camera, your computer, TV, smartphone or tablet. -
Page 19: Transferring Your Content
files to your computer or delete selected files using File Explorer. Downloading Your Content to a Smartphone 1. Open the AKASO GO app, then connect it to the camera. 2. Tap the Album icon in the bottom left corner to view all the photos and videos captured by the camera. -
Page 20: Reformatting Your Memory Card
2. If you cannot download videos or photos to your iPhone via the app, please enter your phone’ s Settings page → Privacy→ Photos, find "AKASO GO", and select "All photos". 3. iPhone does not allow you to download 4K or 2.7K videos via the app. Please transfer these videos to your computer. -
Page 21: Maximizing Battery Life
2. To clean the lens, use a soft, lint-free cloth to wipe it. Avoid inserting any foreign objects near the lens. 3. Do not touch the lens with your fingers. 4. Store the camera away from drops and bumps, as this may cause damage to the internal components. -
Page 22: Remote
6. Avoid environments with strong static or magnetic fields; these can compromise the battery’s protective unit, posing safety risks. 7. If the battery emits an odor, overheats, changes color, gets distorted, or exhibits any anomalies, discontinue use and remove it immediately from the camera or the battery charger whether it is being used, charged, or stored. - Page 23 Burst Photo To capture burst photos, first verify the camera is in Burst Photo mode, then press the Photo button. The camera will emit a shutter sound indicating the completion of the shot. Time Lapse To capture time lapse photos or videos, first verify the camera is in Time Lapse mode, then press the Photo or Video button.
- Page 24 3. Lift the circuit board and slide out the battery, as shown below. Note: Avoid rotating the circuit board to prevent reversing the remote control buttons. 4. Install the new battery, keeping the “+” pole facing up. 5. Install all 4 screws back onto the circuit board. 6.
-
Page 25: Mounting Your Camera
Mounting Your Camera Attach your camera to helmets, gear and equipment. -
Page 26: Contact Us
Contact Us (888) 466-9222 (US) cs@akasotech.com www.akasotech.com For any inquiries with AKASO products, please feel free to contact us, we will respond within 24 hours.
