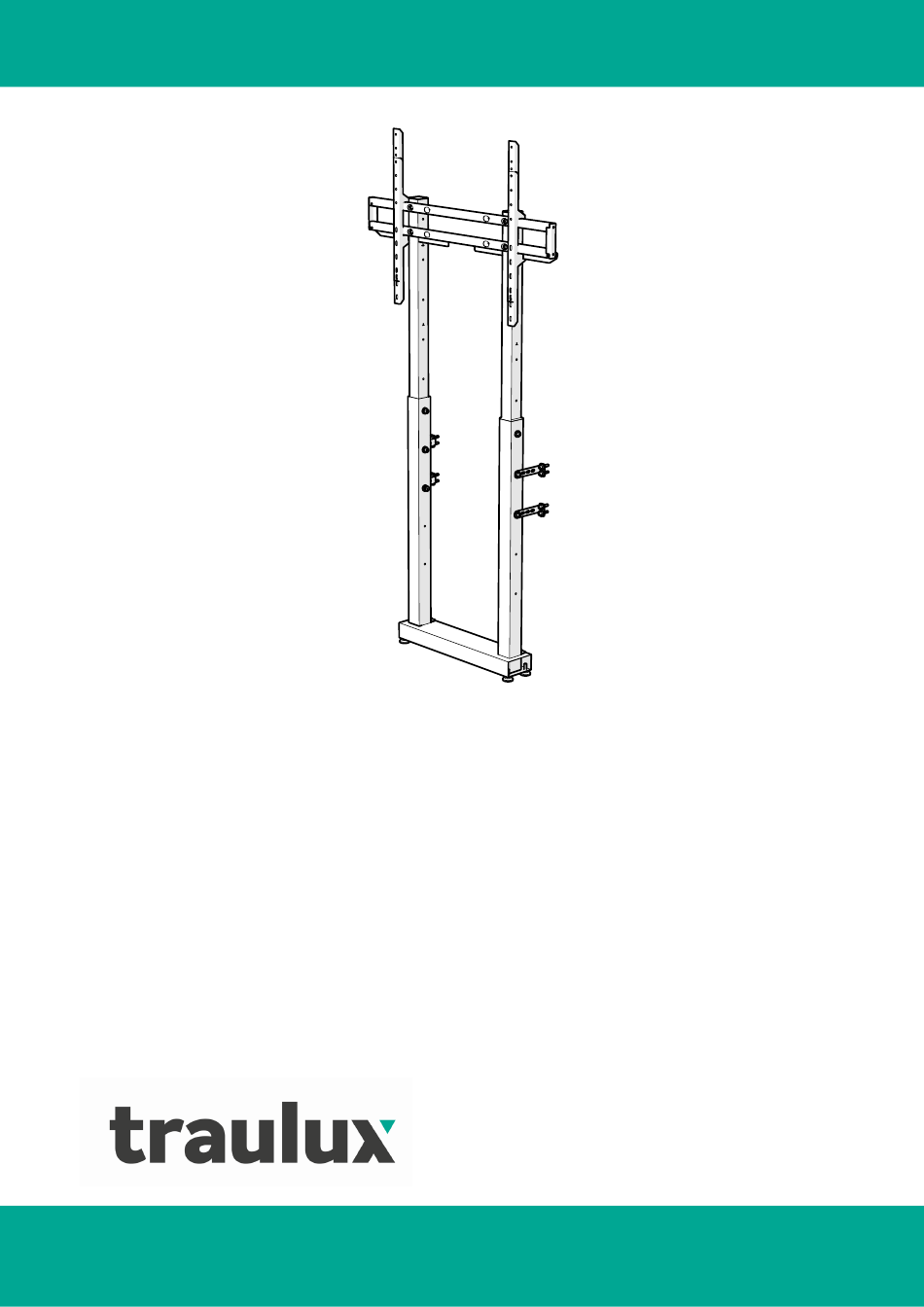

- Page 1 SMI-FLEX Fixed height wall to floor stand Soporte con altura fija vvt INSTALLATION MANUAL MANUAL DE INSTALACIÓN...
-
Page 2: Safety Instructions
- No cargar más peso del indicado en este manual de instalación. A efectos de certificación y pruebas de carga en el proceso de evaluación de riesgos, los coeficientes de seguridad utilizados han sido: - SMI-FLEX & SMMI-FLEX: Cs 1,10 Don’t overload the system in relation to the maximum weight capacity stated on this installation guide. These are the security and safety coeficients used when certificating the systems and runing the loading tests: - SMI-FLEX &... -
Page 3: Warranty
GARANTÍA / WARRANTY 1. Duration of the Warranty CHARMEX INTERNACIONAL warrants that all its products are free from defects in materials and workmanship for a period of sixty (60) months (5 years) from the date of delivery to the distributor. 2. - Page 4 178,80 178,80 553,00 553,00 143,00 143,00 598,00 598,00 55-98” 100 MAX...
- Page 5 CONTENIDO/CONTENTS/CONTENUTO/SISÄLLYS/CONTENU: VESA A (x1) VESA C (x2) VESA B (x2) COLUMNS D (x2) BASE G (x1) PILARS E (x2) I DIN912 M8x80 (x8) J DIN912 M10x30 (x2) K DIN912 M8x20 (x6) M DIN9021 M10 (x2) N DIN125A M8 (x20) O SELFLOCKING NUT LEVELING M8 (x8) FOOT M8 H (x4)
- Page 6 SPANNER M13 H (x4) H M8 LEVELING FOOT (x4) K DIN 912 M8x20 (x2) ALLEN M8 J DIN 912 M10x30 (x2) M 125A M10 WASHER (x2) N 125A M8 WASHER (x2)
- Page 7 C: 3 B: 2 HEIGHT? ¿ALTURA? A: 1 MORE AVAILABLE POSITIONS EVERY 15 CMS O SELFLOCKING NUT M8 (x4) ALLEN M8 I DIN 912 M8x80 (x4) M 125A M8 WASHER (x8)
- Page 8 ALLEN M8 FRONT M DIN 912 M8x20 (x4) O 125A M8 WASHER (x4) ALLEN M8 BOTTOM...
- Page 9 ALLEN M8 O SELFLOCKING NUT M8 (x4) I DIN 912 M8x80 (x4) M 125A M8 WASHER (x8)
- Page 11 ALLEN M8 M DIN 912 M6x20 (x2) included in VESA kit...
- Page 12 ACCESORY: MI SHELF // ACCESORIO: MI SHELF HEIGHT? ¿ALTURA? ALLEN M8 SELF-LOCKING NUT M8 (x2) DIN 912 M8x80 ( x2) 125A M8 WASHER (x4) ALLEN M8 SELF-LOCKING NUT M8 (x2) DIN 912 M8x20 ( x2) WASHER 125A M8 (x4)
- Page 13 Traulux es una marca registrada por Charmex Internacional, S.A. CHARMEX INTERNACIONAL, S.A. C/ Maresme 103-105 - 08019 Barcelona (Spain) C/ Miguel Faraday, 20 - 28906 Getafe (Madrid, Spain) Parque Empresarial La Carpetania www.traulux.net www.charmex.net...
