London Electronics MAXI-INT2-P Series Manual

Panel mounting process indicator / controller
Hide thumbs Also See for MAXI-INT2-P Series:
Table of Contents

Advertisement

Quick Links

Download this manual
London Electronics Limited

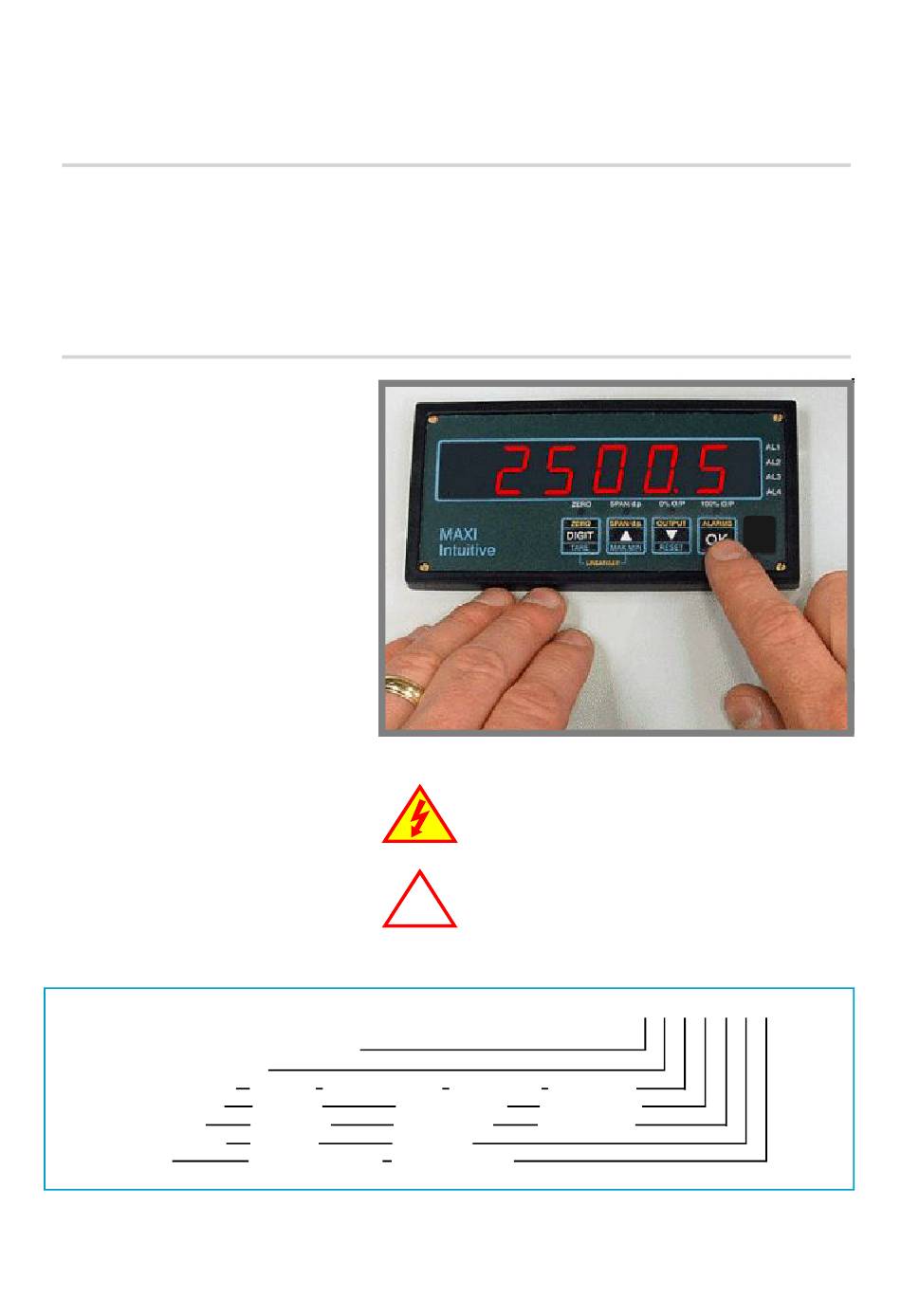

Panel mounting process indicator / controller
Connection details, scaling and general information
MAXI-INT2
= Intuitive Mark 2 family
P
= Process model
Analogue output:
Alarm outputs:
Serial data:
Display colour:
Power:
Document Ref:pm65\manuals\MAXI-INT2_P
Thorncote Road, Near Sandy, Bedfordshire SG19 1PU
Tel +44(0)1767 626444
www.london-electronics.com help@london-electronics.com
!
Ordering code:
0=none, ANB=-10to+10V, ANI=4-20mA, ANV=0-10V
0=none,
AL2= 2 relays,
0= none,
232=RS232,
R=Red,
G=Green
AC=100-240V AC,
DC=11-30V DC
MAXI-INT2-P
Caution: There is a risk of electrical shock
if this instrument is not properly installed
Caution: Risk of danger: Read the whole
manual before you install this meter
MAXI-INT2-P-X-X-X-X-X
AL4=4 relays
485=RS485
Software version F00.21
Revision:19 Dated: 28 February 2011
Fax +44(0)1767 626446
1
