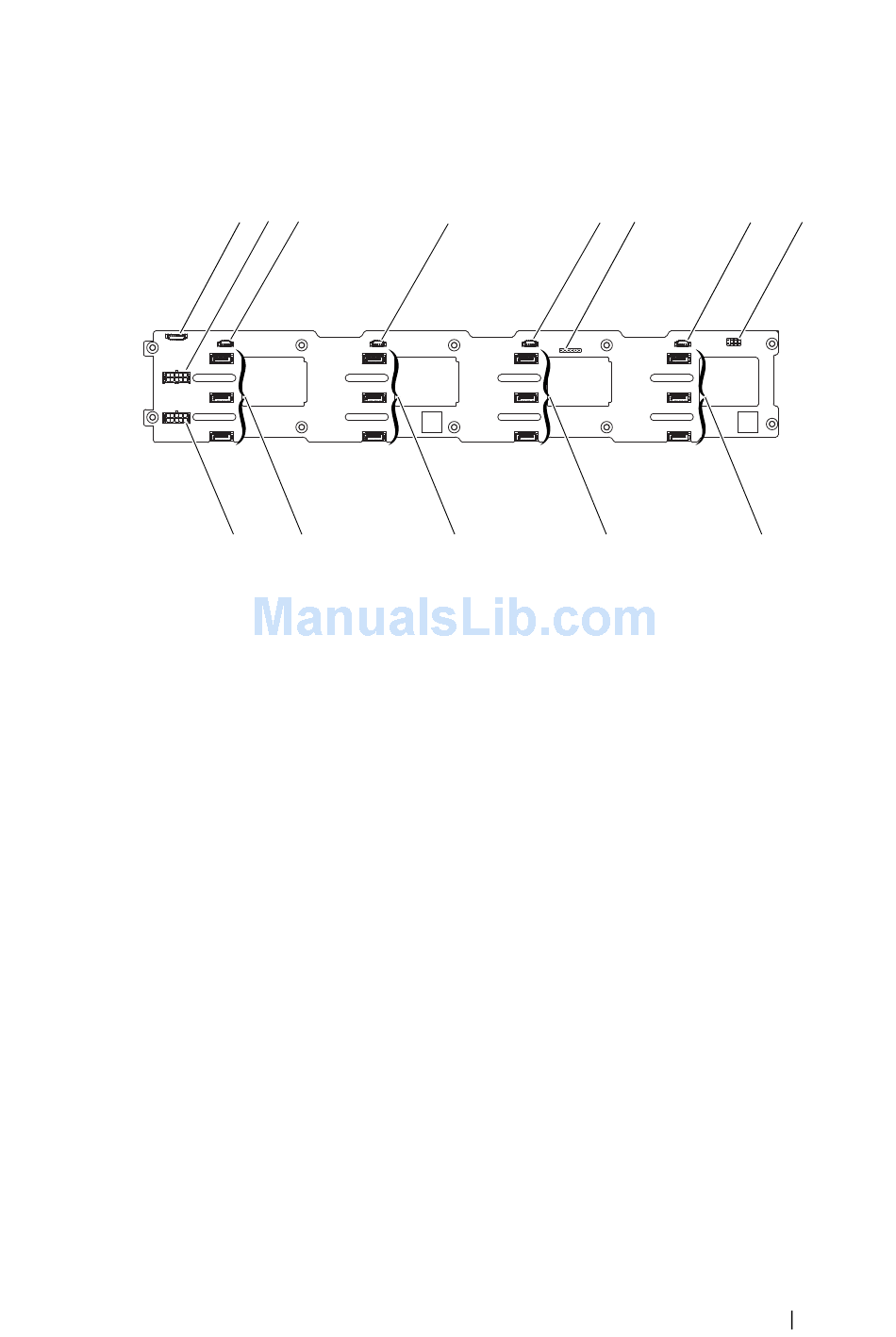

Figure 5-3. Back View of the Backplane
1
13
1 system fan board connector
3 SGPIO connector for system board 4
5 SGPIO connector for system board 2
7 SGPIO connector for system board 1
9 SATA2 hard drive connectors 1, 2,
and 3 for system board 1 (from top to
bottom)
11 SATA2 hard drive connectors 1, 2,
and 3 for system board 3 (from top to
bottom)
13 backplane power connector for
power supply 2
2 3
12
4 5
11 10
2 backplane power connector for
power supply 1
4 SGPIO connector for system board 3
6 CPLD JTAG connector
8 backplane jumper
10 SATA2 hard drive connectors 1, 2,
and 3 for system board 2 (from top to
bottom)
12 SATA2 hard drive connectors 1, 2,
and 3 for system board 4 (from top to
bottom)
Jumpers and Connectors
