3 Open the system. See "Opening the System" on page 91.
CAUTION:
hard drives from the system before removing the backplane.
CAUTION:
them before removal so that you can replace them in the same locations.
4 Remove the screws that secure the hard-drive cage to the chassis.
See Figure 3-31.

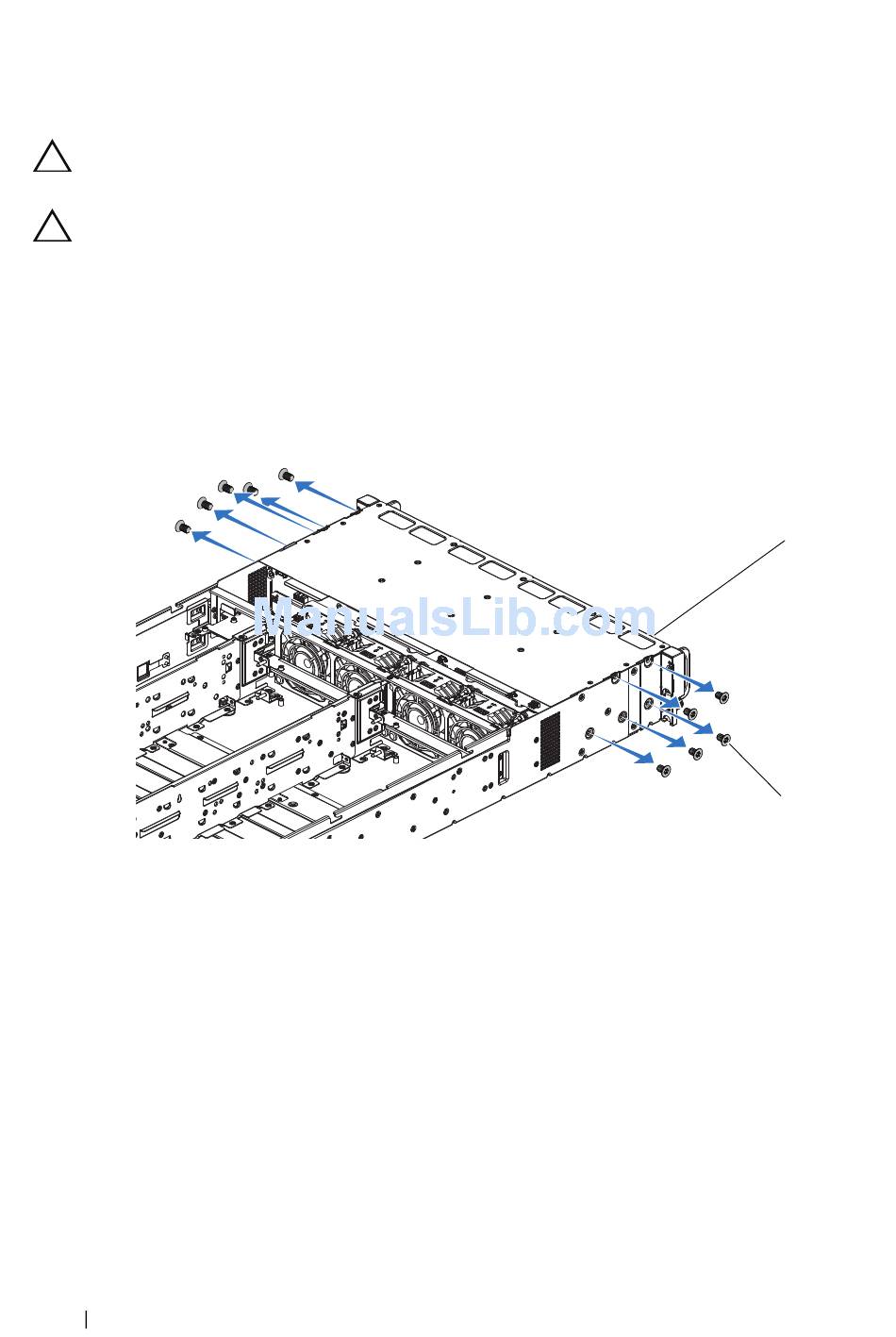

Figure 3-31. Removing and Installing the Backplane
1 hard-drive cage
5 Remove the screws that secure the front-panel assemblies to the chassis.
See Figure 3-32.
6 Disconnect all the cables from the backplane. See Figure 5-3 for 3.5-inch
hard drives and Figure 5-6 for 2.5-inch hard drives.
Note the routing of the cable underneath the tabs on the chassis as you
remove them from the system. You must route these cables properly when
you replace them to prevent the cables from being pinched or crimped.
106
Installing System Components
To prevent damage to the drives and backplane, you must remove the
You must note the number of each hard drive and temporarily label
2 screw (10)
1
2
