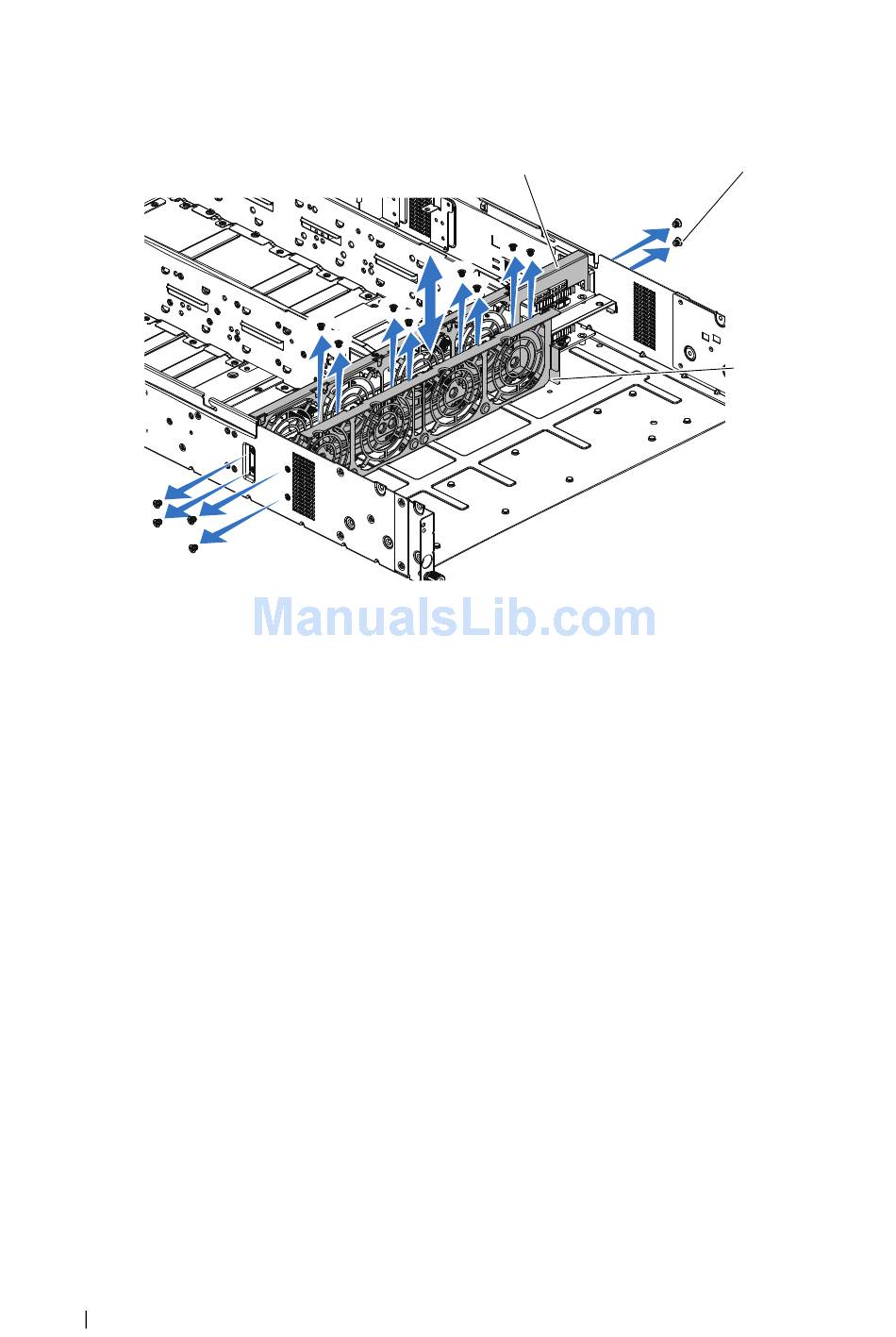

Figure 3-26. Removing and Installing the Cooling-Fan Brackets
1 cooling fan bracket (long)
3 cooling fan bracket (short)
7 Remove the screws that secure the upper midplane to the midplane holder.
Figure 3-27.
8 Disconnect all the cables from the upper midplane. See Figure 5-9.
Note the routing of the cable underneath the tabs on the chassis as you
remove them from the system. You must route these cables properly when
you replace them to prevent the cables from being pinched or crimped.
9 Lift the upper midplane out. Figure 3-27.
100
Installing System Components
1
2 screw (14)
2
3
