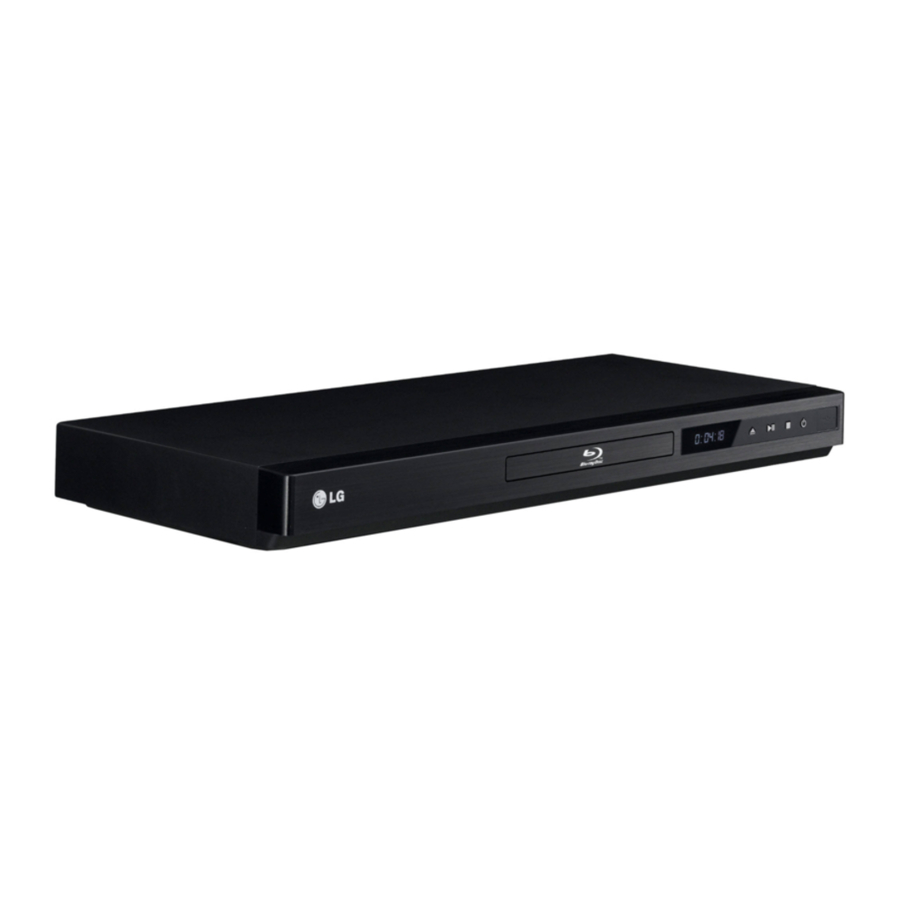

LG BD630 Owner's Manual

Network blu-ray disc™ player
Hide thumbs

Advertisement

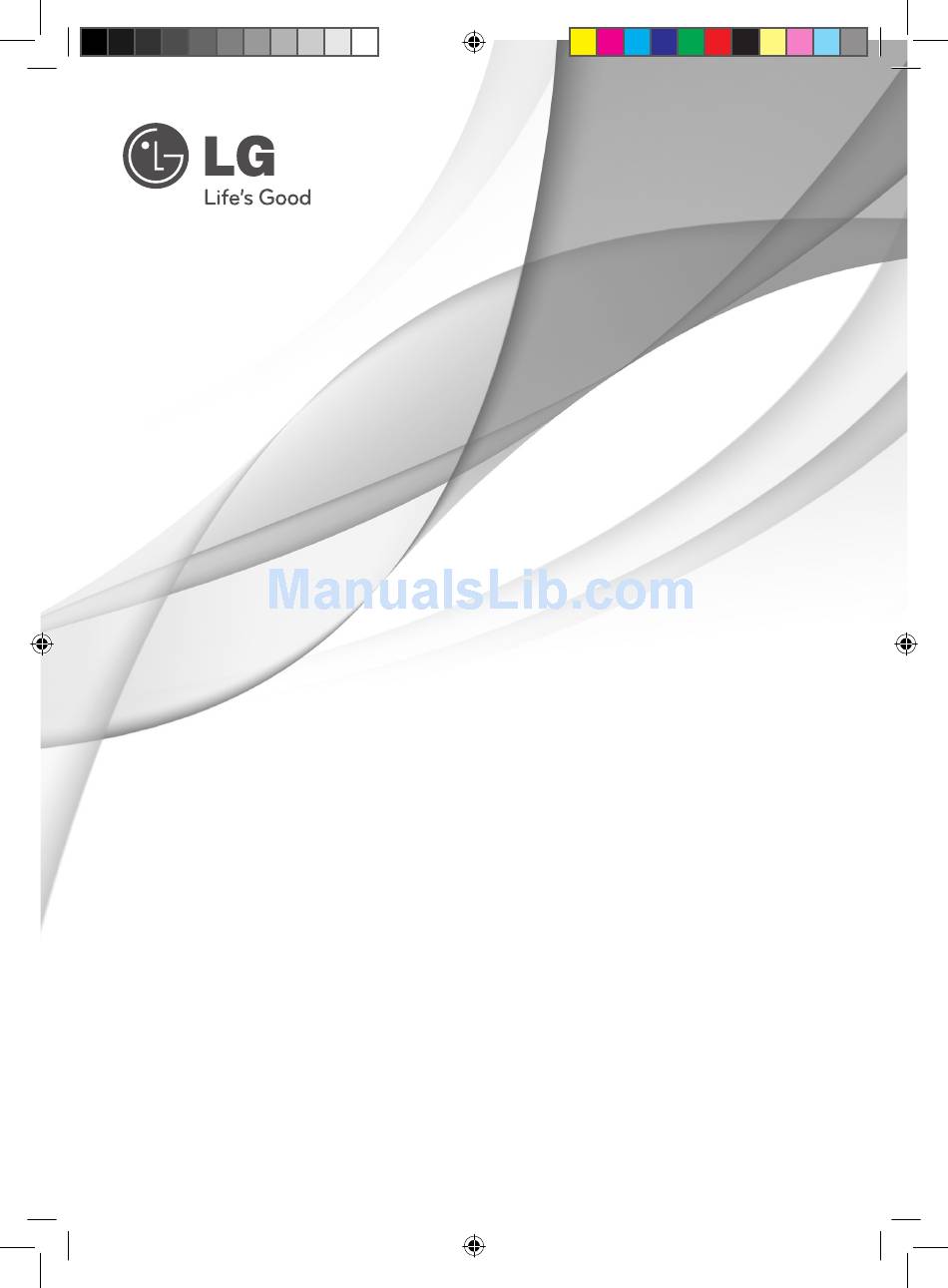

OWNER'S MANUAL
Network Blu-ray Disc™
Player
Please read this manual carefully before operating
your set and retain it for future reference.
BD630
www.lg.com
P/NO : MFL67100461
BD651-N_US_NO_DIVX black.indd 1
2011-01-21
5:04:52

Advertisement

Table of Contents
loading

  Also See for LG BD630

  Related Manuals for LG BD630

  Summary of Contents for LG BD630

  • Page 1 OWNER’S MANUAL Network Blu-ray Disc™ Player Please read this manual carefully before operating your set and retain it for future reference. BD630 www.lg.com P/NO : MFL67100461 BD651-N_US_NO_DIVX black.indd 1 2011-01-21 5:04:52...
  • Page 2 BD651-N_US_NO_DIVX black.indd 2 2011-01-21 5:04:52...
  • Page 3 Getting Started Getting Started Safety Information CAUTION CAUTION: This product employs a Laser System. RISK OF ELECTRIC SHOCK To ensure proper use of this product, please read DO NOT OPEN this owner’s manual carefully and retain it for future CAUTION: TO REDUCE THE RISK OF ELECTRIC reference. Shall the unit require maintenance, SHOCK DO NOT REMOVE COVER (OR BACK) NO contact an authorized service center. USER-SERVICEABLE PARTS INSIDE REFER SERVICING Use of controls, adjustments or the performance of TO QUALIFIED SERVICE PERSONNEL. procedures other than those specified herein may result in hazardous radiation exposure. This lightning flash with arrowhead To prevent direct exposure to laser beam, do not try symbol within an equilateral triangle to open the enclosure. Visible laser radiation when is intended to alert the user to the open. DO NOT STARE INTO BEAM. presence of uninsulated dangerous CAUTION concerning the Power Cord voltage within the product’s Most appliances recommend they be placed upon enclosure that may be of sufficient magnitude to a dedicated circuit;...
  • Page 4 Getting Started This device is equipped with a portable battery or y Connect the equipment into an outlet on a accumulator. circuit different from that to which the receiver is connected. Safety way to remove the battery or the battery from the equipment: Remove the y Consult the dealer or an experienced radio/TV old battery or battery pack, follow the steps technician for help. in reverse order than the assembly. To prevent CAUTION: Any changes or modifications not contamination of the environment and bring on expressly approved by the party responsible for possible threat to human and animal health, the compliance could void the user’s authority to old battery or the battery put it in the appropriate operate this equipment. container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like. CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • Page 5 Getting Started IMPORTANT SAFETY Notes on Copyrights y Because AACS (Advanced Access Content INSTRUCTIONS System) is approved as content protection system for BD format, similar to use of CSS 1. Read these instructions. (Content Scramble System) for DVD format, 2. Keep these instructions. certain restrictions are imposed on playback, analog signal output, etc., of AACS protected 3. Heed all warnings. contents. The operation of this product and 4. Follow all instructions. restrictions on this product may vary depending 5. Do not use this apparatus near water. on your time of purchase as those restrictions 6. Clean only with dry cloth. may be adopted and/or changed by AACS after the production of this product. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s y Furthermore, BD-ROM Mark and BD+ are instructions. additionally used as content protection systems for BD format, which imposes certain restrictions 8. Do not install near any heat sources such including playback restrictions for BD-ROM as radiators, heat registers, stoves, or other...
  • Page 6: Table Of Contents

    Table of Contents Table of Contents – Adjust the Setup Settings – [DISPLAY] Menu – [LANGUAGE] Menu – [AUDIO] Menu – [LOCK] Menu Getting Started – [NETWORK] Menu – [OTHERS] Menu Safety Information Introduction – Playable Discs and symbols used in Operating this manual –...
  • Page 7: Table Of Contents

    Table of Contents Troubleshooting Troubleshooting – General – Picture – Sound – Network – Customer Support – Open source software notice Appendix Controlling a TV with the Supplied Remote Control – Setting up the remote to control your Network Software Update –...
  • Page 8: Getting Started

    Getting Started Introduction Playable Discs and symbols used in this manual Media/Term Logo Symbol Description y Discs such as movies that can be purchased or rented. y BD-R/RE discs that are recorded in BDAV format. Blu-ray y BD-R/RE discs that contain Movie, Music or Photo files. y ISO 9660+JOLIET, UDF and UDF Bridge format. y Discs such as movies that can be purchased or rented. DVD-ROM y Video mode and finalized only DVD-R y Supports the dual layer disc also DVD-RW Finalized AVCHD format DVD+R DVD+RW y DVD±R/RW discs that contain Movie, Music or (8 cm / 12 Photo files.
  • Page 9: About The "7" Symbol Display

    If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.) Battery (1) y This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. y Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions to ensure compatible playback. y Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner. y You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System : Disc format system for windows Vista) BD651-N_US_NO_DIVX black.indd 9 2011-01-21 5:04:54...
  • Page 10: File Compatibility

    Getting Started File compatibility Video files File File Codec Format Audio Format Subtitle Location Extension “.avi”, “.mpg”, XVID, MPEG1 SS, Dolby Digital, SubRip (.srt / .txt), SAMI (.smi), “.mpeg”, “.mkv”, H.264/MPEG-4 AVC, DTS, MP3, SubStation Alpha (.ssa/.txt), Disc, “.mp4”, “.asf”, MPEG2 PS, MPEG2 TS WMA, AAC, MicroDVD (.sub/.txt), VobSub “.wmv”, “.m4v” (.sub), SubViewer 1.0 (.sub), (DRM free) SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt) Music files File File Sampling Frequency Bitrate Note Location Extension...
  • Page 11: Avchd (Advanced Video Codec High Definition)

    Getting Started Note AVCHD (Advanced Video y The file name is limited to 180 characters. Codec High Definition) y A “avi “file which is encoded “WMV 9 codec” y This player can playback AVCHD format discs. is not supported. These discs are normally recorded and used in y Depending on the size and number of the camcorders. files, it may take several minutes to read the y The AVCHD format is a high definition digital contents on the media. video camera format. y This unit cannot support the ID3 Tag y The MPEG-4 AVC/H.264 format is capable of embedded MP3 file. compressing images at higher efficiency than y The total playback time of music file that of the conventional image compressing indicated on the screen may not correct for format. VBR files. y This player can playback AVCHD discs using y HD video files contained on the CD or USB “x.v.Color” format.
  • Page 12: Certain System Requirements

    Getting Started Certain System Requirements Compatibility Notes For high definition video playback: y Because BD-ROM is a new format, certain disc, digital connection and other compatibility issues y High definition display that has COMPONENT or are possible. If you experience compatibility HDMI input jacks. problems, please contact an authorized y BD-ROM disc with high definition content. Customer Service Center. y HDMI or HDCP capable DVI input on your display y This unit allows you to enjoy functions such device is required for some content (as specified as picture-in-picture, secondary audio and by disc authors). Virtual packages, etc., with BD-Video supporting For Dolby® Digital Plus, Dolby TrueHD and DTS-HD BONUSVIEW (BD-ROM version 2 Profile 1 version multi-channel audio playback: 1.1/ Final Standard Profile). Secondary video and audio can be played from a disc compatible with y An amplifier/receiver with a built-in (Dolby the picture-in-picture function. For the playback Digital, Dolby Digital Plus, Dolby TrueHD, DTS or method, refer to the instructions in the disc. DTS-HD) decoder. y Viewing high-definition content and up- y Main, center, surround speakers and subwoofer converting standard DVD content may require a as necessary for chosen format.
  • Page 13: Remote Control

    Getting Started Remote control • • • • • • a • • • • • • • • • • • • d • • • • • ZOOM: Displays or exits the 1 (POWER): Switches the player ON or OFF. [Zoom] menu. B (OPEN/CLOSE): Opens and MARKER: Marks any point during closes the disc tray. playback. * : The button is not available for SEARCH: Displays or exits the any function.
  • Page 14: Front Panel

    Getting Started Front panel a Disc Tray e N (PLAY / PAUSE) b Display Window f Z (STOP) c Remote Sensor g 1 (POWER) Button d B (OPEN/CLOSE) h USB Port Rear panel a AC power cord e HDMI OUT b VIDEO OUT f DIGITAL AUDIO OUT (COAXIAL) c 2CH AUDIO OUT (Left/Right)
  • Page 15: Connecting

    Connecting Connecting Connecting to Your TV HDMI Connection If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable (Type A, High Make one of the following connections, depending Speed HDMI Cable). Connect the HDMI jack on on the capabilities of your existing equipment. the player to the HDMI jack on a HDMI compatible y HDMI connection (page 15) TV or monitor. y Component Video connection (page 16) y Video connection (page 17) Note Rear of the unit y Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual. y Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections. y Do not connect the player’s AUDIO OUT HDMI jack to the phono in jack (record player) of cable your audio system. y Do not connect your player via your VCR.
  • Page 16: What Is Simplink

    When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable. y If there are noises or lines on the screen, Component please check the HDMI cable (length is video cable generally limited to 4.5 m(15 ft.)). What is SIMPLINK? Audio cable Some functions of this unit are controlled by the TV’s remote control when this unit and LG TV’s with SIMPLINK are connected through HDMI connection. Controllable functions by LG TV’s remote control; Play, Pause, Scan, Skip, Stop, Power Off, etc. Refer to the TV owner’s manual for the details of SIMPLINK function. LG TV’s with SIMPLINK function has the logo as shown above. Note Note When you use COMPONENT VIDEO OUT Depending on the disc type or playing status, connection, you can change the resolution for some SIMPLINK operation may differ from your the output. (Refer to “Resolution setting” on purpose or not work. page 17.) BD651-N_US_NO_DIVX black.indd 16...
  • Page 17: Video/Audio (Left/Right) Connection

    Connecting Video/Audio (Left/Right) Resolution Setting Connection The player provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUT jacks. You Connect the VIDEO OUT jack on the player to the can change the resolution using [Setup] menu. video in jack on the TV using a video cable. Connect 1. Press HOME (n). the left and right AUDIO OUT jacks of the player to the audio left and right IN jacks on the TV using the 2. Use a/d to select the [Setup] and press ENTER audio cables. (b). The [Setup] menu appears. 3. Use w/s to select [DISPLAY] option then press d to move to the second level. 4. Use w/s to select the [Resolution] option then Rear of the unit press ENTER (b) to move to the third level. 5. Use w/s to select the desired resolution then press ENTER (b) to confirm your selection. Note y If your TV does not accept the resolution Audio/ Video you have set on the player, you can set cable resolution to 480p as follows: 1. Press B to open the disc tray. 2 Press Z (STOP) for more than 5 seconds. y Since several factors affect the resolution of video output, see “Video Output Resolution”...
  • Page 18: Connecting To An Amplifier

    Connecting Connecting to an Connect the amplifier’s HDMI output jack to HDMI input jack on your TV using a HDMI cable if your Amplifier amplifier has HDMI output jack. You will need to activate the player’s digital output. (See “[AUDIO] Menu” on pages 25.) Make one of the following connections, depending on the capabilities of your existing equipment. Connecting to an Amplifier via y HDMI Audio connection (page 18) Digital Audio Output y Digital Audio connection (page 18) Connect the player’s DIGITAL AUDIO OUT jack y 2CH Analog Audio connection (page 19) to the corresponding in jack (COAXIAL) on your Since many factors affect the type of audio output, amplifier using an optional digital audio cable. see “Audio Output Specifications” for details (pages 50). Connecting to an Amplifier via Rear of the unit HDMI Output Connect the player’s HDMI OUT jack to the corresponding in jack on your amplifier using a HDMI cable.
  • Page 19: Channel Audio Output

    Connecting Connecting to your Connecting to an Amplifier via 2 Channel Audio Output Home Network Connect the Left and Right 2CH AUDIO OUT jacks on the player to the audio left and right in jacks This player can be connected to a local area on your amplifier, receiver, or stereo system using network (LAN) via the LAN port on the rear panel. audio cables. By connecting the unit to a broadband home network, you have access to services such as software updates, BD-Live interactivity and on-line content services. Rear of the unit Wired network connection Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference. Please refer to the documentation for your network device for further instructions. Connect the player’s LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable. Audio cable (CAT5 or better with RJ45 connector). Note y When plugging or unplugging the LAN cable, hold the plug portion of the cable.
  • Page 20: Wired Network Setup

    Connecting Broadband service 2. Select [Yes] and press ENTER (b) to continue. The new connection settings reset the current network settings. Router 3. Use w/s/a/d to select the IP mode between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically. Note If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using w/s/ a/d and numerical buttons. If you make a mistake while entering a number, press CLEAR Rear of the unit to clear the highlighted part. Wired Network Setup 4. Select [OK] and press ENTER (b) to apply network settings. If there is a DHCP server on the local area network (LAN) via wired connection, this player will 5. The player will ask you to test the network automatically be allocated an IP address. After connection. Select [OK] and press ENTER (b) to making the physical connection, a small number of complete the network connection. home networks may require the player’s network 6. If you select [Test] and press ENTER (b) at setting to be adjusted. Adjust the [NETWORK] step 5 above, the network connection status is setting as follow.
  • Page 21 Connecting Notes on Network Connection: y A DSL modem is required to use DSL service and a cable modem is required to use cable modem y Many network connection problems during service. Depending on the access method of and set up can often be fixed by re-setting the subscriber agreement with your ISP, you may not router or modem. After connecting the player be able to use the internet connection feature to the home network, quickly power off and/ contained in this player or you may be limited or disconnect the power cable of the home to the number of devices you can connect at network router or cable modem. Then power on the same time. (If your ISP limits subscription to and/or connect the power cable again. one device, this player may not be allowed to y Depending on the internet service provider (ISP), connect when a PC is already connected.) the number of devices that can receive internet y The use of a “Router” may not be allowed or its service may be limited by the applicable terms usage may be limited depending on the policies of service. For details, contact your ISP. and restrictions of your ISP. For details, contact y Our company is not responsible for any your ISP directly. malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.
  • Page 22: Usb Device Connection

    Connecting Note USB device connection y This player supports USB flash drive/ external HDD formatted in FAT16, FAT32 and This player can play movie, music and photo files NTFS when accessing files (music, photo, contained in the USB device. movie). However, for BD-Live and Audio CD recording, only FAT16 and FAT32 formats Playback content in the USB are supported. Use the USB flash drive/ external HDD formatted in either FAT16 or device FAT32 when using BD-Live and Audio CD recording. 1. Insert a USB device to the USB port until it fits into place. y The USB device can be used for the local storage for enjoying BD-Live discs with Internet. y This unit can support up to 4 partitions of the USB device. y Do not extract the USB device during operation (play, etc.). y A USB device which requires additional program installation when you have connected it to a computer, is not When you connect the USB device on the HOME supported.
  • Page 23: System Setting

    System Setting System Setting Settings [DISPLAY] Menu TV Aspect Ratio Adjust the Setup Settings Select a TV aspect ratio option according to your TV type. You can change the settings of the player in the [Setup] menu. [4:3 Letter Box] 1. Press HOME (n). Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture. [4:3 Pan Scan] Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Both sides of the picture are cut off. 2. Use a/d to select the [Setup] and press ENTER (b). The [Setup] menu appears. [16:9 Original] Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3 aspect ratio, with black bars appearing at the left and right sides. [16:9 Full] Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear...
  • Page 24: [Language] Menu

    System Setting Resolution HDMI Color Setting Sets the output resolution of the Component and Select the type of output from the HDMI OUT jack. HDMI video signal. Refer to page 17 and 52 for For this setting, please refer to the manuals of your details about the resolution setting. display device. [Auto] [YCbCr] If the HDMI OUT jack is connected to Select when connecting to a HDMI display TVs providing display information (EDID), device. automatically selects the resolution best suited [RGB] to the connected TV. If the COMPONENT Select when connecting to a DVI display VIDEO OUT is only connected, this changes the device. resolution to 480i as default resolution [480i] [LANGUAGE] Menu Outputs 480 lines of interlaced video. [480p] Display Menu Outputs 480 lines of progressive video. Select a language for the [Setup] menu and on- screen display. [720p] Outputs 720 lines of progressive video. Disc Menu/Disc Audio/ [1080i] Disc Subtitle Outputs 1080 lines of interlaced video.
  • Page 25: [Audio] Menu

    System Setting [AUDIO] Menu Sampling Freq. (Digital Audio Output) Each disc has a variety of audio output options. Set the player’s Audio options according to the type of [48 kHz] audio system you use. Select this if your A/V Receiver or Amplifier is Note not capable of handling 192 kHz and 96 kHz Since many factors affect the type of audio signal. When this choice is made, this unit output, see “Audio Output Specifications” on automatically converts any 192 kHz and 96 kHz page 50 for details. signals to 48 kHz so your system can decode them. HDMI / Digital Output (SPDIF) [96 kHz] Select this if your A/V Receiver or Amplifier is [PCM Stereo] not capable of handling 192 kHz signals. When Select if you connect this unit’s HDMI OUT or this choice is made, this unit DIGITAL AUDIO OUT jack to a device with two- automatically converts any 192 kHz signals to channel digital stereo decoder. 96 kHz so your system can decode them.
  • Page 26: [Lock] Menu

    System Setting [LOCK] Menu DTS Neo:6 If the player is connected to the multi-channel The [LOCK] settings affect only CinemaNow movie, Audio Receiver by HDMI connection, set this option Blu-ray Disc and DVD playback. to enjoy the multi-channel surround sound with To access the any features in [LOCK] settings, you the 2-channel audio source. must enter the 4-digit security code you have created. [Off] If you have not entered a password yet, you are Outputs the stereo sound via front speakers. prompted to do so. Enter a 4-digit password twice, and press ENTER (b) to create a new password. [Music] Outputs the multi-channel sounds that are Password optimized for listening to music. You can create or change the password. [Cinema] [None] Outputs the multi-channel sounds that are optimized for watching movie. Enter a 4-digit password twice, and press ENTER (b) to create a new password. Note [Change] y This function is not available on an on-line service. Enter the current password and press ENTER (b). Enter a 4-digit password twice, and press y Only the audio source with less than 48 ENTER (b) to create a new password.
  • Page 27: [Network] Menu

    System Setting [NETWORK] Menu DVD Rating Blocks playback of rated DVD based on their The [NETWORK] settings are needed to use the content. (Not all discs are rated.) software update, BD Live and NetCast features. [Rating 1-8] Connection Setting Rating one (1) has the most restrictions and If your home network environment is ready to rating eight (8) is the least restrictive. connect the player, the player needs to be set the [Unlock] wired or wireless network connection for network communication. (See “Connecting to your Home If you select [Unlock], parental control is not Network” on pages 19-21.) active and the disc plays in full. Connection Status BD Rating If you want to check the network status on this Set an age limit of BD-ROM play. Use number player, select the [Connection Status] options and buttons to input an age limit for BD-ROM viewing. press ENTER (b) to check whether a connection to the network and the internet have been [255] established. All BD-ROM can be played. BD-LIVE connection [0-254] You can restrict Internet access when BD-Live Prohibits play of BD-ROM with corresponding functions are used.
  • Page 28: [Others] Menu

    System Setting Netflix Software [Netflix ESN] [Information] Display its unique Netflix ESN (Electronic Serial Displays the current software version. Number) that allows you to use the Netflix [Update] streaming. You can update the software by connecting [Deactivate Netflix] the unit directly to the software update server Deactivates your player. To activate the Netflix (see page 45). again, contact to the service provider. Disclaimer Notice Deactivate Vudu Press ENTER (b) to view the notice of Network You can deactivate your player from your Vudu Service Disclaimer on page 55. account. It is recommended that you do this if you give your player to someone else who should not share your Vudu account. [OTHERS] Menu Auto Power Off The screen saver appears when you leave the player in Stop mode for about five minutes. If you set this option to [On], the unit automatically turns itself off after the Screen Saver is displayed for 20 minutes. Set this option to [Off ] to leave the screen saver until the unit is operated by the user.
  • Page 29: Operating

    Operating Operating Note General Playback y Playback functions described in this manual are not always available in every files and media. Some functions can be restricted Using [HOME] menu depending on many factors. y Depending on the BD-ROM titles, a USB The home menu appears when you press HOME device connection may be needed for the (n). Use a/d to select a category and press proper playback. ENTER (b). y Unfinalized DVD VR format discs may not be played in this player. y Some DVD-VR discs are made with CPRM data by DVD RECORDER. This unit cannot support these kinds of discs. Playing a file on a disc/USB device This unit can play video, audio and photo files contained in the disc or USB device. a [Movie] - Plays video contents. 1. Insert a data disc on the tray or connect a USB b [Photo] - Plays photo contents.
  • Page 30: Enjoying Bd-Live

    Operating Enjoying BD-Live Basic operations for video and audio content BD-Video supporting BD-Live (BD-ROM version 2 To stop playback Profile 2) that has a network extension function Press Z (STOP) while playback. allows you to enjoy more functions such as downloading new movie trailers by connecting this To pause playback unit to the internet. Press M (PAUSE) while playback. 1. Check the network connection and settings Press z (PLAY) to resume playback. (pages 19-21). 2. Insert a USB storage device to the USB port on To play frame-by-frame (Video) the front panel. Press M (PAUSE) while movie playback. A USB storage device is needed to download Press M (PAUSE) repeatedly to play Frame-by-Frame bonus content. playback. 3. Press HOME (n), and set the [BD-LIVE connection] option on the [Setup] menu (page To scan forward or backward 27).
  • Page 31: Basic Operations For Photo Content

    Operating Basic operations for photo Resume playback content eroyt, To play a slide show The unit records the point where you pressed the Press z (PLAY) to start slide show. Z (STOP) depending on the disc. If “MZ (Resume Stop)” appears on the screen To stop a slide show briefly, press z (PLAY) to resume playback (from Press Z (STOP) while slide show. the scene point). If you press Z (STOP) twice or unload the disc, To pause a slide show “Z(Complete Stop)” appears on the screen. The unit will clear the stopped point. Press M (PAUSE) while slide show. Press z (PLAY) to re-start the slide show. Note y The resume point may be cleared when a To skip to the next/previous photo button is pressed (for example; 1 (POWER), While viewing a photo in full screen, press a or d B (OPEN/CLOSE), etc).
  • Page 32: Advanced Playback

    Operating Advanced Playback Repeating a specific portion eroty This player can repeat a portion you have selected. Repeat Playback 1. While playback, press REPEAT (h) to select erotu, [A-] at the beginning of the portion you wish to repeat. 2. Press ENTER (b) at the end of the portion. Your During playback, press REPEAT (h) repeatedly to selected portion will be repeated continually. select a desired repeat mode. 3. To return to normal playback, press REPEAT Blu-ray discs/DVDs/ Video (h) repeatedly to select [Off ]. jA- – Selected portion will be repeated continually. Note jChapter – The current chapter will be played y You cannot select a portion less than 3 back repeatedly. seconds. jTitle – The current title will be played back y This function may not work on some disc or repeatedly. title. jAll - All the tracks or files will be played back repeatedly.
  • Page 33: Marker Search

    Operating Marker Search Using the search menu eroy eroy You can start playback from up to nine memorized Using search menu, you can easily to find the point points. where you want to start playback. To enter a marker To search a point 1. While playback, press MARKER at the desired 1. During playback, press SEARCH to display the point. The Marker icon appears on the TV screen search menu. briefly. 2. Repeat step 1 to add up to nine markers. To recall a marked scene 2. Press a/d to skip the playback 15 seconds forward or backward. You can select a point that 1. Press SEARCH and the search menu appears on you want to skip by pressing and holding a/d the screen.
  • Page 34: Changing Content List View

    Operating Changing content list view Viewing content information On the [Movie], [Music] or [Photo] menu, you can The player can display the content information. change the content list view. 1. Select a file using w/s/a/d. 2. Press INFO/DISPLAY (m) to display the option Method 1 menu. Press red (R) colored button repeatedly. 3. Select the [Information] option using w/s, and press ENTER (b). The file information appears on the screen. While movie playback, you can display the file information by pressing TITLE/POP-UP. Note The information displayed on the screen may not correct comparing actual content information. Selecting a subtitle file If the subtitle file name is different from the movie file name, you need to select the subtitle file on the [Movie] menu before playing the movie. 1. Use w/s/a/d to select the subtitle file you wish to play in the [Movie] menu. 2. Press ENTER (b). Method 2 Press ENTER (b) again to deselect the subtitle file. Selected subtitle file will be displayed when...
  • Page 35: Last Scene Memory

    Operating Last Scene Memory Options while viewing a photo This unit memorizes the last scene from the last disc You can use various options during viewing a that is viewed. The last scene remains in memory photo in full screen. even if you remove the disc from the unit or switch 1. While viewing a photo in full screen, press INFO/ off the unit. If you load a disc that has the scene DISPLAY (m) to display the option menu. memorized, the scene is automatically recalled. 2. Select an option using w/s. Note y Last Scene Memory function for a previous disc is erased once a different disc is played. y This function may not work depending on the disc. y On BD-Video discs with BD-J, the last scene memory function does not work. y This unit does not memorize settings of a disc if you switch off the unit before commencing to play it. a Current photo/Total number of photos – Use a/d to view previous/next photo.
  • Page 36: Listening To Music While Slide Show

    Operating On-Screen display Listening to music while slide show You can display and adjust various information and settings about the content. You can display photo files while listening to audio files. Displaying content information 1. While viewing a photo in full screen, press INFO/ on-screen DISPLAY (m) to display the option menu. eroy 2. Use w/s to select [Music Select] option, and press ENTER (b) to display the [Music Select] 1. While playback, press INFO/DISPLAY (m) to menu. show various playback information. 3. Use w/s to select a device, and press ENTER (b). 4. Use w/s to select a file or a folder you wish to play. Select g and press ENTER (b) to display the a Title – current title number/total number of upper directory. titles Note b Chapter – current chapter number/total When selecting music file from a folder number of chapters...
  • Page 37: Playing From Selected Time

    Operating Hearing a different audio 2. Select an option using w/s. 3. Use a/d to adjust the selected option value. eroy 4. Press BACK (x) to exit the On-Screen display. 1. During playback, press INFO/DISPLAY (m) to Note display the On-Screen display. y If no button is pressed for a few seconds, 2. Use w/s to select the [Audio] option. the on-screen display disappears. 3. Use a/d to select desired audio language, y A title number cannot be selected on some audio track or audio channel. discs. Note y Available items may differ depending on y Some discs allow you to change audio discs or titles. selections only via the disc menu. In this y If BD interactive title is playing back, some case, press TITLE/POP-UP or DISC MENU setting information is displayed on the button and choose the appropriate audio screen but prohibited to be changed. from the selections on the disc menu.
  • Page 38: Changing The Tv Aspect Ratio

    Operating 3. Use a/d to select desired angle. 4. Use w/s/a/d to adjust the [Picture Mode] options. 4. Press BACK (x) to exit the On-Screen display. Select [Default] option then press ENTER (b) to reset the all video adjustments. Changing the TV Aspect Ratio 5. Use w/s/a/d to select the [Close] option, eroy and press ENTER (b) to finish setting. You can change the TV aspect ratio setting while Changing subtitle code page playback. 1. During playback, press INFO/DISPLAY (m) to display the On-Screen display. If the subtitle is displayed in broken letter, you can 2. Use w/s to select the [TV Aspect Ratio] change the subtitle code page to view the subtitle option. file properly. 3. Use a/d to select desired option. 1. During playback, press INFO/DISPLAY (m) to 4. Press BACK (x) to exit the On-Screen display. display the playback menu.
  • Page 39: Audio Cd Recording

    Cancels the recording and y Do not turn off this player or extract the returns to the previous screen. connected USB storage device during Audio CD recording. 6. Use w/s/a/d to select [Start], and press ENTER (b). > Caution 7. Use w/s/a/d to select a destination folder The recording or copying features on to be copied. this player are provided for your personel and noncommercial use. The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes. LG expressly disclaims any responsibility for illegal distribution or use of unauthorized content in commercial purpose. If you want to create a new folder, use Be Responsible w/s/a/d to select [New Folder] and press Respect Copyrights ENTER (b). Enter a folder name using virtual keyboard, and press ENTER (b) while [OK] is selected. BD651-N_US_NO_DIVX black.indd 39 2011-01-21 5:05:00...
  • Page 40: Enjoying The Netcast™ Entertainment Access

    Operating Enjoying the NetCast™ Entertainment Access You can use various content services via Internet with the NetCast Entertainment Access feature. 1. Check the network connection and settings (pages 19-21). 2. Press HOME (n). 3. Select the [NetCast] using a/d, and press ENTER (b). 4. Select an option using a/d, and press ENTER (b). Note y Detailed information of each service, contact to the content provider or visit support link of the service. y The content of NetCast services and service related information, including user interface, is subject to changes. Please refer to the web site of each service for most up-to-date information. BD651-N_US_NO_DIVX black.indd 40 2011-01-21 5:05:00...
  • Page 41: Troubleshooting

    Troubleshooting Troubleshooting Troubleshooting General Symptom Cause & Solution The Power does not turned on. y Plug the power cord into the wall outlet securely. The unit does not start y Insert a playable disc. (Check the disc type, colour system, and playback. regional code.) y Place the disc with the playback side down. y Place the disc on the disc tray correctly inside the guide. y Clean the disc. y Cancel the Rating function or change the rating level. The angle cannot be changed. y Multi-angles are not recorded on the DVD Video being played. Cannot play movie, photo or y The files are not recorded in a format that the unit can play. music files. y The unit does not support the codec of the movie file. The remote control does not y The remote control is not pointed at the remote sensor of the unit. work properly. y The remote control is too far from the unit. y There is an obstacle in the path of the remote control and the unit. y The batteries in the remote control are exhausted.
  • Page 42: Picture

    Troubleshooting Picture Symptom Cause & Solution There is no picture. y Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen. y Connect the video connection securely. y Check the [HDMI Color Setting] in the [Setup] menu is set to the appropriate item that conforms to your video connection. y Your TV may not suppot the resolution you have set on the player. Change the resolution that your TV accepts. y The player’s HDMI OUT jack is connected to a DVI device that does not support copyright protection. Picture noise appears y You are playing a disc recorded in a colour system that is different from your TV. y Set the resolution which your TV accepts. Sound Symptom Cause & Solution There is no sound or the y Connect the audio connection securely. sound is distorted. y The input source setting on the amplifier or the connection to the amplifier is incorrect. y The unit is in scan, slow motion, or pause mode. y The sound volume is low.
  • Page 43: Network

    BD-Live feature does not y The connected USB storage may not have enough space. Connect the USB storage with at least 1GB free space. work. y Ensure that the unit is correctly connected to the local area network and can access the internet (see pages 19-21). y Your broadband speed may not fast enough to use the BD-Live features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended. y The [BD-LIVE connection] option in the [Setup] menu is set to [Prohibited]. Set the option to [Permitted]. Streaming video services y Your broadband service speed may not be fast enough to stream (such as YouTube™, etc.) are video services. Contact your Internet Service Provider (ISP) and often stopped or “buffer” increase the broadband speed is recommended. during playback. Customer Support You can update the Player using the latest software to enhance the products operation and/or add new features. To obtain the latest software for this player (if updates have been made), please visit http://us.lgservice.com or contact LG Electronics customer care center. Open source software notice To obtain the corresponding source code under GPL, LGPL and other open source licenses, please visit http://opensource.lge.com. All referred license terms, warranty disclaimers and copyright notices are available to download with the source code. BD651-N_US_NO_DIVX black.indd 43 2011-01-21 5:05:01...
  • Page 44: Appendix

    Appendix Appendix Controlling a TV with Setting up the remote to control your TV the Supplied Remote You can operate your TV with the supplied remote Control control. If your TV is listed in the table below, set the appropriate manufacturer code. You can control your TV using the buttons below. 1. While holding down 1 (TV POWER) button, and press the manufacturer code for your TV with the numerical buttons (see the table below). Manufacturer Code Number 1(Default), 2 Zenith 1, 3, 4 GoldStar 1, 2 Samsung 6, 7 Sony 8, 9 By pressing You can Hitachi...
  • Page 45: Network Software Update

    Appendix Network Software Software Update Update You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by connecting the unit directly to the software update Network update notification server. Note From time to time, performance improvements y Before updating the software in your player, and/or additional features or services may be remove any disc and USB Device from the made available to units that are connected to a player. broadband home network. If there is new software available and the unit is connected to a broadband y Before updating the software in your player, home network, the player will inform you about the turn the player off and then turn it back on. update as follows. y During the software update procedure, do not turn off the player or disconnect Option 1: AC power, or do not press any button.
  • Page 46 6. The player starts downloading the newest update from the server. (Downloading will takes several minutes depending on your home network condition) 7. When downloading is completed, the message, “Download is complete. Do you want to update?” appears. 8. Select [OK] to start updating. (Selecting [Cancel] will end the update and downloaded file will not be re-usable. To update software the next time, the software update procedure has to be started from the beginning again.) > Caution Do not turn off the power during the software update. Note If the software includes the driver update, disc tray may open during the process. 9. When update is completed, the power will be turned automatically in a few seconds. 10. Turn the power back on. The system now operates with the new version. Note The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Center then update your player. Refer to “Customer Support” on page BD651-N_US_NO_DIVX black.indd 46 2011-01-21 5:05:01...
  • Page 47: Area Code List

    Appendix Area Code List Choose an area code from this list. Area Code Area Code Area Code Area Code Afghanistan Fiji Monaco Singapore Argentina Finland Mongolia Slovak Republic Australia France Morocco Slovenia Austria Germany Nepal South Africa Belgium Great Britain Netherlands South Korea Bhutan Greece Antilles Spain Bolivia Greenland New Zealand Sri Lanka Brazil Hong Kong...
  • Page 48: Language Code List

    Appendix Language Code List Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu]. Language Code Language Code Language Code Language Code Afar 6565 French 7082 Lithuanian 7684 Sindhi 8368 Afrikaans 6570 Frisian 7089 Macedonian 7775 Singhalese 8373 Albanian 8381 Galician 7176 Malagasy 7771 Slovak 8375 Ameharic 6577 Georgian 7565 Malay...
  • Page 49: Trademarks And Licenses

    Appendix Trademarks and Licenses Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the symbol are registered trademarks, & DTS-HD, DTS-HD Blu-ray Disc™, Blu-ray™, BD-Live™, BONUSVIEW™ Master Audio, and the DTS logos are trademarks and the logos are trademarks of the Blu-ray Disc of DTS, Inc. Product includes software. © DTS, Inc. Association. All Rights Reserved. “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other “AVCHD” and the “AVCHD” logo are trademarks of countries. Panasonic Corporation and Sony Corporation. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. BD651-N_US_NO_DIVX black.indd 49 2011-01-21 5:05:02...
  • Page 50: Audio Output Specifications

    Appendix Audio Output Specifications Jack/Setting Digital Output (SPDIF) (DIGITAL AUDIO OUT) Analog Source 2CH Output Primary Pass-Thru PCM Stereo DTS Re-encode Dolby Digital PCM 2ch PCM 2ch Dolby Digital Dolby Digital Plus PCM 2ch PCM 2ch Dolby Digital Dolby TrueHD PCM 2ch PCM 2ch DTS (2 ch) Dolby Digital PCM 2ch PCM 2ch DTS-HD PCM 2ch PCM 2ch...
  • Page 51 Appendix y The audio is outputted as PCM 48 kHz/16 bit for MP3/WMA file and PCM 44.1kHz/16 bit for Audio CD while playback. y The Dolby TrueHD audio recorded on some Blu- ray discs consists of Dolby Digital and TrueHD audio. Dolby Digital audio is output through DIGITAL AUDIO OUT jacks and “DD” displays on the screen if TrueHD audio is not output (for example, when [HDMI] is set to [PCM Stereo] and [Digital Output (SPDIF)] is set to [Primary Pass- Thru]). y You must select a digital audio output and a maximum sampling frequency that your Amplifier (or AV receiver) accepts using [Digital Output (SPDIF)], [HDMI] and [Sampling Freq.] options on the [Setup] menu (see page 25). y With digital audio connection (DIGITAL AUDIO OUT or HDMI), Disc Menu button sounds of BD- ROM may not be heard if the [Digital Output (SPDIF)] or [HDMI] option is set to [Primary Pass- Thru]. y If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all. y Multi-channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder. BD651-N_US_NO_DIVX black.indd 51 2011-01-21 5:05:02...
  • Page 52: Video Output Resolution

    Appendix Video Output Resolution When the non-copy protected media is playing back Video Out COMPONENT VIDEO OUT HDMI OUT Resolution HDMI connected HDMI disconnected 480i 480p 480i 480p 480p 480p 720p 720p 720p 1080i 1080i 1080i 1080p/24 Hz 1080p / 24 Hz 1080i 1080p / 60 Hz 1080p / 60 Hz 1080i When the copy protected media is playing back...
  • Page 53: Specifications

    Appendix Specifications General Power requirements AC 120 V ~ 60 Hz Power consumption 14 W Dimensions (W x H x D) Approx. 430 x 45 x 190 mm (16.9 x 1.7 x 7.4 inches) Net Weight (Approx.) 1.6 kg (3.5 lbs) Operating temperature 5 °C to 35 °C (41 °F to 95 °F) Operating humidity 5 % to 90 % Outputs VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1 (Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1 COMPONENT VIDEO OUT (Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2 HDMI OUT (video/audio) 19 pin (Type A, HDMI™ Connector) ANALOG AUDIO OUT 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1 DIGITAL OUT (COAXIAL) 0.5 V (p-p), 75 Ω, RCA jack x 1 System Laser Semiconductor laser, wavelength: 405 nm / 650 nm wavelength 405 nm / 650 nm Signal system Standard NTSC color TV system Frequency response 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling) Signal-to-noise ratio More than 90 dB (ANALOG OUT connectors only) Harmonic distortion Less than 0.02% Dynamic range More than 95 dB LAN port...
  • Page 54: Maintenance

    Appendix Maintenance Notes on Discs Handling Discs Handling the Unit Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the When shipping the unit disc. Please save the original shipping carton and Storing Discs packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was After playing, store the disc in its case. Do not originally packed at the factory. expose the disc to direct sunlight or sources of heat Keeping the exterior surfaces clean and never leave it in a parked car exposed to direct sunlight. y Do not use volatile liquids such as insecticide spray near the unit. Cleaning Discs y Wiping with strong pressure may damage the surface. Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, y Do not leave rubber or plastic products in clean the disc with a clean cloth. Wipe the disc from contact with the unit for a long period of time.
  • Page 55: Important Information Relating To Network Services

    Appendix Important Information Relating to Network Services All information, data, documents, communications, downloads, files, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content (“Content”) and all services and offerings (“Services”) provided or made available by or through any third party (each a “Service Provider”) is the sole responsibility of the Service Provider from whom it originated. The availability of and access to Content and Services furnished by the Service Provider through the LGE Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services. Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider’s website for the most up-to- date information. LGE is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers. Please note that LGE is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the availability of or access to such Content or Services. BD651-N_US_NO_DIVX black.indd 55 2011-01-21 5:05:02...
  • Page 56: Warranty

    THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG ELECTRONICS WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF ANY NATURE, EVEN IF ADVISED...
