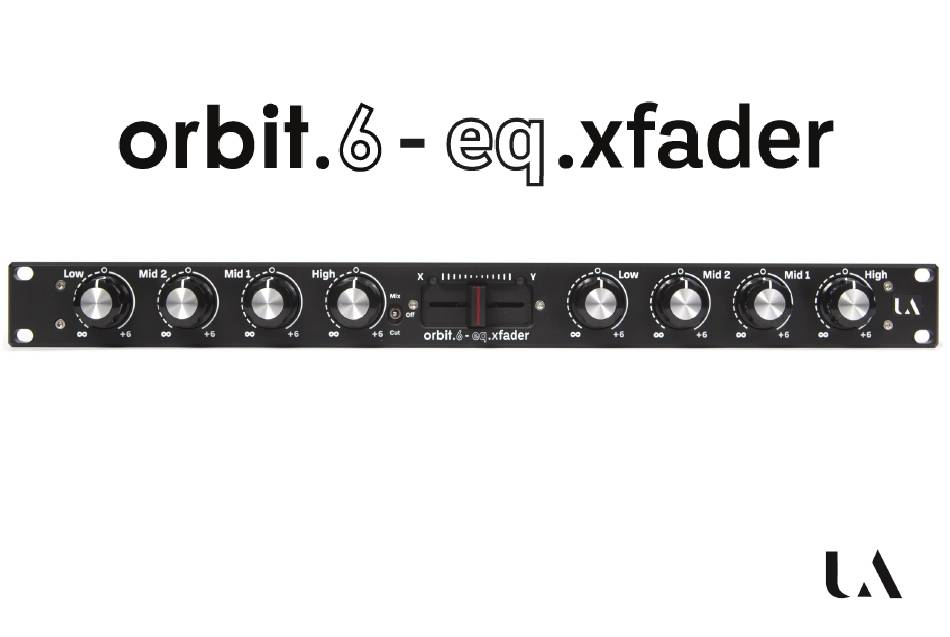

- Page 1 User Guide...
- Page 2 Obit.6 EQ/Xfader User Guide Issue 1 Copyright © 2024 Union Audio Limited. All rights reserved To the best of our endeavors, we believe the informa on contained in this user guide to be true and accurate but we do not assume responsibility for inaccuracies or omissions, and reserve the right to make any changes deemed necessary.
-
Page 3: Warranty
Union Audio or distributor or appointed service agent. The defec ve unit is to be returned to the place of purchase, an authorised Union Audio distributor or agent with proof of purchase. Please discuss this with the distributor or the agent before shipping. Units returned should be packed in the original carton to avoid transit damage. -
Page 4: Safety Instruc Ons
Safety Instruc ons Please read and retain these instruc ons · Only use the product for the purposes it is intended and heed all warnings. · WARNING - To prevent the risk of fire or electric shock do not use this product near water, or in loca ons where it is likely to be exposed to rain or moisture. - Page 5 Safety Instruc ons · Do not remove any covers, either on the product or the power supply. · Install only in accordance with the manufacturer’s instruc ons. · Only use the power supply supplied with the unit, fi ed with the correct mains adaptor for your territory. ·...
-
Page 6: Table Of Contents
Index Contents Warranty Safety Instruc ons About EQ/Xfader Line Drawing Front Panel Controls 9-10 Rear Panel Connec ons 11-12 Applica on Diagram Specifica ons Cable Types Care Dimensions Service Record... -
Page 7: About Eq/Xfader
About Orbit.6 EQ/Xfader This dual EQ/crossfader unit has been designed specifically for use with the Orbit.6 rotary mixer. Incorpora ng premium audio grade opera onal amplifiers and close tolerance film capacitors, it features dual, four-band isolators, and an Innofader crossfader. Having independent four-band isolators for both sides of the crossfader allows for detailed control over the frequency content of each audio source between any two channels on the mixer. -
Page 9: Front Panel Controls
Isolator EQ The Orbit.6 EQ/Xfader features two separate four-band isolators, dedicated to the X and Y sides of the crossfader. Each isolator knob provides control over the corresponding frequency bands, allowing users to boost or cut them as needed. When all bands are set to their minimum posi on the signal is fully a enuated. 6dB/-15dB boost/cut at 30Hz. - Page 10 Crossfader Mix/Cut – This switch alters the crossfader's func onality. In Mix mode, the crossfader follows a carefully designed curve to create a gradual transi ons between X and Y, with a small a enua on in the centre posi on for equal loudness. Selec ng Cut mode will bring the audio signal in at full volume when the crossfader is moved a small distance away from the end-stop.
-
Page 11: Rear Panel Connec Ons
Rear Panel Input Connec ons Channel Inputs – There are six channel input connec ons located on the rear side, each designed to receive the le and right signals from the Direct Outputs on the rear of the orbit.6. Inputs one to three are summed on the X-side of the crossfader and inputs four to six are summed on the Y-side. For normal opera on, connect the channel direct outputs from the orbit.6 mixer to the corresponding channel input on the EQ/Xfader unit, using good quality audio leads fi... - Page 12 Inserts The Insert connec ons are fi ed with 1/4” TRS Jacks and follow the standard conven on of Tip = Send, Ring = Return, and Sleeve the common Ground. Mixer Insert – This serves as the primary output of the EQ/Xfader, and should be connected to the Master Insert of the orbit.6 mixer.
-
Page 13: Applica On Diagram
Applica on Diagram... -
Page 14: Specifica Ons
Specifica ons Distor on plus Noise (THD+N) un-weighted Dimensions 0dBu Input to Output 0.02% EQ/XFader Frequency Response Front Panel 482mm x 44mm (1U 19” Rack Mount) Input to Output Controls centred +/-1dB 10Hz to 30kHz Depth 100mm (3 “) 9/10 Shutoff... -
Page 15: Cable Types
Cable Types For best performance always use high-quality audio cables and interconnects. Unbalanced TR Cable Balanced TRS Cable Insert (Send + Return) Cable Tip = Send (Connect to External Processor Input) Ring = Return Connect to External Processor Output) Sleeve = Common Ground... -
Page 16: Care
Clean off the spill with a damp cloth, and dry thoroughly before powering back on. If a erwards the unit fails to func on properly or is excessively noisy, contact Union Audio technical support, or an appointed service agent to have the unit inspected at the earliest opportunity. -
Page 17: Dimensions
Dimensions... -
Page 18: Service Record
Service Record and Notes Service Date Carried out by Signature Service Date Carried out by Signature Service Date Carried out by Signature Service Date Carried out by Signature Notes...
