Summary of Contents for Union Audio Elara.6

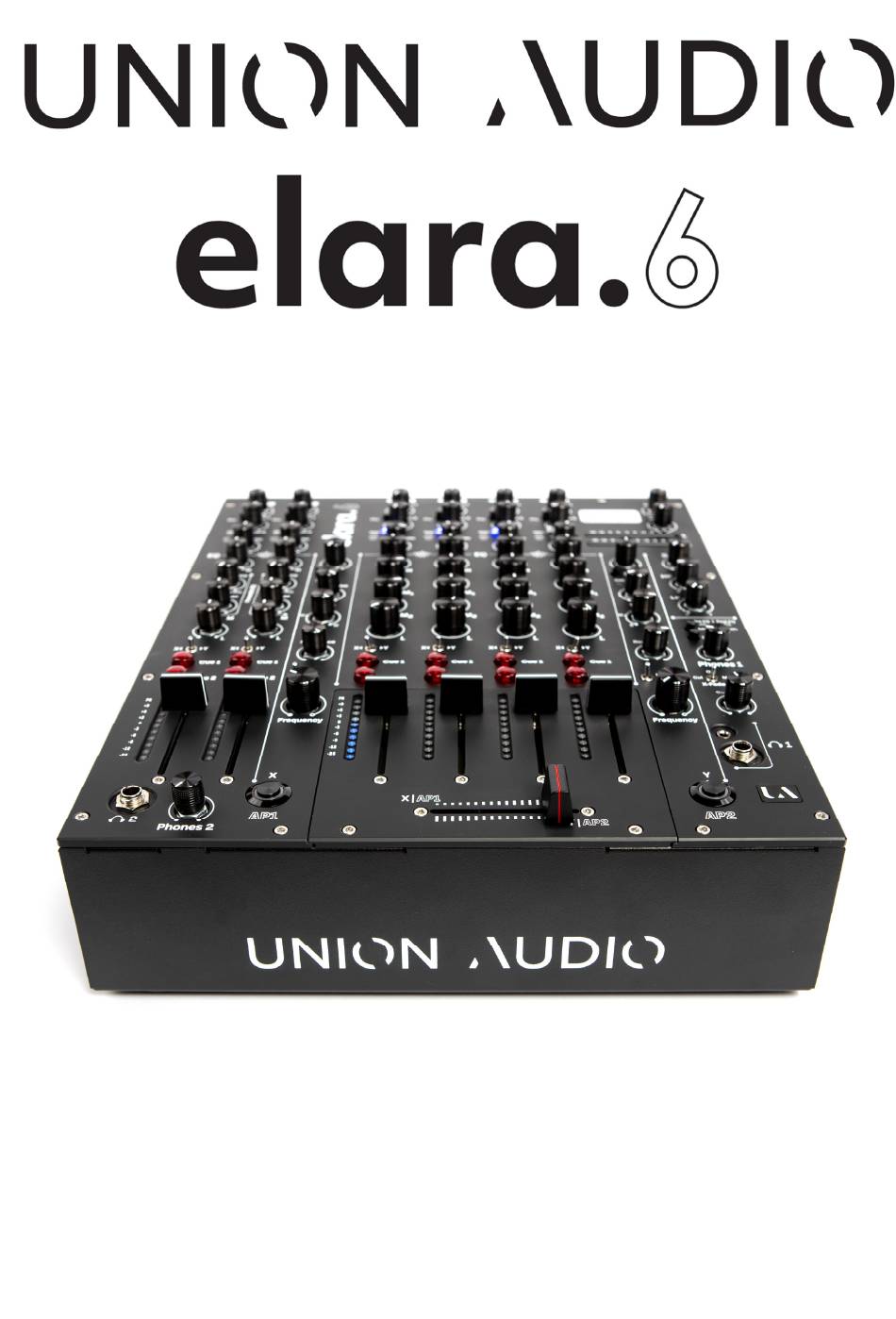

  • Page 1 PRODUCT USER GUIDE...
  • Page 2 Elara.6 User Guide Issue 1 Copyright © 2024 Union Audio Limited. All rights reserved To the best of our endeavors, we believe the informa!on contained in this user guide to be true and accurate but we do not assume responsibility for inaccuracies or omissions, and reserve the right to make any changes deemed necessary.

  • Page 3: Warranty

    Condi!ons of Warranty The equipment has not been subject to misuse either intended or accidental, neglect, or altera!on other than approved by Union Audio. The warranty does not cover poten!ometer wear and tear, or cosme!c damage through normal wear. Any necessary adjustment, altera!on or repair has only been carried out by Union Audio or distributor or appointed service agent.

  • Page 4: Safety Informa!On

    Safety Instruc!ons Please read and retain these instruc!ons Only use the product for the purposes it is intended and heed all • warnings. WARNING - To prevent the risk of fire or electric shock do not use this • mixer near water, or in loca!ons where it is likely to be exposed to rain or moisture.
  • Page 5 Safety Instruc!ons Do not remove any covers. • Install only in accordance with the manufacturer’s instruc!ons. • The power supply must have a good safety ground connec!on. • Do not tamper with or remove the safety ground in the power cord. •...

  • Page 6: About The Elara.6

    Unique to the elara.6 is the audio Width control. This adjusts the stereo content of each track from Mono to Reverse Stereo, to Extra-Wide. Used in conjunc!on with the Filters and Drive, the Width control allows you to create euphoric transi!ons or moody breakdowns, at the press of a bu1on.

  • Page 7: Table Of Contents

    INDEX Warranty ..................3 Safety Informa!on ................4 About the elara.6 ................6 Front Panel drawing ................ 8 Stereo Returns ................9 Analogue Processing Strips ............10 Main Channels ................11 Master Sec!on ................12 Rear Panel Drawing ............... 13 Rear Panel Connec!ons - Outputs ..........

  • Page 8: Front Panel Drawing

    FRONT PANEL OVERLAY...

  • Page 9: Stereo Returns

    –10dBu to +20dBu. EQ - The elara.6 Return channels feature a semi-parametric EQ with swept mid-range and fixed HF and LF. Boost/Cut is symmetrical +/- 15dB with a mid frequency sweep range from approximately 150Hz to 2kHz.

  • Page 10: Analogue Processing Strips

    The graph below illustrates the effect of maximum Drive on a sine wave. Width - A unique feature, the elara.6 incorporates an M-S Stereo Width encoder circuit with easy variable control. This circuit creates a Mid-Channel by combining the LeB and Right stereo signal, and a Side-Channel by subtrac!ng the LeB and Right stereo signal.

  • Page 11: Main Channels

    Each channel strip features two Auxiliary Sends, dual Input (Line or RIAA), a powerful 4- Band equaliser, dual Cues and a smooth 45mm linear fader. Unique to the elara.6 is the ability to easily convert the mixer from Fader to Rotary by swapping out the fader tray for the alternate type.

  • Page 12: Master Sec!On

    Main Meters - Two, ten point peak reading LED meters provide a visual indica!on of the Mix buss level. Although the elara.6 has a considerable 28dB of headroom, and is unlikely to suffer from clipping due to high signal levels, it is recommended to keep the average signal level between –3 and +6.

  • Page 13: Rear Panel Drawing

    REAR PANEL...

  • Page 14: Rear Panel Connec!Ons - Outputs

    REAR PANEL CONNECTIONS - OUTPUTS Mix 1 - Main mix outputs for direct connec!on to the system PA. Balanced XLR, conven!onally configured for: Pin 1 = Ground Pin 2 = Posi!ve Phase Pin 3 = Nega!ve Phase Nominal output level 0dBu, maximum output level +27dBu. Mix 2 - Secondary mix outputs for feeding a separate zone or PA.

  • Page 15: Rear Panel Connec!Ons - Inputs

    RIAA Signal level: 0.006V RMS to 0.02V. Impedance 47K Ohm, capaci!ve loading 100pF. Line Signal Level: -+20dBu to -10dBu. Impedance 8K Ohm Ground - Elara.6 features two knurled thumb screws for ground connec!on from turntables, etc AC Mains Connec!on - The C14 mains inlet incorporates filtering to remove unwanted high-frequency mains-borne noise.

  • Page 16: Block Diagram

    BLOCK DIAGRAM...

  • Page 17: Specifications

    SPECIFICATIONS Maximum output level +27dBu Balanced, +22dBu Unbalanced Output Impedance <1R Balanced, 100R Unbalanced Noise Line in to Line out Unity -80dBu Un-weighted, 22Hz to 20kHz Residual Noise -92dBu Un-weighted, 22Hz to 20kHz Dynamic range > 114dB Frequency Response 10Hz - 50kHz +0/-1dB Distor!on (THD+N) 0.03% Line In to Mix 1 out, 0dBu Unity Gain Control A1enua!on...

  • Page 18: Mixer Dimensions

    MIXER DIMENSIONS...
