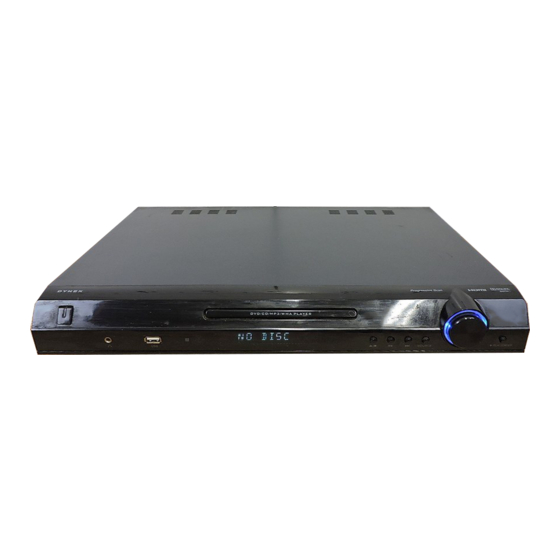

Dynex DX-HTIB User Manual
User manual (english)
Hide thumbs
Also See for DX-HTIB:
- Setup manual (2 pages) ,
- Manual de l'utilisateur (32 pages) ,
- Guía del usuario (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for Dynex DX-HTIB
Summary of Contents for Dynex DX-HTIB
- Page 1 FINAL FOR PRINT U S E R G U I D E DX-HTIB_10-0823_MAN_ENG_V3.fm Page 1 Thursday, July 29, 2010 2:57 PM Home Theater System DX-HTIB Us e r G u i d e...
- Page 2 DX-HTIB_10-0823_MAN_ENG_V3.fm Page 2 Thursday, July 29, 2010 2:57 PM...
-
Page 3: Table Of Contents
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Welcome Congratulations on your purchase of a high-quality Dynex product. Your DX-HTIB represents the state of the art in home theater system design and is designed for reliable and trouble-free performance. - Page 4 DX-HTIB_10-0823_MAN_ENG_V3.fm Page 4 Thursday, July 29, 2010 2:57 PM DX-HTIB 9 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10 Only use attachments/accessories specified by the manufacturer.
-
Page 5: Features
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 5 Thursday, July 29, 2010 2:57 PM Home Theater System Features • Disc capacity: 1 • DVD compatibility: DVD, DVD±R/RW, CD, MP3, WMA • Total System Power: 200 Watts • Front/Center/Surround speakers: 30 Watts per channel, 8 Ohms, •... - Page 6 DX-HTIB_10-0823_MAN_ENG_V3.fm Page 6 Thursday, July 29, 2010 2:57 PM DX-HTIB Component Description SOURCE button Press repeatedly to cycle through the available sources, including FM/AM Radio, Audio input, and CD/DVD modes. Volume knob Turn clockwise to increase the volume or counterclockwise to decrease the volume.
-
Page 7: Remote Control
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 7 Thursday, July 29, 2010 2:57 PM Home Theater System Component Description Audio (L & R) output Connect a TV with L/R audio inputs to these jacks. These cables normally have red and white connectors. Video output jack Plug a composite A/V device, such as a TV, into this jack. - Page 8 DX-HTIB_10-0823_MAN_ENG_V3.fm Page 8 Thursday, July 29, 2010 2:57 PM DX-HTIB Button Description CD/DVD Press to select the CD/DVD source. AM/FM Press to select the radio source. MO/ST Press to toggle between mono and stereo radio signals. Numbers Press to enter channel numbers or the parental control password.
- Page 9 DX-HTIB_10-0823_MAN_ENG_V3.fm Page 9 Thursday, July 29, 2010 2:57 PM Home Theater System Button Description ZOOM In playback mode, press repeatedly to select the picture magnification. You can select 2 times, 3 times, 4 times, 1/2, 1/3, or 1/4. MEMORY Press to save a radio station as a preset. See “Using the radio” on page 16. DVD MENU During DVD playback, press to go to the root menu on the DVD, then select an item according to your preference.
-
Page 10: Setting Up Your Player
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 10 Thursday, July 29, 2010 2:57 PM DX-HTIB Setting up your player Connecting your player Before connecting your player, refer to the picture below. Each connection must be solid. Disconnect the power cables on all elements of the system until you have finished all of the connections. - Page 11 DX-HTIB_10-0823_MAN_ENG_V3.fm Page 11 Thursday, July 29, 2010 2:57 PM Home Theater System • Acceptable - If your TV has A/V connections, use the A/V cable to connect the player to the TV. Video Input Audio L Audio R HDMI Pb/Cb Pr/Cr 3 Plug in the TV and the player.
-
Page 12: Using Your Player
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 12 Thursday, July 29, 2010 2:57 PM DX-HTIB Connecting to an amplifier To connect to an amplifier: 1 Unplug the amplifier and your player. 2 Connect the coaxial (digital or optical) output of the player to the amplifier. -
Page 13: Adjusting The Volume
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 13 Thursday, July 29, 2010 2:57 PM Home Theater System 3 Press the button on the remote control corresponding to the sound/video source you want. Options include: • CD/DVD for disc playback • AM/FM for radio • AUX1 or AUX2 for an external sound source •... -
Page 14: Viewing Disc Information
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 14 Thursday, July 29, 2010 2:57 PM DX-HTIB Viewing disc information To view disc information: • During playback, press DISPLAY one or more times to view specific disc information. The information available depends on the type of disc in the player. You can view: •... -
Page 15: Playing An Mp3 Disc
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 15 Thursday, July 29, 2010 2:57 PM Home Theater System Playing an MP3 disc To play an MP3 disc: 1 Press STANDBY/ON to turn on the player. 2 Press the OPEN/CLOSE button on the remote control (or the (eject) button on the front panel) to open the disc tray. -
Page 16: Using The Radio
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 16 Thursday, July 29, 2010 2:57 PM DX-HTIB • To view a specific picture, input its number using the number buttons or press • To repeat a picture, press the REPEAT button. • While playing, press STOP or DVD MENU button to return to the main menu. -
Page 17: Using The Setup Menu
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 17 Thursday, July 29, 2010 2:57 PM Home Theater System Listening to a USB device You can listen to audio and view JPG files using the USB port on your player. Before operating, switch to USB mode. To listen to a USB device: 1 Connect the USB device to the receiver. -
Page 18: Setup Menus
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 18 Thursday, July 29, 2010 2:57 PM DX-HTIB Setup menus... - Page 19 DX-HTIB_10-0823_MAN_ENG_V3.fm Page 19 Thursday, July 29, 2010 2:57 PM Home Theater System Setup menu pages Page Options CLOSE CAPTION–Turn on DVD closed captions. SCREEN SAVER–Turns on a screen saver that appears when the same image stays on the GENERAL screen for five minutes. SETUP PAGE VERSION–Shows the model number of the player.
-
Page 20: Troubleshooting
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 20 Thursday, July 29, 2010 2:57 PM DX-HTIB Page Options TV TYPE–Sets the aspect ratio of the video image. Choices include: • 4:3PS –Select this option when the player is connected to a normal TV. Wide-screen images are shown on the screen, but with some parts cropped automatically. -
Page 21: Maintaining
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 21 Thursday, July 29, 2010 2:57 PM Home Theater System Problem Solution No picture on the TV • Make sure that your player is connected correctly. • Make sure that the TV is set to video mode and that the input source is selected correctly. -
Page 22: Specifications
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 22 Thursday, July 29, 2010 2:57 PM DX-HTIB Handling discs • To keep a disc clean, do not touch the play side (non-label side) of the disc. • Do not attach paper or tape to the disc. • Keep the disc away from direct sunlight or heat sources. -
Page 23: Legal Notices
DX-HTIB_10-0823_MAN_ENG_V3.fm Page 23 Thursday, July 29, 2010 2:57 PM Home Theater System Power supply ~110V / 60 Hz Max power 200 Watts Frequency response 100 Hz to 20 KHz ±3dB Audio S/N Better than 80 dB, weight A Operating temperature 41°... -
Page 24: 90-Day Limited Warranty
If service of Products and parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Dynex Product during the Warranty Period. - Page 25 7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645 © 2010 BBY Solutions, Inc. All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
- Page 26 DX-HTIB_10-0823_MAN_ENG_V3.fm Page 26 Thursday, July 29, 2010 2:57 PM DX-HTIB...
- Page 27 DX-HTIB_10-0823_MAN_ENG_V3.fm Page 27 Thursday, July 29, 2010 2:57 PM Home Theater System...
- Page 28 (800) 305-2204 © 2010 BBY Solutions, Inc. All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners. 10-0823 Distributed by Best Buy Purchasing, LLC ENGLISH 7601 Penn Ave.
