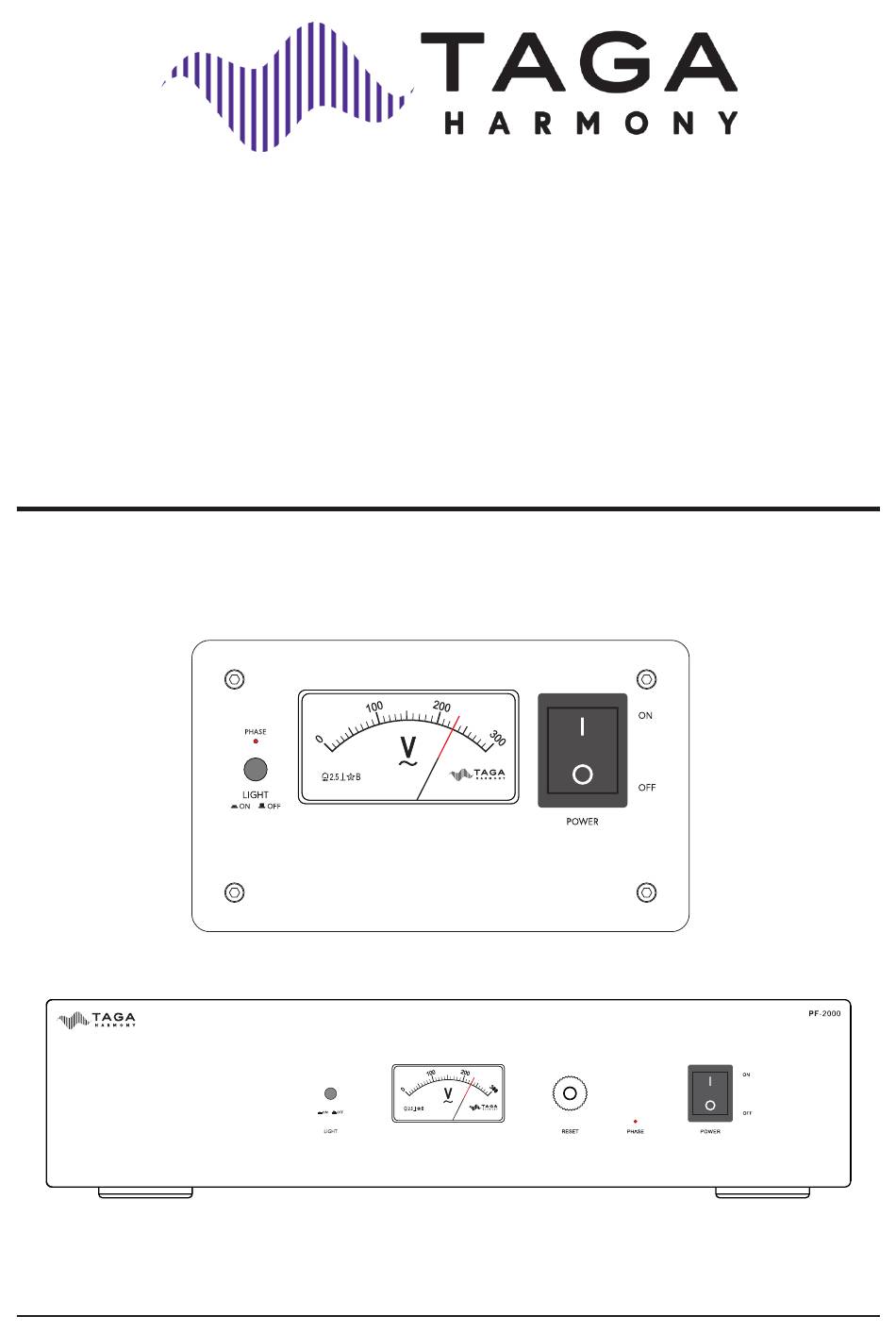

- Page 1 PF Series [230-240V] POWER NOISE FILTERS FOR USE WITH AUDIO-VIDEO EQUIPMENT Instruction Manual Edition 11-2024...
-
Page 3: Other Features
• IEC C14 power inlet and a removable Schuko-IEC C13 power cord give an option to upgrade to a premium audiophile power cable at any time. TAGA Harmony power line filter is a great way to limit the negative noises from your electricity and to isolate your system from the contaminated power. - Page 4 Contents Safety Instructions Controls and display Hooking Up the Filter and Operation Kit Content...
-
Page 5: Safety Instructions
Safety Instructions IMPORTANT READ THIS SECTION CAREFULLY BEFORE PROCEEDING! WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The triangle containing a lightning symbol is intended to alert the user to the presence of uninsulated dangerous voltages within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 6 Safety Instructions 1. Read Instructions - All the safety and operating instructions 13. Overloading - Do not overload wall outlets, extension cords or should be read before the product is operated. integral convenience receptacles as this can result in a risk of fire 2.
-
Page 7: Controls And Displays
Controls and Displays FLOOR-STANDING MODELS /Model PF-1000 v.2 (2025)/ SHELF-STANDING MODELS /Model PF-2000 (2025)/ 1. Phase LED Indicator 2. Analog Display Backlight Button (selected models) 3. Voltage Indicator - Analog Display (selected models) 4. Power Switch of the Switched Power Sockets [ON (I) and OFF (0)] 5. - Page 8 TAGA Harmony is not liable for damage to the filter and external devices in case of using devices with incompatible voltage. TAGA Harmony is not liable for misuse of the filter.
- Page 9 Hooking Up the Filter and Operation 4. The Power Sockets in the filter may have additional marking related to the female contacts: L – LIVE | N – NEUTRAL. If not then check the below figure showing the Power Socket wiring (for the correct Phase).
-
Page 10: Important Safety Remarks
Hooking Up the Filter and Operation Connecting 230V - 240V Audio-Video Equipment IMPORTANT SAFETY REMARKS! • This unit requires a single-phase 3-conductor electrical outlet. • We recommend to use Schuko plugs in all power cables. • Make sure not to overload the power filter. Total maximum power load: the total maximum power consumption for all connected devices to the filter should not exceed the maximum power load for this filter. - Page 11 - Wait at least 15 minutes until the filter’s internal systems cool down. - Power on the filter. - Press the Reset button to restore filter operation. Note! If the filter operation cannot be restored, contact the TAGA Harmony service center. The surge and overload protection system operates within the parame- ters provided in the filter’s specifications.
- Page 12 We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. Kit Content: Power Line Filter Power Cable Instruction Manual EU declaration of conformity Your product is marked with the symbol shown on the left.
