Summary of Contents for Vogue AHW-2D-30

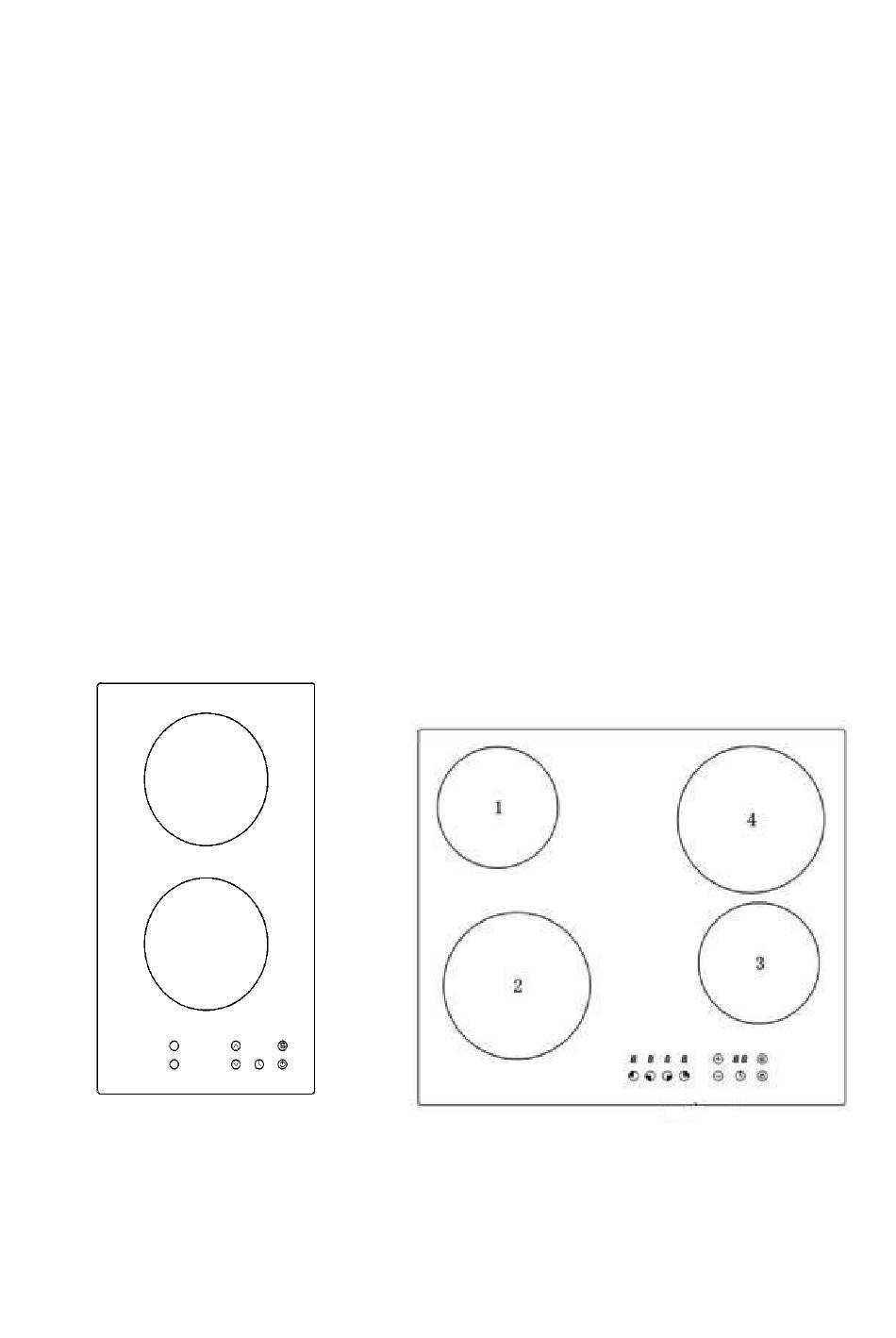

- Page 1 AHW-2D-30 AHW-4D-60 Ceramic Hob Instruction Manual...
-
Page 2: Table Of Contents
Content 1…………………………………..…………………Safety instructions 2…………………………………..…………………Installation 3…………………………………..…………………Description of the Ceramic hob surface layout 4…………………………………..…………………Using the ceramic hob 5…………………………………..…………………Hob guidelines 6…………………………………..…………………Maintenance and cleaning 7…………………………………..…………………Environmental note... -
Page 3: Safety Instructions
Safety instructions his User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance. - Page 4 or by placing adjacent cabinet ● o not allow electrical fittings or materials closer than 4mm to the cables to come into contact with appliance, will be the liability of the areas on the appliance that get hot. owner. ● o not use the appliance to heat ●...
-
Page 5: Electrical Connection
The use of inappropriate guards can cause accidents. Installation (for model AHW-2D-30) Electrical connection Before connecting the appliance, make sure that the supply voltage marked on the Rating Plate corresponds with your mains supply voltage. WARNING: THIS APPLIANCE MUST BE EARTHED. -
Page 6: Installing The Hob
and 40 mm and near to walls which are higher than the work surface,maintaining a minimum distance of 100 mm. ● Carry out all cutting of the unit and work surface then carefully remove shavings or sawdust before inserting the appliances. ●... -
Page 7: Fitting Guidelines
Step.2 Apply the strip seal,supplied with the hob,which is for sealing it onto the work surface. Do not use silicone. Apply the seal to the edge of the bottom of the hob,leaving about 3mm from the edge of the glass. Apply the seal all around the circumference. -
Page 8: Replacing The Mains Supply Cable
Warning! Remember to connect the safety circuit to the connection box terminal marked with Before connecting the ceramic hob to the power supply it is important to read the information on the data plate and the connection diagram. ● The cable connections must be in accordance with the diagram located on the bottom of the hob. - Page 9 Installation (for model AHW-4D-60) Electrical connection Before connecting the appliance, make sure that the supply voltage marked on the Rating Plate corresponds with your mains supply voltage. WARNING: THIS APPLIANCE MUST BE EARTHED. ● If you have to change the oven power cord, the earthing (yellow/green) conductor must always be 10 mm longer than the line conductors.
- Page 10 Preparing the unit for a built-in appliance WARNING ● The kitchen units that are in direct contact with the appliances must be heat-proof(min. 95°). ● The appliance can be installed on a work surface with a thickness of between 30 and 40 mm and near to walls which are higher than the work surface,maintaining a minimum distance of 100 mm.
- Page 11 During transportation these could cause slight injury or cuts. Remove the material and envelope of documents from the packaging. Before proceeding with installation read the work instructions carefully. Step.1 Put a towel or cloth on the work surface.Place the hob face down on the protected surface.
- Page 12 Fitting guidelines The ceramic hob is manufactured to work with two-phase alternating current (400V2N~50Hz).The voltage rating of the ceramic hob heating elements is 230V. Adapting the ceramic hob to operate with one-phase current is possible by appropriate bridging in the connection box according to the connection diagram below.
- Page 13 ● If when the hob is first switched on, only two of the zones work, you should recheck that the terminal screws are all fully tightened. This should be done before contacting the Customer Care Department. ● IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 13A plug and socket.
-
Page 14: Description Of The Ceramic Hob Surface Layout
Description of the Ceramic hob surface layout 2 zone ceramic hob schematic diagram (for model AHW-2D-30) Surface layout table Model Furnace plate 1 Furnace plate 2 Total power（kW） power（kW） power（kW） AHW-2D-30 Note：1.2 kW hyperspeed zones (diameter 165 mm)； 1.8 kW hyperspeed... - Page 15 Control panel layout(D series) 1. Cooking zone select button(#1) 2. Double zone select button(ON/OFF partial models) Display:can operate that cooking zone Non-display: not selected that cooking zone,can not operate 3. Plus button 4. Safety lock button 5. Cooking zone select button(#2) 6.
-
Page 16: Using The Ceramic Hob
Note：1.2 kW hyperspeed zones (diameter 165 mm)； 1.8 kW hyperspeed zones (diameter 200 mm). Control panel layout(D series) 1. Cooking zone rear left select button(#1) 2. Cooking zone front left select button(#2) 3. Cooking zone front right select button(#3) 4. Cooking zone rear right select button(#4) 5. -
Page 17: Standby Mode
✔ Power off mode: All the display will close except the residual heat indicator; Except long press the “on/off” button, other buttons can not be operated. 2. Standby mode ✔ Under power off mode, long press “on/off” button for 3s, the hob will beep and then enter standby mode. - Page 18 1) Touch the cooking zone select button which need to heat, corresponding cooking zone digital tube decimal point will display. 2) Select the power level you need. 3) Touch the double-ring select button to open the outer ring,the corresponding indicator light of cooking zone outer ring will lit on afterwards. 5.2 Open tricyclic heating function : The outer ring can only start after the inner ring is open.
- Page 19 For example, press “plus button” to achieve “A”, and press “minus button” to select speed 4. The cooktop will start cooking at speed 9 for 6.5 mins. After then it returns back to the set speed 4. Notice: 1.Only if fast-heating at max power within 30s,press minus button can reduce the power,if press minus button after 30s,it will exit the fast-heating mode.
-
Page 20: High Temperature Warning
9.2 Default timing ✔ For model AHW-2D-30 ,all of 3 cooking zones have default timing function. For model AHW-4D-60 ,all of 4 cooking zones have default timing function.If not... -
Page 21: Protection Function
Protection function ✔ High temperature protection: When the temperature of the hob plate is too high, the mechanical temperature limiting protection device of its own will start up, then the hob will stop heating, it will return to heat after the temperature falls. ✔... -
Page 22: Maintenance And Cleaning
✧ You should not use saucepans with rough bottoms, as this can scratch the ceramic surface. ✧ Before use, make sure that the bottoms of the saucepans are clean and dry. ✧ When cold, the bottom of the pans should be slightly concave, as they expand when hot and lie flat on the surface of the hob. -
Page 23: Cleaning Table
Cleaning table Type of deposit Remove Remove when What should I use immediately? the appliance to remove the has cooled deposit? down? Sugar or food/liquid Ceramic hob scraper containing sugar Tin foil or plastic Ceramic hob scraper Fat splashes Ceramic hob cleaner Metallic Ceramic hob cleaner discolouration... - Page 24 and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product or on the documents accompanying the product indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
