Triangle Engineering PORTABLE COOLERS HBPC Series Owner's Manual page 2

IMPORTANT: READ INSTRUCTIONS CAREFULLY BEFORE
ATTEMPTING TO INSTALL, OPERATE OR SERVICE THIS FAN.
FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
The PORTABLE COOLER is a direct drive
fan designed for medium duty use in machine
and auto repair shops, factory work stations,
patios and decks, in laundries and dry clean-
ers, and anywhere air movement is required.
It is easily rolled to various locations on
sturdy, no skid wheels. The unit is constructed
of cold rolled steel with a powder coat finish.
Guards are made of steel wire and comply
with OSHA guarding requirements. The ON/
OFF switch is conveniently mounted and
guarded on side of barrel.
GENERAL SAFETY INFORMATION:
1. Your Portable Cooler will operate only on
110 Volt AC, 60 HZ (cycle) current with a
minimum of a 15 Amp circuit.
2. WARNING: To reduce the risk of electric
shock, DO NOT expose to water or rain. To
guard against electric shock while the fan
is connected to power source, DO NOT
PERMIT fan to become in contact with
other grounded objects such as pipes,
radiators, ranges, etc.
3. DO NOT ABUSE POWER CORD. DO
NOT pull on cord to remove from electrical
Switch
SINGLE SPEED

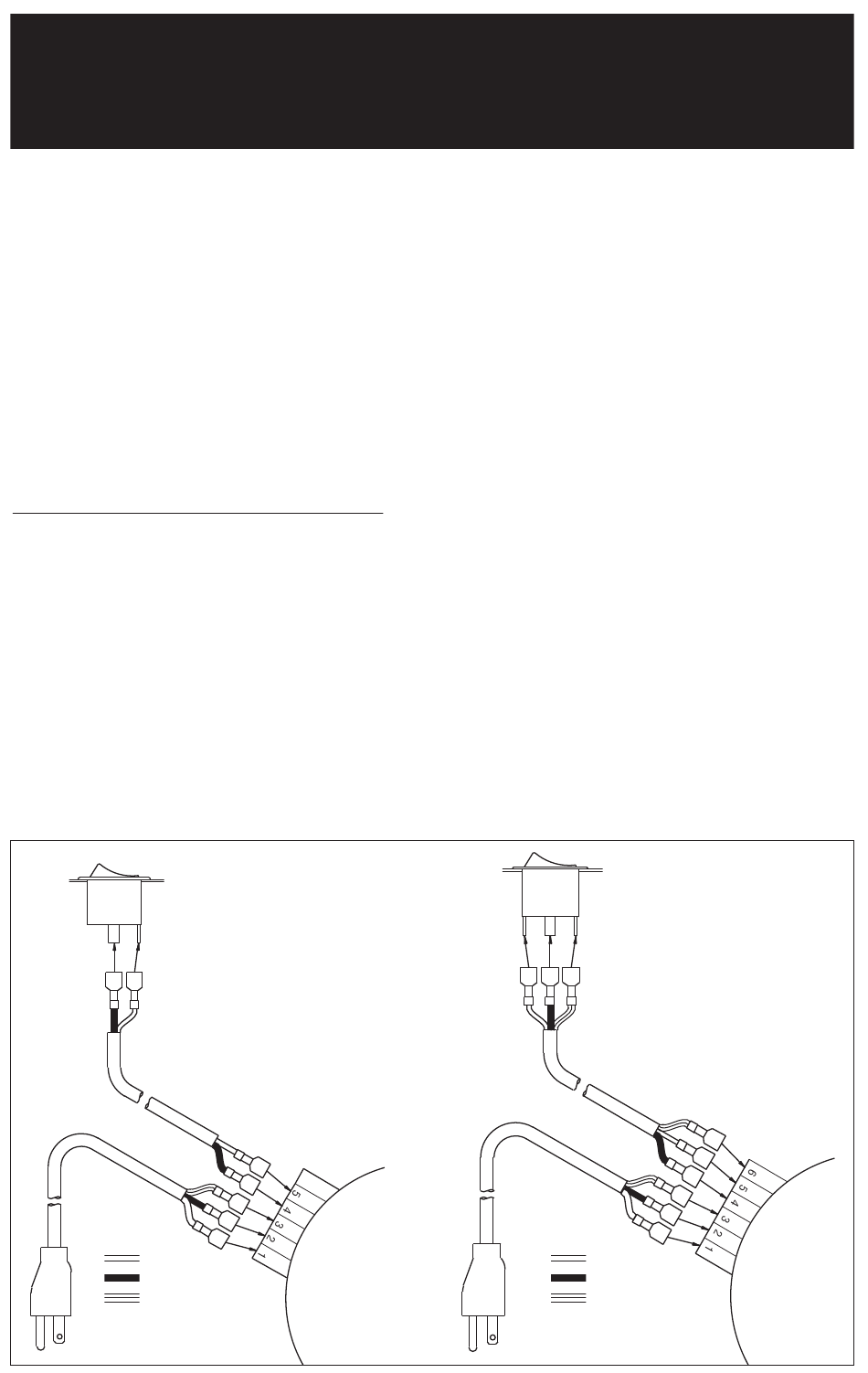

Wiring Diagram
View Facing Motor Shaft
NOTE: Switch wires may be reversed
without affecting performance
White
Black
Green
receptacle. Keep cord away from heat, oil
and sharp edges. Inspect cord periodically,
replacing if damaged.
4 Disconnect the fan when not in use, before
servicing and cleaning, and when repairing
or replacing parts.
5. DO NOT carry or move the fan when con-
nected to power source. Be sure switch is
"OFF" prior to connecting to power source.
6. When the Portable Cooler is used outdoors
with extension cord, use cord of proper size
(Amp rating) only, UL listed and with recep-
tacle to accept 3-prong grounded plug fur-
nished on the fans power cord. Only round
jacketed extension cords should be used.
7. Before operating this fan, check for worn
or damaged parts and replace or repair
if required. To avoid risk of fire, electri-
cal shock or other injury, disconnect from
power source before servicing.
8. DO NOT operate the Portable Cooler near
flammable liquids or in gaseous or explo-
sive atmospheres as sparks from motor
may ignite fumes.
Motor
Switch
TWO SPEED
Wiring Diagram
View Facing Motor Shaft
White
Black
Green
Motor
