Fluke 1750, 1750-TF/NT C/W-4, 1750/NT, 1750/B/NT Manual

Safety Information

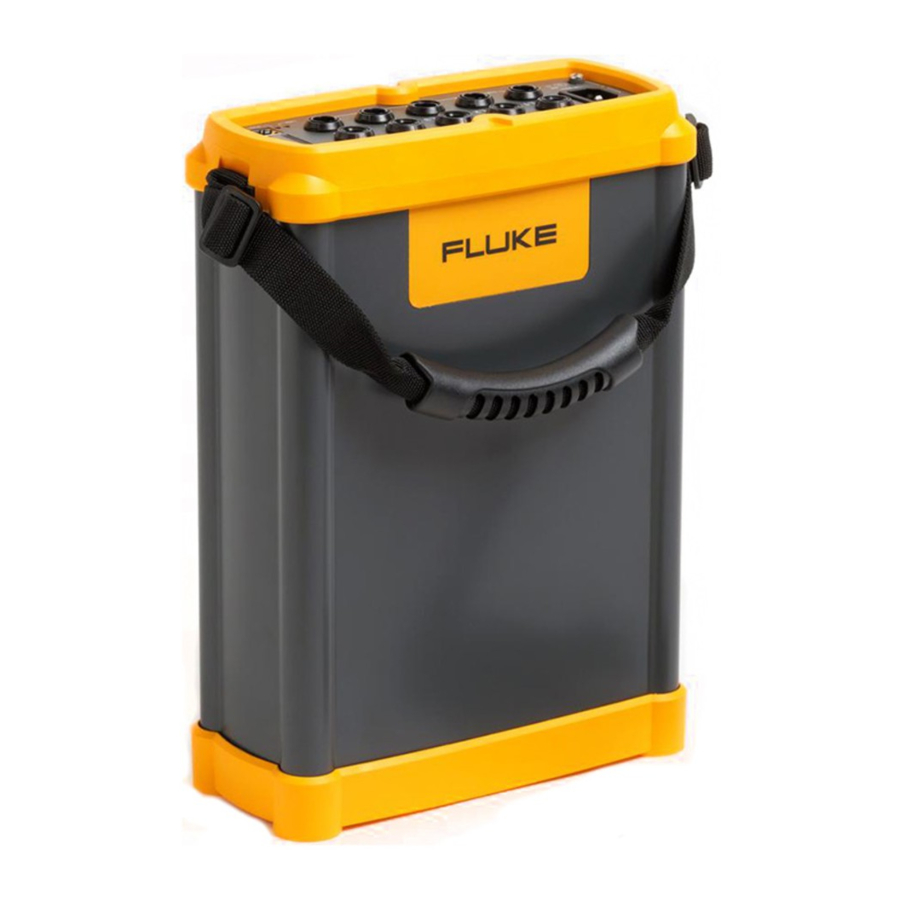

The 1750 Power Recorder (hereafter referred to as the Recorder) complies with EN 61010-1 600 V CAT IV, 1000 V CAT III overvoltage rating. See Specifications for a full agency compliance list.

burn hazardburn hazard
To avoid electrical shock, personal injury, or fire:

  • Review the entire manual before using the Recorder and its accessories and observe all warnings and cautions.
  • Do not perform the calibration verification tests or calibration procedures described in this manual unless you are qualified to do so.
  • Avoid working alone.
  • Do not operate the Recorder around explosive gas or vapor.
  • Use only insulated current probes, test leads, and adapters as supplied with the Recorder, or indicated as suitable for the Recorder.
  • Before use, inspect the Recorder, voltage probes, current probes, leads, and accessories for mechanical damage, and replace when damaged. Look for cracks or missing plastic. Pay special attention to the insulation surrounding the connectors.
  • Remove all probes, test leads, and accessories that are not in use.
  • Make sure the Recorder is properly connected through the power cord to protective earth ground.
  • Do not apply input voltages above the rating of the Recorder as shown on the input panel.
  • Do not apply voltages in excess of the marked ratings of the voltage probes and current probes.
  • Use caution if exposed metal BNC or banana plug connectors are used for calibration. Avoid applying voltage to the shell of the BNC during calibration.
  • Do not insert metal objects into connectors.
  • Never open the Recorder's enclosure, dangerous voltages are present. There are no user-replaceable parts in the Recorder. Refer servicing of internal parts to qualified service personnel.
  • Use the Recorder only as specified in this manual, or the protection provided by the Recorder may be impaired.

Symbols

Symbols used in this manual and on the Recorder are listed in Table 1.

Table 1. Symbols

shock hazard Hazardous voltage. Risk of electrical shock. warning Risk of danger. Important information. See manual.
Protective conductor terminal. CAT III CAT III equipment is designed to protect against transients in equipment in fixedequipment installations, such as distribution panels, feeders and short branch circuits, and lighting systems in large buildings.
CAT IV CAT IV equipment is designed to protect against transients from the primary supply level, such as an electricity meter or an overhead or underground utility service.

Specifications for the System

Recorder and Power Analyze Software

General Specifications
Power Quality Measurement Standards Conformance IEC 61999-1-4 Class 1, IEC 61000-4-30 Class A or B depending on measurement function, IEEE519, IEEE1159, IEEE1459
Clock/Calendar Leap years, 24-hour clock
Real-time Clock Accuracy Not more than ± 1 s/day
Internal Memory Capacity for Data At least 1 GB
Maximum Recording Period At least 31 days
Measurement Time Control Automatic
Maximum Number of Events Limited only by the size of the internal memory.
Power Requirements 100 to 240 V rms ± 10%, 47-63 Hz, 40 W
Operating Time During Interruptions
(internal UPS operation)		 5 minutes per interruption, 60 minutes total operating time without recharging
Dimensions 215 x 310 x 35 mm (8.5 x 12.2 x 3.5 inch)
Mass (Weight) 6.3 kg (14 lbs)
Input Specifications
Measurement Types One Phase Plus Neutral, One Phase IT No Neutral, One Phase Split Phase, Three Phase Wye, Three Phase Delta, Three Phase IT, Three Phase High Leg, Three Phase Open Leg, 2 Element Delta, 2 ½ Element Wye
Input Channels Voltage: 5 channels, AC/DC
Current: 5 channels
Voltage Channels Input resistance: 2 MΩ
Input capacitance: <20 pF
Current Channels 1 MΩ. Self-identifying probes
Types available: current clamps, Flexi-CTs
Measuring Method Simultaneous digital sampling of voltage and current. Digital PLL synchronized sampling, internal frequency reference used during voltage drops.
Synchronization and Sampling
PLL-Synchronization Source The PLL synchronizes to the A-N voltage for wye power types, and to the A-B voltage for delta power types. All listed power types can be characterized as either wye or delta.
PLL Lock Range 42.5 to 69 Hz
Sampling Frequency Voltage and current: 256 samples/cycle
Inter-harmonics per IEC61000-4-7: 2560 samples / 10 cycles (50 Hz), 3072 samples/12 cycles (60 Hz)
Transient Voltage: 5 MHz
A/D Resolution Voltage and current: 24 bits
Transient voltage: 14 bits
Voltage and Current Measurements
Voltage Measurement Range AC voltage: 1000 V rms ± 10% Overrange
DC voltage: ± 1000 V + 10% Overrange
Voltage Crest Factor 3 or less
Voltage Input Impedance 2 MΩ
Current Measurement Range Depends on current probe used
Current Crest Factor 4 or less
Current Input Characteristics 2 V rms = full scale, 1 MΩ Input Impedance for ferro CTs, low impedance for Flexi-CTs
Voltage and Current Measurement Accuracy
RMS Voltage
Measurement Type True rms calculated continuously: every cycle, every 1/2 cycle, and every 10 or 12 cycles at 50 or 60 Hz respectively, as required by IEC 61000-4-30.
Measurement Uncertainty AC: ± 0.2% reading ± 0.1% full scale above 50 V rms
DC: ± 0.5% reading ± 0.2% full scale above 50 V dc
If the ac component of a dc signal is below 40 V rms, the dc uncertainty specification may have an offset.
RMS Current
Measurement Type True rms calculated continuously: every cycle, every 1/2 cycle, and every 10 or 12 cycles at 50 or 60 Hz respectively, as required by standards
Measurement Uncertainty ± (0.1% full scale + 0.5% reading + current sensor accuracy, valid for 5% to 100% of current sensor range
Current Accuracy Ferromagnetic Clamps
± (0.1% full scale + 0.2% reading + current sensor accuracy), valid for 5% to 100% of current sensor range
Flexible Current Probes
± (0.1% full scale + 0.5% reading + current sensor accuracy), valid for 5% to 100% of current sensor range
Transient Voltage (Impulse)
Measurement Type Waveshape sampling not peak detect
Full Scale 8000 V pk
Sample Resolution 200 nS
Measurement Uncertainty ± 5% reading ± 20 V (test parameters: 1000 V dc, 1000 V rms, 100 kHz)
Dip (Sag) and Swell Measurements
Voltage Swell (rms swell)
Measurement Type True rms (one cycle calculation by overlapping each half cycle) (voltage between lines is measured for 3P3W lines and phase voltage is measured for 3P4W lines)
Displayed Data Amplitude and duration of swell
Measurement Accuracy Same as rms voltage
Voltage Dip (RMS sag)
Measurement Type True rms (one cycle calculation by overlapping each half cycle) (voltage between lines is measured for 3P3W lines and phase voltage is measured for 3P4W lines)
Displayed Data Amplitude and duration of dip or interruption
Measurement Accuracy Same as rms voltage
Voltage Dropout (Interruption)
Measurement Type Same as Voltage Dip
Power and PF Measurement
Power
Measurement Method Calculated per IEEE1459 for best performance when distortions exist
Measurement Type True rms calculated continuously: every cycle, and every 10 or 12 cycles at 50 or 60 Hz respectively, as required by standards
Measurement Accuracy ± 0.2% reading ± 0.1% full scale + current sensor accuracy
Frequency
Measurement Range 42.5 to 69 Hz
Measurement Source Same as PLL synchronization source
Measurement Accuracy ± 10 mHz (10 to 110% of range, with sine wave)
Reactive Power
Accuracy ± 0.2% reading ± 0.1% full scale + current sensor accuracy
Power Factor
Measurement Range -1.000 (leading) to 0.000 to +1.000 (lagging)
Measurement Accuracy ± 1 digit from the calculation of each measured value (± 3 digits for total)
Displacement Power Factor
Measurement Method Calculated from the phase difference between voltage fundamental and current fundamental
Measurement Range -1.000 (leading) to 0.000 to + 1.000 (lagging)
Measurement Accuracy ± 0.5% reading ± 2% full scale ± 1 digit
Voltage Unbalance and Phase Sequence
Measurement Method Positive sequence voltage divided by negative sequence voltage, per IEC 61000-4-30
Harmonic Voltage and Current
Analysis Window rectangular
Analysis Order 1st to 50th order
Measurement Accuracy Voltage / Current: 1st to 20th orders: ± 0.5% reading ± 0.2% full scale 21st to 50th orders: ± 1% reading ± 0.3% full scale (current sensor accuracy must be included for current and power)
Measurement Method IEC 61000-4-7
Inter-harmonic Voltage and Current (Intermediate Harmonics)
Measurement Method rectangular
Analysis Orders 0.5 to 49.5th order
Measurement Method IEC 61000-4-7
External Interface Specifications
LAN Interface
Connector RJ-45
Speed and Type 10/100 Base-T, auto MDIX
Communications Protocol TCP/IP over Ethernet
Wireless Controller Interface Connection wireless (2.4 GHz radio)
Speed up to 700 kbit/second
Communications Protocol Bluetooth SPP
Environmental and Safety Specifications
Operating Environment indoors or in covered area outdoors, up to 2000 m altitude
Storage Temperature and Humidity -20°C to 50°C, 80% rh max, non-condensing
Operating Temperature and Humidity 0°C to 40°C, 80% rh max, non-condensing
Maximum Rated Working Voltage
Voltage Terminals 1100 V rms
Voltage Durability 5550 V rms ac for 1 minute, between voltage input terminals, voltage input terminals and current probes, and voltage input terminals and case (50/60 Hz, 1 mA sense current)
Enclosure Protection IP30 (per EN 60529)
Standards Conformance
EMC EN 61326-1:2000 Class A
EN 61000-3-2:1995+A1:1998+A2:1998
EN 61000-3-3:1995
Safety EN 61010-1:2nd Edition
Voltage input unit: Contamination Level 2
Measurement Category 1000 V CAT III, 600 V CAT IV (transient: 8 kV)

Cleaning and Maintenance


To avoid damage to the Recorder, do not apply abrasives or solvents to the housing.
The Recorder contains no user serviceable parts. Contact an authorized Fluke service center for repair. See Contacting Fluke.
Periodically wipe the case with a damp cloth and mild detergent.

Test Cables

The following figures detail the assembly of cables used for calibrating the Recorder. See Figures 2-6.

Ground Calibration Cable
Figure 2. Ground Calibration Cable

Rogowski Calibration Cable
Figure 3. Rogowski Calibration Cable

Rogowski Resistor Measurement Cable
Figure 4. Rogowski Resistor Measurement Cable

Voltage Calibration Cable
Figure 5. Voltage Calibration Cable

Current Calibration Cable
Figure 6. Current Calibration Cable

Required Equipment

For a list of required equipment for the verification tests and calibration adjustment, see Tables 2 and 3.

Table 2. Required Equipment
Equipment Required Characteristics Recommended Model
Calibrator AC Voltage Range: 0 - 1000 V ac
Accuracy: ± 0.03 %
Frequency Range: 50 - 10000 Hz DC
Voltage Range: 0 - 1000 V dc
Accuracy: ± 0.03% 		Fluke 5520A Multi-Product Calibrator or equivalent
Multimeter with 4-wire Ohms Ohms Range: 100 KΩ
Accuracy: ± 0.011% 		Fluke 8846A Precision Multimeter or equivalent
Personal Computer (PC) (Windows XP) 1750 Cal Wizard and Fluke Power Analyze software installed

The cables listed in Table 3 are necessary for verification and calibration adjustment. To assemble the cables, see cable assembly figures in the Test Cables section.

Table 3. Required Cables
Cable Required Characteristics Notes
Ethernet cable CAT 5 with RJ-45 connectors Supplied with the Recorder
Voltage calibration cable with BNC-banana adapter Double banana to safety banana and spade lug See Figure 5
Four jumper cables, safety-banana type
Current calibration cable Shielded cable with double banana to CT pins in Redel connector with 100 A CT ID resistor See Figure 6
Rogowski resistor measurement cable Safety banana to Redel See Figure 4
Rogowski calibration cable Shielded cable with double banana to Rogowski pins in Redel connector with 100 A Rogowski ID resistor See Figure 3
Ground calibration cable Lug to banana See Figure 2
Fluke recommends the use of Pomona brand cables and banana plugs when building these cables.

Verification Tests

burn hazardburn hazard
To avoid electrical shock, personal injury, or fire:

  • Do not perform the calibration procedures or calibration verification tests described in this manual unless you are qualified to do so.
  • Repairs or servicing should be performed only by qualified personnel.

The following tests are used to verify the functions of the Recorder. If the Recorder fails any of the verification tests, calibration or repair may be needed. For service, see Contacting Fluke.

Note
Power Analyze can be set to display the channels as L1, L2, and L3 instead of A, B, and C. The channels on the Recorder could also be labeled A, B, and C, or L1, L2, and L3, depending on which decal was applied to the Recorder front panel. For this manual A, B, and C are used.

AC Voltage Accuracy Verification

Power View Software Live View

  1. Connect an Ethernet cable to the Recorder.
  2. Apply power to the Recorder. During power up, indicators near all jacks should flash.
  3. Launch Power Analyze software on a personal computer (PC). See Figure 1.
  4. Select the Recorder to be tested in the drop down box next to the Scope button.
  5. Select 1750 Live, then Scope.
  6. Check all the voltage display check boxes to the right of the scope display. Make sure the correct items are checked.
  7. Connect the calibrator NORMAL HI to inputs A, B, C, and of the Recorder.
  8. Connect the NORMAL LO to input N and the protective conductor terminal of the Recorder.
  9. Apply the voltages from Table 4 and list the Recorder readings for channels AN, BN, CN, and NG in the appropriate areas. Sine waves will be displayed for AN, BN and CN, all at the same amplitude and phase shift. NG will be inverted.

Note
If the voltage goes over scale, right click on the voltage scale on the left margin of the graphical display, then click on the Zoom to Fit box to resize.

Table 4. AC Voltage Accuracy Verification
Applied AN Reading BN Reading CN Reading NG Reading Limits
60 Vrms @ Local Hz ± 1.12 V
240 Vrms @ Local Hz ± 1.48 V
600 Vrms @ Local Hz ± 2.20 V
  1. Verify that A, B, C, and LEDs are on. N should be off.
  2. Set the calibrator to STBY.
  3. Verify that A, B, C, and LEDs are off.

Neutral Voltage Verification

  1. Connect NORMAL LO to A, B, C, , and
  2. Connect the calibrator NORMAL HI to N on the Recorder.
  3. Apply the voltages from Table 5, listing the Recorder readings for the appropriate model.
Table 5. Neutral (AC) Voltage Accuracy Check
Applied NG Reading Limits
60 V @ Local Hz ± 1.12 V
100 V @ Local Hz ± 1.20 V
  1. Verify that the N LED is on.
  2. Set the calibrator to STBY, verify that the LED for N turns off.
  3. Disconnect the test leads from the Recorder.

Rogowski Current Verification

  1. Verify the resistor in the Rogowski calibration cable is within 0.1% of 100 kΩ.
  2. Connect the calibrator NORMAL HI to Voltage A, B, and C on the Recorder.
  3. Connect the calibrator NORMAL LO to N and Voltage on the Recorder.
  4. Connect the calibrator AUX HI and LO to current input A using the Rogowski calibration cable. See Figure 3.
  5. Set the calibrator output to 120.0 V @ 55 Hz on the NORMAL output and the values from Table 6 the AUX output.
  6. Press the WAVE MENUS softkey and ensure the phase angle is -90 °.
  7. Press the HARMONIC MENU softkey; ensure the HARMONIC selection is set to 1 and the FUNDMTL selection is set to aux.
  8. Press OPR.
  9. Set the calibrator to voltages from Table 6 and list the Recorder readings for channel A.
  10. Move cable to next channel and repeat step 9 for channels B, C, N, and .
Table 6. Rogowski Current Accuracy Check
Applied Voltage Expected Current Expected Reading A Reading B Reading C Reading N Reading G Reading Limits
0.649 V 6.49 μA 20 A ± 0.20 A
1.6225 V 6.225 μA 50 A ± 0.35 A
3.245 V 32.45 μA 100 A ± 0.60 A

CT Current Verification

  1. Connect the calibrator NORMAL HI to Voltage A, B, and C on the Recorder.
  2. Connect the calibrator NORMAL LO to Voltage N and on the Recorder.
  3. Connect the calibrator AUX HI and LO to current input A using the current test cable. See Figure 6. The current test calibration cable connects the voltage to all current sense inputs and indicates that a 100 A current transformer is attached.
  4. Set the calibrator output to 120.0 V @ 50 or 60 Hz on the NORMAL output and the values from Table 7 on the AUX output.
  5. Press the WAVE MENUS softkey and ensure the phase angle is 0.0 °.
  6. Press the HARMONIC MENU softkey; ensure the HARMONIC selection is set to 1 and the FUNDMTL selection is set to aux.
  7. Press OPR.
  8. Set the calibrator to voltages from Table 7 and list the Recorder readings for that channel.
Table 7. CT Current Accuracy Check
Applied Voltage Expected Reading A Reading B Reading C Reading N Reading G Reading Limits
0.4 V 20 A ± 0.20 A
1.0 V 50 A ± 0.35 A
2.0 V 100 A ± 0.60 A
  1. Verify that the current LED is on.
  2. Move cable to next channel and repeat steps 8 and 9 for channels B, C, N, and .
  3. Set the calibrator to STBY. Verify that the current LEDs turn off.

Watt Verification

  1. Use the same connections as the CT current verification and apply 440 V and local line frequency out of the NORMAL output and 1.9 V on the AUX output.
  2. Click on the power button in Power Analyze. The A, B and C should be 41.8 kW ± 0.3 kW.
  3. On the calibrator press the blue button for Phase and Ref Menu.
  4. Press the blue button for AUX Phase NRM.
  5. Enter 90 with the numerical keypad and press Enter. The power should be 0 ± 0.1 kW.

Impulse Verification

Initialize the UUT


The impulse verification steps instruct the user to apply working voltages in excess of 700 V, so extreme caution must be applied. To avoid electrical shock or personal injury, DO NOT use connectors having exposed metal.

  1. Power down the UUT until Power LED turns off, approximately five minutes.
  2. Power up the UUT and wait for start up, and connect with Power Analyze.
  3. Select Tools>Erase 1750 Memory to empty the UUT data.

Normalize Thresholds

  1. Connect the calibrator NORMAL LO to the UUT terminal.
  2. Connect the voltage test cable to the calibrator NORMAL HI jack, leaving the safety-connector end free.
  3. Set the calibrator to 750 V 10 kHz.
  4. Press OPR on the calibrator.
  5. Connect the voltage test cable to UUT voltage input for approximately 15 seconds, and then disconnect.

Apply Stepped Verification Voltages to Voltage Inputs A, B, C, N, and

  1. Set the calibrator to 800 V 10 kHz.
  2. Connect the voltage test cable to UUT voltage input A for approximately 15 seconds, and then disconnect.
  3. Set the calibrator to 850 V 10 kHz.
  4. Connect the voltage test cable to UUT voltage input B for approximately 15 seconds, and then disconnect.
  5. Set the calibrator to 900 V 10 kHz.
  6. Connect the voltage test cable to UUT voltage input C for approximately 15 seconds, and then disconnect.
  7. Set the calibrator to 950 V 10 kHz.
  8. Connect the voltage test cable to UUT voltage input N for approximately 15 seconds, then disconnect.
  9. Set the calibrator to 1000 V 10 kHz.
  10. Connect the voltage test cable to UUT voltage input for approximately 15 seconds, then disconnect. Note, this signal is designated G in Power Analyze.
  11. Press STBY on the calibrator.
  12. Set the calibrator to 0 V 0 Hz.

To Use Power Analyze to Verify the Amplitude Accuracy of Recorded Impulse Events

  1. Wait two minutes for the UUT to compile event information.
  2. Click on 1750 Download, and then Save.
  3. Click on View Recorded, and then Events.
  4. On the right side, verify that all four Volts selections are checked and all five Amps selections are unchecked in Phase Selection, and Phase to Neutral is selected in Voltage Reference.
  5. Click on Event Detector.
  6. Select all channels the same and set both AN and the NG thresholds to 50%.
  7. Click Done.
  8. Click on View > Table View > Top Table View. This changes the Event Summary data at the top of the screen from graph-view to table-view.
  9. Click on View > Screen View > Top Full Screen. This provides a full screen view of the Event Summary table.
  10. The following steps concern the two right-hand columns in the Event Summary table, the Absolute and Triggered Phase columns.
  11. Starting from Event 1, scroll down the table through the NG Triggered Phase data until the AN Triggered Phase data is reached. This group of NG Triggered Phase data is from the Normalize Thresholds section of this check. It is not used for verification.
  12. Scroll down through the AN Triggered Phase data until the BN Triggered Phase data is reached. Record the sixth-to-last AN Triggered Phase Absolute value in Table 8.
  13. Scroll down through the BN Triggered Phase data until CN is reached.
  14. Record the sixth-to-last BN Triggered Phase Absolute value in Table 8.
  15. Scroll down through the CN Triggered Phase data until N-triggered data is reached. Because voltage events on N cause triggers on AN, BN, CN, and NG, (resulting in any one of these labels) this can be most easily distinguished by the change in the Absolute values from the CN Triggered Phase data. Record the sixth-to-last CN Triggered Phase Absolute value in Table 8.
  16. Scroll down through the N-triggered data until G-triggered data is reached. As with the previous step this can be most easily distinguished by the change in the Absolute values from the Triggered Phase data.
  17. Record the sixth-to-last N-triggered Phase Absolute value in Table 8.
  18. Scroll to the bottom of the Event Table until the end of the G-triggered data is reached. These will all show up as NG for Triggered Phase.
  19. Record the sixth-to-last N-triggered Phase Absolute value in Table 8.
Table 8. Impulse Verification Inputs
Applie d Voltage [Vrms] Expected Reading [Vpk] Channel Measured Magnitude |Vpk| Limits [Vpk]
800 1131 AN (A) ± 77
850 1202 BN (B) ± 80
900 1273 CN (C) ± 84
950 1344 NG (N) ± 87
1000 1414 NG (G) ± 91

Calibration

Required Equipment

The required equipment and cables for calibrating the Recorder are listed in Tables 2 and 3.

burn hazardburn hazard
To avoid electrical shock, personal injury, or fire:

  • Do not perform the calibration procedures or calibration verification tests described in this manual unless you are qualified to do so.
  • Repairs or servicing should be performed only by qualified personnel.

Calibration Adjustment

The Recorder features closed-case calibration adjustment using known reference sources. During calibration, the Recorder measures the applied reference source, calculates correction factors, and stores the correction factors in nonvolatile memory.
Perform calibration adjustment if the Recorder fails any performance test in the verification procedure.

Note
Calibration should be performed under ambient temperature conditions between 20 °C and 30 °C.

Calibration consists of four parts: I-Wave, I-Rogowski, V-Wave, and V-Impulse. Each part calibrates one measurement system in the Recorder. For each part, the calibration values are checked to be sure the Recorder is working correctly and calibration results are valid. All of the calibration steps for each of the four measurement systems must be completed before the calibration values can be written to the Recorder's nonvolatile memory.
I-Wave, I-Rogowski, and V-Wave channels are calibrated using 55 Hz sine wave signals to minimize 50 Hz or 60 Hz power line interference with the calibration measurements.
V-Impulse channels are calibrated using dc voltages, averaging calibration measurements to suppress power line interference.

Calibration is controlled by 1750 Cal Wizard Software (Cal Wizard), which communicates with the Recorder over Ethernet. Cal Wizard steps through the calibration procedure, with instructions for making cable connections, setting the correct sources, and finalizing the calibration.
The following steps detail the calibration adjustment procedure:

  1. Connect the Recorder and the PC to the network with an Ethernet cable. This can either be by direct connection or via a hub on an Ethernet network.
  2. Connect ac power to the Recorder. Make sure the Recorder, calibrator, and PC running Cal Wizard software are all properly connected to safety ground.
  3. Allow the calibrator and Recorder to warm up (30 minutes for the Recorder). If necessary, run Ohms-Cal or Zero-Cal on the calibrator.
  4. Reset the calibrator. Confirm the following calibrator state: 0 V, Standby (OPR LED off), EARTH Off (LED off), and EXGRD Off (LED off).
  5. Start Cal Wizard.
  6. With Cal Wizard, select the Recorder to be calibrated, and then click Connect.
    Note
    If the Recorder is password protected, the correct password must be supplied to continue.
  7. Click Next.
  8. Follow the on-screen instructions to perform each of the four calibration types. If any of these procedures report a failure, the Recorder must be returned for inspection and service. See Contacting Fluke.
  9. If all calibrations are successful, click Apply to store the correction values in the Recorder memory. This will take up to a minute to complete.
  10. Click Finish. The Recorder will shut down and restart using the new calibration values. This may take several minutes.

This concludes Recorder calibration.

LIMITED WARRANTY AND LIMITATION OF LIABILITY

To obtain warranty service, contact your nearest Fluke authorized service center to obtain return authorization information, then send the product to that service center, with a description of the difficulty, postage and insurance prepaid (FOB Destination).

Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.

Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands

To register your product online, visit http://register.fluke.com

Contacting Fluke

To contact Fluke, call:
1-888-993-5853 in USA
1-800-363-5853 in Canada
+31-402-675-200 in Europe
+81-3-3434-0181 in Japan
+65-738-5655 in Singapore
+1-425-446-5500 from anywhere in the world

Or, visit Fluke's Web site at www.fluke.com
To register your product, visit http://register.fluke.com
To contact Technical Support:
fpqsupport@fluke.com
or 888-257-9897 (US only)

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Fluke 1750, 1750-TF/NT C/W-4, 1750/NT, 1750/B/NT Manual

Advertisement

Need help?

Need help?

Do you have a question about the 1750 and is the answer not in the manual?

Questions and answers

Related Manuals for Fluke 1750

Save Article as PDF

Table of Contents
