© 2025 Lennox Industries Inc.
Dallas, Texas USA
WARNING
This furnace is equipped with an ignition control
factory enabled for use with Lennox A2L refrigerant
systems.
Disabling
functionality on A2L system is prohibited by safety
codes. Refer to furnace installation instructions for
non-A2L and non-Lennox refrigerant system setup.
CAUTION
As with any mechanical equipment, personal injury can
result from contact with sharp sheet metal edges. Be
careful when you handle this equipment.
Table of Contents
Unit Dimensions - inches (mm) .....................................2
Shipping and Packing List ..............................................3
Safety Information ..........................................................3
Use of Furnace as Construction Heater .........................4
General ...........................................................................5
Shipping Bolt Removal ...................................................8
Installation - Setting Equipment ......................................8
Filters ............................................................................13
Duct System .................................................................13
Pipe & Fittings Specifications .......................................14
Joint Cementing Procedure ..........................................15
Venting Practices ..........................................................16
Gas Piping ....................................................................36
Electrical .......................................................................39
the
refrigerant
detection
INSTALLATION
INSTRUCTIONS

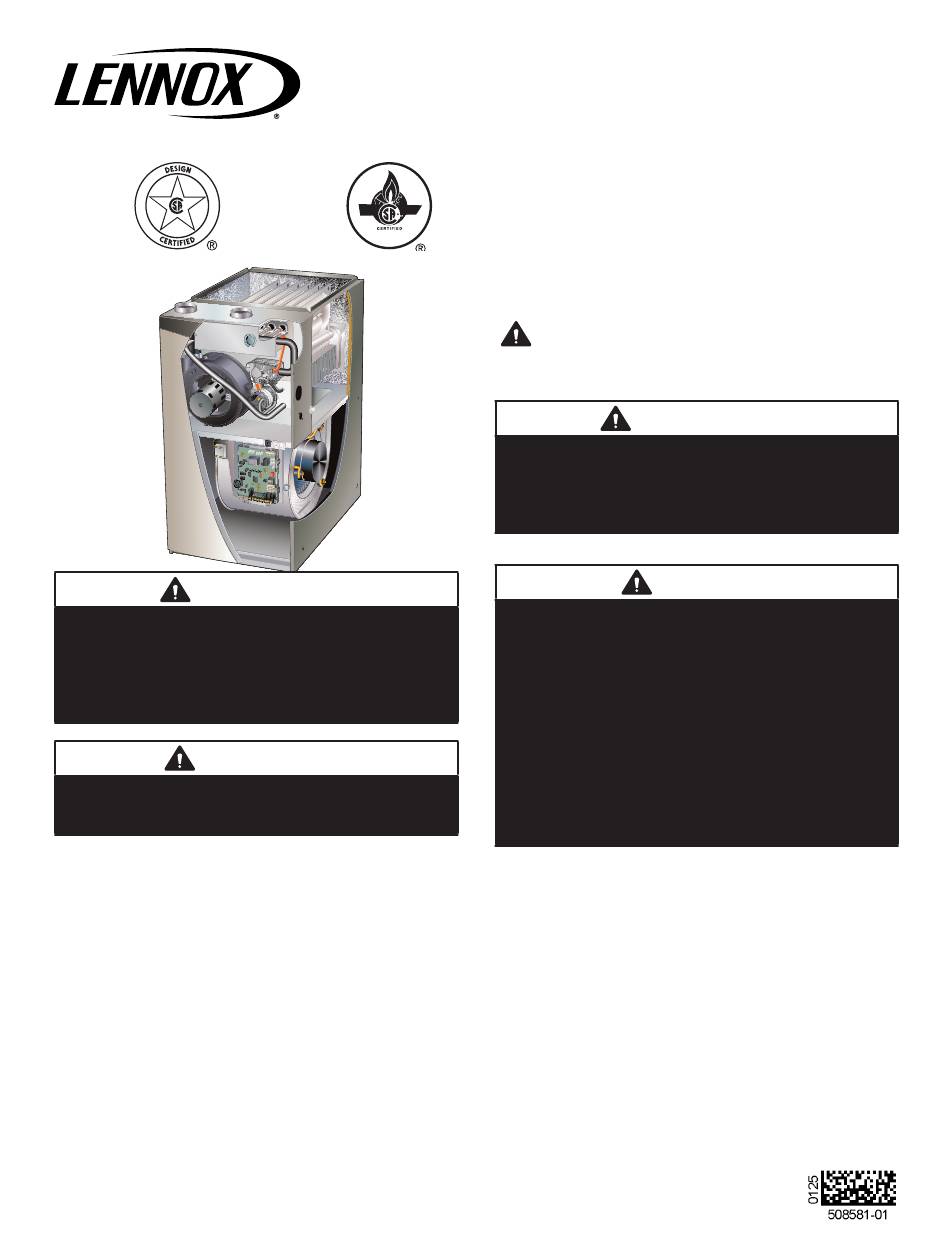

EL297UHVK
ELITE
SERIES GAS FURNACE
®
UP/FLOW HORIZONTAL AIR DISCHARGE
508581-01
01/2025
THIS MANUAL MUST BE LEFT WITH THE
HOMEOWNER FOR FUTURE REFERENCE
This is a safety alert symbol and should never be
ignored. When you see this symbol on labels or in man-
uals, be alert to the potential for personal injury or death.
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer or
equivalent, service agency, or the gas supplier.
A thermostat is not included and must be ordered
separately.
A communicating
communicating applications.
In
non-communicating
ComfortSense® 7500 thermostat may be used, as well
as other non-communicating thermostats.
In all cases, setup is critical to ensure proper system
operation.
which begin on Page 41.
Ignition Control .............................................................50
Blower Data ..................................................................55
Low GWP Application ...................................................61
Unit Start Up .................................................................64
Gas Pressure Adjustment .............................................65
Proper Combustion.......................................................66
High Altitude .................................................................66
Combustion Air for Non-Direct Vent Applications .........67
Repair Parts..................................................................67
Other Unit Adjustments.................................................68
Heating Sequence of Operation ...................................68
Service..........................................................................70
Program Unit Capacity/Size Mode ...............................72
Start-Up and Performace Checklist ..............................76
Page 1
WARNING
NOTICE
thermostat
must
be
applications,
the
used
in
Lennox
non-
