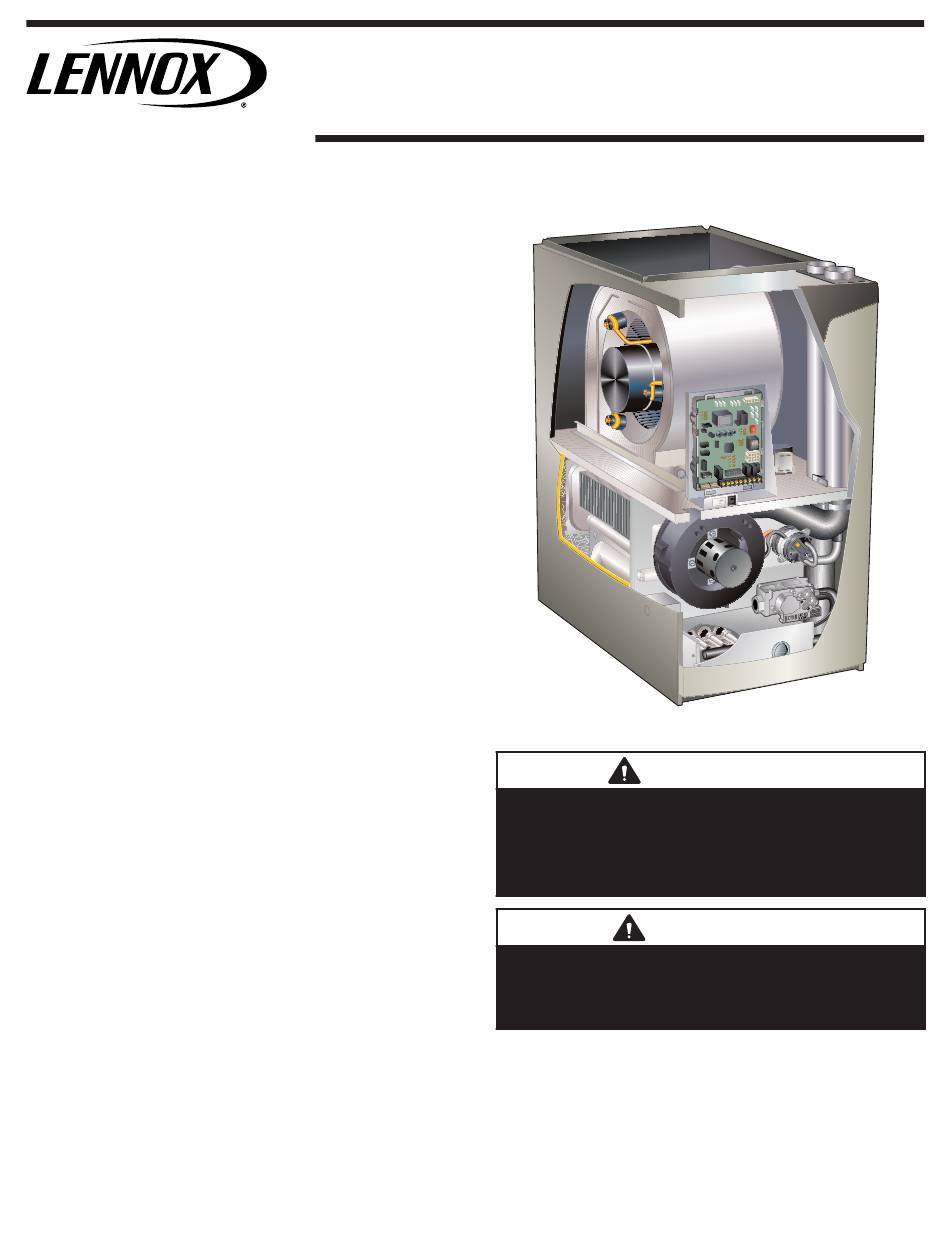

S e r v i c e L i t e r a t u r e
EL297DFE series units are high efficiency condensing
gas furnaces used for downflow applications only, manu-
factured with Lennox Duralok heat exchangers formed of
aluminized steel. EL297DFE units are available in heating
capacities of 44,000 to 110,000 Btuh and cooling applica-
tions up to 5 tons. Refer to Product Specifications Manual
for proper sizing.
Units are factory equipped for use with natural gas. Kits
are available for conversion to LPG operation. EL297DFE
model units are equipped with the SureLight
constant torque integrated control. EL297DFE unit meets
the California Nitrogen Oxides (NOx) Standards and Cal-
ifornia Seasonal Efficiency requirements. All units use a
redundant gas valve to assure safety shut-off as required
by C.S.A.
All specifications in this manual are subject to change.
Procedures outlined in this manual are presented as a
recommendation only and do not supersede or replace lo-
cal or state codes. In the absence of local or state codes,
the guidelines and procedures outlined in this manual (ex-
cept where noted) are recommendations only and do not
constitute code.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Blower Performance Data . . . . . . . . . . . . . . . . . . Page 4
I Unit Components . . . . . . . . . . . . . . . . . . . . . . . . Page 7
II Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24
III Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 47
IV Heating System Service Checks . . . . . . . . . Page 48
V Typical Operating Characteristics . . . . . . . . . Page 51
VI Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . Page 52
VIII Field Wiring and Jumper Settings . . .
X Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . Page 62
UNIT INFORMATION
UNIT INFORMATION
100094
04-2024
EL297DFE SERIES UNITS
two-stage
®
. . . . Page 58
Page 1
WARNING
Improper
installation,
service or maintenance can cause property damage,
personal injury or loss of life. Installation and service
must be performed by a licensed professional HVAC
installer (or equivalent), service agency or the gas
supplier.
CAUTION
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal
injury. Take care while handling this equipment and
wear gloves and protective clothing.
EL297DFE
adjustment,
alteration,
©2016 Lennox Industries, Inc.
