WARNING
This furnace is equipped with an ignition control
factory enabled for use with Lennox A2L refrigerant
systems.
Disabling
functionality on A2L system is prohibited by safety
codes. Refer to furnace installation instructions for
non-A2L and non-Lennox refrigerant system setup.
Contents
Unit Dimensions - inches (mm) ......................................2
EL297DFEK Gas Furnace ..............................................3
Shipping and Packing List ..............................................3
Safety .............................................................................3
Use of Furnace as a Construction Heaterl .....................4
General ...........................................................................5
Combustion, Dilution, Ventilation Air...............................5
Setting Equipment ..........................................................8
Filters ............................................................................12
Duct System .................................................................12
Pipe Fittings Specifications...........................................12
Venting Options ............................................................13
Joint Cementing Procedure ..........................................16
Venting Practices ..........................................................16
the
refrigerant
detection
INSTALLATION
INSTRUCTIONS
EL297DFEK
ELITE
SERIES GAS FURNACE
®
DOWNFLOW AIR DISCHARGE
508579-01
01/2025

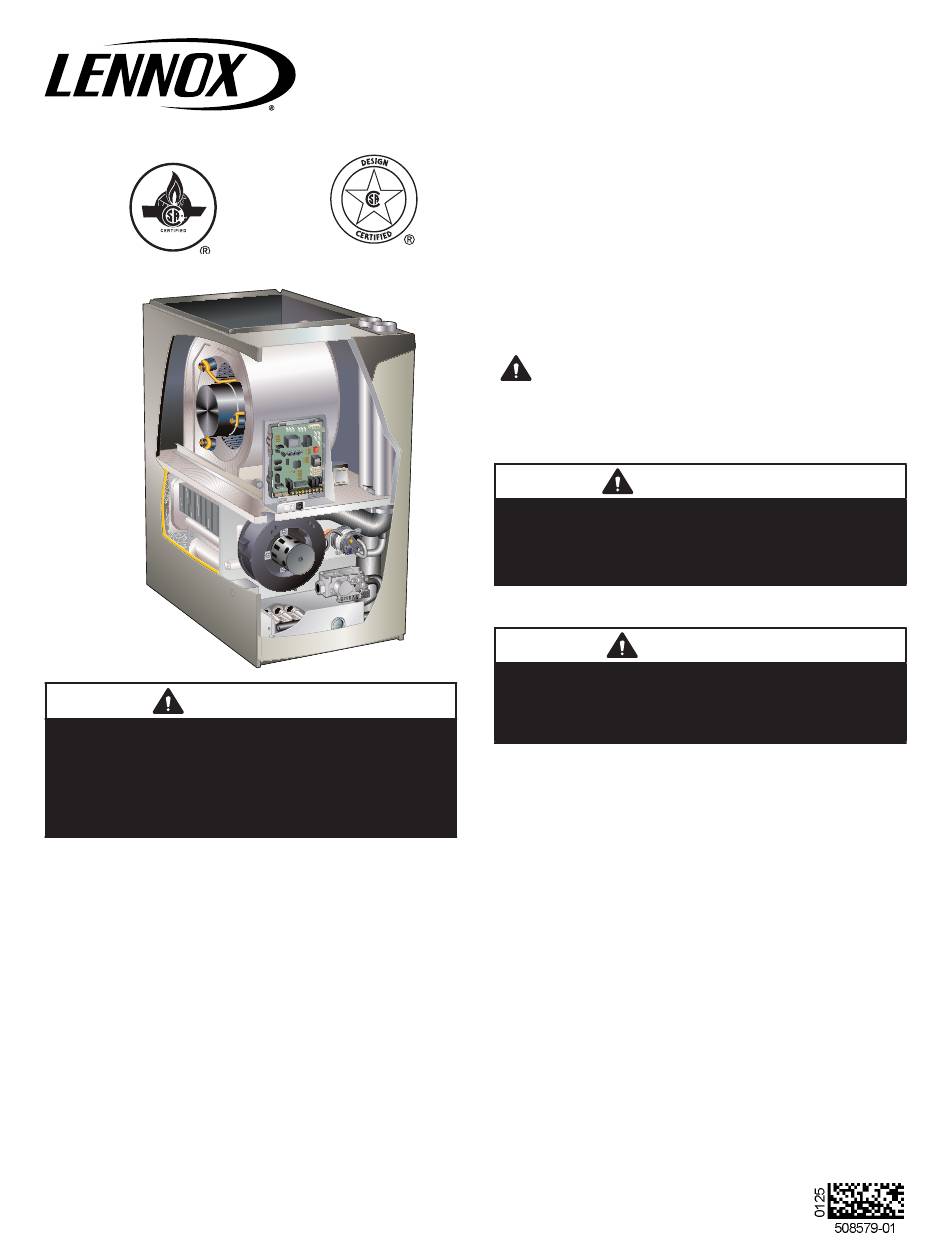

THIS MANUAL MUST BE LEFT WITH THE
HOMEOWNER FOR FUTURE REFERENCE
This is a safety alert symbol and should never be
ignored. When you see this symbol on labels or in man-
uals, be alert to the potential for personal injury or death.
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer (or
equivalent), service agency or the gas supplier.
As with any mechanical equipment, contact with sharp
sheet metal edges can result in personal injury. Take
care while handling this equipment and wear gloves and
protective clothing.
Vent Pipe Guidleines ....................................................18
Gas Piping ....................................................................35
Electrical .......................................................................37
Ignition Control .............................................................39
Low GWP Application ...................................................48
Unit Start-Up .................................................................51
Gas Pressure Measurement.........................................52
Proper Combustion.......................................................53
High Altitude .................................................................53
Other Unit Adjustments.................................................55
Sequence of Operation.................................................55
Service..........................................................................56
Star-Up and Performance Checklist .............................58
Repair Parts List ...........................................................61
Page 1
WARNING
CAUTION
