Xiaomi MI Mesh System BE3600 Pro RN09 Manual

Product Overview

Read this manual carefully before use, and retain it for future reference.

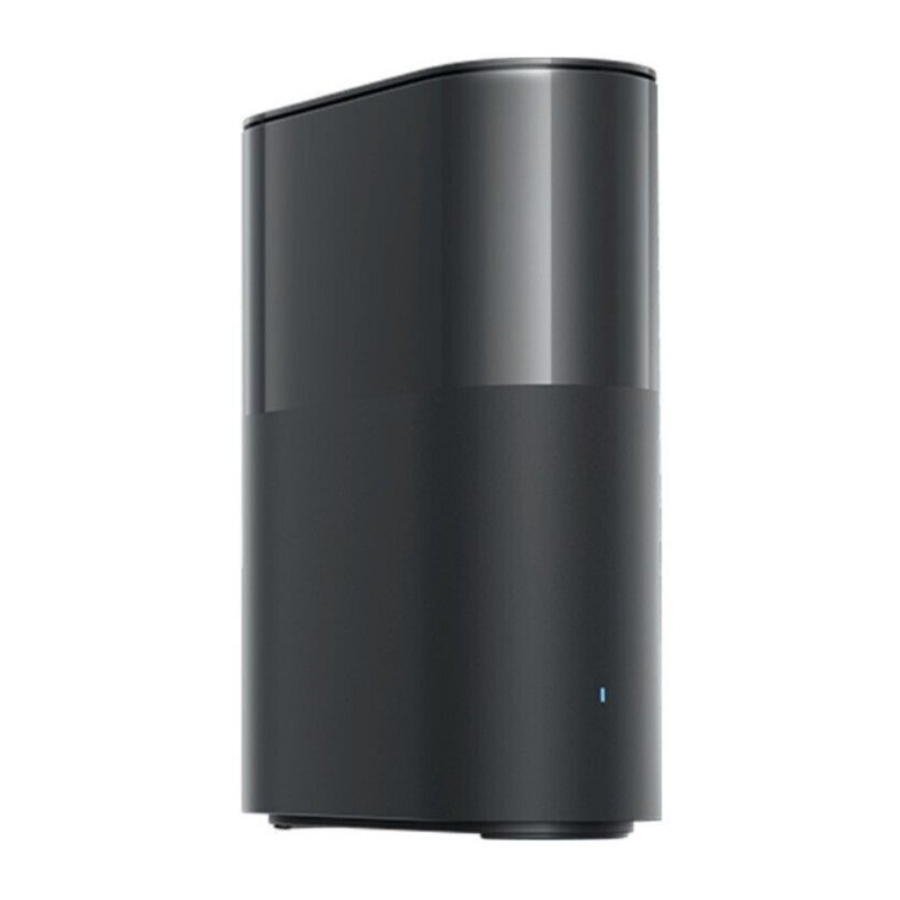

Product Overview

①	NFC area	Simply touch the NFC area of your phone to the top of the router to quickly connect to Wi-Fi. To use this feature, enable the NFC function on your Android phone, and keep your phone unlocked.
②	Mesh/Reset button	Press the button to have Mesh networking with routers that support the Xiaomi Mesh function. Press and hold the button for 5 seconds to restore the router to its factory settings.
③	Network port	4 WAN/LAN auto-sensing ports (1 × 2.5 Gbps + 3 × 1 Gbps).
④	Power port	Connect the power adapter to the router.

Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

Indicator Status	Description
Off	The router is off or unplugged.
Orange	The system is starting up or a network connection error occurred.
Blinking orange	The new added satellite router is connecting to the Mesh networking or the system is updating.
Breathing orange	The router is started and the system is ready for configuration.
Blue	The router is working properly.
Breathing blue	A new satellite router is discovered. The indicator will automatically turn blue if there is no operation for Mesh networking within 2 minutes.
Blinking blue	The satellite router is connecting to the main router.

Network Configuration

Preparation before the Configuration

Connect the router to power, then the router will automatically turn on.
Note: For the product of 2-pack or 3-pack version, connect any of the routers as the main router to power. Then the router will automatically turn on.
Restart your modem.
Note: The modem is provided by your Internet service provider.
Plug one end of the network cable into either of the router's port, and the other end into the LAN port of the modem.
Note: If you use the Ethernet wall socket instead of the modem, directly plug the network cable into it.

Method 1 Network Configuration via Xiaomi Home app

Scan QR code to download Xiaomi Home app. Or search for "Xiaomi Home" in the app store to download and install it.
446A956A

Swipe down from the top of the screen to access the Control Center (iOS) or Quick Settings (Android), and turn on Wi-Fi.
Open Xiaomi Home app, tap "+" on the upper right, choose the right product model, and then follow the instructions to complete the network configuration.

Notes:

The version of the app might have been updated, please follow the instructions based on the current app version.
For the product of 2-pack or 3-pack version, the routers in the box have been pre-paired when leaving the factory. When the network configuration of one router is completed, just power on the rest of routers and they will Mesh networking automatically.

Method 2 Network Configuration via Web Browser

Check the Wi-Fi name on the label at the bottom of the router and then connect your phone or computer to the Wi-Fi.
Then an automatic redirection will take you to the network setup page. If not, open the web browser and enter miwifi.com or 192.168.31.1.
Follow the instructions on the setup page to complete the network configuration.
Note: Contact your Internet service provider to get the details if you are not familiar with the Internet connection type.
After the configuration of the router is completed, the Wi-Fi module will restart. Try to search the Wi-Fi again later.

Notes:

For the product of 2-pack or 3-pack version, the routers in the box have been pre-paired when leaving the factory. When the network configuration of one router is completed, just power on the rest of routers and they will Mesh networking automatically.
After completing the network configuration, you can also add the router via the Xiaomi Home app. Refer to the QR code in the Method 1 to download and install the Xiaomi Home app. Make sure that the settings of country or region in Xiaomi Home app is not Chinese mainland; otherwise, adding the router will be failed.

Xiaomi Mesh Networking

Xiaomi Mesh networking technology supports Mesh networking of up to 10 routers to achieve broader network coverage. Follow the steps below to configure the Mesh networking.

Make sure the main router is connected to the network. Connect the satellite router to power and place it near but at least one meter away from the main router. Otherwise, they will interfere with each other and affect the networking.
After the satellite router powers on, the main router will automatically discover it, and the indicator of the main router will start breathing blue.
Note: If the satellite router is already configured, press its reset button to restore it to the factory settings first.
Press the mesh button on the main router, and the indicators of the main router and satellite router will start blinking. It will take about 2 minutes to complete the Mesh networking.
When the Mesh networking is completed, the indicator of the satellite router turns into blue.

Troubleshooting

Issue	Possible Cause and Solution
I cannot access the internet.	Make sure the network cable is plugged into the Ethernet port of the modem. If your modem has multiple Ethernet ports, leave the others unplugged. Turn off your modem and wait for 5 minutes, then turn it on and have a reset. Directly connect a computer to the modem via a network cable to check if the internet is working. If not, contact your Internet service provider. Log in to the router's web management page, and go to the Network Settings to verify the internet IP address. If valid, set your primary DNS to 8.8.8.8, and secondary to 8.8.4.4. If invalid, make sure the hardware connections are connected properly or contact your Internet service provider.
My wireless devices cannot connect to the Wi-Fi.	Ensure the Wi-Fi name and password do not contain special characters during configuration. Make sure the Wi-Fi you selected and the password you entered are correct. Verify if your device is blacklisted. If yes, remove it from the blacklist to allow connection. Choose WPA2 encryption for your router to enhance compatibility. Restart both your router and device then try again.
I forget the management password or Wi-Fi password of the router.	Restore the router to factory settings, and set up a new management password or Wi-Fi password.
I cannot add the router in Xiaomi Home app.	Check if your phone has connected to the Wi-Fi of the router. Check if the selected product model is correct in Xiaomi Home app. Make sure that the settings of country or region in Xiaomi Home app is not Chinese mainland.
I have already added the router to the app, but there is still a pop-up for adding this router.	The server is changed after you alter the settings of country or region. You may: Ignore the request of adding the router. The router will not appear in the list of Xiaomi Home app, and the related functions within the app will not be available under the current settings unless you change back to the original settings of country or region. Add the router. You can use the functions of the router within the app in the current settings. However, the information on the original server will be cleared, and you need to add the router again if changing back to the original settings of country or region.

Specification

Name	Xiaomi Mesh System BE3600 Pro
Model	RN09
Input	12 V ⎓ 1.5 A
Wired Technology	4 WAN/LAN auto-sensing ports (1 × 2.5 Gbps + 3 × 1 Gbps)
Wireless Technology	2.4 GHz Wi-Fi (688 Mbps), 2 × 2 MIMO 5 GHz Wi-Fi (2882 Mbps), 2 × 2 MIMO Bluetooth LE 5.0 NFC
Operating Temperature	0℃ to 40℃

Notes:

The network standby power consumption is 8.4 W if all wired network ports are connected and all wireless network ports are activated.
You can activate or deactivate the Wi-Fi network in the "Settings" of the management page (miwifi.com).

Manufacturer: Beijing Xiaomi Electronics Co., Ltd.
Address: Room 802, Floor 8, Building 5, No.15 KeChuang 10th Road, Beijing Economic and Technological Development Zone, Beijing City, China
For further information, please go to www.mi.com
