Randolph Morris MASON HILL RMHTFFS-S Installation Manual

SUPPLY LINES INSTALLATION GUIDE
BEFORE YOU BEGIN
1) Verify the center to center of your faucet and rough in your supply lines
accordingly, flush lines to clear any debris left in the lines.
2) Allow a 6" minimum clearance below the floor to allow sufficient space
for attachment of supply lines to the intended stub out.
3) Drill 1" holes at the rough in location.
4) We recommend that you install 3/4" brass floor flanges (not include)
from below as an extra support.
INSTRUCTIONS
1) Insert flange on bottom risers, thread top locknut and rubber
washer and insert from above, through the brass flange if
you elected to install one under the floor.
2) Secure from below by inserting metal washer and threading
the lock nut.
3) Apply Teflon tape to the top and bottom threads of the lower
riser and thread the supply lines to the supply line to the
lower riser.
4) Thread hot and cold shut-off valve to the top of lower riser.
5) Insert washer and coupling nut into the riser.
6) Apply Teflon tape to bottom threads of the top riser and
thread onto the shut-off valve..
7) Placing a bucket underneath the supply line outlets turn on
hot and cold valves, this will help clear debris from the line
as well as give you opportunity to check for leaks.
COMPLETE INSTALLATION
Note: Don't over tighten the pipes to avoid damage.
TOOLS AND MATERIALS
** This item is designed to be installed in wood floors. If you have a
concert floor it may be necessary to build a platform to accommodate

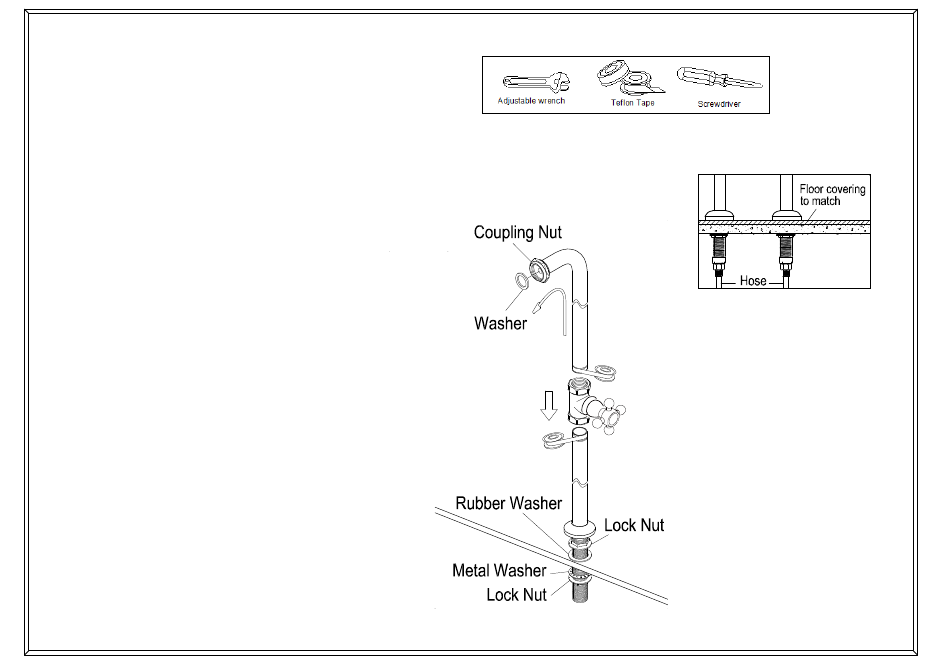

the inlet connections refer to image as below.
M12-158
