Before You Start
Carefully remove your cabinet from its pack- aging and ensure that all the components are in good
condition and are not missing. If you have a problem, please contact your distributor immediately.
Place the door in a safe location to avoid any possible damages.
Tools Needed: Safety glasses, Measuring tape, Level, Robertson or Phillips Head Screwdriver
#1 and #2, Electric Drill (Surface Mounting), Drill Bit, 3/16" (Surface Mounting)
NOTE: Safety glasses should be worn at all times. Before you start, close the sink drain. This
will avoid small dropped parts from falling into the drain.
Materials Included: List here in a single concatenated line
1. Recess Mount Installation

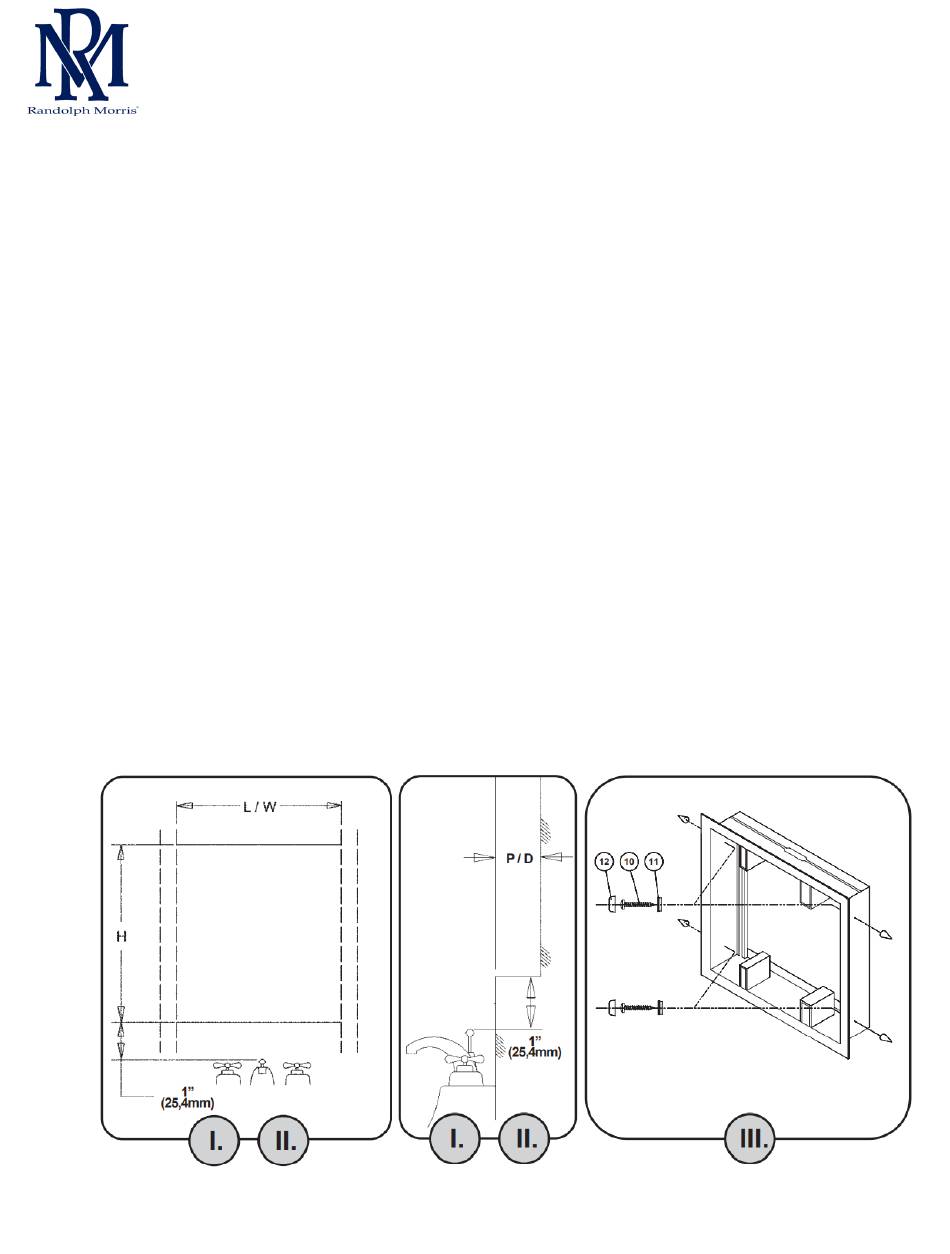

Arrange the wall opening with studs on both sides of the cabinet (23).
I.
Prepare wall opening to the required dimensions according to the cabinet
model (23) (see products description on page 4). The distance between the
higher point of the faucet and the bottom of the cabinet box (23) has to be 1"
(25,4mm) minimum.
II.
Position cabinet (23) in the opening and level the cabinet (23).
III.
Using the pre-drill holes on the cabinet sides, fix the cabinet (23) to the studs on
each side of the cabinet by using the screws (10) along with the plastic washers
(11). To not deform the sides of the cabinet do not overtighten the screws (10).
Insert snap caps (12) on washers (11) to cover the screws (10).
To continue with recess mounted installation go directly to step 4.
Tri-View Medicine Cabinet
Installation Guide
1
Advertisement
Related Manuals for Randolph Morris Tri-View Medicine Cabinet
Summary of Contents for Randolph Morris Tri-View Medicine Cabinet
- Page 1 Tri-View Medicine Cabinet Installation Guide Before You Start Carefully remove your cabinet from its pack- aging and ensure that all the components are in good condition and are not missing. If you have a problem, please contact your distributor immediately.
- Page 2 Tri-View Medicine Cabinet Installation Guide 2. Surface Mount Installation Position the cabinet at the desired emplacement. Level and make a mark underneath the cabinet (23). The distance between the higher point of the faucet and the bottom bracket has to be 1” (25,4mm) minimum.
- Page 3 Tri-View Medicine Cabinet Installation Guide 3. Side Mirrors Installation Only in a surface mounting installation. Fix two side mirrors brackets (4) on each side of the cabinet (9) by using screws (9) and plastic washers (11). Use the snap cap (12) to cover the screws.
- Page 4 Tri-View Medicine Cabinet Installation Guide 5. Doors Installation **IMPORTANT** Before starting the doors installation, refer to the illustrations below to determine which type of mounting plate is provided with your cabinet.
- Page 5 Tri-View Medicine Cabinet Installation Guide Using screws (20) and designed holes on cabinet (23), fix mounting plates (19) slightly. Type A hinge Install doors (5,6,7) by inserting mounting plate’ s screw in hinge’s slot. Check if door is firmly attached to the hinges. If needed, tighten the mounting plate’s screw.
- Page 6 Tri-View Medicine Cabinet Installation Guide In-Out Adjustment If necessary, loosen the screw (C) on one of the hinges to adjust the contact between the doors (5,6,7) and the cabinet (23). Retighten the screw (C) after the adjustment. Up-Down Adjustments Loosen screws (B) on both mounting plates. Raise or lower doors (5,6,7) to desired position and re-tighten screws (B).
- Page 7 Tri-View Medicine Cabinet Installation Guide Determine shelf (17) height before tightening slightly shelf stops (13) in place with screw- driver provided (23). Snap glass shelves (17) or (17A and 17B for 48 models) in place on shelf brackets (13) as shown.
