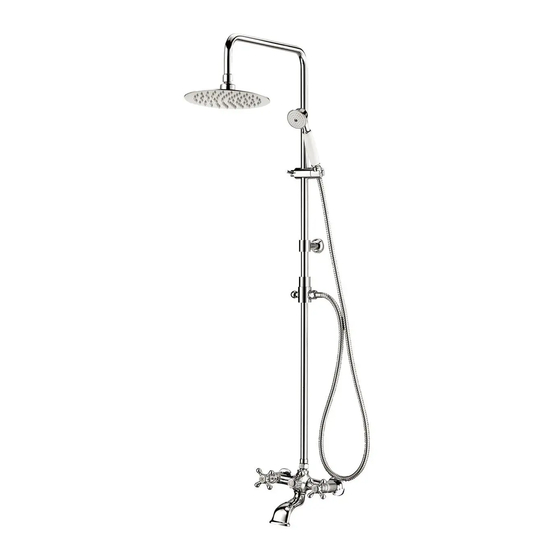

Randolph Morris RMN2840-S Instructions

WALL-MOUNT SHOWER SYSTEM INSTALLATION

BEFORE YOU BEGIN:
We recommend consulting a professional if you are unfamiliar with installing plumbing futures. We accept no
liability for any damage to the faucet, plumbing, sink, counter top, to personal injury during the installation.
CAUTION:
Always turn water OFF before removing existing or disassembling the faucet. Open faucet handles to
relieve water pressure and ensure that complete water shut-off has been accomplished.

HELPFUL TOOLS:

Teflon Tape
Adjustable Wrench

NOTICE:

1. Shut off the main water supply where the new faucet is being installed.
2. For these instructions, it is assumed the floor has been finished and the water supply has
been prepared.

INSTALLATION:

1. Place the escutcheons on the elbows. Wrap
the elbows with teflon tape, and thread the
connectors onto the supply pipes. Attach the
faucet body to the elbows tighten with your
adjustable wrench.
Level
Thread Sealant
2. Attach the connecting rod to the middle shower
riser. Attach the shower riser to the shower body.
Use a level to measure that shower riser is in the
proper location. Hold the mounting bracket in
place in the desired mounting location, and mark
the location on the wall.
3. Remove the shower riser, and drill two holes at
the marked locations. Insert the wall anchors.
Attach the mounting bracket to the wall with
mounting screws. Attach the escutcheon to the
mounting bracket.
1
Pencil or Marker
Drill
