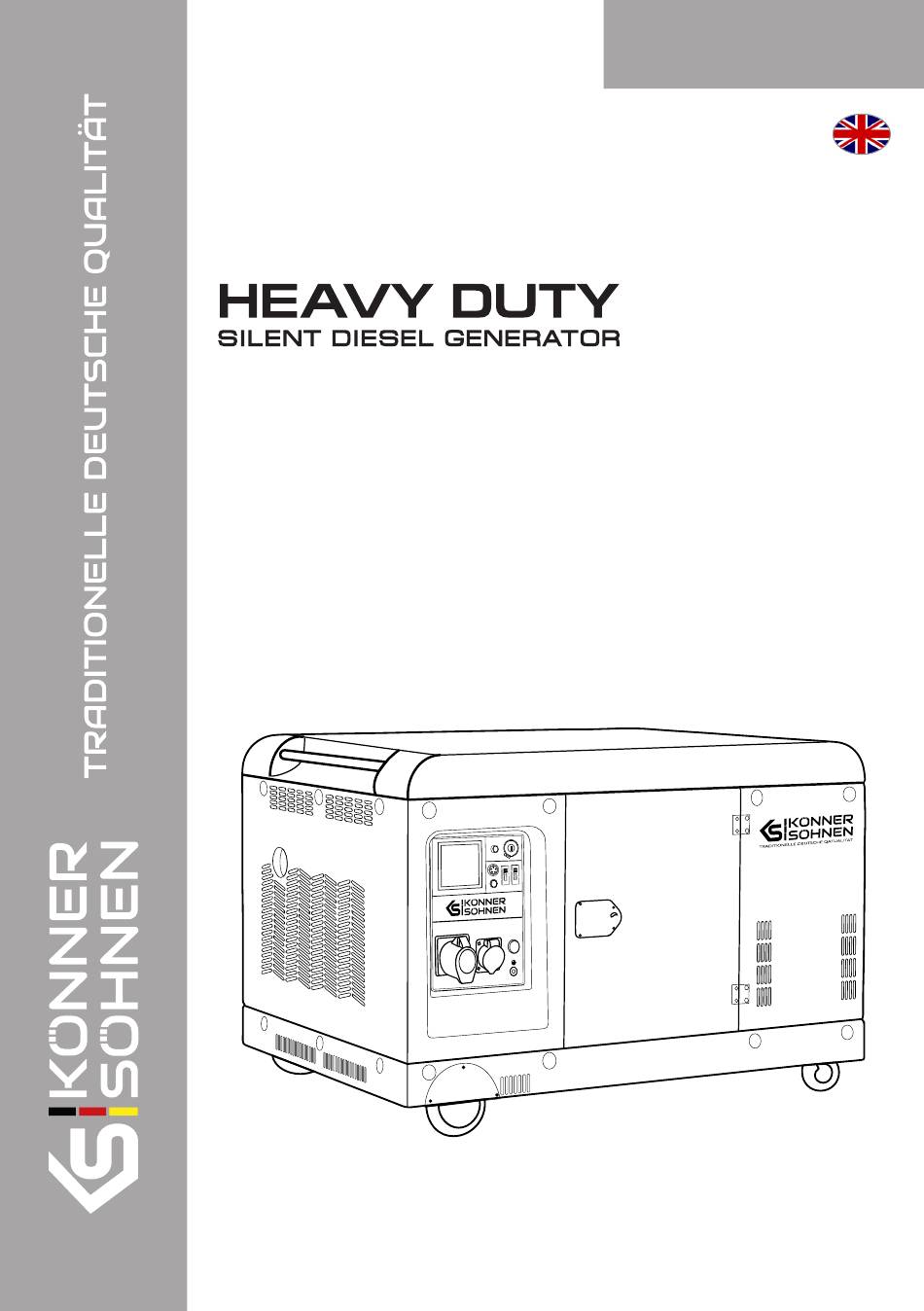

- Page 1 Instruction Please, read this manual before use! Diesel Generator KS 16-1E KS 16-1/3E...
-
Page 2: Safety Information
INTRODUCTION Thank you for your purchase of Könner & Söhnen products. This manual contains a brief description of safety, setup and use. More information can be found on the official importer’s website in the support section: konner-sohnen.com/manuals You can also go to the support section and download the manual by scanning the QR code or on thewebsite of the official importer of Könner &... -
Page 3: Electrical Safety
ELECTRICAL SAFETY The device generates electricity. Follow safety precautions ATTENTION - DANGER! to avoid electric shock. The generator should be used as an IT or TN system based on the application. Earthing and additional pro- tective measures such as insulation monitoring or pro- IMPORTANT! tection against accidental contact (residual current de- vice) must be provided based on the application and the... -
Page 4: Main Overview
MAIN OVERVIEW 1. Fuel tank 2. Soundproof anti-vandal housing 3. Fuel filter 4. Air filter 5. Oil filter 6. Oil dipstick 7. Oil drain hole 8. Battery 9. Coolant drain hole 10. Transport kit 11. Control panel 12. Silencer MODEL KS 16-1E MODEL KS 16-1E MODEL MODEL KS 16-1/3E... -
Page 5: Specifications
COMPONENTS OF SET for Model KS 16-1E for Model KS 16-1/3E SPECIFICATIONS Model KS 16-1E KS 16-1/3E Voltage 230 V 230 V 400 V Max Power 16 kVA 16 kVA 20 kVA Nominal Power 15 kVA 15 kVA 18,75 kVA Frequency 50 Hz 50 Hz... - Page 6 The optimum operating conditions are ambient temperature of 17°C–25°C, barometric pressure of 0.1 MPa (760 mm Hg), and relative humidity of 50-60%. Under such ambient conditions, the generator can guarantee maximum performance in terms of the stated specifications. In case of deviations from the above ambient values, the performance of the generator can be different.
-
Page 7: Setting The Operation Mode
Button Function Description 1. When setting the parameters, pressing this button returns to the previous menu. LEFT 2. During normal operation, press this button to switch to the bottom LED. 1. When setting the parameters, press this button to go to the next menu. RIGHT 2. - Page 8 If the set value is exceeded, the frequency LED starts to flash; after a 7-second delay at underfrequency or a 3-second delay at overfrequency, an emergency shutdown will be triggered. After that, the frequency LED continues to flash and shows the previous alarm. OVERLOAD PROTECTION OVERLOAD PROTECTION - If the set value is exceeded by 5% or less, the alarm will not be triggered.
-
Page 9: Starting To Work
STARTING TO WORK Before starting the engine, make sure that the rated power of power consumers matches with the power of generator. Do not exceed the nominal power of the generator. Do not connect the device before starting the engine! The generator is not intended for continuous operation at maximum power. -
Page 10: Stopping The Engine
STARTING THE GENERATOR USING THE ATS UNIT: STARTING THE GENERATOR USING THE ATS UNIT: When starting the generator in automatic or manual mode using the ATS unit (automatic transfer switch), the start key on the generator control panel must be in the “OFF” position. DURING GENERATOR OPERATION: DURING GENERATOR OPERATION: - You may use the generator, if the voltage meter displays the value 230V+/- 5% (50 Hz) and 400V+ / - 5%... -
Page 11: Recommended Oils
TECHNICAL MAINTENANCE WORKS Check the level Motor oil Replace Check Air filter Replace Oil filter Replace Check the level Fuel tank Check/Clean Check/Clean Fuel filter Replace RECOMMENDED OILS 10W-30, 10W-40 Use oils designed for four-stroke cycle vehicle engines SAE10W-30, SAE10W-40. Motor oils with other viscosity levels, may be used only if the average air temperature in your region does not exceed the limits of the temperature range, specified in the table. -
Page 12: Battery Use
THE FUEL FILTER IN THE FUEL SUPPLY PIPELINE THE FUEL FILTER IN THE FUEL SUPPLY PIPELINE This filter has to be replaced every 100 operating hours. BATTERY USE To prolong battery life it is recommended to do battery charging with an external device (not included) every three months. - Page 14 CONTACTS Deutschland: Deutschland: Hergestellt unter Lizenz und Kontrolle der DIMAX International GmbH. Importeur und Vertreter in Deutschland: DIMAX International GmbHFlinger Broich 203, 40235 Düsseldorf, Deutschland. Produziert in VRC. innovationtrade8@gmail.com www.konner-sohnen.com/de www.konner-sohnen.com/de European Union: European Union: Manufactured under license and control of DIMAX International GmbH,Flinger Broich 203, 40235 Duesseldorf,Germany.
