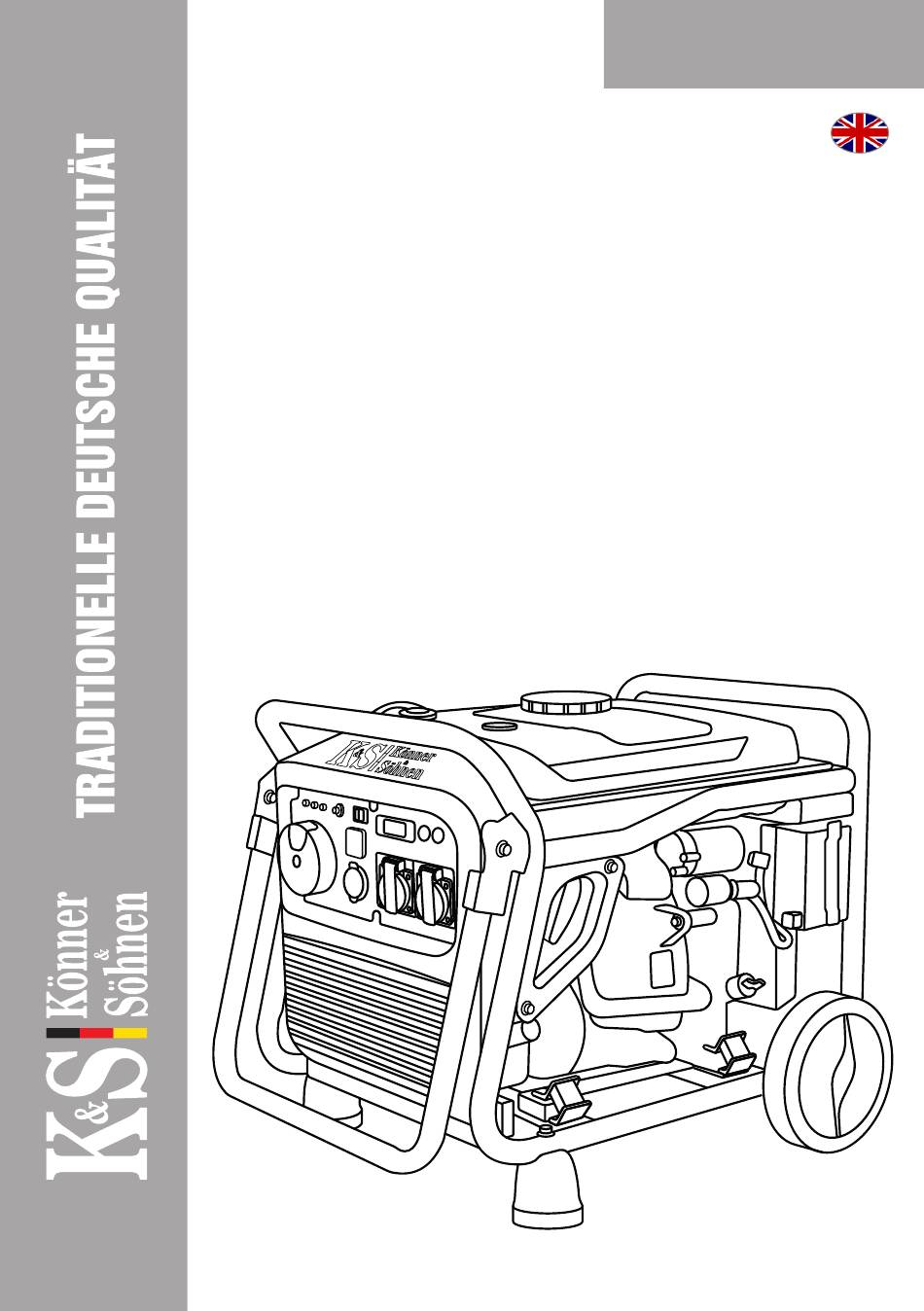

- Page 1 Owner’s Manual Please, read this manual carefully before use! Inverter Generator KS 4100iE KS 8100iE Inverter Generator in Soundproof Housing KS 2000i S KS 4000iE S...
-
Page 2: Safety Information
INTRODUCTION Thank you for your purchase of Könner & Söhnen products. This manual contains a brief description of safety, use and debugging. More information can be found on the official manufacturer’s website in the support section: ks-power.de/betriebsanleitungen. You can also go to the support section and download the full version of the manual by scanning the QR code, or on the website of the official importer of Könner &... -
Page 3: Main Overview
PRECAUTIONS WHEN WORKING WITH GASOLINE GENERATOR Do not start the generator operation upon presence of electric load! Disconnect the load before you stop the engine. Only unleaded gasoline is recommended for the generator. It is forbidden to use kerosene or other fuel types. Before running the generator, it is necessary to define the place and means of its emergency stop. - Page 4 MODEL KS 2000i S 1. 2 USB-Outputs 1. Fuel tank cap air vent 2. Economy mode switch (ЕCОN) 2. Carrying handles 3. LED display 3. Control panel 4. 1x16А AC outlet 4. Manual starter 5. Ground terminal 5. Air choke 6.
-
Page 5: Specifications
SPECIFICATIONS Model KS 4100iE KS 8100iE KS 2000i S KS 4000iE S Voltage, V Maximum power, kW Nominal power, kW Frequency, Hz Current, A (max.) 17.4 34.8 17.4 1*16A Outlets 2*16A 1*16A 2*16A 1*32A Engine start manual/electro electro manual manual/electro Fuel tank volume, l 12.5 12.5... -
Page 6: Generator Operation
TERMS OF USE OF INVERTER GENERATOR It is recommended to ground the generator before operating it for the first time. Before starting the device, remember that the total power of the connected power consumers should not exceed the nominal power of the generator. -
Page 7: Getting Started
FUEL TANK CAP AIR VENT (FOR MODELS KS 2000i S, KS 4000iE S) The fuel cap is equipped with a vent for air supply to the fuel tank. When the engine is running, the vent must be in the “ON” position (OPEN). This will allow fuel to enter the carburetor for engine operation. When the generator is not in use, close the vent to the “OFF”... - Page 8 In the power supply mode, the generator should operate no longer than 1 minute in the range from nominal to ATTENTION – DANGER! maximum power. COMMISSIONING 1. Fill the crankcase with engine oil. The recommended amount of oil for each model is indicated in the specification chart.
- Page 9 5. Pull the manual starter until a slight resistance is felt, then pull it toward you relatively sharply. Slowly turn the manual starter by hand, do not release it abruptly. 6. Turn the air choke control knob to the “RUN” position. Fig.
- Page 10 PARALLEL FUNCTION The total output power of the generators can be increased by connecting two inverter generators together using the Parallel Unit KS PU1 from Könner & Söhnen. Parallel connection of two identical generator models ensures double nominal output power of these models. When connecting generators of different capacities using the Parallel function, the output power is two times the nominal power of the generator with lesser capacity.
-
Page 11: Maintenance
CHARGING AN EXTERNAL 12 V BATTERY 1. Start the engine. 2. Connect the red wire to the positive (+) terminal of the battery. 3. Connect the black wire to the negative (-) terminal of the battery. 4. Connect the wire to a 12V/8A DC socket on the control panel of the generator. 5. -
Page 12: Recommended Oils
TECHNICAL MAINTENANCE WORKS Level check Motor oil Replacement Cleaning Air filter Replacement Cleaning Spark plug Replacement Level check Fuel tank Cleaning Fuel filter Check (clean out) - If the generator often operates at high temperature or high load, the oil should be replaced every 25 operating hours. - Page 13 SPARK PLUGS TECHNICAL MAINTENANCE Spark plug has to be intact, without soot deposits and to have a correct gap. SPARK PLUG VERIFICATION: 1. Remove the cap from the spark plug. 2. Remove the spark plug by means of a corresponding spanner. 3.
- Page 14 Storage room has to be dry and free from dust deposits. Storage room also has to be locked away from children and animals. It is recommended to store and use the generator at temperature of -20°С to +40°С. Avoid direct sunlight, rain on the generator. When using and storing hybrid generator, gas tank should be kept indoors at temperatures below +10°С.
- Page 15 - If electrical cables or plugs show signs of mechanical or thermal damage. - In the event of foreign liquids and objects, metal chips, etc. inside the product. - If the malfunction is caused by the use of non-original spare parts and materials, oils, etc. - If there are two or more faulty units that are not interconnected.
- Page 17 CONTACTS Deutschland: DIMAX International GmbH Deutschland, Hauptstr. 134, 51143 Köln, www.ks-power.de info@dimaxgroup.de Polska: DIMAX International Poland Sp.z o.o. Polen, Warczawska, 306B 05-082 Stare Babice, www.ks-power.pl info.pl@dimaxgroup.de Україна: ТОВ «Техно Трейд КС», вул. Електротехнічна 47, 02222, м. Київ, Україна www.ks-power.com.ua sales@ks-power.com.ua Россия: ТД...
