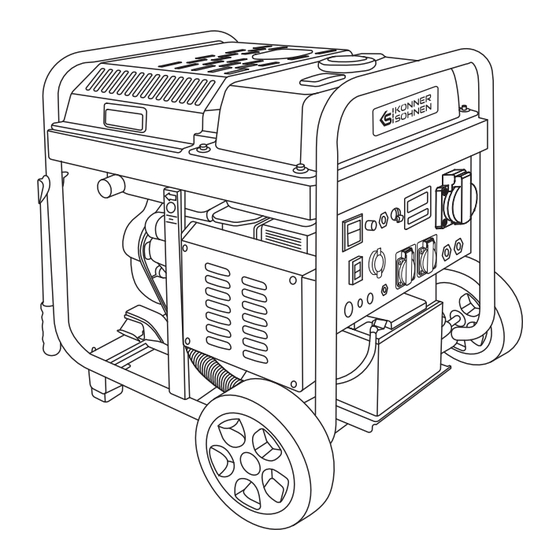

- Page 1 Owner’s Manual Please, read this manual carefully before use! Diesel inverter generator KS 6100iDЕ ATSR KS 9500iDE ATSR...
-
Page 2: Safety Information
INTRODUCTION Thank you for opting for Könner & Söhnen products. This manual contains a brief description of safety, ® setup and use. More information can be found on the official importer’s website in the support section: konner-sohnen.com/manuals You can also go to the support section and download the manual by scanning the QR code or on thewebsite of the official importer of Könner &... - Page 3 – Connect the generator to the protective ground before operation. – Do not connect or disconnect a generator to electricity consumers, which are placed in water on a wet or damp soil. – Do not touch parts of the generator under voltage. –...
-
Page 4: Main Overview
SAFETY SYMBOLS. DESCRIPTION OF SAFETY SYMBOLS WHEN OPERATING THE GENERATOR 1. Be careful when operating the device! Observe 5. The device generates electricity. Observe safety the safety instructions in this manual. precautions to avoid electric shock. 2. Operate the generator only in well-ventilated 6. -
Page 5: Control Panel
PACKAGE INCLUDE: PACKAGE INCLUDE: • Packaging • Wheel axles – 2 pcs. • Generator • Locking clamps for wheel axle – 2 pcs. • Owner’s manual • Washers for wheel axle – 2 pcs. • 16A Plugs – 2 pcs. •... -
Page 6: Technical Data
TECHNICAL DATA Model KS 6100iDЕ ATSR KS 9500iDE ATSR Voltage 230 V 230 V Max power 5,5 kW 10,0 kW Nominal power 5,0 kW 9,5 kW Frequency 50 Hz 50 Hz Current max 23,9 А 43,5 А Outlets 2×16А, 1×32A 2×16А, 1×63A Fuel tank volume 18 l... -
Page 7: Before Starting
TYPES OF CONSUMERS AND INRUSH CURRENT TYPES OF CONSUMERS AND INRUSH CURRENT Consumers (electrical devices connected to the generator) are divided into active and reactive ones. Active ones are those, which energy is converted into heat (heating devices). Reactive are all consumers with electric motor. When you run the engine, starting currents occur briefly, the size of which depends on engine design and purpose. - Page 8 This material is for informational purposes only and is not an instruction how to install or connect equipment to the network. In practice, there are different options for supplying electricity and different rules for its connection. The decision on how to properly connect the equipment in each individual case must be made by a certified electrician who performs the installation and electrical connection of the equipment.
- Page 9 If engine does not start after three or four attempts, it may mean that the fuel system has some air inside. Re- IMPORTANT! move the air from the fuel system (drain the diesel fuel, with the fuel there will be excess of air). Do not let the simultaneous connection of two or more devices.
- Page 10 STARTING THE GENERATOR USING THE ATS UNIT STARTING THE GENERATOR USING THE ATS UNIT When starting the generator in automatic or manual mode using the ATS unit (automatic transfer switch), the button ENGINE SWITCH on the generator control panel must be in the ON/RUN position. Failure to follow these instructions may lead to damage IMPORTANT! of the rotor and stator windings, the ATS unit.
-
Page 11: Recommended Oils
RECOMMENDED OILS Motor oil has a serious impact on performance characteristics and is a major attribute, defining its service life. Use oils designed for four-stroke cycle vehicle engines SAE 10W-30, SAE 10W-40, since such oils contain cleaning additives, which comply or even exceed SE standards according to API classification (or equivalent). Motor oils with other viscosity levels, may be used only if the average air temperature in your region does not exceed the limits of the temperature range, specified in the table. -
Page 12: Accumulator Maintenance
FUEL FILTER TECHNICAL MAINTENANCE There are two kinds of fuel filters in Könner & Söhnen diesel generators. They prevent the ingress of ® contaminants from diesel fuel to the engine. COARSE CLEANING FUEL FILTER COARSE CLEANING FUEL FILTER Remove the filter after the possible hard particles hit every 500 operating hours. Never use water for purification the filter. -
Page 13: Possible Failures And Solutions
LONG-TERM STORAGE LONG-TERM STORAGE If you do not plan to use the generator for a long time, we recommend: - Drain the fuel from the tank. - Drain the oil from the engine. - Pull the manual starter until you feel light resistance so that the intake and exhaust valves are closed. - Remove the negative terminal of the battery for the electric start models. - Page 14 AVERAGE POWER USAGE Device Average power usage, W 500-1100 Iron 450-1200 Air hair dryer 800-1500 Coffee machine 800-1800 Electric cooking stove 600-1500 Toaster 1000-2000 Air heater 400-1000 Vacuum cleaner 50-250 Radio 1200-2300 BBQ Grill electric device 1000-2000 Oven 100-150 Refrigerator 100-400 TV set 600-1400...
