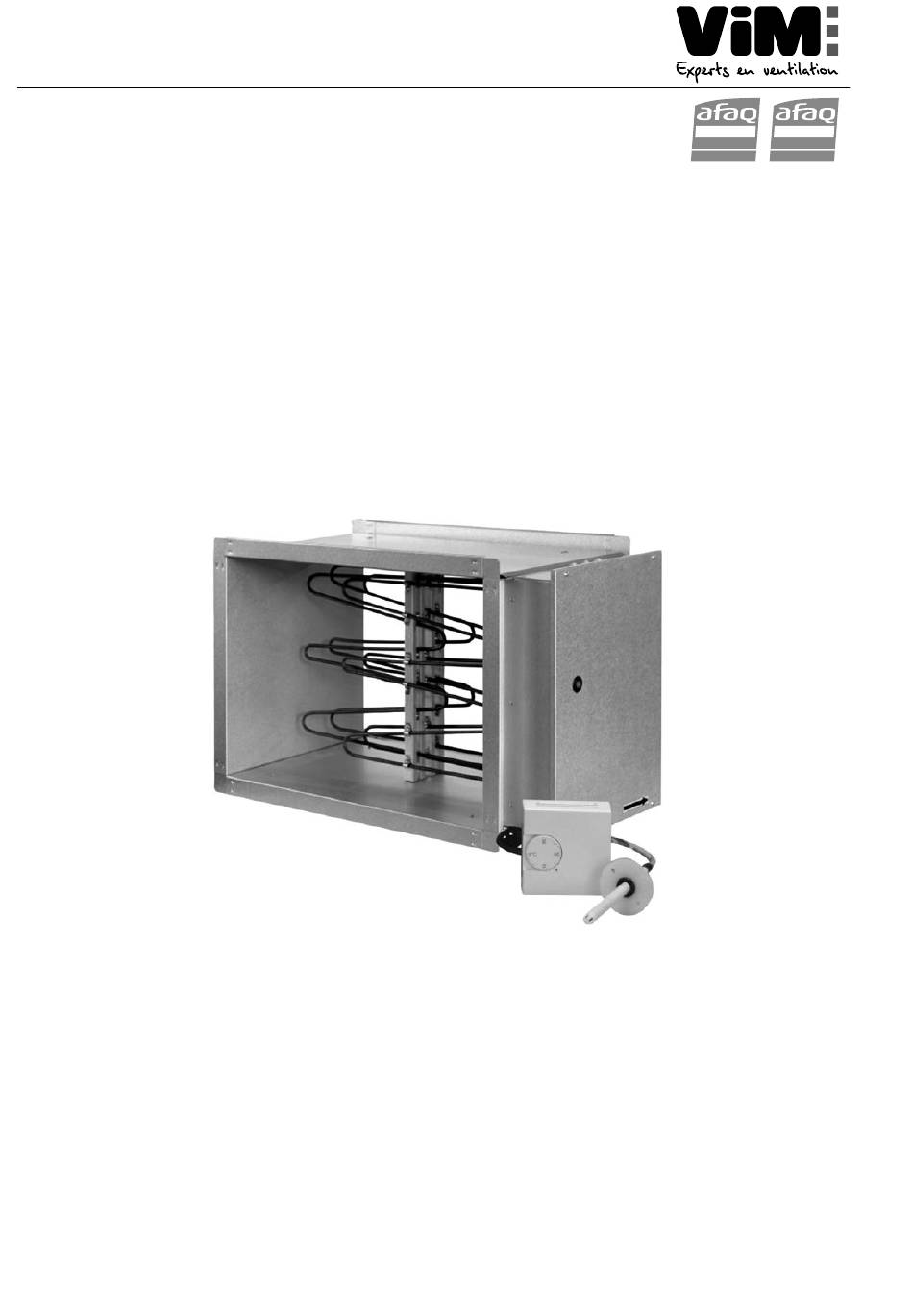

INSTRUCTION MANUAL
INSTALLATION | WIRING | COMMISSIONING | MAINTENANCE |
I S O 9 0 0 1
ISO 14001
Q u a l i t é
Environnement
AFNOR CERTIFICATION
AFNOR CERTIFICATION
BATR-R
Rectangular electrical heater
Power control fitted
NT00000605-BATR-R-AN-231018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BATR-R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ViM BATR-R

Summary of Contents for ViM BATR-R

  • Page 1 INSTRUCTION MANUAL INSTALLATION | WIRING | COMMISSIONING | MAINTENANCE | I S O 9 0 0 1 ISO 14001 Q u a l i t é Environnement AFNOR CERTIFICATION AFNOR CERTIFICATION BATR-R Rectangular electrical heater Power control fitted NT00000605-BATR-R-AN-231018...

  • Page 2: Table Of Contents

    ELECTRICAL CONNECTION ......................6 BATR-R single phase + TJ-K10K duct probe + TR5K potentiometer ........7 BATR-R Single-phase + NTC10 room probe and TJ-K10K supply limitation probe ....8 BATR-R Three-phase + TJ-K10K duct probe + TR5K box ............9 BATR-R Three-phase + NTC10 room probe and supply limitation probe TJ-K10K ....11...

  • Page 3: General

    • Maintain a distance of 100 mm between the heater and surrounding materials. • The network must not be completely blocked. Regulation box Manual reset button Boîtier de régulation Bouton de réarmement manuel Heated Filtre Filter Pièce chau ée room TJ-K10K BATTERIE HEATER TR5K 3/16 NT00000605-BATR-R-AN-231018...

  • Page 4: Reception - Storage

    • Low +15°C and high +40°C limitation on supply, measured by the TJ-K10K probe. If the temperature measured by the probe is: - below 15°C. The heater will heat up to try to reach 15°C (low limit). - above 40°C. The heater stops heating (high limit). 4/16 NT00000605-BATR-R-AN-231018...

  • Page 5: Installation

    31,0 1000 2700 14400 BATR R 1000x500 45 kW Tri 65,0 46,0 1000 2700 14400 BATR R 1000x500 66 kW Tri 95,4 61,0 1000 2700 14400 These datas are visible on the identification label present on each product. 5/16 NT00000605-BATR-R-AN-231018...

  • Page 6: Electrical Connection

    • Control terminal block: provide cables with a section ≤ 4 mm². • Power terminal block: the terminal block capacities are indicated in the table below: 10 mm² 16 mm² Single-phase 230V ≤ 4,5kW ˃ 4,5kW Three-phase 400V ≤ 15kW ˃ 15kW 6/16 NT00000605-BATR-R-AN-231018...

  • Page 7: Batr-R Single Phase + Tj-K10K Duct Probe + Tr5K Potentiometer

    4.1 BATR-R single phase + TJ-K10K duct probe + TR5K potentiometer Blowing temperature control. Setting the setpoint temperature on the TR5K box. Micro switch 1 held in position “1”. Micro switch 2: indifferent position BATE-R single phase - Duct temperature control...

  • Page 8: Batr-R Single-Phase + Ntc10 Room Probe And Tj-K10K Supply Limitation Probe

    4.2 BATR-R Single-phase + NTC10 room probe and TJ-K10K supply limitation probe Room temperature control and supply temperature limitation with micro switch 1 in "On" position. Micro switch 2: indifferent position. Setting the setpoint temperature on the TR5K box. BATR-R Single-phase - Room temperature control, supply temperature limitation...

  • Page 9: Batr-R Three-Phase + Tj-K10K Duct Probe + Tr5K Box

    4.3 BATR-R Three-phase + TJ-K10K duct probe + TR5K box Blowing temperature control with micro switch 1 in position “1”. Micro switch 2: indifferent position. Setting the setpoint temperature on the TR5K box. BATR-R Three-phase < 18kW - Duct temperature control...
  • Page 10 BATR-R Three-phase ≥ 18kW - Duct temperature control MICRO SWITCH RANK 1 RANG 1 LED1 LED2 L1 L2 L3 MODE CHAUFFAGE HEATING LED3 SOUS TENSION POWER ON RANG 2 RANK 2 L1 L2 L3 t° t° Shunt for Shunt pour Voir détails...

  • Page 11: Batr-R Three-Phase + Ntc10 Room Probe And Supply Limitation Probe Tj-K10K

    4.4 BATR-R Three-phase + NTC10 room probe and supply limitation probe TJ-K10K Room temperature control and supply temperature limitation with micro switch 1 in "On" position. Micro switch 2: indifferent position. Setting the setpoint temperature on the TR5K box. BATR-R Three-phase < 18kW - Room temperature control, supply temperature limitation.
  • Page 12 BATR-R Three-phase ≥ 18kW - Room temperature control, supply temperature limitation. MICRO SWITCH RANK 1 RANG 1 LED1 LED2 L1 L2 L3 MODE CHAUFFAGE HEATING LED3 POWER ON SOUS TENSION RANK 2 RANG 2 L1 L2 L3 t° t° Shunt for Shunt pour Voir détails...

  • Page 13: Commissioning - Maintenance - Alarms

    2 times per probe NTC10 (TR5K), safety air flow sensor: permanent ignition. second. second. LED 2 red On if heating Off if heater not heating LED 3 yellow On if heater is under voltage Off if heater is off 13/16 NT00000605-BATR-R-AN-231018...

  • Page 14: Maintenance And Alarm

    It is strictly forbidden to burn them, bury them or dump them illegally. 6.2 Treatment of Professional WEEE This product should not be landfilled or treated with household waste but should be taken to an appropriate collection point for waste electrical and electronic equipment (WEEE). 14/16 NT00000605-BATR-R-AN-231018...
  • Page 15 15/16 NT00000605-BATR-R-AN-231018...
  • Page 16 à toute modification technique. Les prés de Mégy Sud – SOUDAN CS 60120 - 79401 ST MAIXENT L’ECOLE CEDEX Tel. : +33 (0)5 49 06 60 38 or +33 (0)5 49 06 60 25 sav@vim.fr - www.vim.fr 16/16 NT00000605-BATR-R-AN-231018...
