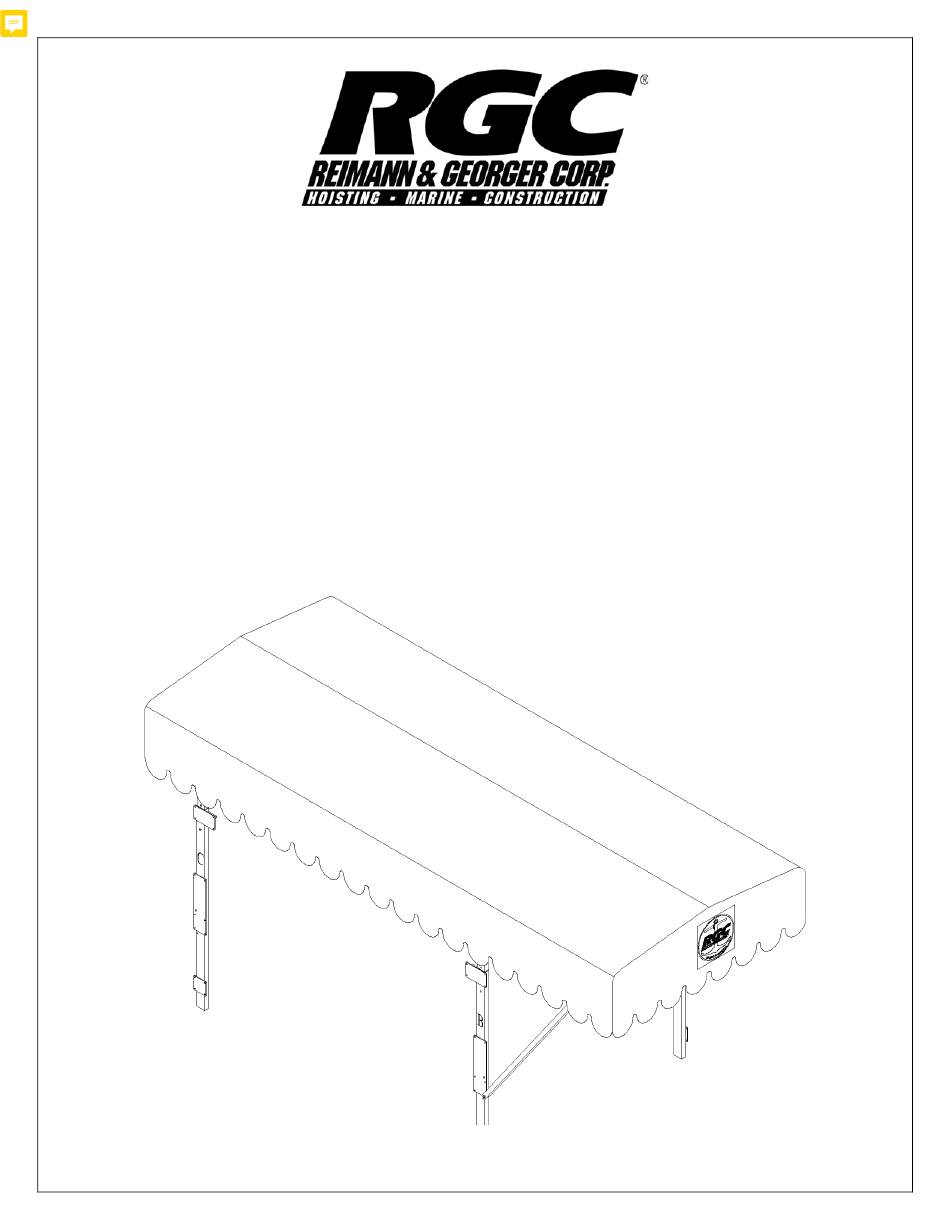

INSTRUCTIONS
(Applies to P/N 3609500, 3609502, 3609510, 3609504, 3609515,3609520, 3609525, 3609540,
3609541, 3609560, 3609530, 3609545, 3609542, 3609565, 3609567, 3609535, 3609550, 3609543,
3609570, 3609572, 3609586, 3609591, 3609555, 3609575, 3609577, 3609557, 3609580, 3609582,
3609587, 3609592, 3609585, 3609589, 3609593, 3609590, 3609594, 3609595, 3609596 )
REIMANN & GEORGER CORPORATION
Marine Products Division
CANOPY
P/N 6112204
January 2024
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RGC 3609500
Summary of Contents for RGC 3609500
- Page 1 CANOPY INSTRUCTIONS (Applies to P/N 3609500, 3609502, 3609510, 3609504, 3609515,3609520, 3609525, 3609540, 3609541, 3609560, 3609530, 3609545, 3609542, 3609565, 3609567, 3609535, 3609550, 3609543, 3609570, 3609572, 3609586, 3609591, 3609555, 3609575, 3609577, 3609557, 3609580, 3609582, 3609587, 3609592, 3609585, 3609589, 3609593, 3609590, 3609594, 3609595, 3609596 ) REIMANN &...
-
Page 2: Table Of Contents
Contents Contents 1 SAFETY ................................ 2 1.1. INTRODUCTION ............................... 2 1.2. SAFETY DEFINITIONS ............................ 2 1.3. EQUIPMENT AND PERSONNEL SAFETY ....................2 INSTALLATION AND SETUP ........................3 2.1. PRIOR TO SETUP .............................. 3 2.2. INSTALLATION PROCEDURE ........................3 INSPECTION AND MAINTENANCE ......................8 3.1. -
Page 3: Safety
DO NOT INSTALL THIS CANOPY WITHOUT STUDYING THIS ENTIRE MANUAL AND THE MANUAL FOR THE LIFT ONTO WHICH IT IS BEING MOUNTED. FAILURE TO DO THIS CAN LEAD TO EQUIPMENT MISUSE WITH RESULTING DAMAGE AND/OR SERIOUS PERSONAL INJURY. CONTACT YOUR RGC MARINE DEALER IF YOU HAVE ANY QUESTIONS. 1.2. -
Page 4: Installation And Setup
INSTALLATION AND SETUP 2.1. PRIOR TO SETUP Examine your canopy upon receipt and check that it is complete and undamaged. Refer to the parts lists in Chapter 4. Report any shipping damage on the delivery receipt and contact the delivering carrier to file a damaged freight claim. Do not install the canopy if it shows any signs of damage. - Page 5 Assemble both sides of your canopy frame on the ground using (1 ea.) left hand (3), right hand (2), and center (1), stringers for each side assembly. Canopy rib bushings are offset to the outside of stringer face. Make certain that all stringers are positioned properly.
- Page 6 Attach the canopy braces (13) at the bow end of the lift. Ensure the stringers are level and at the desired position before tightening the bolts. Note that the braces are supplied only with 21 foot and longer canopies. For 26 foot and longer canopies, an additional pair of braces is supplied.
- Page 7 10. Clean the top of the canopy ribs and carriage bolt head (about 2 inches each side of bolt) with cloth dampened in rubbing alcohol. Allow surface to dry. 11. Cut supplied Velcro to about 6” length. Apply Velcro in line with canopy rib, covering carriage bolt head. Press firmly across the entire length of the Velcro strip.
- Page 8 13. Feed bungee cord through hole in webbing and thread hook end through loop to attach to webbing, Wrap bungee cord under and around canopy frame. Attach hook end to hole in canopy rib as shown. Complete Canopy Frame...
-
Page 9: Inspection And Maintenance
INSPECTION AND MAINTENANCE 3.1. GENERAL MAINTENANCE RULES Do not stand or climb on any part of the lift when doing maintenance on the canopy. If your lift is equipped with a handwheel, never reach through the spokes of the handwheel to perform any maintenance on the canopy. -
Page 10: Parts Lists
Quantities shown for 18’-40’ canopies. Quantities may differ for 15’ canopies. Fabric, ordered separately, is required to complete installation. 4.2. CANOPY FRAME BUNDLE, 15’ CANOPIES P/N for 15’x65” P/N for 15’x68” DESCRIPTION canopy 3609500 canopy 3609502 CENTER STRINGER END STRINGER RH ASSEMBLY 3609147 3609147 END STRINGER LH ASSEMBLY... -
Page 11: Canopy Frame Bundle, 18'-21' Canopies
4.3. CANOPY FRAME BUNDLE, 18’-21’ CANOPIES P/N for 18’x100” P/N for 21’x100” P/N for 21’x108” DESCRIPTION canopy 3609510 canopy 3609515 canopy 3609520 CENTER STRINGER 3609105 3609110 3609110 88” END STRINGER RH ASSEMBLY 3609147 3609147 3609147 88” END STRINGER LH ASSEMBLY 3609132 3609132 3609132... -
Page 12: Canopy Frame Bundle, 26' Canopies
4.5. CANOPY FRAME BUNDLE, 26’ CANOPIES P/N for 26’x108” P/N for 26’x116” P/N for 26’x124” canopy 3609530 canopy 3609545 canopy 3609565 DESCRIPTION (3609542 for (3609567 for open open end) end) 102” CENTER STRINGER 3609115 3609115 3609115 101” END STRINGER RH ASSEMBLY 3609150 3609150 3609150... -
Page 13: Canopy Frame Bundle, 30' Canopies
4.7. CANOPY FRAME BUNDLE, 30’ CANOPIES P/N for 30’x116” P/N for 30’x124” canopy 3609555 canopy 3609575 DESCRIPTION (3609577 for open end) 138” CENTER STRINGER 3609125 3609125 111” END STRINGER RH ASSEMBLY 3609155 3609155 111” END STRINGER LH ASSEMBLY 3609140 3609140 CLOSED END CAP 3609220 3609225... -
Page 14: Canopy Frame Bundle, 34' Canopies
4.9. CANOPY FRAME BUNDLE, 34’ CANOPIES P/N for 34’x132” P/N for 34’x124” canopy 3609589 DESCRIPTION canopy 3609585 (3609593 for open end) 93” CENTER STRINGER RH 3609166 3609166 93” CENTER STRINGER LH 3609163 3609163 111” END STRINGER RH ASSEMBLY 3609155 3609155 111”... -
Page 15: Limited Product Warranty
Marine Products RGC Marine products, hereafter referred to as the “Manufacturer”, extend this limited warranty to the original purchaser of this product. The original purchaser, hereinafter referred to as the “Buyer”, is defined as the first legal owner of this product other than an authorized distributor or dealer who has bought the product from the Manufacturer for resale to the public. - Page 16 F. NO EXTENSION OF STATUTE OF LIMITATIONS ANY REPAIRS PERFORMED UNDER EITHER OF THESE WARRANTIES SHALL NOT IN ANY WAY EXTEND THE ONE-YEAR AND FIFTEEN-YEAR STATUTES OF LIMITATIONS CONTAINED IN THIS LIMITED WARRANTY. G. PROCEDURE FOR WARRANTY PERFORMANCE If the product fails to perform to the Manufacturer’s specifications, the Buyer must contact the dealer from whom the product was purchased.
- Page 17 The Manufacturer has the right to modify this product at any time without incurring any obligation to make the same or similar modifications on products previously purchased. N. NO AUTHORITY TO ALTER WARRANTY No agent, representative, distributor or dealer has any authority to alter the terms of this warranty in any way. O.
-
Page 18: Commercial Product Provisions
COMMERCIAL PRODUCT PROVISIONS II. ARTICLE II—COMMERCIAL PRODUCT PROVISIONS: THE FOLLOWING PROVISIONS SHALL BE APPLICABLE ONLY IF THIS PRODUCT IS BEING PURCHASED SOLELY FOR COMMERCIAL OR INDUSTRIAL USE. IF THIS PRODUCT IS BEING PURCHASED FOR PERSONAL, FAMILY OR HOUSEHOLD PURPOSES, THE PROVISIONS CONTAINED IN THIS ARTICLE II SHALL NOT BE APPLICABLE AND THE PROVISIONS CONTAINED IN ARTICLE I ABOVE SHALL APPLY. - Page 19 I. PREAPPROVAL OF LABOR COSTS All labor costs related to a dealer’s performance of the warranty obligations under this limited warranty must be pre-approved by Reimann & Georger Corp. Marine Products. J. EXCLUSIONS FROM WARRANTY. THIS LIMITED WARRANTY DOES NOT COVER ANY OF THE FOLLOWING: Equipment which has been abused, damaged, used beyond rated capacity, or which is damaged or has defects caused by repairs or service completed by persons other than authorized service personnel.
