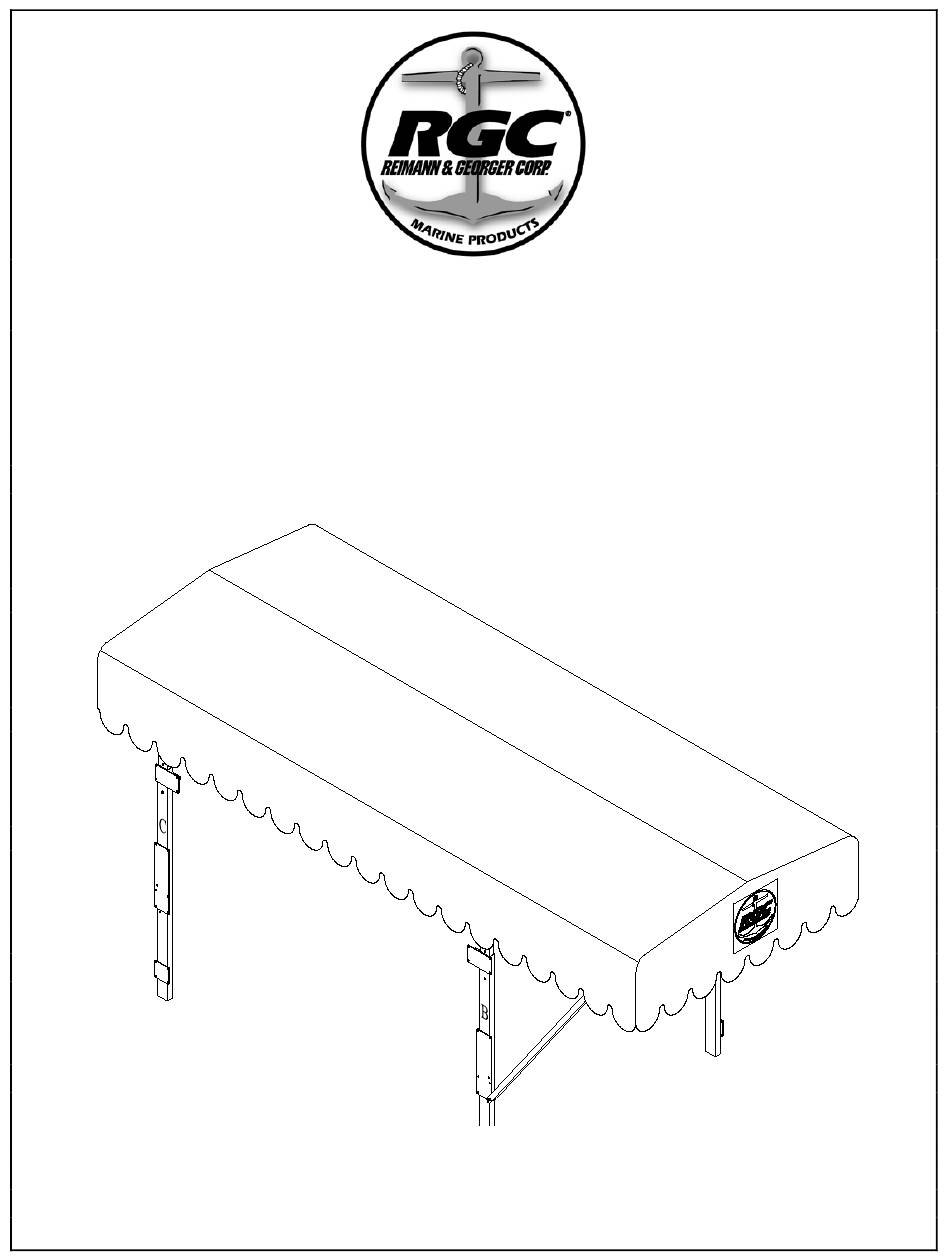

- Page 1 CANOPY (2010) INSTRUCTIONS W/CORNER ANGLE & TUBE INSIDE TUBE JOINT (Applies to P/Ns 3609510 3609515 3609520 309525 3609540 3609560 3609530 3609545 3609565 3609550 3609570 3609555 3609575 3609557 3609580 3609585) REIMANN & GEORGER CORPORATION MARINE PRODUCTS BUFFALO, NY P/N 6112204 04/12/18...
-
Page 2: Table Of Contents
Canopy Bundle 34’ X 124” ....................18 Canopy Cartons ........................19 4.2.1 Carton of Parts 18’ -24’ ......................19 4.2.2 Carton of Parts 26’ -28’ ......................19 4.2.3 Carton of Parts 30’ -32’ ......................19 4.2.4 Carton of Parts 34’ ........................20 LIMITED WARRANTY RGC MARINE PRODUCTS PHONE: (716) 895-1156... - Page 3 Mounting the End Caps, Plastic Caps, and Canopy Ribs ............6 Mounting the Center Bands .....................6 Velcro Strip Installation ......................7 Mounting the Canopy Fabric ....................7 Mounting the Bungee Hooks ....................8 2-10 Complete Canopy Framework ....................9 RGC MARINE PRODUCTS PHONE: (716) 895-1156...
-
Page 4: Safety
DO NOT INSTALL THIS CANOPY WITHOUT STUDYING THIS ENTIRE MANUAL AND THE MANUAL FOR THE LIFT ONTO WHICH IT IS BEING MOUNTED. FAILURE TO DO THIS CAN LEAD TO EQUIPMENT MISUSE WITH RESULTING DAMAGE AND/OR SERIOUS PERSONAL INJURY. CONTACT YOUR RGC MARINE DEALER IF YOU HAVE ANY QUESTIONS. 1.2 SAFETY DEFINITIONS A safety message alerts you to potential hazards that could hurt you or others or cause property damage. - Page 5 The following precautions must be observed when lifting any part of this equipment: Be sure of your footing. Bend your knees and lift with your legs. Hold the equipment section close to your body when lifting. 10. Do not stand or climb on any part of the lift when installing the canopy. 11.
-
Page 6: Installation And Setup
2 INSTALLATION AND SETUP 2.1 PRIOR TO SETUP Examine your canopy upon receipt and check that it is complete and undamaged. Refer to the parts lists in Chapter 4. Report any shipping damage on the delivery receipt and contact the delivering carrier to file a damaged freight claim. Do not install the canopy if it shows any signs of damage. -
Page 7: Side Stringer Assembly
Figure 2-2. Side Stringer Assembly Refer to Figure 2-3. Mount the assembled stringers to top of canopy extension legs on each side of lift. Canopy rib bushings are offset to the outside of canopy frame. Stringer connecting angles will then face inside of canopy frame. Position the stringers such that the canopy protects the entire length of the boat and fasten in place with hardware shown. -
Page 8: Mounting The Canopy Braces
Figure 2-4. Mounting the Canopy Braces CAUTION: CANOPY FRAME MUST BE SQUARE TO PREVENT DAMAGE AND/OR IMPROPER FITTING OF CANOPY FABRIC UPON INSTALLATION. Refer to Figure 2-5. Attach each canopy end cap to the side stringers using hardware shown for each corner connection. -
Page 9: Mounting The End Caps, Plastic Caps, And Canopy Ribs
Figure 2-5. Mounting the End Caps, Plastic Caps, and Canopy Ribs Install plastic caps into the canopy frame end caps to prevent fabric abrasion. Install the canopy ribs by sliding them onto the canopy rib bushings. Refer to Figure 2-6. Assemble two end-center band (6) and one mid-center band (7) on top of the ribs with hardware shown. -
Page 10: Velcro Strip Installation
10. Refer to Figure 2-7. Clean the top of the canopy ribs and carriage bolt head (about 2 inches each side of bolt) with cloth dampened in rubbing alcohol. Allow surface to dry. 11. Cut supplied Velcro material per cutting chart below. 12. -
Page 11: Mounting The Bungee Hooks
16. Refer to Figure 2-9. Feed bungee cord through hole in webbing and thread hook end through loop to attach to webbing, Wrap bungee cord under and around canopy frame. Attach hook end to hole in canopy rib as shown. Figure 2-9. -
Page 12: Complete Canopy Framework
Figure 2-10. Complete Canopy Framework... -
Page 13: Inspection And Maintenance
3 INSPECTION AND MAINTENANCE 3.1 GENERAL MAINTENANCE RULES Do not stand or climb on any part of the lift when doing maintenance on the canopy. If your lift is equipped with a handwheel, never reach through the spokes of the handwheel to perform any maintenance on the canopy. -
Page 14: Parts Lists
Each reference number in the following parts lists can be matched with the reference number referred to in both the text and illustrations of Chapter 2, Installation and Setup. 4.1 CANOPY BUNDLES (2010 Design) 4.1.1 #3609510 Canopy Bundle 18’ X 100” REF # PART # DESCRIPTION 3609105 CANOPY CENTER STRINGER 42”... -
Page 15: Canopy Bundle 21' X 108
4.1.3 #3609520 Canopy Bundle 21’ X 108” REF # PART # DESCRIPTION 3609110 CANOPY CENTER STRINGER 78” 3609145 CANOPY END STRINGER ASSY RH 84” 3609130 CANOPY END STRINGER ASSY LH 84” 3609215 CANOPY END CAP 112” 3603591 CANOPY RIB 108” 3603582 CANOPY END CENTER BAND 95”... -
Page 16: Canopy Bundle 24' X 116
4.1.5 #3609540 Canopy Bundle 24’ X 116” REF # PART # DESCRIPTION 3609120 CANOPY CENTER STRINGER 114” 6 RIB 3609145 CANOPY END STRINGER ASSY RH 84” 3609130 CANOPY END STRINGER ASSY LH 84” 3609220 CANOPY END CAP 120” 3603573 CANOPY RIB 116” 3603582 CANOPY END CENTER BAND 95”... -
Page 17: Canopy Bundle 26' X 108
4.1.7 #3609530 Canopy Bundle 26’ X 108” REF # PART # DESCRIPTION 3609115 CANOPY CENTER STRINGER 102.5” 4 RIB 3609150 CANOPY END STRINGER ASSY RH 101-1/2” 3609135 CANOPY END STRINGER ASSY LH 101-1/2” 3609215 CANOPY END CAP 112” 3603591 CANOPY RIB 108” 3603568 CANOPY END CENTER BAND 107-1/2”... -
Page 18: Canopy Bundle 26' X 124
4.1.9 #3609565 Canopy Bundle 26’ X 124” REF # PART # DESCRIPTION 3609115 CANOPY CENTER STRINGER 102.5” 4 RIB 3609150 CANOPY END STRINGER ASSY RH 101-1/2” 3609135 CANOPY END STRINGER ASSY LH 101-1/2” 3609225 CANOPY END CAP 128” 3603599 CANOPY RIB 124” 3603568 CANOPY END CENTER BAND 107-1/2”... -
Page 19: Canopy Bundle 28' X 124
4.1.11 #3609570 Canopy Bundle 28’ X 124” REF # PART # DESCRIPTION 3609120 CANOPY CENTER STRINGER 114” 6 RIB 3609155 CANOPY END STRINGER ASSY RH 111” 3609140 CANOPY END STRINGER ASSY LH 111” 3609225 CANOPY END CAP 128” 3603599 CANOPY RIB 124” 3603643 CANOPY END CENTER BAND 120”... -
Page 20: Canopy Bundle 30' X 124
4.1.13 #3609575 Canopy Bundle 30’ X 124” REF # PART # DESCRIPTION 3609125 CANOPY CENTER STRINGER 138” 3609155 CANOPY END STRINGER ASSY RH 111” 3609140 CANOPY END STRINGER ASSY LH 111” 3609225 CANOPY END CAP 128” 3603599 CANOPY RIB 124” 3603643 CANOPY END CENTER BAND 120”... -
Page 21: Canopy Bundle 32' X 124
4.1.15 #3609580 Canopy Bundle 32’ X 124” REF # PART # DESCRIPTION 3609127 CANOPY CENTER STRINGER 162” 3609155 CANOPY END STRINGER ASSY RH 111” 3609140 CANOPY END STRINGER ASSY LH 111” 3609225 CANOPY END CAP 128” 3603599 CANOPY RIB 124” 3603643 CANOPY END CENTER BAND 120”... -
Page 22: Canopy Cartons
4.2 CANOPY CARTON OF PARTS 4.2.1 #3609405 Carton of Parts 18’-24’ REF # PART # DESCRIPTION 6403795 PLASTIC CAP 1-1/2 X 3 9703593 3-HOLE PLATE 4-1/2” 3609305 CANOPY BAG OF BOLTS 18’-24’ consisting of: 5806248 3/8-16 X 1-1/4 HEX HEAD CAP SCREW 5806255 3/8-16 X 3 HEX HEAD CAP SCREW 5803436... -
Page 23: Carton Of Parts 34
4.2.4 #3609420 Carton of Parts 34’ REF # PART # DESCRIPTION 6403795 PLASTIC CAP 1-1/2 X 3 9703593 3-HOLE PLATE 4-1/2” 3609320 CANOPY BAG OF BOLTS 34’ consisting of: 5806248 3/8-16 X 1-1/4 HEX HEAD CAP SCREW 5806255 3/8-16 X 3 HEX HEAD CAP SCREW 5803436 3/8-16 X 2-1/2 ROUND HEAD SCREW SLOTTED 5806257... -
Page 24: Limited Warranty
Reimann & Georger Corporation Marine Products RGC Marine Products, hereafter referred to as the “Manufacturer”, extends this limited warranty to the original purchaser of this product. The Original Purchaser, hereinafter referred to as the “Buyer”, is defined as the first legal owner of this product other than an authorized distributor or dealer who has bought the product from the Manufacturer for resale to the public. - Page 25 E. NO LIABILITY IN EXCESS OF PURCHASE PRICE IN NO EVENT SHALL THE MANUFACTURER’S OBLIGATIONS UNDER THIS LIMITED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT. F. NO EXTENSION OF STATUTE OF LIMITATIONS ANY REPAIRS PERFORMED UNDER EITHER OF THESE WARRANTIES SHALL NOT IN ANY WAY EXTEND THE THREE-YEAR AND FIFTEEN-YEAR STATUTES OF LIMITATIONS CONTAINED IN THIS LIMITED WARRANTY.
- Page 26 Costs of repairing damage caused by poor or improper maintenance, costs of normally scheduled maintenance, or the cost of replacing any parts unless done as the result of a repair covered by your three-year limited warranty. Costs of modifying the product in any way once delivered to the Buyer, even if such modifications were added as a production change on other products made after the Buyer’s product was built.
- Page 27 COMMERCIAL PRODUCT PROVISIONS II. ARTICLE II—COMMERCIAL PRODUCT PROVISIONS: THE FOLLOWING PROVISIONS SHALL BE APPLICABLE ONLY IF THIS PRODUCT IS BEING PURCHASED SOLELY FOR COMMERCIAL OR INDUSTRIAL USE. IF THIS PRODUCT IS BEING PURCHASED FOR PERSONAL, FAMILY OR HOUSEHOLD PURPOSES, THE PROVISIONS CONTAINED IN THIS ARTICLE II SHALL NOT BE APPLICABLE AND THE PROVISIONS CONTAINED IN ARTICLE I ABOVE SHALL APPLY.
- Page 28 H. PROCEDURE FOR WARRANTY PERFORMANCE If the product fails to perform to the Manufacturer’s specifications, the Buyer must contact the dealer from whom the product was purchased. The Buyer must provide the dealer with the applicable model and serial numbers, the date of purchase, and the nature of the problem.
