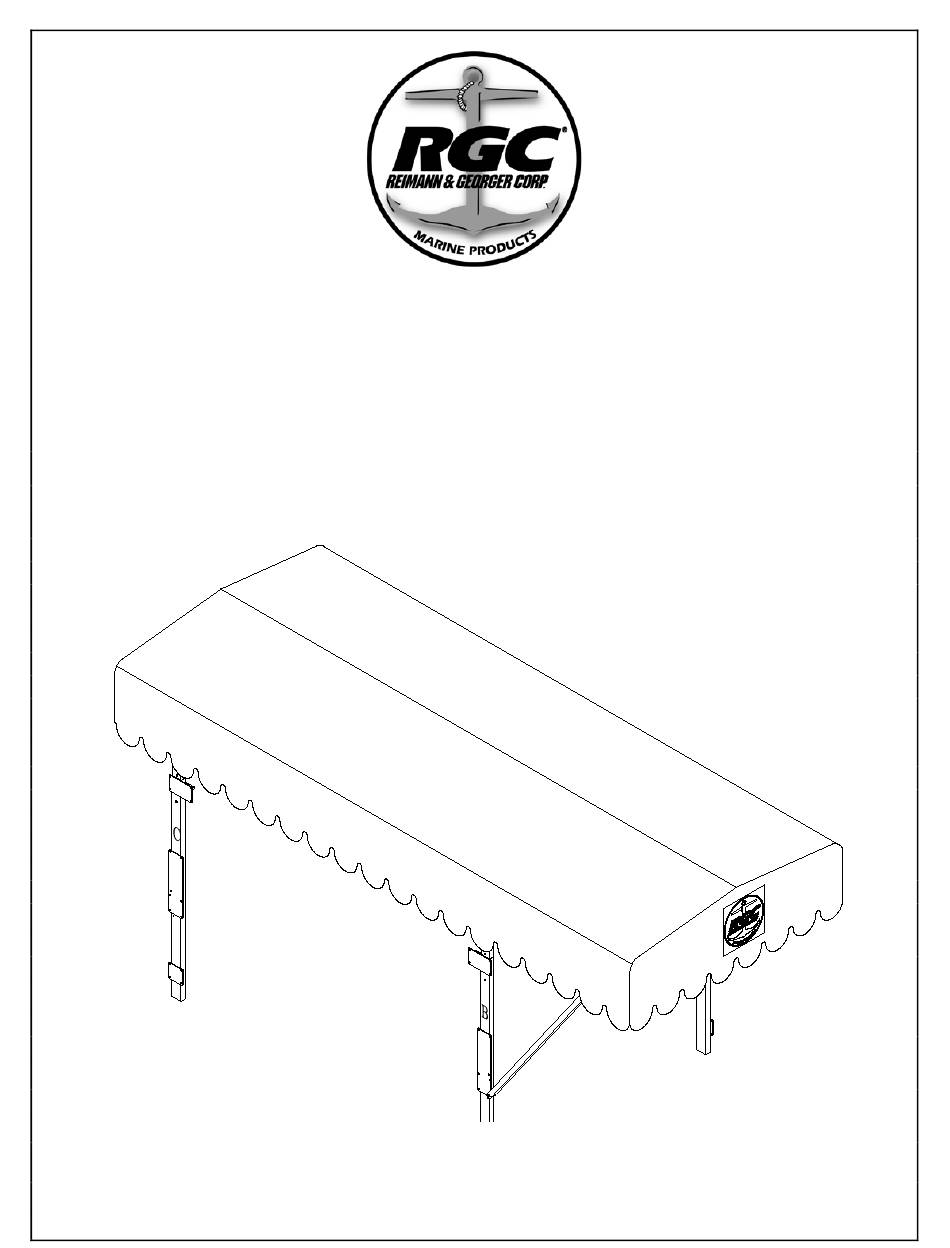

CANOPY VL10K (2010)
INSTRUCTIONS
W/CORNER ANGLE & TUBE INSIDE TUBE JOINT
(Applies to P/Ns 36-----, 3609587, 3609589, 3609590, 3609595, 3609630)
REIMANN & GEORGER CORPORATION
MARINE PRODUCTS
BUFFALO, NY
P/N 6112018
04/12/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL10K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RGC VL10K

  • Page 1 CANOPY VL10K (2010) INSTRUCTIONS W/CORNER ANGLE & TUBE INSIDE TUBE JOINT (Applies to P/Ns 36-----, 3609587, 3609589, 3609590, 3609595, 3609630) REIMANN & GEORGER CORPORATION MARINE PRODUCTS BUFFALO, NY P/N 6112018 04/12/18...
  • Page 2: Table Of Contents

    Mounting the End Caps, Plastic Caps, and Canopy Ribs ............6 Mounting the Center Bands .....................6 Velcro Strip Installation ......................7 Mounting the Canopy Fabric ....................8 Mounting the Bungee Hooks ....................8 2-10 Complete Canopy Framework ....................9 RGC MARINE PRODUCTS PHONE: (716) 895-1156...
  • Page 3: Safety

    DO NOT INSTALL THIS CANOPY WITHOUT STUDYING THIS ENTIRE MANUAL AND THE MANUAL FOR THE LIFT ONTO WHICH IT IS BEING MOUNTED. FAILURE TO DO THIS CAN LEAD TO EQUIPMENT MISUSE WITH RESULTING DAMAGE AND/OR SERIOUS PERSONAL INJURY. CONTACT YOUR RGC MARINE DEALER IF YOU HAVE ANY QUESTIONS. 1.2 SAFETY DEFINITIONS A safety message alerts you to potential hazards that could hurt you or others or cause property damage.
  • Page 4 The following precautions must be observed when lifting any part of this equipment: Be sure of your footing. Bend your knees and lift with your legs. Hold the equipment section close to your body when lifting. 10. Do not stand or climb on any part of the lift when installing the canopy. 11.
  • Page 5: Installation And Setup

    2 INSTALLATION AND SETUP 2.1 PRIOR TO SETUP Examine your canopy upon receipt and check that it is complete and undamaged. Refer to the parts lists in Chapter 4. Report any shipping damage on the delivery receipt and contact the delivering carrier to file a damaged freight claim. Do not install the canopy if it shows any signs of damage.
  • Page 6 Figure 2-2. Side Stringer Assembly Refer to Figure 2-3. Mount the assembled stringers to top of canopy extension legs on each side of lift. Canopy rib bushings are offset to the outside of canopy frame. Stringer connecting angles will then face inside of canopy frame. Position the stringers such that the canopy protects the entire length of the boat and fasten in place with hardware shown.
  • Page 7 Figure 2-4. Mounting the Canopy Braces CAUTION: CANOPY FRAME MUST BE SQUARE TO PREVENT DAMAGE AND/OR IMPROPER FITTING OF CANOPY FABRIC UPON INSTALLATION. Refer to Figure 2-5. Attach each canopy end cap to the side stringers using hardware shown for each corner connection.
  • Page 8 Figure 2-5. Mounting the End Caps, Plastic Caps, and Canopy Ribs Install plastic caps into the canopy frame end caps to prevent fabric abrasion. Install the canopy ribs by sliding them onto the canopy rib bushings. Refer to Figure 2-6. Assemble two end-center band (6) and one mid-center band (7) on top of the ribs with hardware shown.
  • Page 9 10. Refer to Figure 2-7. Clean the top of the canopy ribs and carriage bolt head (about 2 inches each side of bolt) with cloth dampened in rubbing alcohol. Allow surface to dry. 11. Cut supplied Velcro material per cutting chart below. 12.
  • Page 10 Figure 2-8. Mounting the Canopy Fabric Refer to Figure 2-9. Feed bungee cord through hole in webbing and thread hook end through loop to attach to webbing, Wrap bungee cord under and around canopy frame. Attach hook end to hole in canopy rib as shown.
  • Page 11 Figure 2-9. Mounting the Bungee Hooks 17. Once the canopy is installed, take special care in areas prone to high wind to anchor and stabilize the lift. WARNING: HIGH WINDS CAN TOPPLE A CANOPY-EQUIPPED LIFT THAT IS NOT PROPERLY ANCHORED TO THE LAKE BOTTOM, ESPECIALLY WHEN THE BOAT IS NOT WEIGHING DOWN THE LIFT.
  • Page 12 Figure 2-10. Complete Canopy Framework...
  • Page 13: Inspection And Maintenance

    3 INSPECTION AND MAINTENANCE 3.1 GENERAL MAINTENANCE RULES Do not stand or climb on any part of the lift when doing maintenance on the canopy. If your lift is equipped with a handwheel, never reach through the spokes of the handwheel to perform any maintenance on the canopy.
  • Page 14: Parts Lists

    Each reference number in the following parts lists can be matched with the reference number referred to in both the text and illustrations of Chapter 2, Installation and Setup. 4.1 VL10K CANOPY BUNDLES (2010 Design) 4.1.1 #36----- Canopy Bundle 30’ X 132”...
  • Page 15: Canopy Bundle 32' X 148

    4.1.3 #3609587 Canopy Bundle 32’ X 132” REF # PART # DESCRIPTION 3609127 CANOPY CENTER STRINGER 162” 3609155 CANOPY END STRINGER ASSY RH 111” 3609140 CANOPY END STRINGER ASSY LH 111” 3609228 CANOPY END CAP 132” 3610965 CANOPY RIB 132” 3603643 CANOPY END CENTER BAND 120”...
  • Page 16 3603594 CANOPY BRACE 84” 3605953 CANOPY BRACE 108” 3609420 CANOPY CARTON OF PARTS 36’-40’ (SEE SECTION 4.3.1) as ordered CANOPY FABRIC CARTON 34’ X 132” consisting of: as ordered CANOPY FABRIC 34’ X 132” 6436905 CANOPY CORNER BUNGEE CORD 9”(used with strap & D-ring) 6436910 CANOPY CORNER BUNGEE CORD 12”(used w/quicklash mounting 2015) 6403599...
  • Page 17 3610755 CANOPY RIB 148” 3610765 CANOPY CENTER BAND 73” 3610760 CANOPY CENTER BAND 121 ” 3610955 CAN EXT LEG 5' WLDMT 10132 3610770 CANOPY BRACE 130” 3609420 CANOPY CARTON OF PARTS 36’ (SEE SECTION 4.3.1) as ordered CANOPY FABRIC CARTON 36’ X 132” consisting of: as ordered CANOPY FABRIC 30’...
