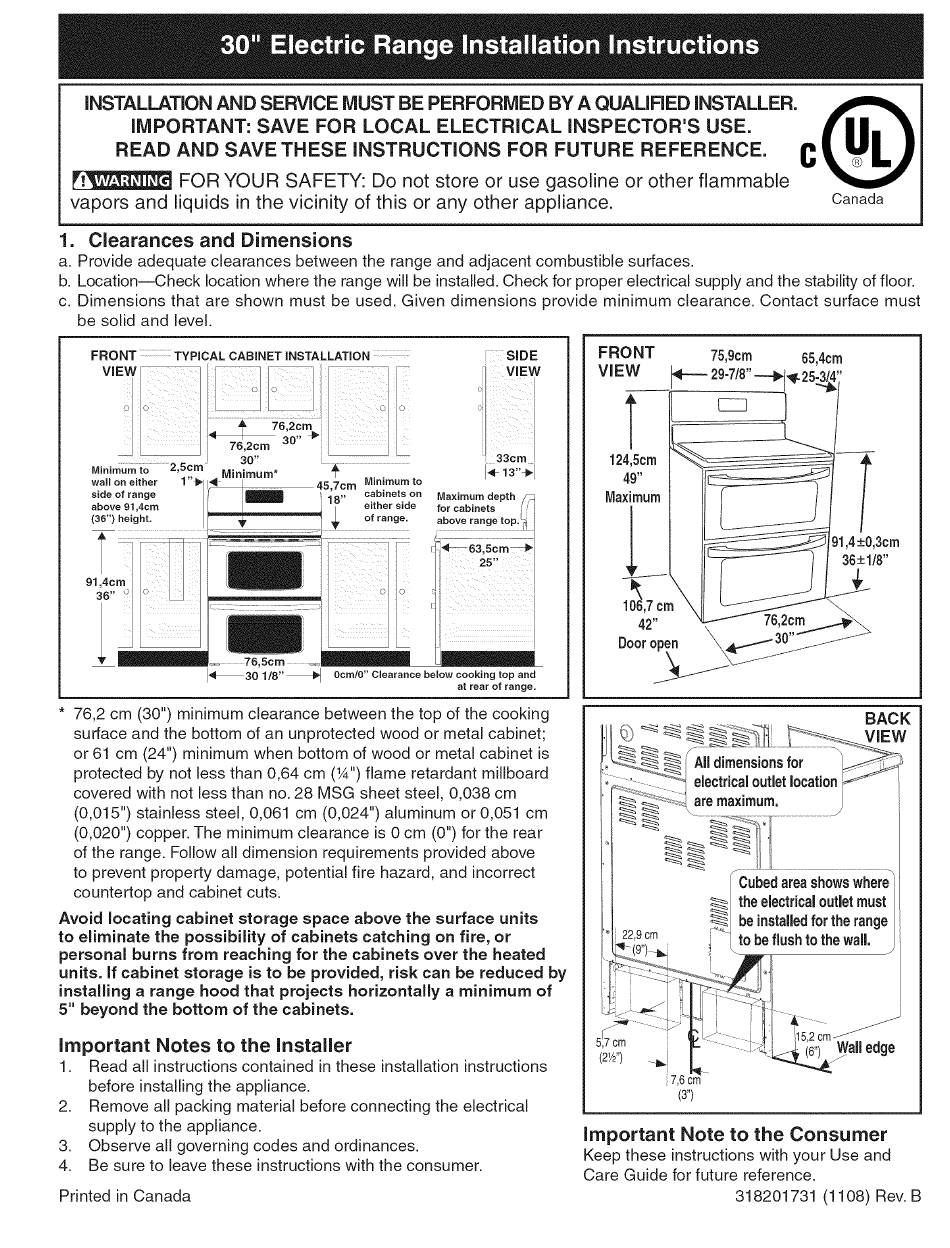

30" Electric Range Installation Instructions
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. C
FOR YOUR SAFETY: Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other appliance. Canada
1. Clearances and Dimensions
a. Provide adequate clearances between the range and adjacent combustible surfaces.
b. Location—Check location where the range will be installed. Check for proper electrical supply and the stability of floor.
c. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must
be solid and level.
* 76,2 cm (30") minimum clearance between the top of the cooking
surface and the bottom of an unprotected wood or metal cabinet;
or 61 cm (24") minimum when bottom of wood or metal cabinet is
protected by not less than 0,64 cm (14") flame retardant millboard
covered with not less than no. 28 MSG sheet steel, 0,038 cm ' are maximum,
(0,015") stainless steel, 0,067 cm (0,024") aluminum or 0,051 cm Sc ay
(0,020") copper. The minimum clearance is 0 cm (0") for the rear
of the range. Follow all dimension requirements provided above
to prevent property damage, potential fire hazard, and incorrect
countertop and cabinet cuts.
Avoid locating cabinet storage space above the surface units
to eliminate the possibility of cabinets catching on fire, or ' 22.3.am
personal burns from reaching for the cabinets over the heated
units. If cabinet storage is to be provided, risk can be reduced by
installing a range hood that projects horizontally a minimum of
5" beyond the bottom of the cabinets.
be installed for the range
to be flush to the wall.
15,2cm
important Notes to the Installer 6)
1. Read all instructions contained in these installation instructions
before installing the appliance.
2. Remove all packing material before connecting the electrical
supply to the appliance.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.
Wall edge
important Note to the Consumer
Keep these instructions with your Use and
Care Guide for future reference.
Printed in Canada 318201731 (1108) Rev. B
