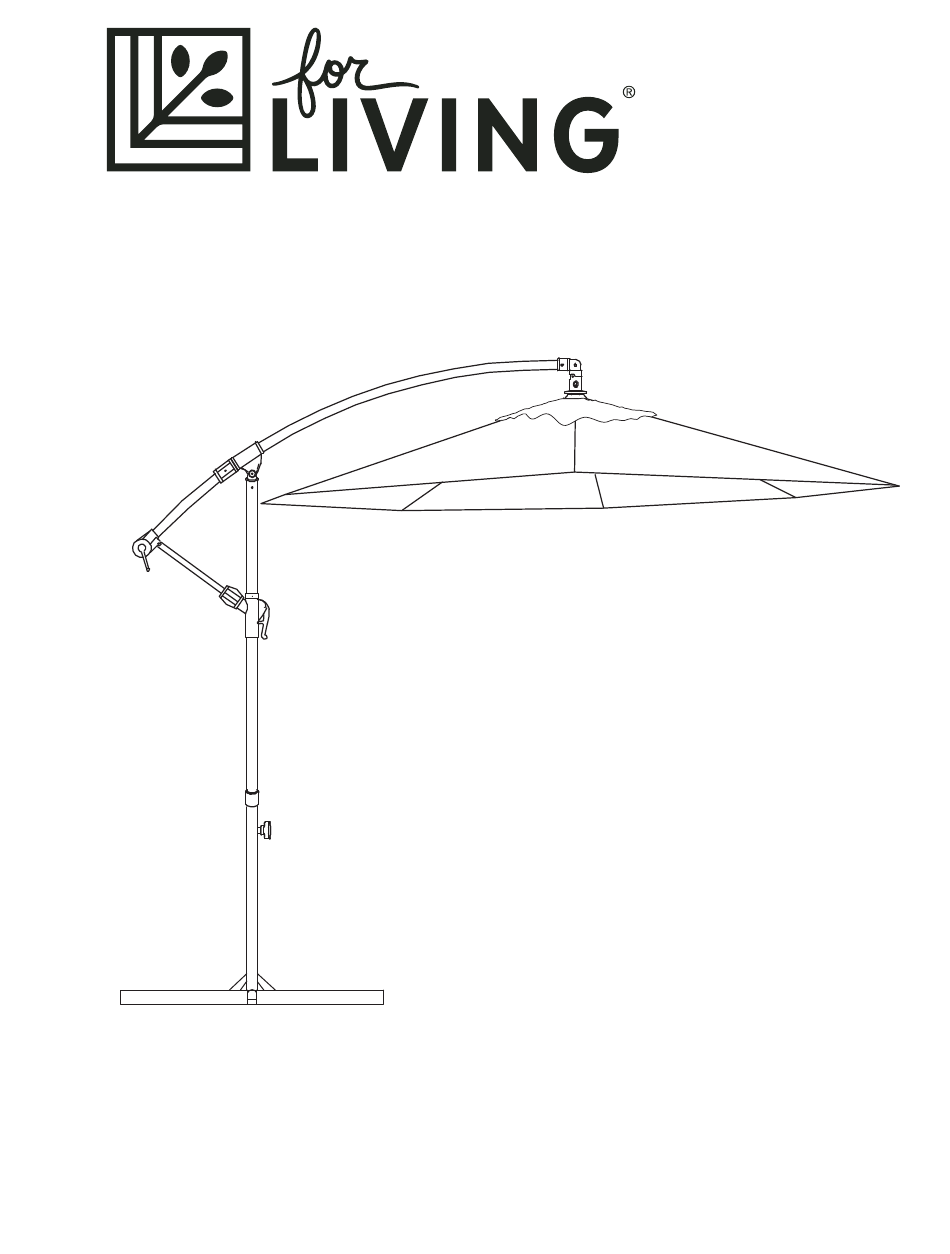

- Page 1 OFFSET UMBRELLA Model Nos. 088-2503-4 & 088-2504-2 Model No. 088-2503-4 / 088-2504-2 Assembly Instructions Toll-free: 877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
- Page 2 Important Safety Instructions Parts List Assembly Preparation Assembly Cleaning and Maintenance Technical Data Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the umbrella. Caution! Always keep children under close supervision while they are using or around this product. Never leave children unattended.
- Page 3 Model No. 088-2503-4 / 088-2504-2 Caution! Reinforcement block - 1 • Do not place the product underneath electrical lines. M8X40mm bolt - 2 • Keep children away during assembly. • This product contains small parts which can be swallowed by children.
- Page 4 Model No. 088-2503-4 / 088-2504-2 Step 1 Step 3 (1) Put the reinforcement block (A) under the middle of lower bracket (B). (1) Open the lock handle. Place the upper bracket (C) over the lower bracket (B). (2) Slide lock handle up while sliding the support arm through the support at the (2) Line up the base tube (D) with the brackets, and secure using M8x40mm bolts top of the pole.
- Page 5 Model No. 088-2503-4 / 088-2504-2 Step 5 Step 6 (1) Push up the crank to make the umbrella canopy flat. The umbrella is opened completely. (2) Position the plastic sleeve as shown to keep the support arm in place.
- Page 6 Model No. 088-2503-4 / 088-2504-2 This For LIVING product carries a one (1) year warranty against defects in workmanship and materi- ® CAUTION! als. Trileaf Distribution agrees to replace the defective product free of charge, within the stated • Check all screws and nuts periodically for tightness, tightening them warranty period, when returned by the original purchaser with proof of purchase.
