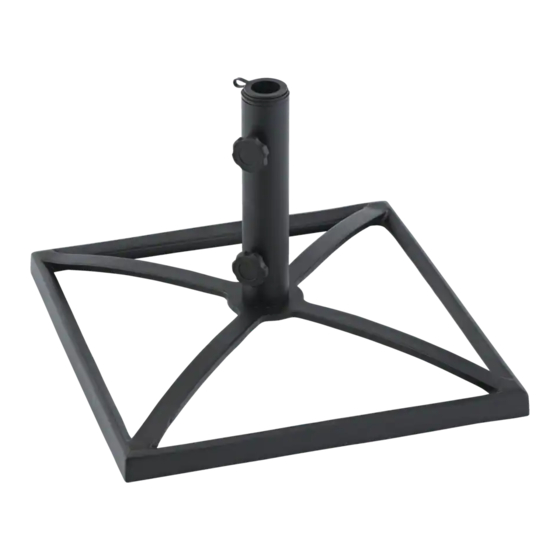

Umbrella Base
Product No. 088-0052-8
Model No. A702000300
Assembly Instructions
Toll-free:
1-877-483-6759
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
Production Number: xxxxxxxx
Advertisement
Related Manuals for for Living A702000300
Summary of Contents for for Living A702000300

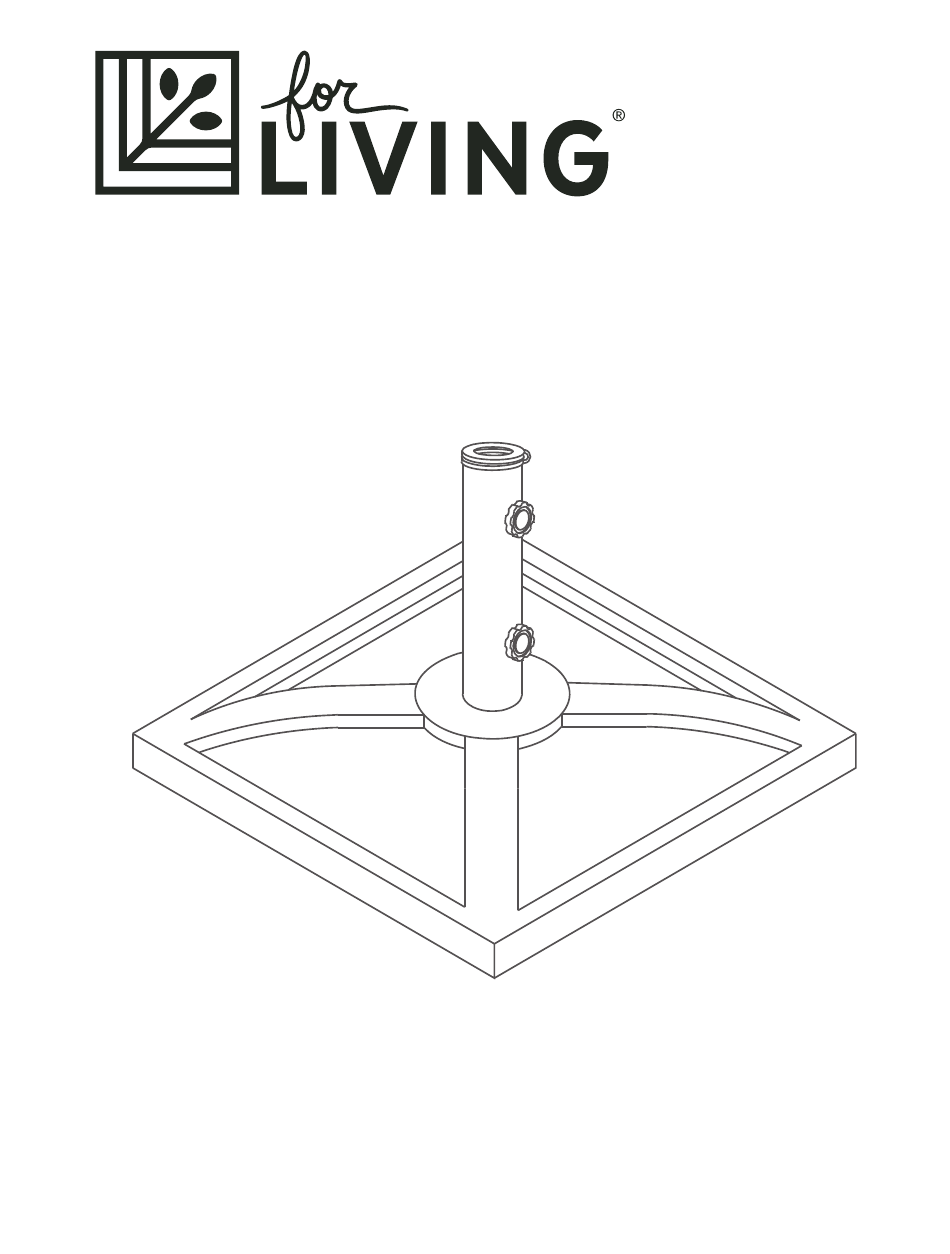

- Page 1 Umbrella Base Product No. 088-0052-8 Model No. A702000300 Assembly Instructions Toll-free: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production Number: xxxxxxxx...
- Page 2 Made in China Imported by Trileaf Distribution Trifeuil, Toronto, Canada M4S 2B8...
- Page 3 Table of Contents Important Safety Instructions Part List Assembly Technical Data Warranty DO NOT over-tighten any of the bolts or nuts. Tighten each bolt and nut until secure. DO NOT attempt to over-tighten as this may cause DAMAGE to the threads and umbrella pole. ENSURE that all nuts are not cross threaded before tightening commences.
- Page 4 Product No. 088-0052-8 Model No. A702000300 • P005700326 H010010022 Umbrella Pole ￠38 - 1 Bolt M10*35 - 1 P007300014 H050010002 Washer M10 - 1 Umbrella Base - 1 P008100003 H050020021 Ring ￠36 /￠32/￠30（Pre-assembled on B）- 1 Spring Washer M10 - 1...
- Page 5 STEP 1: Assembly of Umbrella...
- Page 6 Product No. 088-0052-8 Model No. A702000300 • 16.93'' x 16.93'' x 11.81'' Dimensions (L x W x H) 43 x 43 x 30 cm 5 .5 k g Product weight 12 lb This For Living product carries a one (1) year warranty against defects in workmanship and materials.
