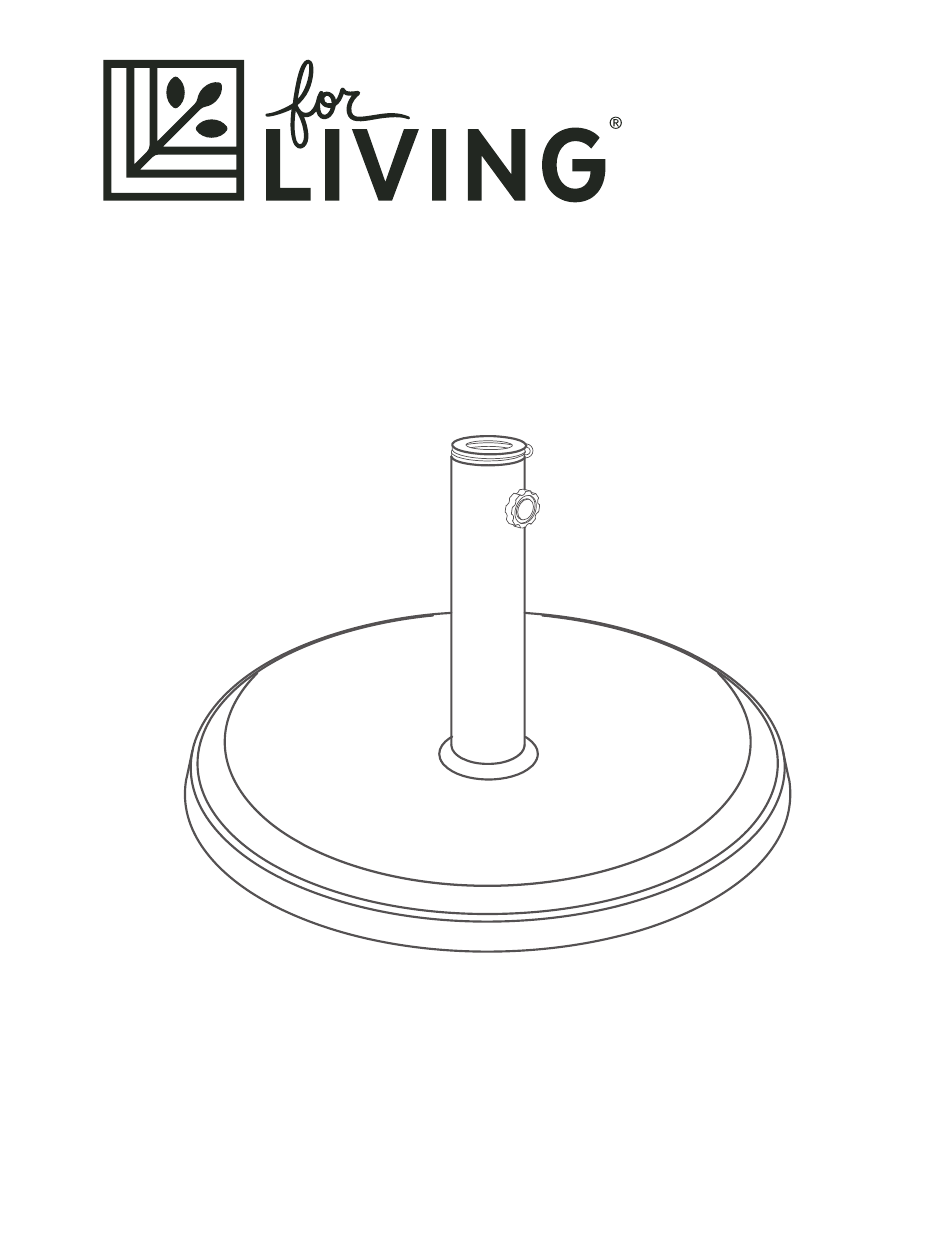

Umbrella Base
Product No. 088-2093-8
Model No. A702001500
Assembly Instructions
Toll-free:
1-877-483-6759
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
Production Number: xxxxxxxx
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for for Living A702001500
Summary of Contents for for Living A702001500
- Page 1 Umbrella Base Product No. 088-2093-8 Model No. A702001500 Assembly Instructions Toll-free: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production Number: xxxxxxxx...
- Page 2 Made in China Imported by Trileaf Distribution Trifeuil, Toronto, Canada M4S 2B8...
- Page 3 Table of Contents Important Safety Instructions Part List Assembly Technical Data Warranty DO NOT over-tighten any of the bolts or nuts. Tighten each bolt and nut until secure. DO NOT attempt to over-tighten as this may cause DAMAGE to the threads and umbrella pole. ENSURE that all nuts are not cross threaded before tightening commences.
- Page 4 Product No. 088-2093-8 Model No. A702001500 • Adjust Bolt - 1 Umbrella pole ￠38 - 1 P005300014 Plastic pad - 1 Umbrella base - 1 P008100004 Plastic Ring￠32 / ￠35 （Pre-assembled on B） - 1...
- Page 5 STEP 1: Assembly of Umbrella...
- Page 6 Product No. 088-2093-8 Model No. A702001500 • Dimensions (L x W x H) 1 7 1/10 " Diameter x 1 2 3/5" H 43.5 x 32 cm 1 8 kg Product weight 39.6 lb This For Living product carries a one (1) year warranty against defects in workmanship and materials.
