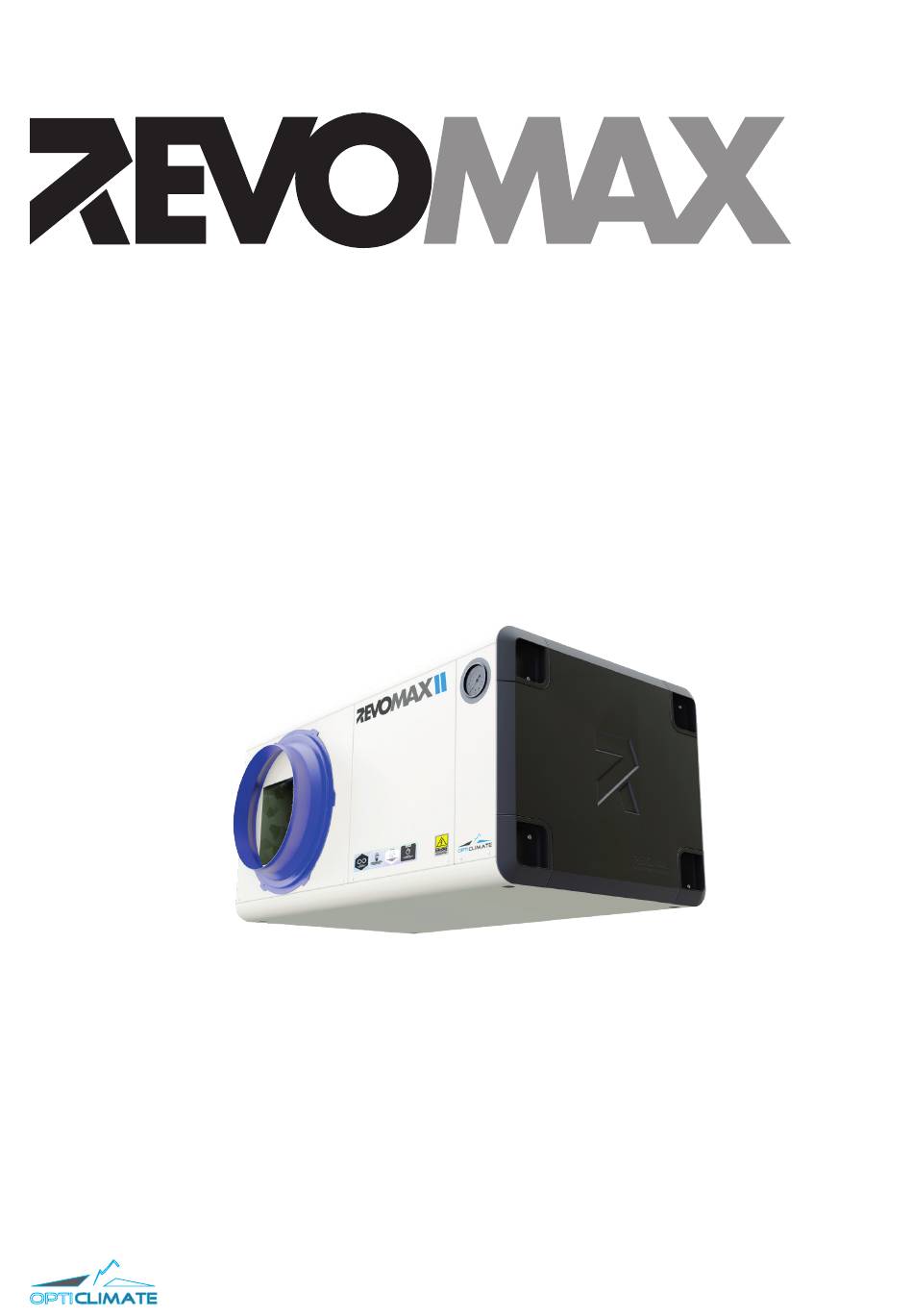

- Page 1 BY OPTICLIMATE Installation Manual THE MOST STABLE CLIMATE THINKABLE. GUARANTEED.
-
Page 2: Table Of Contents
Table of Contents 1. SPECIFICATIONS 2. SAFETY 2.1 SAFETY PRECAUTIONS 2.2 INTRODUCTION 3. INSTALLATION 3.1 PACKAGE CONTENTS 3.2 CONNECTORSET VARIATIONS 3.3 SUPPLIED SENSORS 3.4 OPEN TAP & CLOSED LOOP WITH COOLER 3.5 DIMENSIONS 3.6 PLACEMENT 3.7 PREPARING THE UNIT 3.8 INSTALLATION OPTION A > CEILING 3.9 INSTALLATION OPTION B >... -
Page 3: Specifications
1. SPECIFICATIONS MODEL 6000 REV2 10000 REV2 15000S REV2 15000 REV2 REGULAR & DEEP COOL REGULAR & DEEP COOL REGULAR & DEEP COOL REGULAR & DEEP COOL Nominal Power Capacity - kWatt 6 kW 10 kW 15 kW 15 kW Maximum Power Capacity - kWatt 7 kW 12 kW... - Page 4 MODEL 21000 REV2 30000 REV2 30000 Free Air 30000 SEP-FAN REGULAR & DEEP COOL REGULAR & DEEP COOL Nominal Cooling Capacity - kWatt 21kW 30 kW 30 kW 30 kW Maximum Cooling Capacity - kWatt 23 kW 35 kW 35 kW 30 kW Electricity Power Supply - Volt...
-
Page 5: Safety
2. SAFETY CAUTION Please read this manual carefully before attempting to install the Opticlimate Revomax II. If you are not comfortable with the installation of high performance climate control systems, you should seek the services of an installation professional. These products may represent a possible shock or fire hazard if improperly installed or attached in any way. -
Page 6: Introduction
2.2 INTRODUCTION The OptiClimate RevomaxII is a state-of-the-art climate control system designed to provide an optimal growing environment for a wide variety of plant species. Leveraging advanced Infinity DC inverter technology, this system offers unmatched flexibility in climate control, allowing for precise adjustments up to one tenth Hertz increments in cooling, heating, dehumidification, and air filtration. -
Page 7: Installation
3. INSTALLATION 3.1 PACKAGE CONTENTS SYSTEM HARDWARE All RevomaxII units are supplied with a model specific connectorset (chapter 3.2) containing the following items: Revomax II unit - in selected specification Mounting Brackets Rubber damping rings Smart Remote Controller with accessories Controller Cable Various Mounting Parts Humidity &... -
Page 8: Connectorset Variations
3.2 CONNECTOR SET VARIATIONS MODEL RANGE FLANGE INCLUDED CONNECTOR SET REVOMAX 6000 & DEEP COOL Ø250 AC 31 15 STANDARD 3500/6000 17810K REVOMAX 10000 & DEEP COOL Ø250 AC 31 16 STANDARD 10000/15000/21000 17810G REVOMAX 15000 & DEEP COOL Ø315 AC 31 18 STANDARD 10000/15000/21000 17810G REVOMAX 21000 &... -
Page 9: Dimensions
3.5 DIMENSIONS DIMENSIONS (MM) LINE DRAWING ø₁ ø₂ Model 6000 910 570 440 245 310 55 805 405 250 10000 990 670 490 245 310 55 870 500 250 15000 1 140 700 550 310 410 70 1015 535 250 21000 1220 820 590 398 1 100 660 250... -
Page 10: Preparing The Unit
3.7 PREPARING THE UNIT Place the transport casing on a flat, stable surface Carefully remove the packaging from the unit Unscrew the bolts from the wooden pallet the unit was supplied on. Choose mounting option: A - Ceiling B - Frame C - Surface Continue to the corresponding section below: RevomaxII is delivered on... -
Page 11: Example Installations
3.11 EXAMPLE INSTALLATIONS Ceiling mounted Celling mounted with Airhose, inside growing area Wall mounted Wall mounted with Airhose inside growing area Surface mounted with Plenumbox (needs hoses) Surface mounted outside the growing area with plenumbox... -
Page 12: Connecting
4. CONNECTING 4.1 CONNECTING THE SUPPLIED PERIPHERALS Remove the front panel to connect the supplied Smart Remote Controller and sensors. Lead the sensors to the growth area and place on crop level, outside the range of a direct lighting source. The connection board is accessible behind the front panel. -
Page 13: Connecting The Smart Remote Controller
4.2 CONNECTING THE SMART REMOTE CONTROLLER Use the supplied controller cable (USB to UTP) to connect the Smart Remote Controller (USB connector) on port 1 (UTP connector) on the control board in the Revomax unit (chapter 4.1). After powering up the Smart Remote Controller (use the supplied power adapter) and RevomaxII, the unit will first initialize, this can take a few minutes. -
Page 14: Water Connection
The Revomax II needs a clean, continuous and cool water supply to operate properly. This can be achieved in two distinct operation methods: tap water or a closed loop with an OptiClimate watercooler. Both are viable options, depending on your growing needs and surrounding situations like the availability of clean water and climate. - Page 15 Option 3: RevomaxII unit outside growing area Install the RevomaxII unit outside the growing area with our Plenumbox and airhose system Multiple views of Plenumbox based multi-room setup RevomaxII unit PlenumBox Airhose system Growing Area Whatever your growing needs With the flexibility of the RevomaxII system you can easily scale to whatever situation you might have. There is no growing area too complex or difficult for us! Challenge us for your next project.
-
Page 16: Without Watercooler
5.2 WITHOUT WATER COOLER Connect the water supply with a standard 3/4 inch water connection screw set, plumber-grade piping or Tyleen hose-set. Connect them directly to a steady water supply that is under 25 degrees Celsius year round and make sure to connect the drainage or recycle destination accordingly. The heated water can be used for building/office heating. -
Page 17: With Watercooler
flexible installation. We recommend using a certified plumber for the installation of the loop. Connection diagram Connect the system in following sequence to operate correctly. All items are supplied when you buy an OptiClimate RevomaxII with OptiClimate Cooler. 1. Watercooler water outlet 2. Revomax water inlet 3. -
Page 18: Manometers
5.5 WATERCOOLER FILLING THE LOOP The closed loop needs to be filled with water or a water-glycol mix as stated above. The OptiClimate Water Cooler is supplied with a tap that needs to be installed in front of the pump. Below are the basic steps to fill the loop. -
Page 19: Condensation Water
RevomaxII can flood internally because the water cannot run off. Use a “P-trap” on the condensation outlet to prevent air entering the unit and to prevent condensate run-off problems. Cap for cleaning Opticlimate drain pan P-trap Drain P-trap connected correctly... -
Page 20: Watercooler Setup
Build a roof or shelter to protect the watercoolers in- and outlet and/or direct sunlight. Opticlimate has several types of watercoolers in its range. There are compact models, industrial grade models and two types of alignment: horizontal and vertical. Make sure to use the type of alignment correctly. -
Page 21: Basic Control Setup
The basic setup is controlled by a SmartBox 6/3 and controls the pump and watercooler via a power outlet. After connecting the water flow parts as described in chapter 5.3, we also need to connect the control system. All needed accessories are supplied with the watercooler and OptiClimate watercooler applicable connection-kit (chapter 7). 1. Added peripherals •... - Page 22 Steps: Place the start sensor on the control board position 4 (see chapter 4) and connect the supplied Opticlimate communication cable to the SmartBox 6/3 on the IN/OUT port on the left part of the controller Connect the OptiClimate watercooler (fan) on OUT1 (230V for European model, a UK version...
-
Page 23: Advanced Control Setup
6.3 ADVANCED CONTROL SETUP For systems above 15 kWatts of cooling power,you can install inverters for more precise control over the temperature and a more stable climate overall in your growing area. The advanced setup automates the water flow control and seamlessly and continuously adjusts the pump and the watercooler fan. -
Page 24: Connecting The Inverters
6.4 CONNECTING THE INVERTERS Inverters are high-precision control units that are directly connected to the watercooler fan and water pump. Follow these steps to connect: 1. Connecting Smartbox to Inverter The Inverter must be connected to the SmartBox with the supplied BLUE interlink cable that is labeled on both sides. -
Page 25: Multiple Revomaxii Units, Single Cooler
4. Install temperature sensor (2x) The advanced control method requires two temperature sensors to operate. After connecting the pump and coolerfan with the inverters, now install two temperature sensors. The first is placed right after the cooler (temp OUT) and the second before the cooler (temp IN). This way we can measure and control the speed of the fan and water flow in a very stable and seamless way. -
Page 26: Essential Accessories
> 32 kw - 5 mtr PE piping connector kit OptiClimate watercoolers are supplied with a PE Piping connectorkit. The PE piping is NOT included. 7.3 PLENUM BOX When the RevomaxII unit is placed outside of the growing area, you need a PlenumBox to connect the unit to an airhose system. -
Page 27: Accessoires
Make sure to purchase the needed connectorkit for tapwater (1-7812) or watercoolers (1-85710 or variant). For specific needs ask your dealer or find us at airluxtechnologies.com. OptiClimate RevomaxII - All accessories & compatibility Config option 1 Config Option 2... -
Page 28: Troubleshooting
Error/Symptom Possible Cause Check Solution OptiClimate communication is lost No communication between the USB Is the communication cable properly Properly (re)connect the side of the communication cable, connected on the Smart Remote communication cable or replace the... - Page 29 Error/Symptom Possible Cause Check Solution The OptiClimate 0 is missing firmware The update proces was interrupted Was the power lost on the Smart Make sure the power supply is Remote Controller during the update connected to the Remote Controller proces...
-
Page 30: Warranty
Airlux Technologies will require the original receipt to determine the warranty eligibility. Contact your dealer for warranty information or find us at airluxtechnologies.com By Phone: +31 20 776 6006 By e-mail: support@airluxtechnologies.com Direct link: https://www.opticlimate.com/nl/knowledge-base/ Scan the QR-code to go to our online knowledge base for the latest manuals and information...
