Summary of Contents for OPTICLIMATE PRO 3

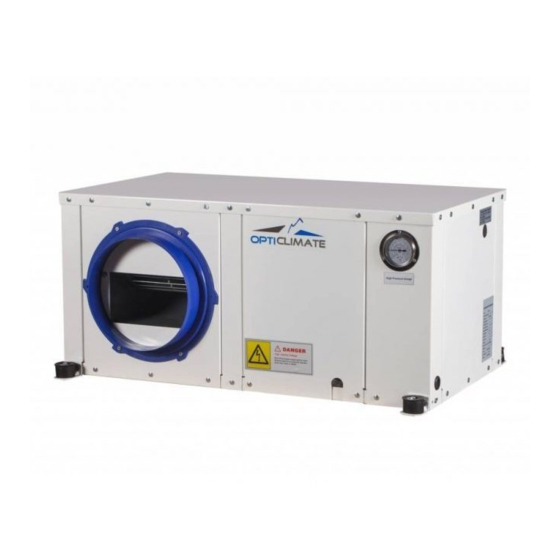

- Page 1 OPTIMAL CLIMATE CONTROL OPTICLIMATE PRO 3 & PRO4 SPLIT (INVERTER) INSTALLATION AND USER GUIDE All manuals at: www.theclimatefactory.com For any inquiry: info@theclimatefactory.com...
-
Page 2: Installation
THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) INSTALLATION Fan installation (front / side) If the unit is placed in a narrow room or in the ridge of a gable roof, the fan outlet side can be installed at the short side of the unit. - Page 3 Installation of rubbers Installation of insulating springs The rubber feet with which the OptiClimate is placed on the pallet are use to suspend the unit by means of thread ends. A thread end, a large washer and a nut must be fitted. (not supplied) ©...
-
Page 4: Electrical Connections
THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) ELECTRICAL CONNECTIONS Automatic moisture meter, remote Control, power supply for clock, temperature sensor, five-core cable Power cord First, the panel at the left side near the manometer should be removed to make the various electrical connec- tions. -
Page 5: Electrical Connection
The automatic moisture meter should be hung in the room and may NOT be covered. The light cell in the automatic moisture meter automatically switches the OptiClimate from day to night mode. Room temperature sensor The room temperature sensor should be suspended in the space to be cooled. - Page 6 MANUALS/OPTICLIMATE SPLIT (INVERTER) ELECTRICAL CONNECTION Power cables Five different OptiClimate models are available. For your safety and the safety of the OptiClimate, the fo- llowing specifications should be observed when connecting the power supply: use the circuit breakers and cable thickness specified Model 2000 PRO3 &...
- Page 7 THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) ELECTRICAL CONNECTION Inverter models When connecting the inverter models to 3 phase 400volt, there may not be any bridges between L1, L2 and L3. There may also not be a bridge between N and D. With a new unit, the bridges are always connected.
- Page 8 ELECTRICAL CONNECTION Using this safeguard, the OptiClimate can switch off the heat sources (e.g. lamps) when the temperature in a room becomes too high. The unit has a terminal that can be connected to the timer of a control panel, for example.
- Page 9 THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) INSTALL / CONNECT THE OUTDOOR UNIT Installing outdoor unit The outdoor unit should preferably be installed in the open in a cool place (shade), where the unit can suck in air. Leave enough space around the unit to ensure proper air flow. If the air passing through the outdoor unit is warmer, the capacity decreases.
- Page 10 THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) WATER-SIDED CONNECTIONS Discharge of the condensation water The unit will also dehumidify the air during cooling. The moisture extracted from the air comes into the conden- sation drain. The condensation drain is connected to a sturdy garden hose or a pipeline that does not bend easily.
-
Page 11: Putting Into Operation
THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) PUTTING INTO OPERATION Remote Control Temp up / scroll Temp down / scroll Press and release to set the time / press and hold to set the timer FN = Fan speed Press and release to read Sensors / press and hold to bring up the Menu Press and release to confirm / press and hold to delete error codes Press and release to switch between day and night mode. - Page 12 PUTTING INTO OPERATION Inverter The OptiClimate inverter models adjust the cooling capacity to the need. Non-Inverter models operate on an on / off basis, while the inverter models run the compressor harder/ softer when more or respectively less cooling capacity is required. This provides an even more stable climate and prevents the frequent tripping of the unit in case of over capacity.
- Page 13 THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) PUTTING INTO OPERATION Example: The unit must cool between 8:00 AM and 8:00 PM. The ON time should then be set to 8:00 AM and the OFF time to 8:00 PM AM = after midnight (from 0:00 to 12:00 hours)
- Page 14 THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) PUTTING INTO OPERATION 9) Reading function for the temperature sensors Press the S key and the sensor will show the temperatures. The number and temperature of the sensors will show in the spot of the clock. Pressing the and keys will allow users to select the reading of the various sensors.
-
Page 15: Settings (Set-Up)
D:01 Switching the heating elements on/off Depending on the model, an OptiClimate has 2 or 3 heating elements. The heating elements of 1-phase systems are connected to 1 phase and the heating elements of 3-phase systems are divided over all phases. - Page 16 With D:10=1, port 16 is common and ports 16 & 17 will be each other’s alternate con- tacts. The clock of the OptiClimate (OC) will operate these make-and-break contacts and the clock/timer of the OC can replace the clock on the control panel. The lamps will operate synchronous with the cooling mode of the OC.
- Page 17 THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) SETTINGS (SET-UP) D:11 Hysteresis of the temperature Using this setting, you can adjust the hysteresis (bandwidth) of the temperature control. This is the temperature diffe- rence required to switch the compressor on and off.
-
Page 18: Inspection And Maintenance
THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) INSPECTION AND MAINTENANCE D:25 Temperature of compensating refrigerant return outdoor unit With this option, the temperature sensor can measure the temperature of the return gas to be calibrated from the outdoor unit. The setting in D:25 is default = 0°C, max. = 5 °C, min. = -5°C and can be set in 0.5°C increments. - Page 19 THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) FAULT ANALYSIS AND ERROR MESSAGES D:38 Celsius / Fahrenheit 0=C/1=Fh D:39 Super dehumidification in day mode is on / off. 0=off / 1=on INSPECTION AND MAINTENANCE Frequently check whether all couplings are properly tightened. Also check that there are no leaks. The dust filter at the backside of the unit should be checked every 10-12 weeks for dust accumulation.
- Page 20 THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) FAULT ANALYSIS AND ERROR MESSAGES © The Climate Factory www.theclimatefactory.com info@theclimatefactory.com...
- Page 21 THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) FAULT ANALYSIS AND ERROR MESSAGES © The Climate Factory www.theclimatefactory.com info@theclimatefactory.com...
- Page 22 THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) OPTIONALLY AVAILABLE / INFORMATION LEAFLET PRO4 © The Climate Factory www.theclimatefactory.com info@theclimatefactory.com...
-
Page 23: Fault Code Overview
THE CLIMATE FACTORY/USER MANUALS/OPTICLIMATE SPLIT (INVERTER) FAULT CODE OVERVIEW © The Climate Factory www.theclimatefactory.com info@theclimatefactory.com... - Page 24 Steenweg op Hoogstraten 72 Unit 6 2330 Merksplas, België +32 14783416 All manuals at: www.theclimatefactory.com For any inquiry: info@theclimatefactory.com © Airsupplies...
