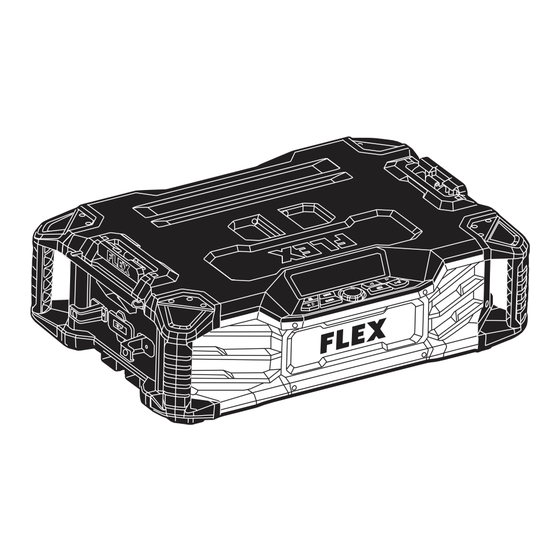

Flex STACK PACK FXA5361 Operator's Manual

24v radio
Hide thumbs

Advertisement

Table of Contents

OPERATOR'S MANUAL
Model:
FXA5361
24V STACK PACK
WARNING: To reduce the risk of injury, the user must read and understand the
Owner's Manual before using this product. Save these instructions for future reference.
Please contact FLEX customer service in Australia 1300 000 346 or
New Zealand 0508 000 346 any time you have questions or warranty claims.
TM
RADIO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STACK PACK FXA5361 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Flex STACK PACK FXA5361

Summary of Contents for Flex STACK PACK FXA5361

  • Page 1 WARNING: To reduce the risk of injury, the user must read and understand the Owner’s Manual before using this product. Save these instructions for future reference. Please contact FLEX customer service in Australia 1300 000 346 or New Zealand 0508 000 346 any time you have questions or warranty claims.

  • Page 2: Safety Symbols

    SAFETY SYMBOLS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

  • Page 3: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS Read all safety warnings, instructions, illustrations and specifications WARNING provided with this apparatus. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. To reduce the risk of fire or electric shock, A battery operated apparatus with integral •...
  • Page 4 SYMBOLS IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. Symbol Name Designation/Explanation Volts Voltage Amperes Current Hertz...
  • Page 5 Symbol Name Designation/Explanation Use this device indoors only Indoor use To warn of a hazard from electricity Warning: Electricity Bluetooth This product complies with applicable Regulatory compliance mark Australian standards.

  • Page 6: Functional Description And Specifications

    FUNCTIONAL DESCRIPTION AND SPECIFICATIONS Radio Fig. 1 Spring-loaded Latch Latches External Antenna Spring-loaded Latch Handle Handle Bottle Socket Opener Handle Mode Button Tune/Seek Down Button EQ Button Display Tune/Seek Up Button AC Power Inlet Cover CLOCK Clock Button Mute Button Bluetooth-pairing On/Off/ Play/Pause Button...
  • Page 7 Model No. FXA5361 Voltage for AC Power Adaptor 220-240 V, 50 Hz Voltage for DC Operation 24 V Output Power 36 W Input Charging Current 1.5 A IP (Ingress Protection) Grade IP64* AUX Connector 3.5 mm Bluetooth Standard v 5.0 ®...
  • Page 8 This STACK PACK radio must be used only with the FLEX 24V series battery packs and chargers. NOTE: Please refer to the battery pack and charger manuals for detailed operating...
  • Page 9 TO ATTACH/DETACH BATTERY PACK Fig. 2a Detach the battery pack WARNING from the unit before performing any assembly or adjustments, or changing accessories. Such preventive safety measures reduce the risk of starting the radio accidentally. To open the battery compartment cover (Fig.
  • Page 10 Insert the AC power cord into the socket. Plug the AC power supply plug into a standard power outlet. The unit can charge FLEX 24V battery pack when the AC power supply is connected. USB devices such as cell phones, MP3 players, etc.
  • Page 11 Press the On/Off knob and hold for 1 second. The unit will switch on and the display will show "FLEX Stackpack Radio" and after 1 second will shift to operation mode. The display will show FM when the user turns...
  • Page 12 SETTING THE TIME (FIG. 8) Fig. 8 In any mode, press the CLOCK button to set CLOCK the time. The numbers blink in this order: hour> minute> month> date> year. Press the button or rotate the volume knob to change each value. Press the CLOCK button to switch to the next setting.
  • Page 13 SETTING EQUALIZER (FIG. 10) Fig. 10 Your unit’s bass or treble can be adjusted in the equalizer menu by briefly pressing EQ button. a. In any mode, briefly press the EQ button to first adjust the bass. Bass b. Press the button or the volume knob to adjust the bass range from -5 to +5.
  • Page 14 TUNING AM AND FM (FIG. 12) Fig. 12 Press the mode button several times until the AM or FM is shown on the display. A radio station can be tuned to manually or automatically (scan-tuning). Manual tuning: Briefly press the button to reach the desired frequency.
  • Page 15 Bluetooth to become a TWS (True Wireless ® Stereo) system. The Bluetooth name of ® FXA5361 is FLEX STACK PACK radio. a. Turn two units on and set both units to Bluetooth mode. ® b. Briefly press the Bluetooth-pairing button on...
  • Page 16 AUX OPERATING MODE (FIG. 16) Fig. 16 a. Select the AUX operating mode using the mode button. AUX Cable b. Open the battery compartment cover. c. Insert the included AUX cable into the AUX connector and make sure that they are properly connected.
  • Page 17 BOTTLE OPENER (FIG. 18) Fig. 18 This STACK PACK radio features a bottle opener for quick removal of metal bottle caps from glass bottles. Bottle Opener -17-...

  • Page 18: Maintenance

    Always use only a soft, dry cloth to clean the hazard. We recommend that all tool service be unit. Never use detergent or alcohol. Clean performed by a FLEX Factory Service Center dust and debris from vents. Keep the unit or Authorized FLEX Service Station.

  • Page 19: Warranty Statement

    If the Customer registers its purchase of the Product online at www.flex-tools.com.au in Australia • or www.flex-tools.co.nz in New Zealand within 30 days of the date of its purchase (Registration), the Warranty Period for the following Products is as follows FLEX 24V Tools: 5 years;...

  • Page 20: Warranty Claims

    The Warranty does not apply if: (a) the Product is not supplied in its final shape and form by Chervon or an authorised FLEX Dealer, which can be confirmed on the website store locator (for avoidance of doubt, third party online stores such as eBay, Gumtree, Amazon, etc.
  • Page 21 Unit 14, 5 Kelletts Rd, Rowville, VIC. 3178. Ph Australia; 1300 000 346. Email: support@flex-tools.com.au Chervon New Zealand Subsidiary Ltd 4th Floor, Smith & Caughey Building, 253 Queen St, Auckland, 1141. Ph New Zealand; 0508 000 346. Email: support@flex-tools.com.au -21-...
  • Page 22 *Original purchaser must register the product(s) within 30 days of purchase and retain their receipt as proof of purchase. This warranty applies only to the original purchaser from an authorised FLEX dealer and may not be transferred. If original purchaser does not register their product within 30 days, the warranty will apply for the duration set out in table above in column ‘LIMITED STANDARD WARRANTY...
