Translated from German to English - www.onlinedoctranslator.com

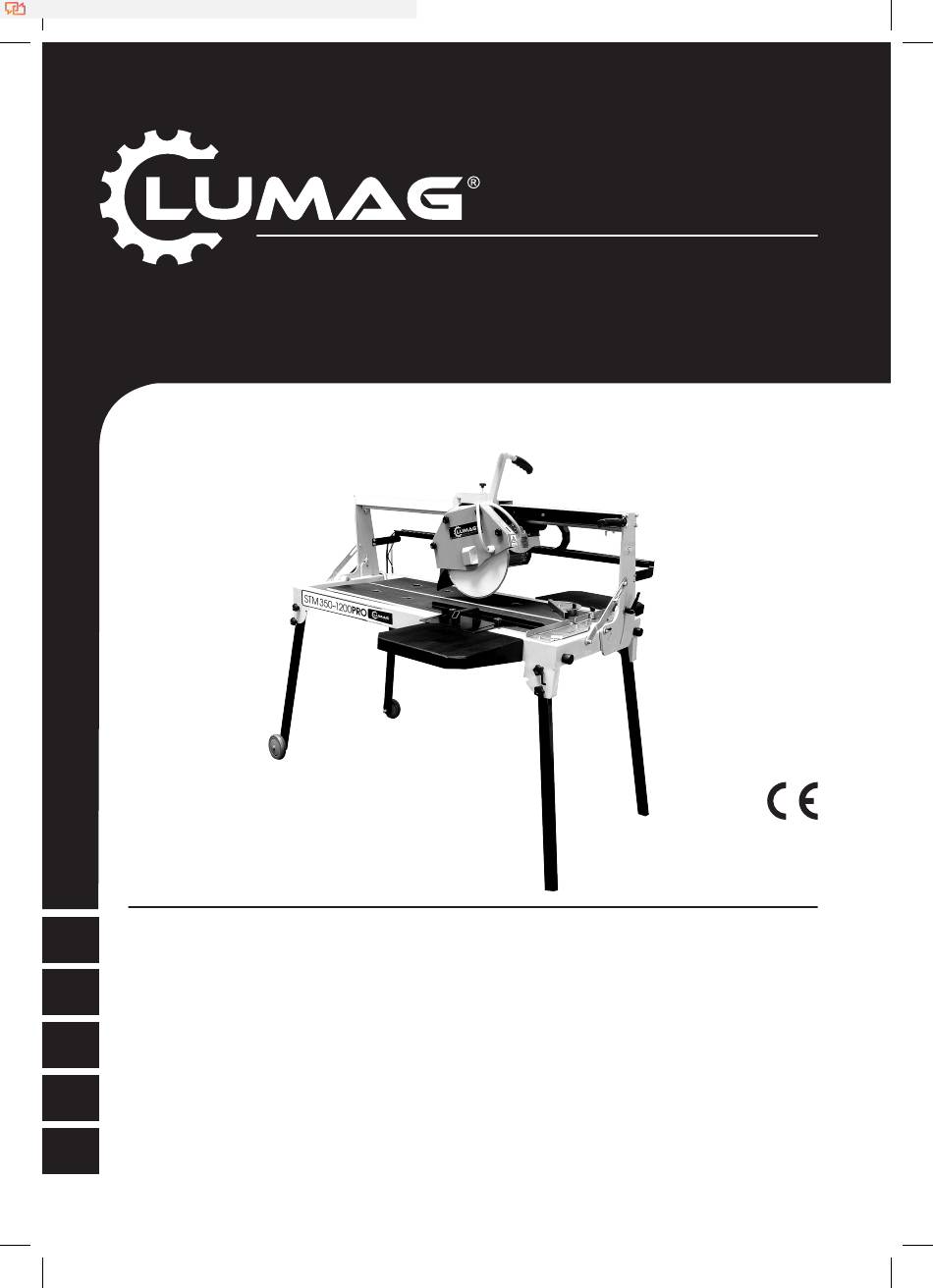

STM 350-1200PER
Art.No.: STM3501200PRO
www.lumag-maschinen.de
D
original operating instructions
Stone cutting machine STM 350-1200PRO
Model: STM 350-1200PRO
Serial number: ______________________________
Both the model number and the serial number can be found on the stone cutter's rating plate.
You should keep both numbers in a safe place for future reference. This manual explains the
features and uses of the device.
Before commissioning, read the operating instructions and observe the safety and warning
instructions!
05/2019 - STM3501200PROv1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lumag STM 350-1200PER
Summary of Contents for Lumag STM 350-1200PER
- Page 1 Translated from German to English - www.onlinedoctranslator.com STM 350-1200PER Art.No.: STM3501200PRO www.lumag-maschinen.de original operating instructions Stone cutting machine STM 350-1200PRO Model: STM 350-1200PRO Serial number: ______________________________ Both the model number and the serial number can be found on the stone cutter's rating plate.
- Page 2 PREFACE DANGER! Before assembling and using the machine, read the entire text of the operating instructions. Use these instructions to familiarize yourself with the machine, its correct use and the safety instructions. Information about the operating instructions This operating manual provides important information on how to use the STM 350-1200PRO stone cutting machine.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS INTENDED USE __________________ 4 SAFETY INSTRUCTIONS __________________________________ 4 General safety instructions __________________________ 4 Special safety instructions for stone cutting machines __________ 6 Residual risks ___________________________________________ 8 SYMBOLS USED ________________________________ 9 CONTROLS _____________________________________ 10 SCOPE OF DELIVERY _______________________________________ 12 ASSEMBLY ____________________________________________ 13 Selecting the installation location ______________________________ 13... -
Page 4: Intended Use
INTENDED USE SAFETY INSTRUCTIONS INTENDED USE The STM 350-1200PRO stone cutting machine is a versatile and robust machine tool. When using diamond cutting discs that are tailored to the workpiece (material to be cut), the machine is intended exclusively for cutting porcelain stoneware, granite, clinker, marble, terrazzo, natural stone or concrete stone with a maximum cutting length of 1200 mm and a cutting depth of max. -
Page 5: General Safety Instructions
SAFETY INSTRUCTIONS General safety instructions 1. Keep your work area tidy - Disorder in the work area can lead to accidents. 2. Consider environmental influences - Do not expose power tools to rain. - Do not use power tools in damp or wet environments. - Ensure that the work area is well lit. - Page 6 SAFETY INSTRUCTIONS - Follow the instructions for lubrication and tool changing. - Check the power tool's connection cable regularly and have it replaced by a specialist if it is damaged. - Check extension cords regularly and replace them if they are damaged. - Keep handles dry, clean and free from oil and grease.
-
Page 7: Safety Instructions For Stone Cutting Machines
SAFETY INSTRUCTIONS Special safety instructions for stone cutting machines • Before use, place the machine on a level, stable work surface. Ensure there is sufficient freedom of movement. • Always ensure there is adequate lighting when working with the machine. •... - Page 8 SAFETY INSTRUCTIONS cutting disc is selected. • Do not use the machine without protective devices. • To rectify faults or remove jammed workpieces, always switch off the machine, wait until the tool has stopped and then pull the power plug. Only then remove the jammed workpiece.
-
Page 9: Symbols Used
SYMBOLS USED SYMBOLS USED Danger of cuts!Never Danger! reach into the work area during operation. Before commissioning the Wear hearing protection Read the manual Wear protective gloves Wear eye protection wear a dust mask Wear safety shoes Warning of hot surface! Danger high voltage, of burns! Danger to life! - Page 10 CONTROLS CONTROLS Drive motor with on/off switch Pivoting bridge cutting head locking screw handles material stop Side support table feet transport handles 10 frames 11 Blade protection cover with cooling water connections 12 Cutting table...
-
Page 11: Water Cooling
CONTROLS drive motor with on/off switch (1) Electric motor with 2.0 KW, 230V with built-in zero-voltage release. This switches the machine off if the voltage is too low and prevents it from restarting automatically after a power failure. An overload protection is activated if the motor heats up too much. -
Page 12: Scope Of Delivery
SCOPE OF DELIVERY SCOPE OF DELIVERY Unpack the machine and check all parts for transport damage before assembling. If any damage has occurred, this must be reported immediately upon delivery. Check that the delivery is complete. Inform the seller immediately of any missing parts. Lay out all parts on a flat surface. - Page 13 ASSEMBLY ASSEMBLY The machine is delivered ready for use. Before using the machine for the first time, the following steps must be taken. Select installation location Only place the machine on flat, horizontal surfaces. Before using it, check that the machine is standing safely and firmly on the floor.
- Page 14 ASSEMBLY Mount machine wheels (2 pieces) Put the wheels on the two rear feet and secure them. Note! Wheels are mounted - depending on the version. Mount support tables on the machine If necessary, attach the side support tables to the right and left of the machine. 1.
-
Page 15: Installing The Longitudinal Stop
ASSEMBLY Install the tension lever Replace the screw of the mechanical locking device with a tension lever. Note! Depending on the version, the clamping lever is mounted. Install the longitudinal stop Mount the longitudinal stop to the two holes on the cutting table. Tighten the star grip screws well. - Page 16 ASSEMBLY assembling the tool Only use LUMAG diamond cutting discs with a diameter of 350 mm. All tools used must be designed for the maximum permissible cutting speed of the machine. Turn off the machine and wait until the tool has stopped.
-
Page 17: Electrical Connection
ELECTRICAL CONNECTION ELECTRICAL CONNECTION safety devices * Sheet protection The blade guard protects against touching the diamond cutting disc and against dangerous parts being thrown out during cutting. The blade guard must always be fitted during operation. * For your safety The stone cutting machine is equipped as standard with a PRCD personal protection plug (230V / 16A, nominal residual current 30mA, protection class IP54). - Page 18 ELECTRICAL CONNECTION COMMISSIONING During transport, the power cable must be rolled up. Under no circumstances should the machine be moved by pulling on the cable. The machine must be connected via the PRCD plug.The PRCD plug must always be checked before each commissioning as follows: 1.
- Page 19 COMMISSIONING 1. All covers and safety devices must be properly installed before operation. 2. The diamond cutting disc must be checked to ensure it is firmly seated and running smoothly. 3. Check the water hoses from the pump to the blade guard. 4.
-
Page 20: Operation
OPERATION OPERATION You may only carry out the work described in this chapter after you have read and understood the "Safety Instructions" section. It concerns your personal safety! The stone cutting machine may only be operated by one person. Other people must keep a sufficient distance from the machine. - Page 21 OPERATION Turn off • To switch off, press the “EMERGENCY STOP button” (X) or fold the yellow cover to the side and press the red button (0) on the switch. The water pump starts automatically when the drive motor is switched on! water cooling •...
- Page 22 OPERATION • Do not start working until the cutting disc has reached its maximum speed. • Make sure that the cooling water pump flushes water onto the cutting disc. • Only workpieces that can be safely placed on the table may be processed. •...
- Page 23 OPERATION With the additional table, you can ensure a larger support surface during the sawing process of large workpieces. This table can be attached to either side of the machine. Making miter cuts For cuts at an angle of 45° (G blocking niche device.
- Page 24 OPERATION Always hold or press the workpiece against the corresponding workpiece stop. perform plunge cuts The cutting head has a cutting function with which the height of the cutting disc can be adjusted. The return movement is carried out by a spring. This allows the cutter to plunge directly into the material.
-
Page 25: Maintenance And Care
MAINTENANCE AND CARE MAINTENANCE AND CARE Before all maintenance and cleaning work: – Switch off the machine. – Wait until the diamond cutting disc comes to a standstill. – Unplug the power cord. Only use original parts as spare parts, especially for safety devices and cutting tools. Parts that have not been tested and approved by the manufacturer can lead to unforeseeable damage. - Page 26 MAINTENANCE AND CARE 4. Hold the cutting shaft with the Allen key and use the open-end wrench (assembly tool included in delivery) to loosen the clamping nut/hexagon nut (Attention: Left-hand thread). Remove the clamping nut, the outer pressure flange and carefully remove the diamond cutting disc.
- Page 27 MAINTENANCE AND CARE settled sludge. • Clean and rinse the water pump strainer daily. • Regularly remove any stuck dust from the ventilation openings and moving parts using a damp cleaning cloth. • Do not clean the diamond cutting disc with flammable liquids. •...
-
Page 28: Transport / Storage
TRANSPORT / STORAGE TRANSPORT WARNING! For electrically powered machines: Unplug the power cord before moving the machine. • Only transport the machine when the cutting head is fixed. • The coolant must be completely drained before transport. • Always transport the machine horizontally. •... -
Page 29: Environmental Protection
WA U R NM G W UE PC F H L E UG T E Z DISPOSAL N LDTS N TDUU DISPOSAL AND ENVIRONMENTAL PROTECTION Dispose of worn or defective cutting discs in accordance with local waste disposal regulations. To prevent misuse, cutting discs that are no longer in use must be destroyed before disposal. -
Page 30: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Before any troubleshooting: – Turn off the machine – Wait until the cutting disc stops – Unplug the power cord. Check power supplier and supply line. Engine does not start: There is no power reaching the machine. ATTENTION! Switch may only be Switch defective. -
Page 31: Technical Data
TECHNICAL DATA MAINTENANCE AND CARE TECHNICAL DESCRIPTION TECHNICAL DATA STM 350-1200PRO Model name: 230 V ~ 50 Hz Operating voltage: 2.0 kW - S6 40% Engine power: 16.0 A Operating current: Protection class: IP 54 Protection class: Weight: 129 kg Dimensions (L x W x H): 1460x770x1500mm Table size:... -
Page 32: Warranty / Guarantee
LUMAG guarantees impeccable quality and, without prejudice to the statutory warranty, provides a guarantee in the event of material or manufacturing defects. The guarantee for LUMAG products is 24 months for exclusively private use, and 12 months for commercial or professional use or rental, from the date of delivery. -
Page 33: Customer Service
Please clearly label the shipping box with the SERVICE NUMBER to ensure quick identification. Warranty work is carried out exclusively by our LUMAG service workshop. Defects that occur within the warranty period due to material or manufacturing defects must be remedied by repair if they have arisen despite proper operation and care of the machine. -
Page 34: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY In accordance with the provisions of the EC directives Machinery Directive 2006/42/EC EMC Directive 2014/30/EU explains the company LUMAG GmbH Rudolf-Diesel-Str. 1a D-84375 Kirchdorf a.Inn Phone: +49 / 8571 / 92 556-0 Fax: +49 / 8571 / 92 556-19... -
Page 35: Components Of The Machine
COMPONENTS OF THE MACHINE... - Page 36 LUMAG GmbH /lumag.germany Rudolf-Diesel-Str. 1a D-84375 Kirchdorf a.Inn /Lumag machines Phone: + 49 8571/92556-0 Fax: + 49 8571/92556-19 info@lumag-maschinen.de /+Lumag machines e-mail: Internet: www.lumag-maschinen.de...
